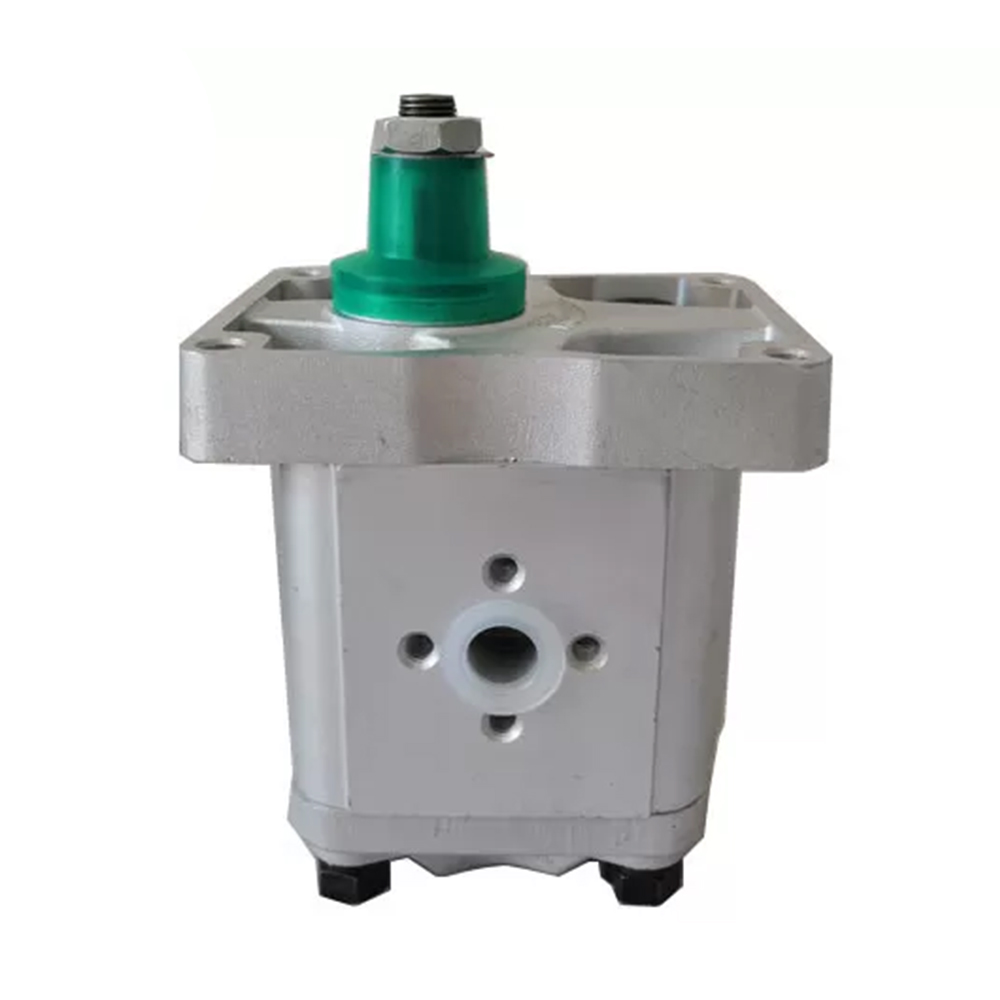

Hydraulic Gear Pump
Xeriwell or Others
| Product Name: | High Efficiency Hydraulic Pump | Pressure Level: | 16 MPa |
|---|---|---|---|
| Displacement (ml/r): | 04,06,08,10,12,14,16,20,25 | Applications: | , Fiat Tractors Fiat / Fiatagri 80-90 |
| Direction Of Rotation: | Left , Right | Gear Modulus: | 3 |
| Highlight: | high pressure gear pump,small gear pump | ||
Fiat Tractor Main Hydraulic Gear Pump A42/L 5179714 Tractor OEM tractor Part 5129488 5179711 5169770 best price
The hydraulic gear pump produced by Xeriwell is widely used in various kinds of machinery, such as tractors, excavators, forklifts and other projects as well as agricultural machinery, and is professionally designed for well-known brands of imported machinery, such as Ford, Kubota, Lovol and others.
Technical parameters
Main Specifications:
| F1 | F2 | ||||
| Displacement (ml/r) | Inlet Port | Out Port | Displacement (ml/r) | Inlet Port | Out Port |
| 06 | 47.6x22.2 φ23 | 47.6x22.2 φ20 | 06 | 52.4x 26.2 φ23 | 7.6x22.2 φ20 |
| 08 | 08 | ||||
| 10 | 10 | ||||
| 12 | 12 | ||||
| 14 | 14 | ||||
| 16 | 16 | ||||
| 18 | 52.4x26.2 φ26 | 18 | 52.4x26.2 φ26 | ||
| 20 | 20 | ||||
| 23 | 23 | ||||
| 25 | 25 | ||||
| 27 | 27 | ||||
| 30 | 30 | ||||
| 32 | 32 | ||||
| 36 | 36 | ||||
| 40 | 40 | ||||
| S | FS | ||||
| Displacement (ml/r) | Inlet Port | Out Port | Displacement (ml/r) | Inlet Port | Out Port |
| 06 | M22x1.5-6H | M18x1.5-6H | 06 | 52.4x26.2 φ26 | M22x 1.5-6H |
| 08 | 08 | ||||
| 10 | 10 | ||||
| 12 | 12 | ||||
| 14 | 14 | ||||
| 16 | 16 | ||||
| 18 | M33x2-6H | M27x2-6H | 18 | M33x 2-6H | |
other type application
| Xeriwell Hydraulic Orbital Steering Units and Hydrauic Gear Pumps |
| CLAAS |
| DEUTZ |
| FIAT |
| Lamborghini |
| SAME |
| Landini |
| Massey Ferguson |
| Kubota |
| FENDT |
| VALTRA |
| MTZ |
| ■性能参数 Specification | |||||||
| 型 号 Model | 公称排量(ml/r) Nominal Displacement | 压力(MPa) Pressure | 转速(r/min) Speed | 容积效率(≥%) Volumetric efficiency | 输入功率(kw) Input Powel | ||
| 额定Rated | 最高Max | 额定Rated | 最高Max | ||||
| CBN-E(F)304 | 4 | E16 F20 | E20 F25 | 2000 | 3000 | ≥92 | 3 |
| CBN-E(F)306 | 6 | 4.6 | |||||
| CBN-E(F)308 | 8 | 6.1 | |||||
| CBN-E(F)310 | 10 | 7.7 | |||||
| CBN-E(F)312 | 12 | 9 | |||||
| CBN-E(F)314 | 14 | 10.3 | |||||
| CBN-E(F)316 | 16 | 12.8 | |||||
| CBN-E(F)320 | 20 | 16.1 | |||||
| CBN-E(F)325 | 25 | 17.4 | |||||
| 型 号 Model | A (mm) | B (mm) | D(mm) | |
| 进油口 Inlet | 出油口 Outlet | |||
| CBN–E(F)304 | 43.3 | 98.5 | Φ14 （M20×1.5，ZG1/2”） | Φ10 （M18×1.5，ZG3/8”） |
| CBN–E(F)306 | 45 | 102 | ||
| CBN–E(F)308 | 46.5 | 105 | ||
| CBN–E(F)310 | 48 | 108 | Φ18 （M20×1.5，ZG3/4”） | Φ14 （M18×1.5，ZG1/2”） |
| CBN–E(F)312 | 49.5 | 111 | ||
| CBN–E(F)314 | 51 | 114 | ||
| CBN–E(F)316 | 52.5 | 117 | ||
| CBN–E(F)320 | 56 | 124 | ||
| CBN–E(F)325 | 60 | 130 | ||
Xeriwell Gear Pump Features:
1. Axial gap automatic compensation mechanism keeps high volumetric efficiency
2. Low noise and long service life
3. Application of high strength aluminum alloy materials, light weight, low installation labor intensity
4. Input shaft types: key,rectangular spline,involute spline and woodruff
5. Connections types for the inlet and outlet ports: thread or flange etc.
Applications:
This series pumps also have the advantage of its simple structure, reliable performance, volumetric efficiency, shock resistence and long life service. And they are widely used in the tractors, construction machinery, sanitation trucks and other hydraulic systems.
Xeriwell Is an enterprise specializing in the production of BM series cycloid hydraulic motor, BZZ full hydraulic steering gear, hydraulic gear pump, FK combination valve block and other hydraulic components. The products are widely used in engineering machinery, mining machinery, metallurgical machinery, petroleum machinery, agricultural machinery, injection molding machinery, fishery machinery military engineering and other fields.
Our company has many sets of imported equipment and advanced production technology, has dozens of high-quality engineering and technical personnel, and equipped with its own research and development team, with strong technical force to ensure product quality. We have a complete set of product quality assurance system from employees, raw materials entering the factory, parts processing, equipment testing and product delivery. With high quality, friendly price and considerate service, the products are favored by users at home and abroad.
Xeriwell Hydraulic gear pump for any hydraulic system, our company uses high-end machine tools, excellence, the most humane service, manufacture and service the world, with good products and services to serve the world, welcome advice.
