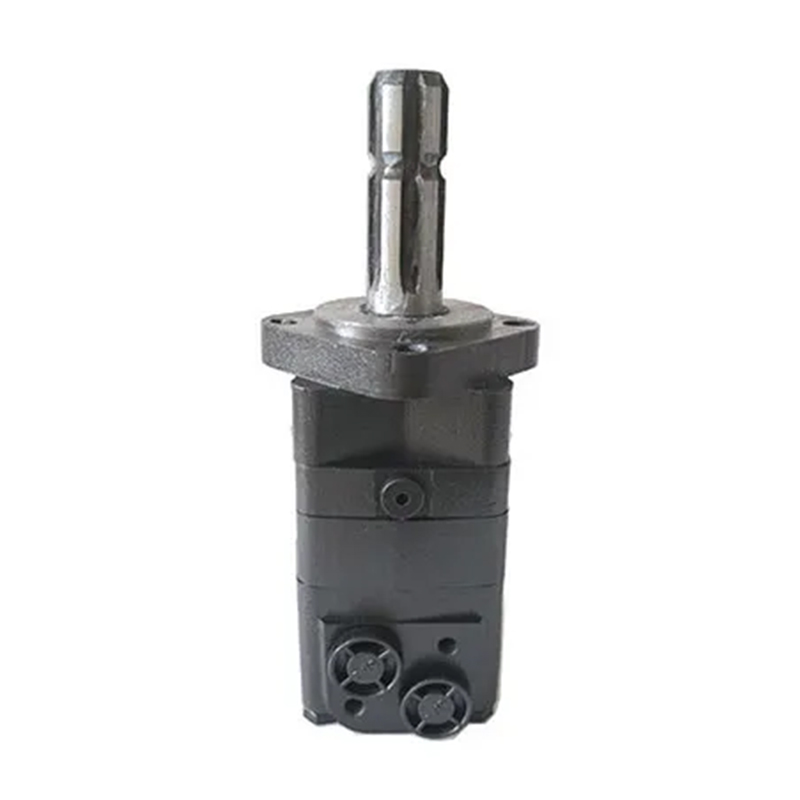

Eterra Powered 3-Point Hitch Mount Hydraulic Motor OMS315 with PTO Shaft, G1/2 Port Thread
You are here: Home » Products » Hydraulic Motor » Ungrouped » Eterra Powered 3-Point Hitch Mount Hydraulic Motor OMS315 with PTO Shaft, G1/2 Port Thread

loading

Eterra Powered 3-Point Hitch Mount Hydraulic Motor OMS315 with PTO Shaft, G1/2 Port Thread

Pictures are for display only, please contact us to choose the right product for you.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
  • BMSY315

  • Xeriwell or Others

Product: Disc Valve Hydraulic Motor Apply To: Tractor Attachment
Flange: 4bolts Flange Shaft: SAE B -6spline Shaft
Max Flow: Cont.75/int.90L/min Max Speed: Cont.240rpm/int.280rpm
Highlight:

3 Point Hydraulic Motor Oms 315

,

Eterra Powered Hydraulic Motor Oms 315

,

Hydraulic Motor With PTO Shaft


Eterra powered 3-Point attachment Motor-- hydraulic motor oms315 with PTO shaft,G1/2 port thread


PTO DRIVE MOTOR DETAILS:

BRAND Xeriwell
TYPE BMSY 315
REPLACEMENT OMS 315
FLANGE 4 BOLTS FLANGE,DIAMETERS 106.4MM
SHAFT 6 SPLINE SHAFT
PORTS G1/2
APPLICATION 3-POINT ATTACHMENT


Main Specifications:

Type BMSY
BMSE
80
BMSY
BMSE
100
BMSY
BMSE
125
BMSY
BMSE
160
BMSY
BMSE
200
BMSY
BMSE
250
BMSY
BMSE
315
BMSY
BMSE
375
Geometric displacement
(cm3 /rev.)
80.6 100.8 125 157.2 200 252 314.5 370
Max. speed (rpm) cont. 800 748 600 470 375 300 240 200
int. 988 900 720 560 450 360 280 240
Max. torque (N·m) cont. 190 240 310 316 400 450 560 536
int. 240 300 370 430 466 540 658 645
peak 260 320 400 472 650 690 740 751
Max. output (kW) cont. 15.9 18.8 19.5 15.6 15.7 14.1 14.1 11.8
int. 20.1 23.5 23.2 21.2 18.3 17 18.9 17
Max. pressure drop (MPa) cont. 17.5 17.5 17.5 15 14 12.5 12 10
int. 21 21 21 21 16 16 14 12
peak 22.5 22.5 22.5 22.5 22.5 20 18.5 14
Max. flow (L/min) cont. 65 75 75 75 75 75 75 75
int. 80 90 90 90 90 90 90 90
Max. inlet pressure (MPa) cont. 25 25 25 25 25 25 25 25
int. 30 30 30 30 30 30 30 30
Weight (kg) 9.8 10 10.3 10.7 11.1 11.6 12.3 12.6

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.


Xeriwell’s BMSY series hydraulic motor is one of our best-selling models. Adopting an advanced valve plate and gear set design, it is also available in customized standalone versions for diverse multi-functional operating equipment.
Equipped with precision-manufactured Geroler gear sets processed by advanced production equipment, the motor features low starting pressure, delivering ultra-smooth operation as well as outstanding reliability and high working efficiency in actual service scenarios.
The output shaft of the BMSY series is fitted with tapered roller bearings, enabling it to withstand high axial and radial loads. It delivers excellent high-pressure and high-torque performance, making it ideal for vehicles and machinery with heavy load demands and large pressure drop requirements, hence allowing for broader application coverage.
With an advanced disc flow distribution structure, the motor realizes automatic flow compensation under high-flow working conditions, effectively extending its overall service life.
The BMSY series is only a small part of Xeriwell’s full product lineup. We supply a comprehensive range of hydraulic motors that serve as perfect replacements for well-known international brands. Adhering to the brand philosophy of same premium quality at a more competitive price, Xeriwell always focuses on strict production quality and premium cooperative services. We sincerely welcome global partners for business cooperation, and interested clients are warmly invited to visit our factory for inspection and negotiation.

We also provide MHT200C4 medium-speed hydraulic motor for your selection.
