| Quantity: | |
|---|---|

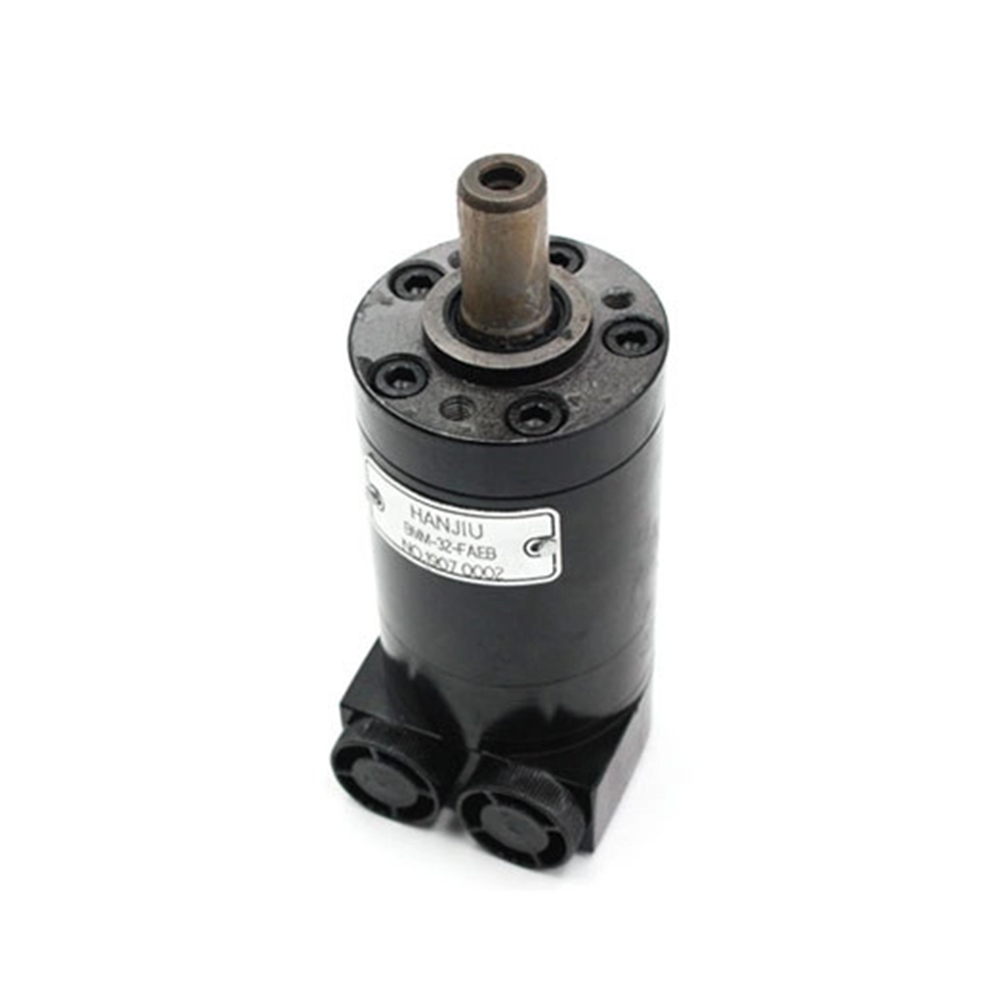

BMM
Xeriwell or Others
| Type: | Gerotor Hydraulic Motor | Max Torque: | Cont.11-46n.m/int15-88n.m |
|---|---|---|---|
| Max Speed: | Cont400-1950rpm/int.500-2450rpm | Displacement: | 8,12, 20, 32, 40, 50 ML/R |
| Max Flow: | Cont.16-20l/min Int.20-25l/min | Max.output: | Cont.1.8-2.4kw/int.2.6-3.2kw |
| Highlight: | Equipments Cleaning Gerotor Hydraulic Motor,Gerotor Hydraulic Motor BMM32,Underwater Hydraulic Motor BMM32 | ||
this type of hydraulic motor has the same technology with Europe/US products,as well as the performance
with long life,less leakage,widely used as below machines
Main Specifications:
| type | BMM8 | BMM12 | BMM20 | BMM32 | BMM40 | BMM50 | |
| displacement | 8.2 | 12.9 | 19.9 | 31.6 | 39.8 | 50.3 | |
| Max speed(rpm) | rated | 1537 | 1256 | 814 | 513 | 452 | 358 |
| Cont. | 1950 | 1550 | 1000 | 630 | 500 | 400 | |
| int. | 2450 | 1940 | 1250 | 800 | 630 | 500 | |
| Max Torque (N*M) | rated | 8 | 13 | 19 | 31 | 37 | 33 |
| Cont. | 11 | 16 | 25 | 40 | 45 | 46 | |
| int. | 15 | 23 | 35 | 57 | 70 | 88 | |
| peak | 21 | 33 | 51 | 64 | 82 | 100 | |
| Max speed (kw) | rated | 1.3 | 1.7 | 1.7 | 1.7 | 1.7 | 1.2 |
| Cont. | 1.8 | 2.4 | 2.4 | 2.4 | 2.2 | 1.8 | |
| int. | 2.6 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | |
| Max pressure drop(MPa) | rated | 9 | 9 | 9 | 9 | 8.5 | 6 |
| Cont. | 10 | 10 | 10 | 10 | 9 | 7 | |
| int. | 14 | 14 | 14 | 14 | 14 | 14 | |
| peak | 20 | 20 | 20 | 16 | 16 | 16 | |
| Max flow(L/min) | rated | 14 | 18 | 18 | 18 | 20 | 20 |
| Cont. | 18 | 20 | 20 | 20 | 20 | 20 | |
| int. | 20 | 25 | 25 | 25 | 25 | 25 | |
| Weight(kg) | 1.9 | 2 | 2.1 | 2.2 | 2.3 | 2.4 | |
| Type | Max.inlet pressure | |
| BMM8-50 | Cont. | 17.5 |
| (Mpa) | Int. | 22.5 |

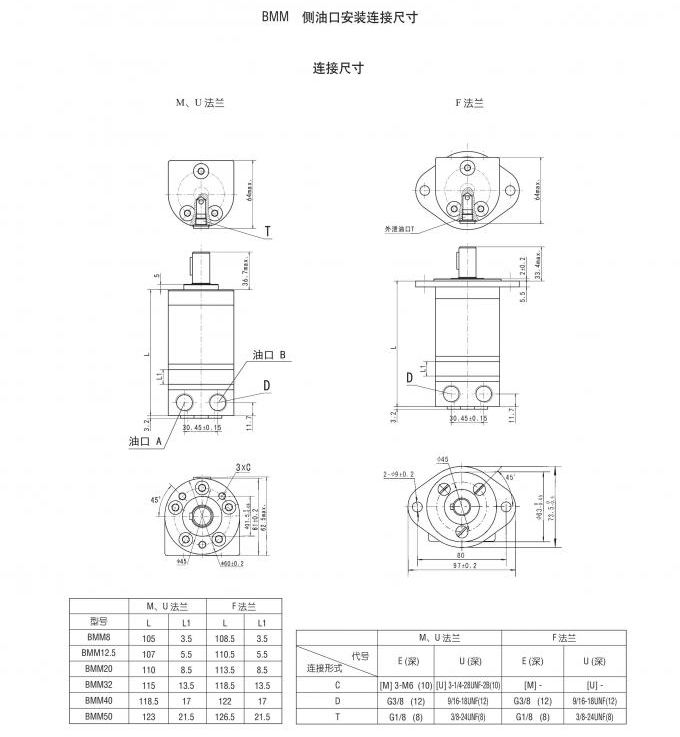

| M、U法兰 | F法兰 | |||
| 型号 | L | L1 | L | L1 |
| BMM8 | 105 | 3.5 | 108.5 | 3.5 |
| BMM12.5 | 107 | 5.5 | 110.5 | 5.5 |
| BMM20 | 110 | 8.5 | 113.5 | 8.5 |
| BMM32 | 115 | 13.5 | 118.5 | 13.5 |
| BMM40 | 118.5 | 17 | 122 | 17 |
| BMM50 | 123 | 21.5 | 126.5 | 21.5 |
| M、U法兰 | F法兰 | |||
| 连接形式 代号 | E（深） | U（深） | E（深） | U（深） |
| C | [M] 3-M6（10） | [U] 3-1/4-28UNF-2B(10) | [M] - | [U] - |
| D | G3/8 （12） | 9/16-18UNF(12) | G3/8 （12） | 9/16-18UNF(12) |
| T | G1/8 （8） | 3/8-24UNF(8) | G1/8 （8） | 3/8-24UNF(8) |
