| Quantity: | |
|---|---|
OMR160
Xeriwell or Others
| Item: | Orbital Motor | Model Number: | OMR160 |
|---|---|---|---|
| Manufacturer: | Xeriwell | Feature: | With Rear Port |
| Highlight: | danfoss hydraulic motor omr 160,rear ports orbit hydraulic motor,151-6194 orbit hydraulic motor | ||

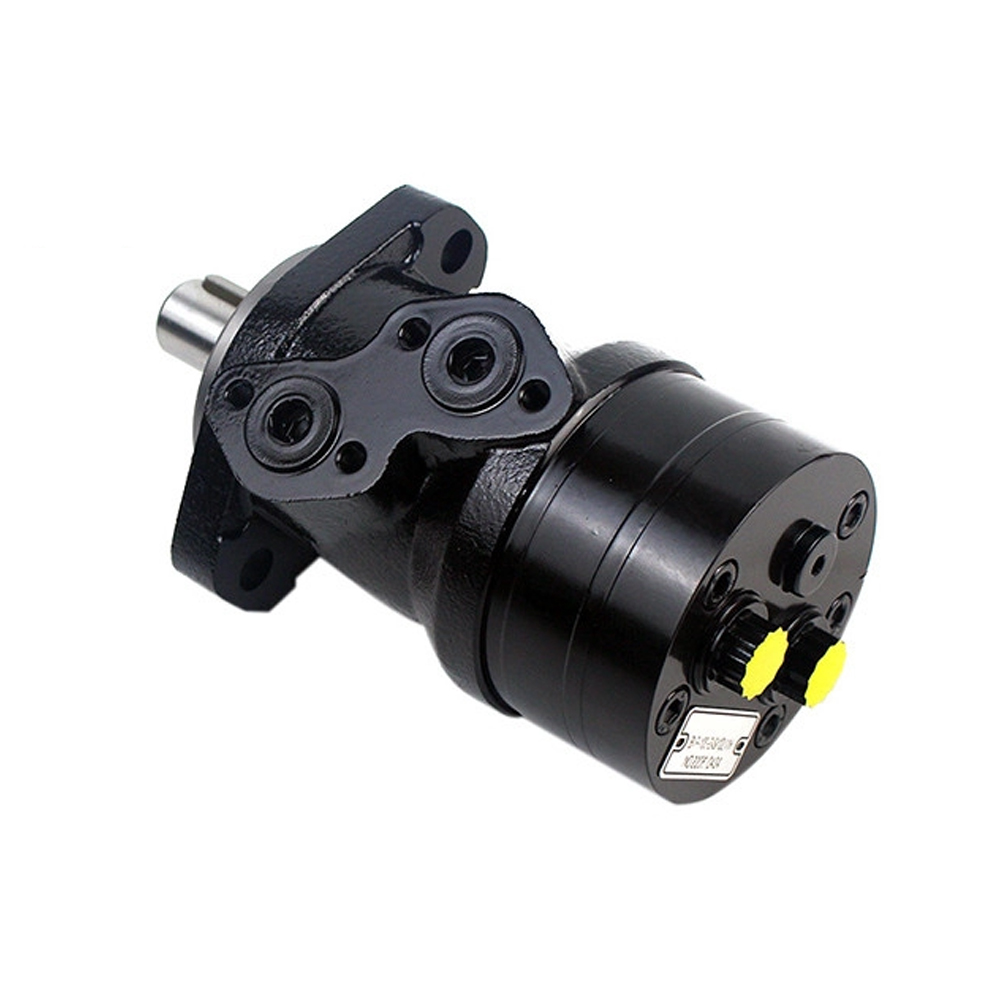

Engine OMR160, Ø25 shaft, rear ports, compatible with Danfoss 151-6194
Quick review:
This is an OMR Orbital Motor with rear port. It is form, fit and function compatible with Danfoss OMR 151-6194. Dealers and users of Danfoss sell and use it directly as an OMR 151-6194 compatible motor.
Technical information
Cylindrical shaft Ø25 mm Flange Sae
A 2 bolt - centring 82.5 mm Rear ports
ref Danfoss 151-6194
Parameters:
| Type | BMR BMRS 36 | BMR BMRS 50 | BMR BMRS 80 | BMR BMRS 100 | BMR BMRS 125 | BMR BMRS 160 | BMR BMRS 200 | BMR BMRS 250 | BMR BMRS 315 | BMR BMRS 375 | |
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 | |
| Max. speed (rpm) | cont. | 1085 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
| int. | 1220 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 | |
| Max. torque (N·m) | cont. | 72 | 100 | 195 | 240 | 300 | 360 | 360 | 390 | 390 | 365 |
| int. | 83 | 126 | 220 | 280 | 340 | 430 | 440 | 490 | 535 | 495 | |
| peak | 105 | 165 | 270 | 320 | 370 | 460 | 560 | 640 | 650 | 680 | |
| Max. output (kW) | cont. | 8.5 | 9.5 | 12.5 | 13 | 12.5 | 12.5 | 10 | 7 | 6 | 5 |
| int. | 9.8 | 11.2 | 15 | 15 | 14.5 | 14 | 13 | 9.5 | 9 | 8 | |
| Max. pressure drop (MPa) | cont. | 14 | 14 | 17.5 | 17.5 | 17.5 | 16.5 | 13 | 11 | 9 | 7 |
| int. | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 17.5 | 15 | 13 | 10 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 17.5 | 15 | |
| Max. flow (L/min) | cont. | 40 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 45 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8 | 8.5 | 9 | 9.5 | |
Below models also available:
151-6210
151-6211
151-6212
151-6213
151-6214
151-6215
151-6216
151-6217
About manufacturer:
Xeriwell is a hydraulic orbital motor manufacturer from China. Currently a strong contender in Europe for Danfoss, White, M+S, Brevini. In North America, Latin America and Australia are strong contenders for Eaton, Parker. You can get high-end motors in Xeriwell that are compatible with Danfoss, M+S, White, Dana Brevini, Eaton, Parker in form, fit and function, with a complete range, more reasonable prices, stable and fast delivery.
Contact us to discuss your needs, tell us your needs, and we will assist you in solving your difficulties and achieving a reliable and competitive supply.

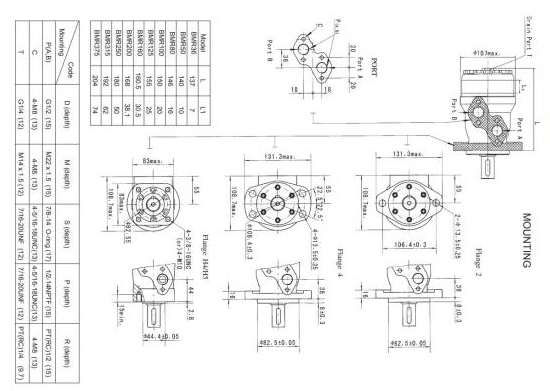

| Mounting Code | D (depth) | M (depth) | S (depth) | P (depth) | R (depth) |
| P(A,B) | G1/2 (15) | M22 x 1.5 (15) | 7/8-14 O-ring (17) | 1/2-14NPTF (15) | PT(RC)1/2 (15) |
| C | 4-M8 (13) | 4-M8 (13) | 4-5/16-18UNC(13) | 4-5/16-18UNC(13) | 4-M8 (13) |
| T | G1/4 (12) | M14 x 1.5 (12) | 7/16-20UNF (12) | 7/16-20UNF (12) | PT(RC)1/4 (9.7) |
| Model | L | L1 |
| BMR36 | 137 | 7 |
| BMR50 | 140 | 10 |
| BMR80 | 146 | 16 |
| BMR100 | 150 | 20 |
| BMR125 | 155 | 25 |
| BMR160 | 160.5 | 30.5 |
| BMR200 | 168 | 38.1 |
| BMR250 | 180 | 50 |
| BMR315 | 192 | 62 |
| BMR375 | 204 | 74 |
