| Quantity: | |
|---|---|
BMT-800-4-M-D
Xeriwell or Others
| Features: | Compatible With Danfoss OMT/OMTS, M+S MLHT | Item: | Hydraulic Heave Motor |
|---|---|---|---|
| Item Number: | BMT-800-4-M-D | Displacement: | 800 Ml/r |
| Flange: | 4-Ø14 Square-flangeØ160, PilotØ125×9 | Shaft: | Shaft Ø40 |
| Port: | G3/4 | Rotation: | BIO-Clockwise |
| Highlight: | square mounting flange hydraulic heavy motor,40mm hydraulic heavy motor,Compatible hydraulic heavy motor | ||

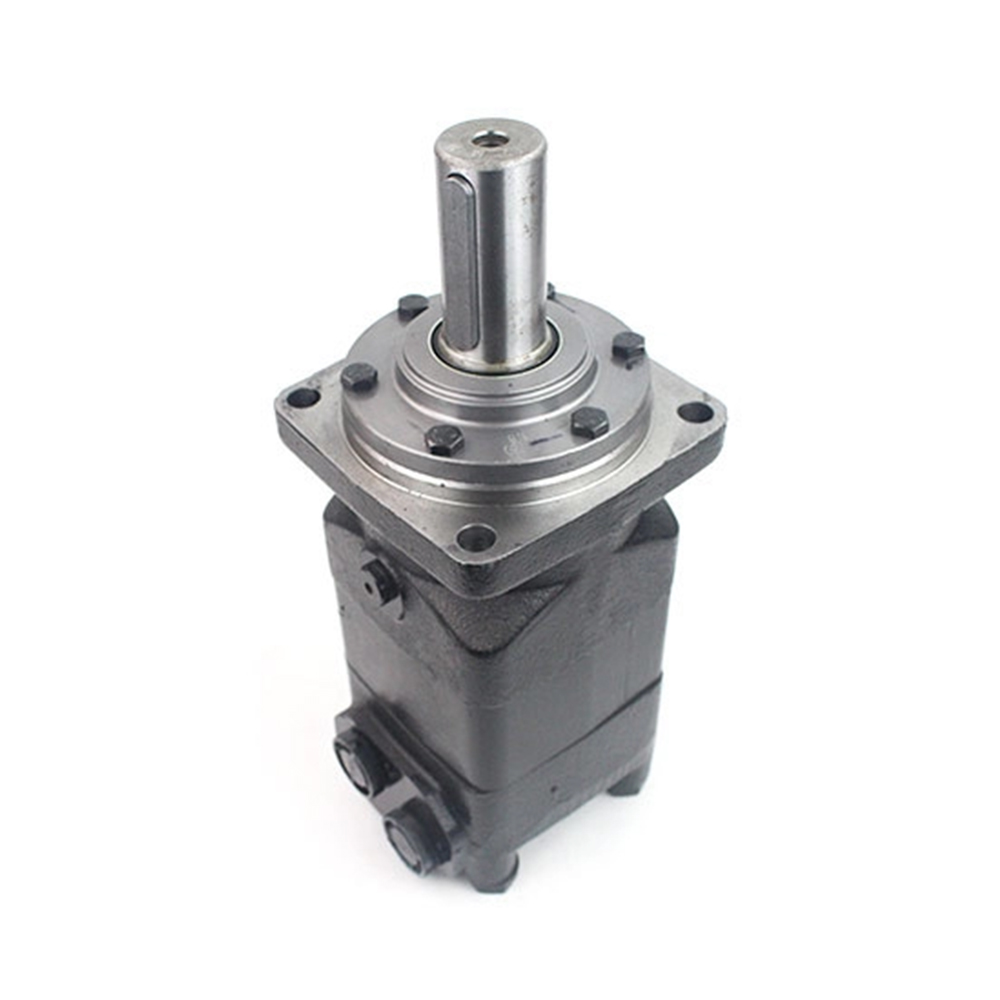

Engine Compatible With OMT800, square mounting flange ,40mm straight key shaft hydraulic heavy motor
Quick review:
Xeriwell BMT = Char-Lynn 6000, Danfoss OMT/OMTS, M+S MLHT
Model Number:
BMT-800-4-M-D
Quick detail:
| Product | Hydraulic Heavy Motor |
| Model No. | BMT-800-4-M-D |
| Size | 800 ml/r |
| Flange | 4-Ø14 Square-flangeØ160, pilotØ125×9 |
| Shaft | Shaft Ø40 |
| Rotation | bio-Clockwise |
| Port | G3/4, drain port G1/2 |
| Features | Danfoss interchangeable |
| Main Specifications: |
| Type | BMT 160 | BMT 200 | BMT 230 | BMT 250 | BMT 315 | BMT 400 | BMT 500 | BMT 630 | BMT 800 | |
| Geometric displacement (cm3 /rev.) | 161.1 | 201.4 | 232.5 | 251.8 | 326.3 | 410.9 | 523.6 | 629.1 | 801.8 | |
| Max. speed (rpm) | cont. | 625 | 625 | 536 | 500 | 380 | 305 | 240 | 196 | 154 |
| int. | 780 | 750 | 643 | 600 | 460 | 365 | 285 | 233 | 185 | |
| Max. torque (N·m) | cont. | 470 | 590 | 670 | 730 | 950 | 1080 | 1220 | 1318 | 1464 |
| int. | 560 | 710 | 821 | 880 | 1140 | 1260 | 1370 | 1498 | 1520 | |
| peak | 669 | 838 | 958 | 1036 | 1346.3 | 1450.3 | 1643.8 | 1618.8 | 1665 | |
| Max. output (kW) | cont. | 27.7 | 34.9 | 34.7 | 34.5 | 34.9 | 31.2 | 28.8 | 25.3 | 22.2 |
| int. | 32 | 40 | 40 | 40 | 40 | 35 | 35 | 27.5 | 26.8 | |
| Max. pressure drop (MPa) | cont. | 20 | 20 | 20 | 20 | 20 | 18 | 16 | 14 | 12.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 21 | 18 | 16 | 13 | |
| peak | 28 | 28 | 28 | 28 | 28 | 24 | 21 | 19 | 16 | |
| Max. flow (L/min) | cont. | 100 | 125 | 125 | 125 | 125 | 125 | 125 | 125 | 125 |
| int. | 125 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | |
| Max. inlet pressure (MPa) | cont. | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 |
| int. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| peak | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 19.5 | 20 | 20.4 | 20.5 | 21 | 22 | 23 | 24 | 25 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

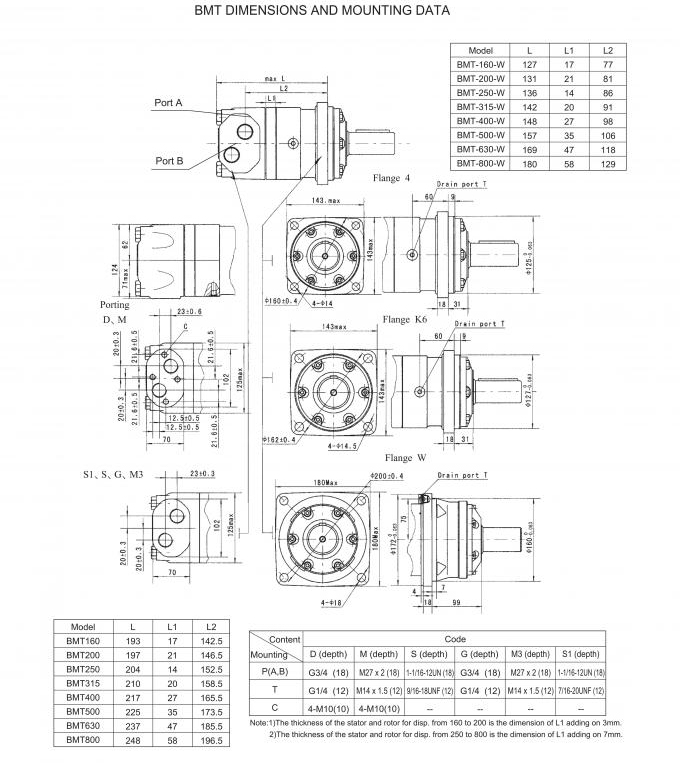

| Model | L | L1 | L2 |
| BMT-160-W | 127 | 17 | 77 |
| BMT-200-W | 131 | 21 | 81 |
| BMT-250-W | 136 | 14 | 86 |
| BMT-315-W | 142 | 20 | 91 |
| BMT-400-W | 148 | 27 | 98 |
| BMT-500-W | 157 | 35 | 106 |
| BMT-630-W | 169 | 47 | 118 |
| BMT-800-W | 180 | 58 | 129 |
| Model | L | L1 | L2 |
| BMT160 | 193 | 17 | 142.5 |
| BMT200 | 197 | 21 | 146.5 |
| BMT250 | 204 | 14 | 152.5 |
| BMT315 | 210 | 20 | 158.5 |
| BMT400 | 217 | 27 | 165.5 |
| BMT500 | 225 | 35 | 173.5 |
| BMT630 | 237 | 47 | 185.5 |
| BMT800 | 248 | 58 | 196.5 |
| Mounting Content | Code | |||||
| D (depth) | M (depth) | S (depth) | G (depth) | M3 (depth) | S1 (depth) | |
| P(A,B) | G3/4（18） | M27 × 2 (18) | 1-11/16-12UN (18) | G3/4（18） | M27 × 2 (18) | 1-11/16-12UN (18) |
| T | G1/4（12） | M14 × 1.5 (12) | 9/16-18UNF (12) | G1/4（12） | M14 × 1.5 (12) | 7/16-20UNF (12) |
| C | 4-M10(10) | 4-M10(10) | -- | -- | -- | -- |
| Note:1)The thickness of the stator and rotor for disp. from 160 to 200 is the dimension of L1 adding on 3mm. 2)The thickness of the stator and rotor for disp. from 250 to 800 is the dimension of L1 adding on 7mm. | ||||||
