| Quantity: | |
|---|---|

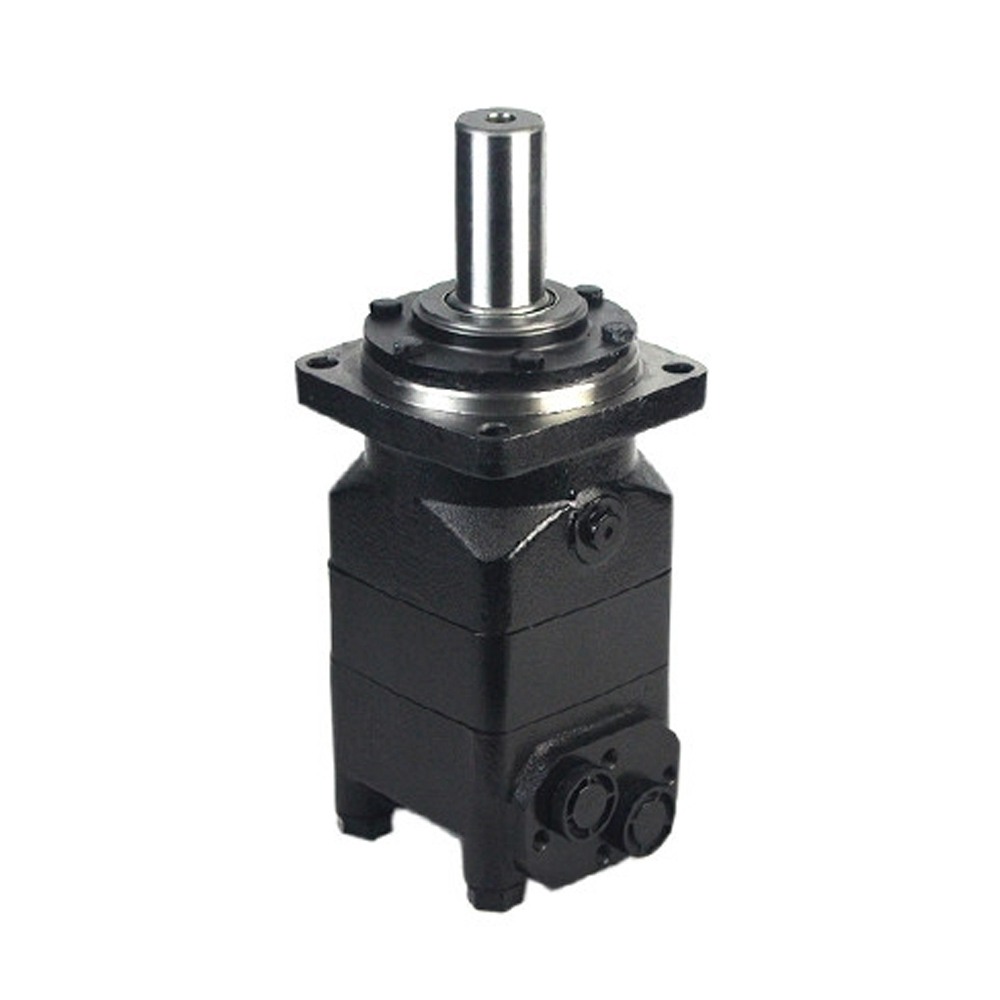

BMT-630-4-M-D
Xeriwell or Others
| Features: | Compatible With BMT/BMTS, Char-Lynn6000, Danfoss OMT/OMTS, M+S MLHT | Item: | Orbital Hydraulic Motor |
|---|---|---|---|
| Model Number: | BMT-630-4-M-D | Size: | 630 Ml/r |
| Flange: | 4-Ø14 Square-flangeØ160, PilotØ125×9 | Shaft: | Shaft Ø40 |
| Port: | M27×2 Manifold Mount,4-M10, M14×1.5 | Rotation: | Clockwise |
| Highlight: | Char Lynn 6000 Series Orbit Hydraulic Motor,BMT-630-4-M-D Orbit Hydraulic Motor,Char Lynn 6000 Series Hydraulic Motor | ||
Engine compatible with BMT/BMTS, Char-Lynn6000, Danfoss OMT/OMTS, M+S MLHT
Quick review:
Xeriwell BMT = Char-Lynn 6000, Danfoss OMT/OMTS, M+S MLHT
Model Number:
BMT-630-4-M-D
Quick detail:
| Product | Orbital Hydraulic Motor |
| Model No. | BMT-630-4-M-D |
| Size | 630 ml/r |
| Flange | 4-Ø14 Square-flangeØ160, pilotØ125×9 |
| Shaft | Shaft Ø40 |
| Rotation | Clockwise |
| Port | M27×2 Manifold Mount,4-M10, M14×1.5 |
| Features | Danfoss interchangeable |
Main Specifications:
| Type | BMT 160 | BMT 200 | BMT 230 | BMT 250 | BMT 315 | BMT 400 | BMT 500 | BMT 630 | BMT 800 | |
| Geometric displacement (cm3 /rev.) | 161.1 | 201.4 | 232.5 | 251.8 | 326.3 | 410.9 | 523.6 | 629.1 | 801.8 | |
| Max. speed (rpm) | cont. | 625 | 625 | 536 | 500 | 380 | 305 | 240 | 196 | 154 |
| int. | 780 | 750 | 643 | 600 | 460 | 365 | 285 | 233 | 185 | |
| Max. torque (N·m) | cont. | 470 | 590 | 670 | 730 | 950 | 1080 | 1220 | 1318 | 1464 |
| int. | 560 | 710 | 821 | 880 | 1140 | 1260 | 1370 | 1498 | 1520 | |
| peak | 669 | 838 | 958 | 1036 | 1346.3 | 1450.3 | 1643.8 | 1618.8 | 1665 | |
| Max. output (kW) | cont. | 27.7 | 34.9 | 34.7 | 34.5 | 34.9 | 31.2 | 28.8 | 25.3 | 22.2 |
| int. | 32 | 40 | 40 | 40 | 40 | 35 | 35 | 27.5 | 26.8 | |
| Max. pressure drop (MPa) | cont. | 20 | 20 | 20 | 20 | 20 | 18 | 16 | 14 | 12.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 21 | 18 | 16 | 13 | |
| peak | 28 | 28 | 28 | 28 | 28 | 24 | 21 | 19 | 16 | |
| Max. flow (L/min) | cont. | 100 | 125 | 125 | 125 | 125 | 125 | 125 | 125 | 125 |
| int. | 125 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | |
| Max. inlet pressure (MPa) | cont. | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 |
| int. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| peak | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 19.5 | 20 | 20.4 | 20.5 | 21 | 22 | 23 | 24 | 25 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
| Model | L | L1 | L2 |
| BMT160 | 193 | 17 | 142.5 |
| BMT200 | 197 | 21 | 146.5 |
| BMT250 | 204 | 14 | 152.5 |
| BMT315 | 210 | 20 | 158.5 |
| BMT400 | 217 | 27 | 165.5 |
| BMT500 | 225 | 35 | 173.5 |
| BMT630 | 237 | 47 | 185.5 |
| BMT800 | 248 | 58 | 196.5 |
| Mounting Content | Code | |||||
| D (depth) | M (depth) | S (depth) | G (depth) | M3 (depth) | S1 (depth) | |
| P(A,B) | G3/4 （18） | M27 x 2 (18) | 1-1/16-12UN (18) | G3/4 （18） | M27 x 2 (18) | 1-1/16-12UN (18) |
| T | G1/4 （12） | M14 x 1.5 (12) | 9/16-18UNF (12) | G1/4 （12） | M14 x 1.5 (12) | 7/16-20UNF (12) |
| C | 4-M10(10) | 4-M10(10) | -- | -- | -- | -- |
| Note:1)The thickness of the stator and rotor for disp. from 160 to 200 is the dimension of L1 adding on 3mm. 2)The thickness of the stator and rotor for disp. from 250 to 800 is the dimension of L1 adding on 7mm. | ||||||
