| Quantity: | |
|---|---|
101s-100cc , 101s-125cc, 101s-160cc
Xeriwell or Others
| Features: | OEM Tractor Parts | Product Name: | Hydraulic Steering Unit 101S |
|---|---|---|---|
| Brand: | Xeriwell | Displacement: | 50cc - 800cc |
| Application: | Agriculture Tractor Steering | Model Number: | 101s Open Center / Closed Center |
| Highlight: | hydraulic steering control unit,hydrostatic steering unit | ||

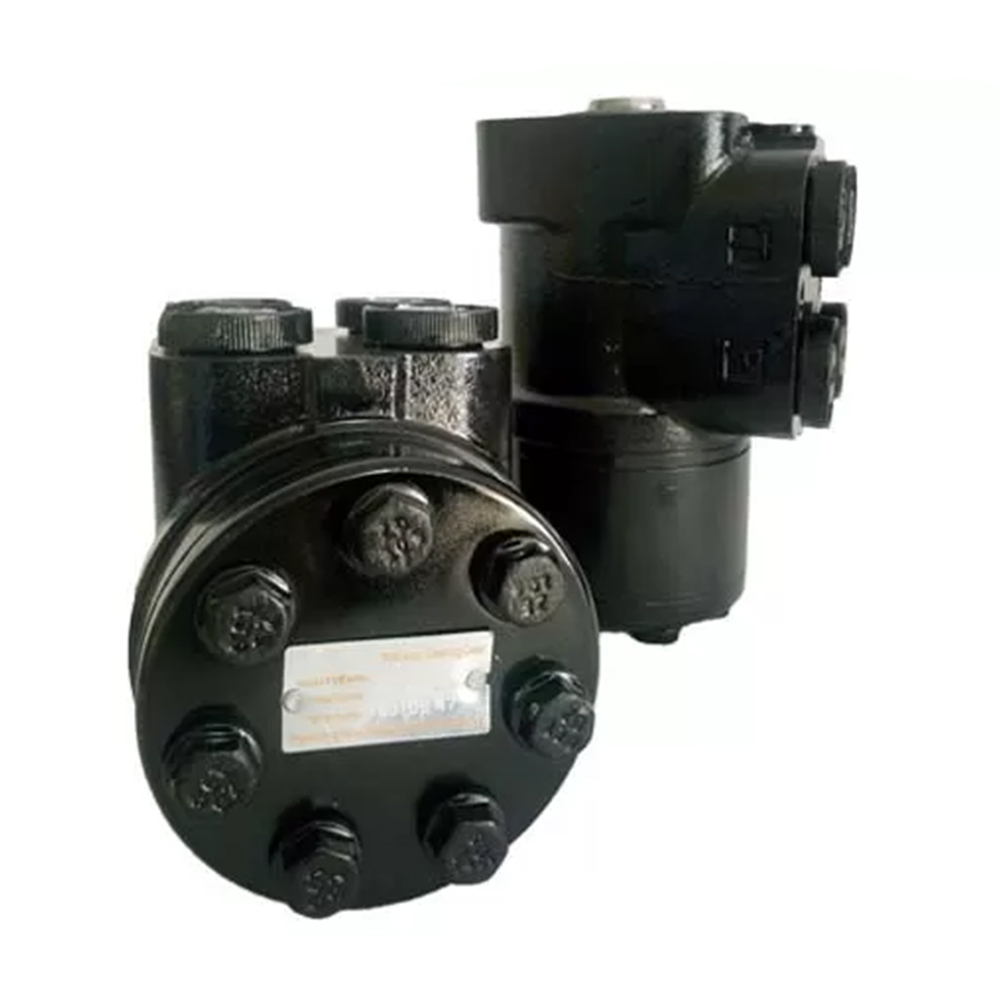

Hydraulic Steering Unit 101S For Tractor FORD , Tractor OEM Parts
♦ Characteristic Features
1. 101s Hydraulic steering unit with relief valve, suction valve, inlet check valve intergrated different valve.
2. Replace (OSPC), M+S (HKUS) series.
3. Hydraulic steering unit 101s match with Tractor OEM Part Number.
♦ Specification
| Parameters | Series 101S-*-***-**-* | ||||||||||

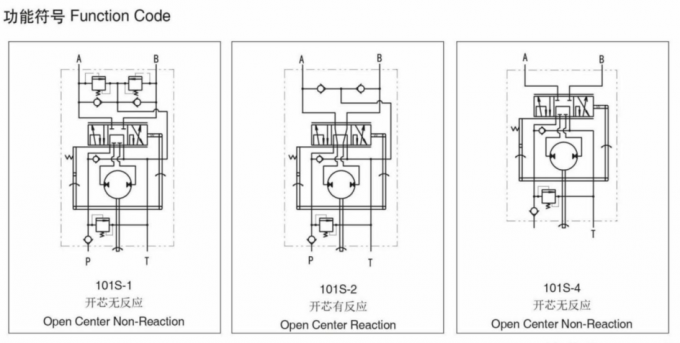

| Function code | 1,2,4 | 1,4 | |||||||||
| Displacement (mL/r) | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 280 | 315 | 400 |
| Rated Flow (L/min) | 5 | 6 | 8 | 10 | 12.5 | 16 | 20 | 25 | 28 | 32 | 40 |
| Max.input pressure(Mpa) | 16 | ||||||||||
| Relief Valve Pressure Settings ( MPa) | 06,07,08,10,12,14,15,16 | ||||||||||
| Shock Valve Pressure Settings ( MPa) | 12,13,14,16,18,20,21,22 | ||||||||||
| Max.cont.back pressure | 2.5 | ||||||||||
| Weight(kg) | 5.75 | 5.81 | 5.89 | 5.96 | 6.1 | 6.3 | 6.5 | 6.73 | 6.91 | 7.1 | 7.5 |
| Dimension L (mm) | 130 | 132 | 134 | 137 | 140 | 145 | 150 | 156 | 161 | 166 | 176 |
| 油口螺纹 Ports Threads | |||
| 代码 Code | P、T、A、B油口 Ports P,T,A,B | 连接螺纹C Column Mounting C | 连接螺纹V Valve Mounting V |
| A | M20×1.5 | M10 | M12 |
| B | M20×1.5 O-ring | ||
| C | M18×1.5 | ||
| D | M18×1.5 O-ring | ||
| E | G1/2 | M10×1 | |
| U | G1/2 O-ring | ||
| M | 3/4-16UNF O-ring | M12 | |
| F | 3/8-16 UNC | 3/8-24 UNF | |
| I | M10 | M10 | |
| N | M10×1.25 | ||
| 注1：油口P、T、A、B的深度15 mm，连接螺纹C、V的深度16 mm。 Note 1:Ports P,T,A,B Depth:15 mm;Column Mounting C &V Depth:16 mm. 注2：其他油口连接方式协议确定代号。 Note 2:The code of other ports dimensions will be listed in an agreement. | |||
♦ Application
Tractor FORD and Hydraulic steering unit OEM Parts
OEM Number AL55954 / AL28268 / AL35832 | Hydraulic Steering Unit 101S-100 / OSPB100CN | Application 1640, 2040, 2140, 3040, 3140, 3340 |
OEM Number AL55956 / AL32758 / AL35834 | Hydraulic steering unit 101S-160 / OSPB160CN | Application 1640, 2040, 2140, 3040, 3140, 3340 |
OEM Number AL41604 | Hydraulic steering unit 101S-100 / OSPC100CN | Application 2140, 2141, 2541 2941, 3141, 3641, 1641, 2251 2351, 2651, 2951, 3351, 3651 |
OEM Number AL55308 | Hydraulic steering unit 101S-100 / OSPC100CN | Application 3050, 3350, 2650, 2850, 2250, 2450, 1550, 1750, 1850 |
OEM Number AL41631 | Hydraulic steering unit 101S-125 / OSPC125CN | Application 1640, 2040, 3050, 3350, 2650, 2850, 2250, 2450, 1550, 1750, 1850, 1950 |
OEM Number AL41291 | Hydraulic steering unit 101S-160 / OSPC160CN | Application 1640, 2040, 2140, 3040, 3140, 2141, 2541, 2941, 3141, 3641, 2251, 2351, 2651, 2951, 3351, 3050, 3350 |
OEM Number AL55296 | Hydraulic steering unit 101S-200 / OSPC200CN | Application 3040, 3140, 3640, 3050, 3350, 3650 |
FORD OEM Number 5165135 / 5143323 / 5170488 5143325 / 5170489 | Hydraulic steering unit 101S-100/ OSPC100ON | Application FORD 3435, 3830, 3935, 4030, 4135, 4230, 4430 |
FORD OEM Number 81863665 | Hydraulic steering unit 101S-150/ OSPC150O | Application FORD 5640, 6640, 7740, 7840, 8240, 8340 |
| All Tractor OEM Number | All Type Steering Unit | All Tractor Brand |
