BMS
Xeriwell or Others
| Features: | Replace OMS, M+S MS, Char-lynn 2K | Type: | Hydraulic Engine Motor |
|---|---|---|---|
| Brand: | Xeriwell | Model No.: | BMS |
| Displacement: | 4.95 CU IN | Shaft: | 32 Mm Diameter |
| Port: | Oil Port 7/8-14UNF, Drain 7/16-20UNF | Flange: | 4 - Bolt, 106.4mm, 82.55mm |
| Highlight: | heavy duty hydraulic motor,large hydraulic motor | ||

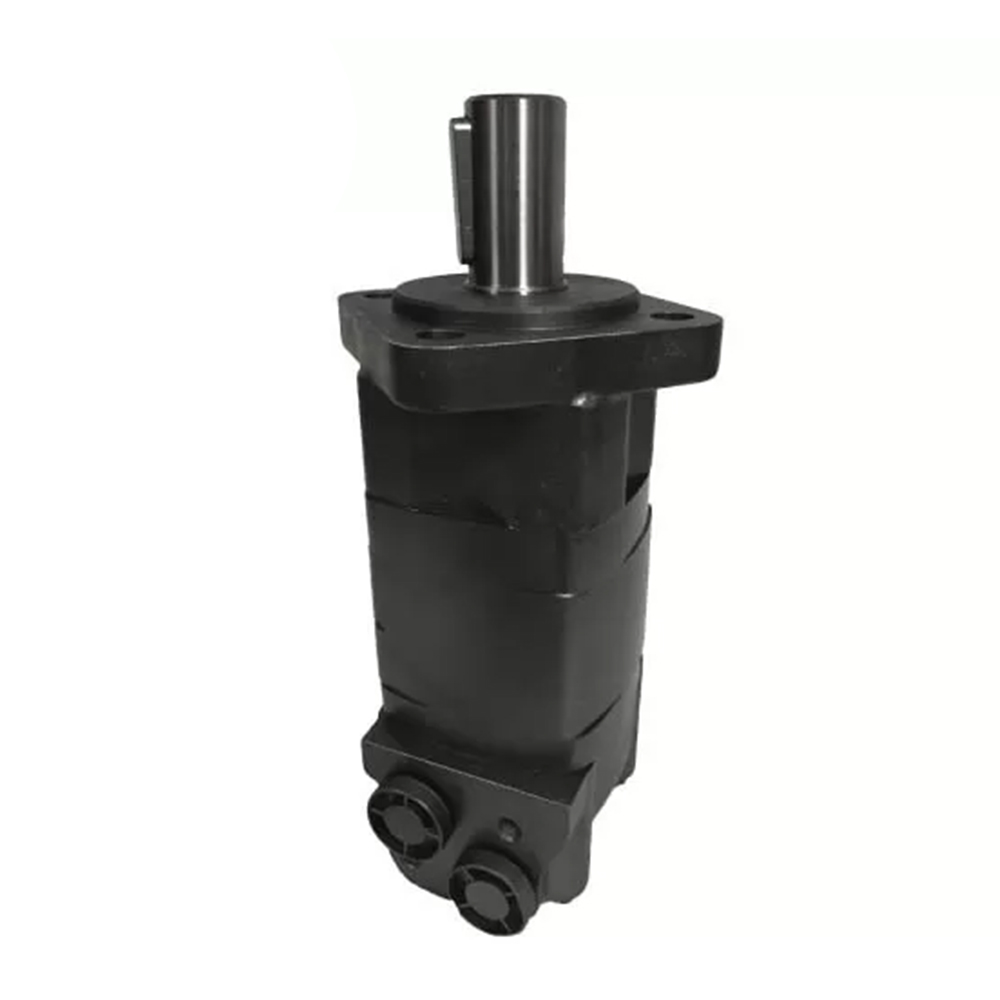

Hydraulic Drive Motor 4.95 CU IN PTO Hydraulic System of Transportation Industry
Brand new, hydraulic drive motor with agricultural standard straight/ spline shaft. Tapered roller bearings on output shaft for high axial and radial load capacity. Spline shaft can be retention groove centered 1-1/2" from shaft end.
Interchangeable with the following motor lines: CHAR-LYNN 2000, OMS/ OMSS, WHITE RE/ DH, PARKER - ROSS MB/TF.
SPECIFICATIONS
Disp. 4.95 cu. in./rev.
Motor Type Geroler hydraulic drive motor
Pressure:
2576 PSI cont.
3091 PSI int.
Torque:
1682 in-lbs. cont.
2124 in-lbs. int.
Speed:
800 RPM cont.
990 RPM int.
Flow:
17.1 GPM cont.
21.0 GPM int.
Rotation Reversible
Mount 2 bolt SAE A
Shaft 1-1/2" straight shaft
Ports 7/8-14UNF
Drain 7/16-20UNF
Model Crossing:
| MOTOR CROSS REFERENCE TABLE | ||||||||
| Xeriwell HYDRAULIC | M+S HYDRAULIC | EATON CHAR LYNN | ROSS TRW | WHITE CROSS | PARKER | SAM BREVINI | BOSCH RECROTH | |
| BMM | MM MLHK | J SERIES | OMM | BGM | MGX | |||
| BMP/BM1 | MP HP | H SERIES | OMP DH | MF MG | WP RS | TC TE TB | BG | MGP GXP |
| BMR/BM2 | MR HR MLHRW,RW | S,T SERIES W SERIES | OMR DS OMEW | MB | WR RE | TF | BR | MGR GMR |
| BMH/BM4 | MH MLHH HW HWF | OMH | ME | RE | TG | |||
| BMS/BM5 | MS MSY MLHS | 2000 SERIES | OMS | ME | RE | TG | HPR | MGS GMS |
| BMT/BM6 | MT MLHT MTM | 6000 SERIES | OMT TMT | MJ | HT | MGT,GMT | ||
| BMV | MV MLHV | 10000 SERIES | OMV | MGV GMV | ||||
| Main Specifications: |
| Type | BMS BMSE 80 | BMS BMSE 100 | BMS BMSE 125 | BMS BMSE 160 | BMS BMSE 200 | BMS BMSE 250 | BMS BMSE 315 | BMS BMSE 375 | |
| Geometric displacement (cm3 /rev.) | 80.6 | 100.8 | 125 | 157.2 | 200 | 252 | 314.5 | 370 | |
| Max. speed (rpm) | cont. | 800 | 748 | 600 | 470 | 375 | 300 | 240 | 200 |
| int. | 988 | 900 | 720 | 560 | 450 | 360 | 280 | 240 | |
| Max. torque (N·m) | cont. | 190 | 240 | 310 | 316 | 400 | 450 | 560 | 536 |
| int. | 240 | 300 | 370 | 430 | 466 | 540 | 658 | 645 | |
| peak | 260 | 320 | 400 | 472 | 650 | 690 | 740 | 751 | |
| Max. output (kW) | cont. | 15.9 | 18.8 | 19.5 | 15.6 | 15.7 | 14.1 | 14.1 | 11.8 |
| int. | 20.1 | 23.5 | 23.2 | 21.2 | 18.3 | 17 | 18.9 | 17 | |
| Max. pressure drop (MPa) | cont. | 17.5 | 17.5 | 17.5 | 15 | 14 | 12.5 | 12 | 10 |
| int. | 21 | 21 | 21 | 21 | 16 | 16 | 14 | 12 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 18.5 | 14 | |
| Max. flow (L/min) | cont. | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 80 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |
| Max. inlet pressure (MPa) | cont. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| int. | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 9.8 | 10 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 12.6 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
Please do not hesitate to contact us for further information, inquiries or orders.
Thank you for choosing 'Xeriwell' Hydraulics.
