Steering Units 060
Xeriwell or Others
| Product Name: | Hydraulic Steering Control Unit | Function: | Open Center Non-reaction, Open Center Reaction, Close Center Non-reaction, Load Sensing/ON/OR/CN/LS/5T |
|---|---|---|---|
| Displacement: | 50, 80, 100, 125, 160 ......400, 500 | Applications: | Fiat, Oliver, Ford ,White , International Harvester Tractors |
| Replacement: | OSPC, M+S HKUS , Eaton Steering Units | Ports Threads: | M20*1.5 , M18*1.5 , G1/2 , M22*1.5 Etc |
| Highlight: | power steering valve,hydraulic steering gear | ||

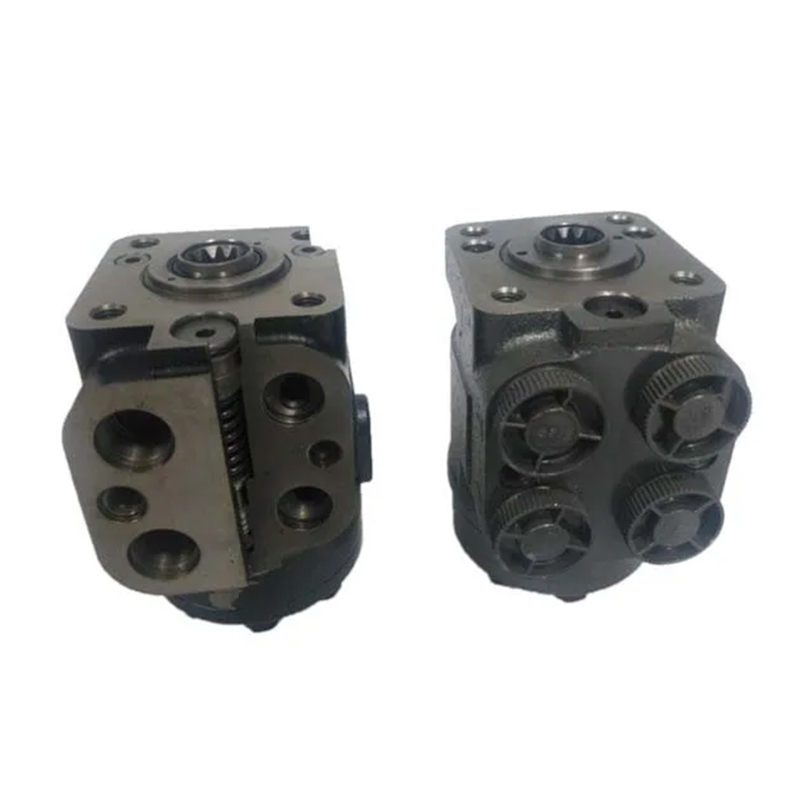

Steering Units 060 200cc For Fiat, Oliver, Ford ,White , International Harvester
Steering Units

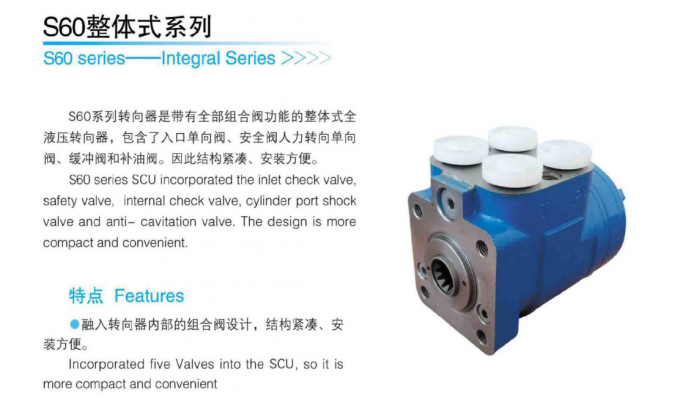

060 series PSU incorporated the inlet check valve, safety valve, internal check valve, cylinder port shock valve and anti-cavitation valve. The design is more compact and convenient.
Features
Special casting design for low pressure drop.
3 basic systems-open center, closed center and load sensing
Low hydraulic noise
compact and convenient
Can replace any brand , such as OSPC , M+S HKUS etc
Function of the incorporated valve
Inlet safety valve: Limits maximum pressure drop across the PSU to protect the steering circuit.
Cylinder port shock valve: Protects hoses against pressure surge created by ground forces on the cylinder axle.
Anti- cavitation valve: Protects steering circuit against vacuum (cavitation) conditions.
Inlet check valve: Prevents oil from returning through the PSU when pressure on the cylinder side is greater than the inlet side. It prevents steering wheel kick.
Internal check valve: Converts the PSU to a hand operated pump for limited manual steering.

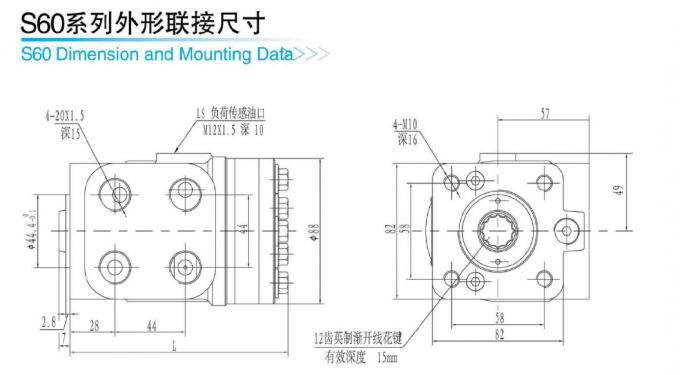

Displacement :
| displacement (ml/r) | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 315 | 400 | 500 |
| L(mm) | 137.5 | 139.5 | 139.5 | 142 | 150 | 150 | 155 | 161 | 171 | 181 | 193 |
