| Quantity: | |
|---|---|
BMP,BMR Series
Xeriwell or Others
| Features: | High Pressure Oil Seals | Product Name: | Hydraulic Winch Motor BMR |
|---|---|---|---|
| Brand Name: | Xeriwell | Model Number: | BMP , BMR Motors |
| Displacement: | 50cc - 500cc | Application: | All Hydraulic Winches |
| Highlight: | two speed hydraulic motor,industrial hydraulic motor | ||

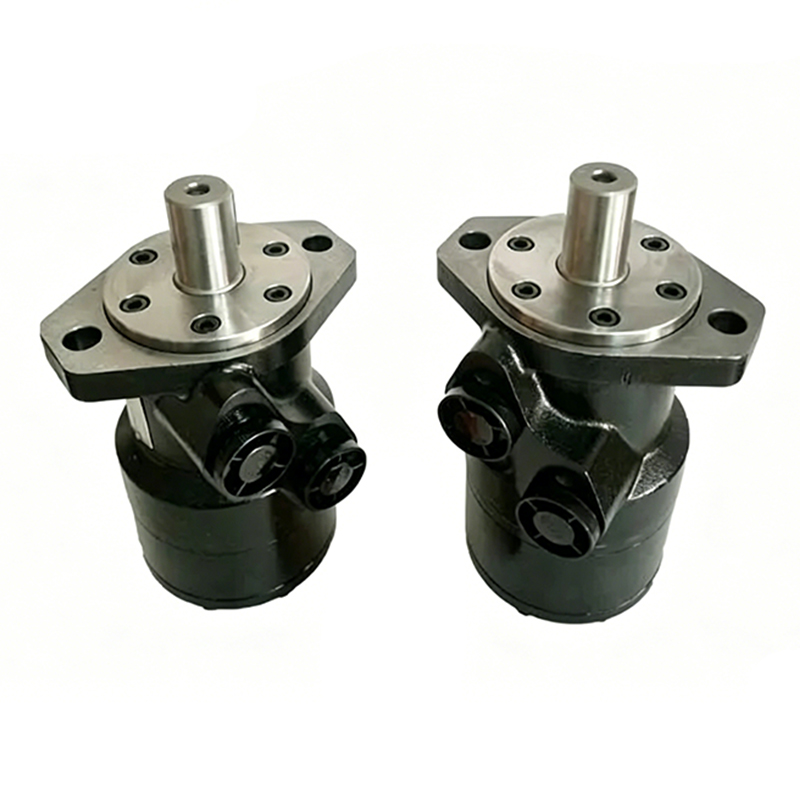

Hydraulic Winch Motor BMP / BMR / OMP / OMR For Fishing Boat Hydraulic Winches
► Characteristic Features
1. BMP , BMR series of motor are small volume, economical type, which is designed with Spool Valve, which adapt the gerotor gear set design and provide compact volume, high power and low weight.
2. Advanced manufacturing devices for the Gerotor gear set, which provide small volume, high efficiency and long life.
3. Shaft seal can bear high pressure of motor of which can be used in parallel or in series.
4. Advanced construction design, high power and low weight.
5. BMP , BMR series is equivalent to "OMP" , "OMR" series and Charlynn "H" series, and also can substitute for White, Parker.
► Specification
| Type | BMR BMRS 36 | BMR BMRS 50 | BMR BMRS 80 | BMR BMRS 100 | BMR BMRS 125 | BMR BMRS 160 | BMR BMRS 200 | BMR BMRS 250 | BMR BMRS 315 | BMR BMRS 375 | |
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 | |
| Max. speed (rpm) | cont. | 1085 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
| int. | 1220 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 | |
| Max. torque (N·m) | cont. | 72 | 100 | 195 | 240 | 300 | 360 | 360 | 390 | 390 | 365 |
| int. | 83 | 126 | 220 | 280 | 340 | 430 | 440 | 490 | 535 | 495 | |
| peak | 105 | 165 | 270 | 320 | 370 | 460 | 560 | 640 | 650 | 680 | |
| Max. output (kW) | cont. | 8.5 | 9.5 | 12.5 | 13 | 12.5 | 12.5 | 10 | 7 | 6 | 5 |
| int. | 9.8 | 11.2 | 15 | 15 | 14.5 | 14 | 13 | 9.5 | 9 | 8 | |
| Max. pressure drop (MPa) | cont. | 14 | 14 | 17.5 | 17.5 | 17.5 | 16.5 | 13 | 11 | 9 | 7 |
| int. | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 17.5 | 15 | 13 | 10 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 17.5 | 15 | |
| Max. flow (L/min) | cont. | 40 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 45 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8 | 8.5 | 9 | 9.5 | |
► Application
BMP , BMR Hydraulic motors used for hydraulic winches.
1. Industrial hydraulic winch.
2. Hydraulic system hydraulic winch.
3. Rescue vehicle hydraulic winch.
4. Runva Hydraulic Winch 10,000lbs
5. Truck hydraulic winch.
6. Fishing Marine hydraulic winch.
