BMK6-390
Xeriwell or Others
| Type: | Hydraulic Heavy Disc Motor | Material: | Cast Iron |
|---|---|---|---|
| Max.torque(N.m): | Cont.1160 N.m/int.1625 N.m | Max.speed(rpm): | Cont. 382rpm/int. 570rpm |
| Max Pressure Drop: | Cont. 20 Mpa/int.30 Mpa | Max Flow: | Cont.150l/min/int.225l/min |

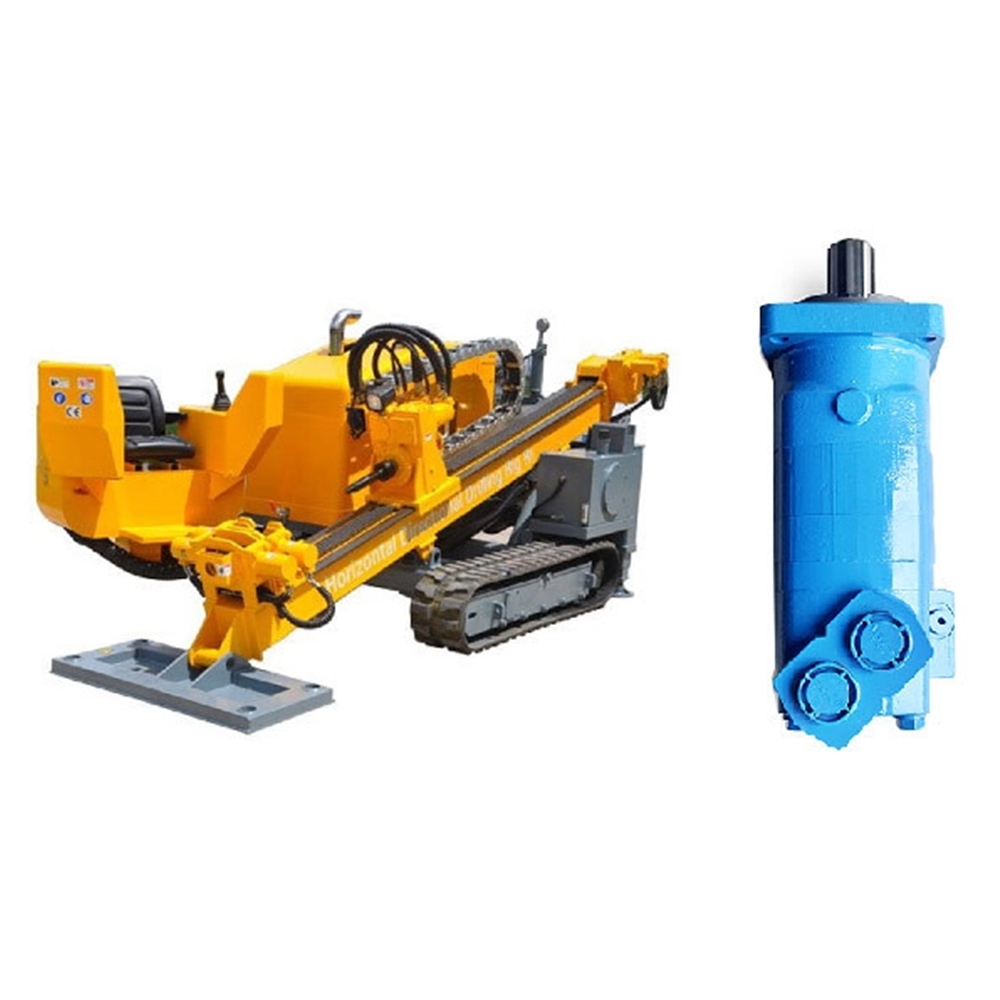

| Highlight: | 6K-390 eaton hydraulic motor,612-1024 eaton hydraulic motor,Horizontal Directional Drilling Rig eaton motor | ||
Product details:
612-1024==BMK6-390
displacement:391.3cc
shaft :Spline shaft 8D-42X36X7;L=77.2~79.6
ports:M33X2;M14X1.5
Main Specification
| Type | BMK6 200 | BMK6 250 | BMK6 315 | BMK6 400 | BMK6 500 | BMK6 630 | BMK6 800 | BMK6 1000 | ||
| Geometric displacement (cm3 /rev.) | 195.6 | 246.1 | 311.6 | 391.3 | 490.8 | 623 | 802.4 | 981.6 | ||
| Main speed(rpm) | cont. | 765 | 610 | 480 | 382 | 304 | 240 | 186 | 152 | |
| int. | 865 | 830 | 690 | 570 | 455 | 360 | 280 | 230 | ||
| Max torque N.M | cont. | 565 | 710 | 920 | 1160 | 1445 | 1480 | 1580 | 1675 | |
| int. | 840 | 1080 | 1325 | 1625 | 1880 | 1890 | 1880 | 1860 | ||
| Max pressure drop (Mpa) | cont. | 20 | 20 | 20 | 20 | 20 | 17.5 | 14 | 14 | |
| int. | 30 | 30 | 30 | 30 | 27.5 | 22.5 | 15.5 | 14 | ||
| Weight (kg) | 26.3 | 26.8 | 27.3 | 28 | 28.8 | 29.6 | 30.5 | 32 | ||
