MVW MFW
Xeriwell or Others

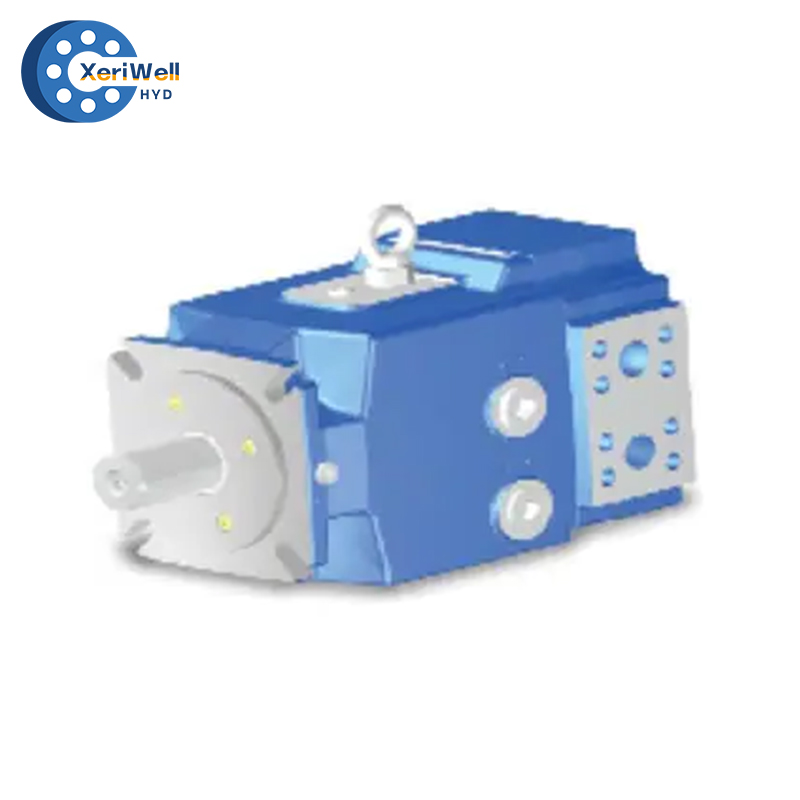

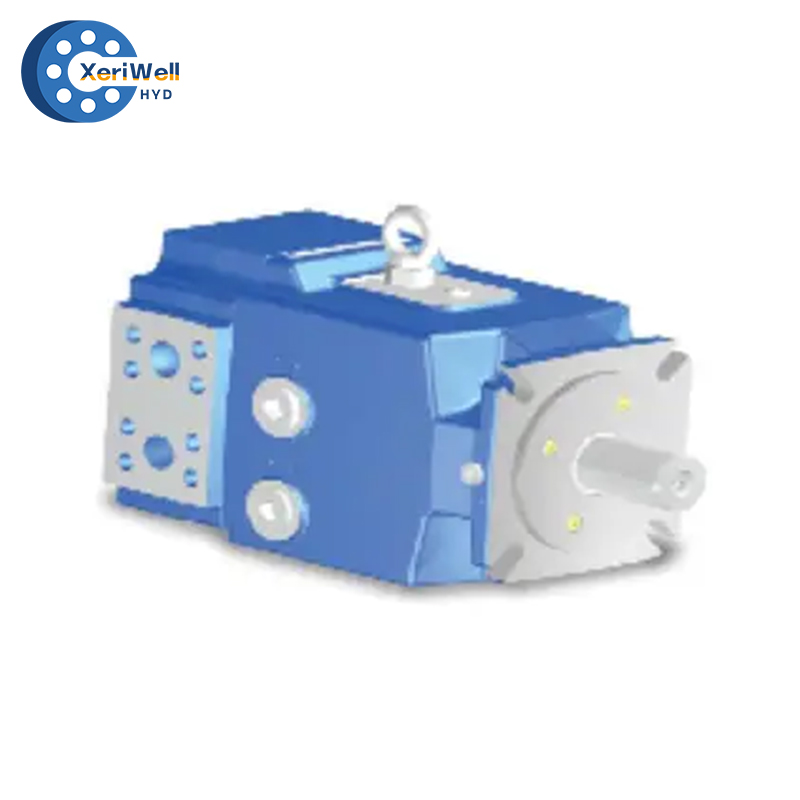

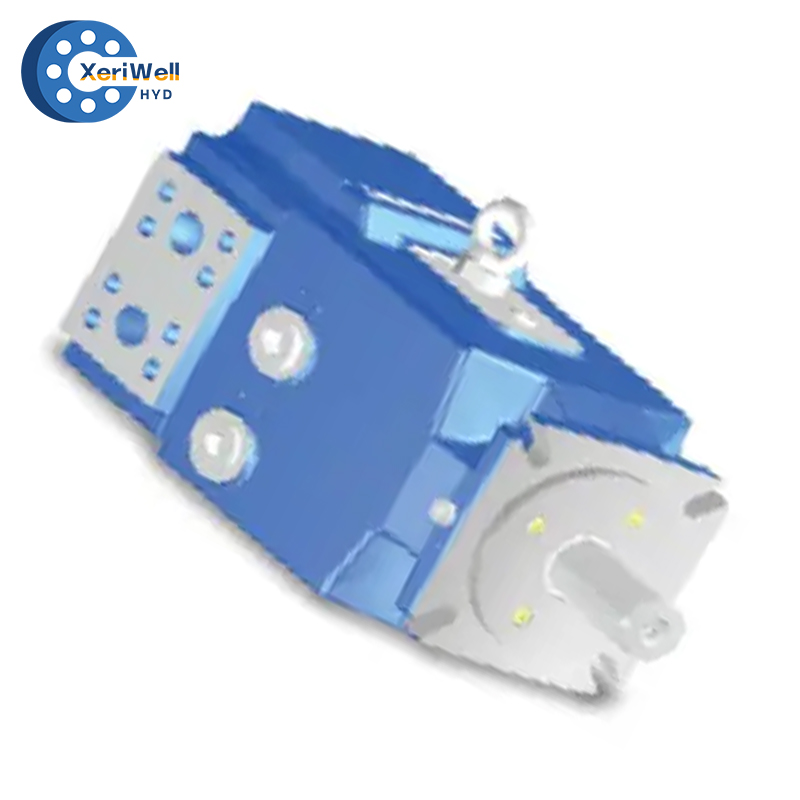

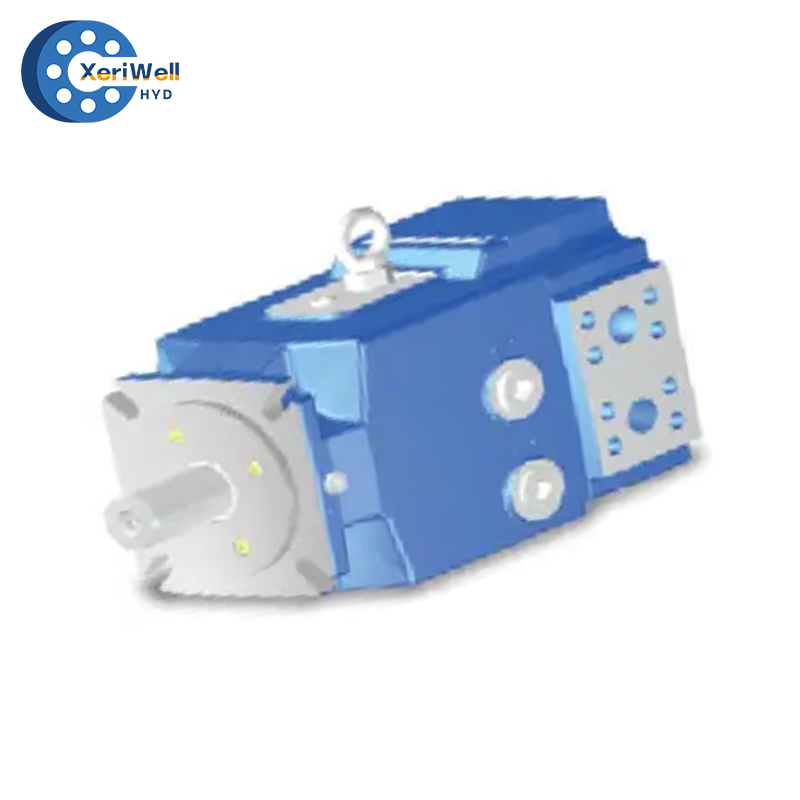

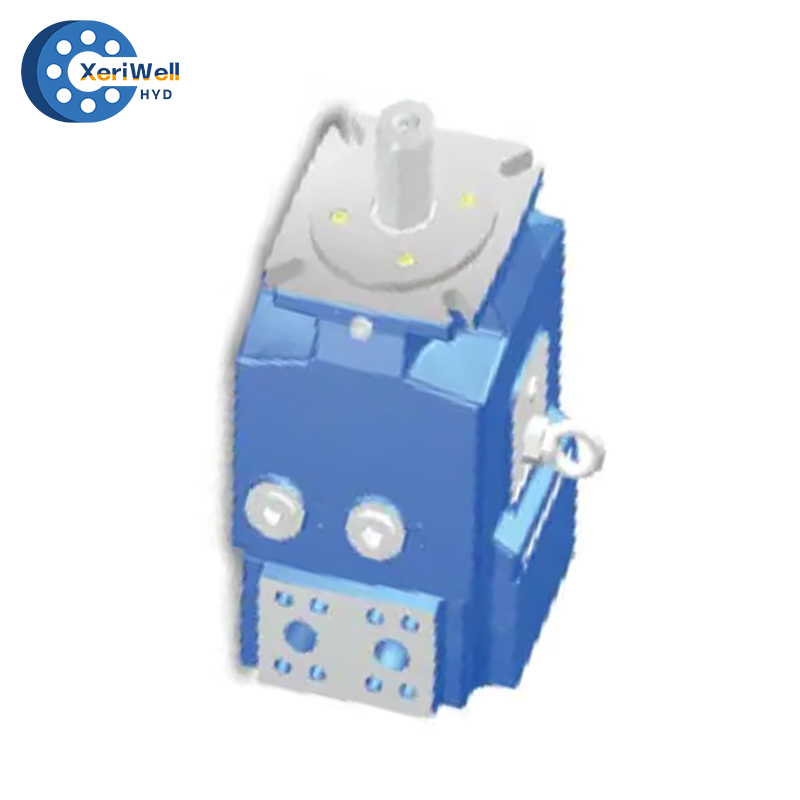

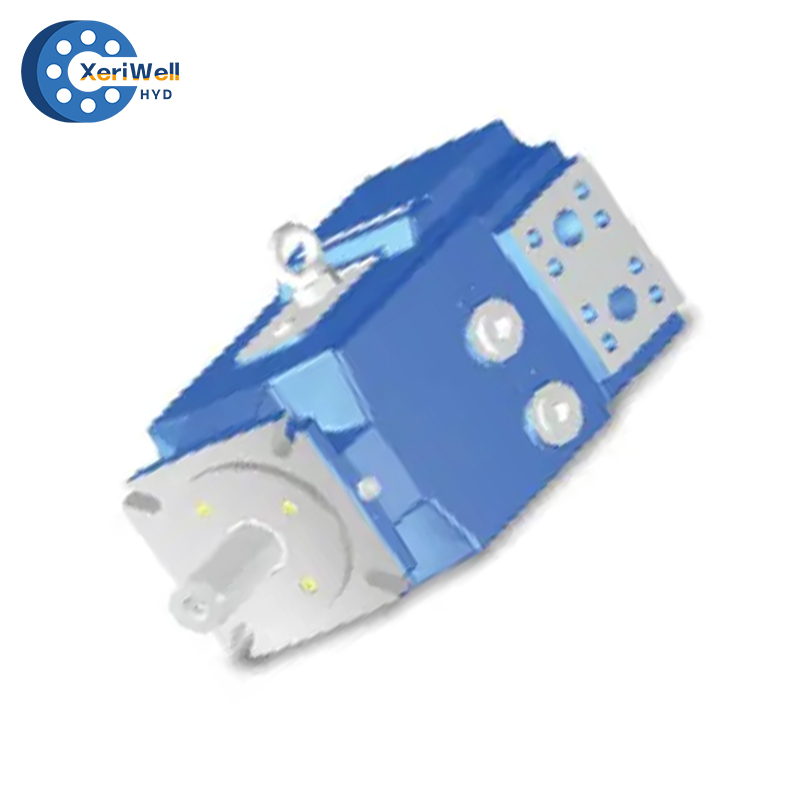

Eaton's MVW and MFW series hydraulic motors are designed for high-pressure, high-performance applications, offering reliability and efficiency in demanding environments.
MVW Series Hydraulic Motors:
The MVW series features variable displacement axial piston motors with a swashplate design, suitable for hydrostatic drives. These motors are engineered with large shaft bearings, providing full through-drive capability and extended service life. They are pressure-rated up to 350 bar, with a rated speed up to 1800 rpm, and offer a range of control options, including full overcenter capabilities. The MVW series can handle a wide range of fluids, including water-glycol mixtures. Available displacements range from 250 cc/rev to 750 cc/rev.
MFW Series Hydraulic Motors:
The MFW series comprises fixed displacement axial piston motors with a swashplate design, ideal for hydrostatic drives. These motors are also engineered with large shaft bearings for full through-drive capability and long service life. They share similar pressure and speed ratings as the MVW series, being pressure-rated up to 350 bar and capable of operating at speeds up to 1800 rpm. The MFW series accommodates a variety of fluids, including water-glycol mixtures, and is available in displacements from 250 cc/rev to 750 cc/rev.
Key Features:
1)High Pressure Rating: Both MVW and MFW series motors are designed to operate continuously at pressures up to 350 bar, ensuring robust performance in high-pressure applications.
2)Durable Construction: The incorporation of large shaft bearings enhances durability and supports full through-drive capabilities, extending the motors' operational lifespan.
3)Fluid Compatibility: These motors are compatible with a wide range of hydraulic fluids, including water-glycol mixtures, providing versatility across different operating conditions.
4)Control Flexibility: The MVW series offers variable displacement with full overcenter capabilities, allowing for precise control in various applications.
5)Efficient Operation: The swashplate design ensures efficient power transmission and smooth operation, contributing to overall system efficiency.
Eaton's MVW and MFW series hydraulic motors are well-suited for applications requiring reliable and efficient hydraulic power, such as pulp and paper processing, chemical pump drives, primary metals production, marine winches, and mixers.
Type: MVW250, MVW360, MVW500, MVW750
MFW250, MFW360, MFW500, MFW750

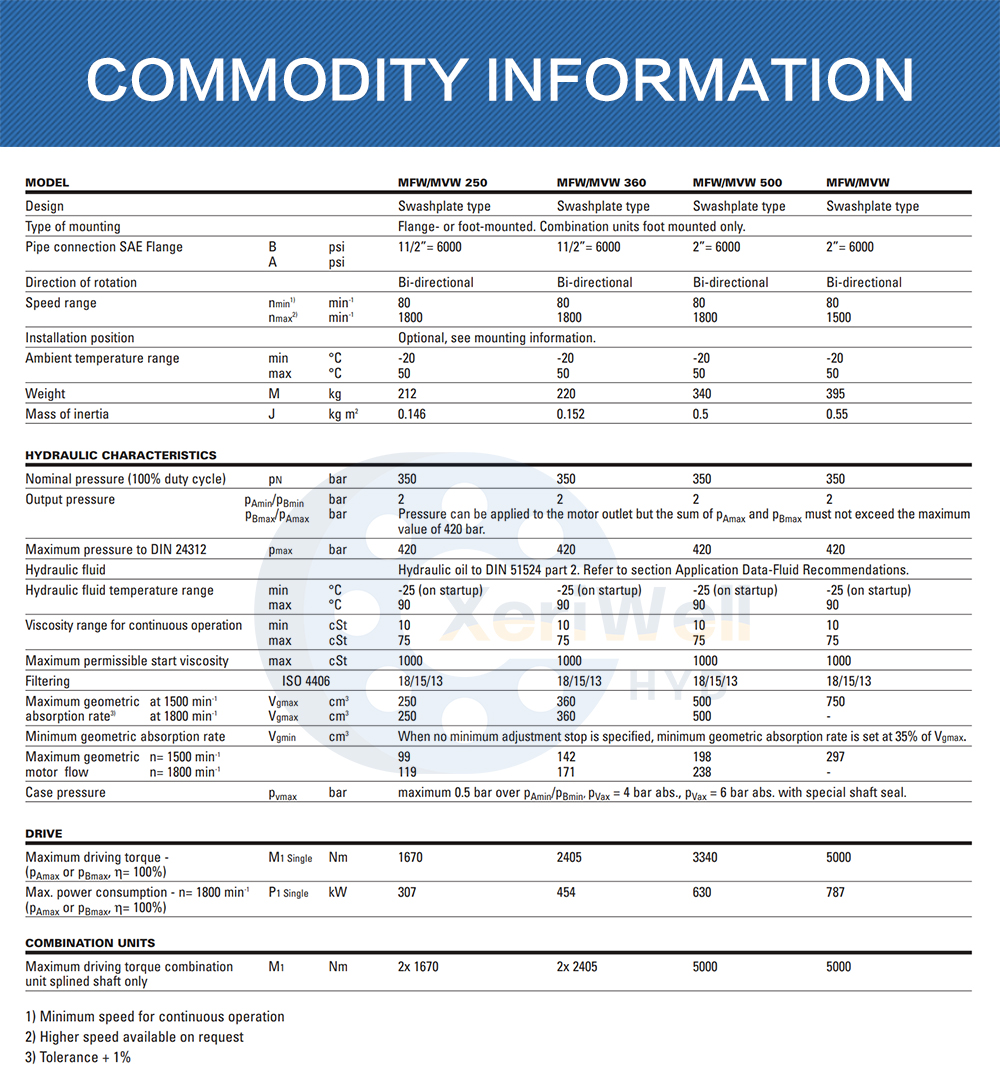

| MODEL | ||||||
| Design | Swashplate type | Swashplate type | Swashplate type | Swashplate type | ||
| Type of mounting | Flange- or foot-mounted. Combination units foot mounted only. | |||||
| Pipe connection SAE Flange | B A | psi psi | 11/2”= 6000 | 11/2”= 6000 | 2”= 6000 | 2”= 6000 |
| Direction of rotation | Bi-directional | Bi-directional | Bi-directional | Bi-directional | ||
| Speed range | nmin1)nmax2) | min1)min-1 | 80 1800 | 80 1800 | 80 1800 | 80 1500 |
| Installation position | Optional,see mounting information. | |||||
| Ambient temperature range | min max | °C °C | -20 50 | -20 50 | -20 50 | -20 50 |
| Weight | M | kg | 212 | 220 | 340 | 395 |
| Mass of inertia | J | kg m2) | 0.146 | 0.152 | 0.5 | 0.55 |
| HYDRAULIC CHARACTERISTICS | ||||||
| Nominal pressure (100% duty cycle) | pN | bar | 350 | 350 | 350 | 350 |
| Output pressure | pAmin/pBmin | bar | 2 | 2 | 2 | 2 |
| pBmax/pAmax | bar | Pressure can be applied to the motor outlet but the sum of pAmaxand pBmaxmust not exceed the maximum value of 420 bar. | ||||
| Maximum pressure to DIN 24312 | pmax | bar | 420 | 420 | 420 | 420 |
| Hydraulic fluid | Hydraulic oil to DIN 51524 part 2. Refer to section Application Data-Fluid Recommendations. | |||||
| Hydraulic fluid temperature range | min max | °C °C | -25 (on startup) 90 | -25 (on startup) 90 | -25 (on startup) 90 | -25 (on startup) 90 |
| Viscosity range for continuous operation | min max | cSt cSt | 10 75 | 10 75 | 10 75 | 10 75 |
| Maximum permissible start viscosity | max | cSt | 1000 | 1000 | 1000 | 1000 |
| Filtering | ISO 4406 | 18/15/13 | 18/15/13 | 18/15/13 | 18/15/13 | |
| Maximum geometric absorption ratea) | Vgmax at 1500 min-1at 1800 min-1 | cm3cm3 | 250 250 | 360 360 | 500 500 | 750 - |
| Minimum geometric absorption rate | Vgmin | cm3 | When no minimum adjustment stop is specified,minimum geometric absorption rate is set at 35% of Vgmax. | |||
| Maximum geometric motor flow | n= 1500 min-1n= 1800 min-1 | 99 119 | 142 171 | 198 238 | 297 - | |
| Case pressure | p vmax | bar | maximum 0.5 bar over pAmin/pBmin,pVax= 4 bar abs.,pVax= 6 bar abs. with special shaft seal. | |||
| DRIVE | ||||||
| Maximum driving torque - (pAmaxor pBmaxη= 100%) | M1 Single | Nm | 1670 | 2405 | 3340 | 5000 |
| Max. power consumption - n= 1800 min-1(pAmaxor pBmaxη= 100%) | P1 Single | kW | 307 | 454 | 630 | 787 |
| COMBINATION UNITS | ||||||
| Maximum driving torque combination unit splined shaft only | M1 | Nm | 2x 1670 | 2x 2405 | 5000 | 5000 |
| 1) Minimum speed for continuous operation 2) Higher speed available on request 3) Tolerance + 1% | ||||||
