MVB
Xeriwell or Others

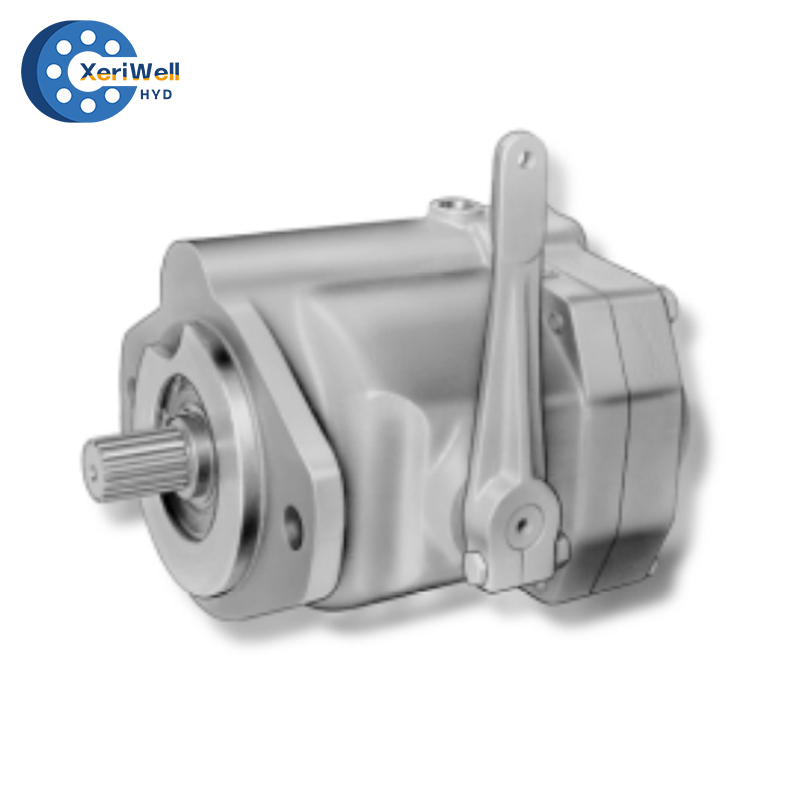

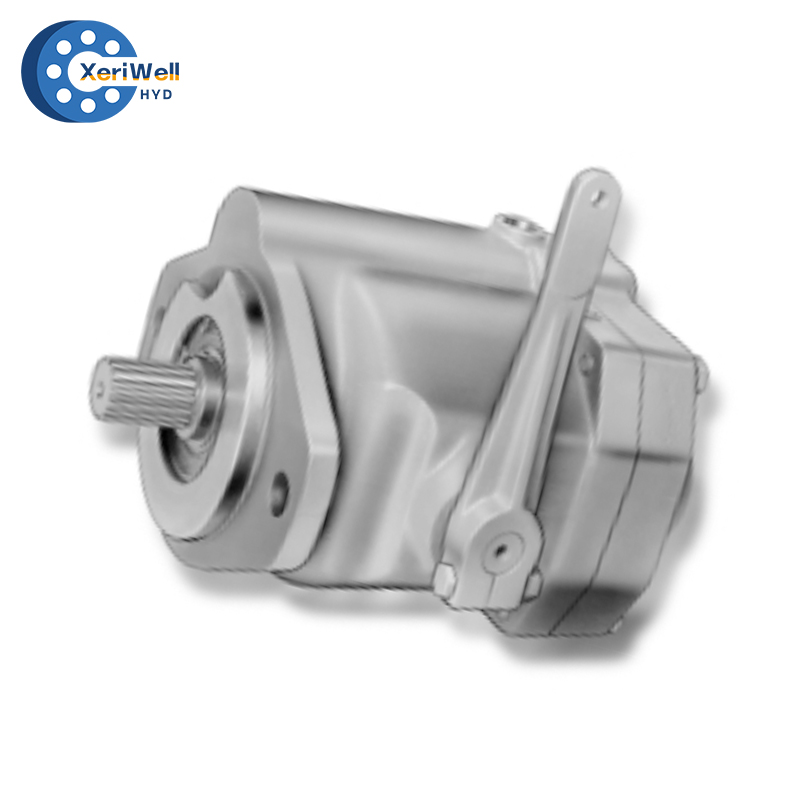

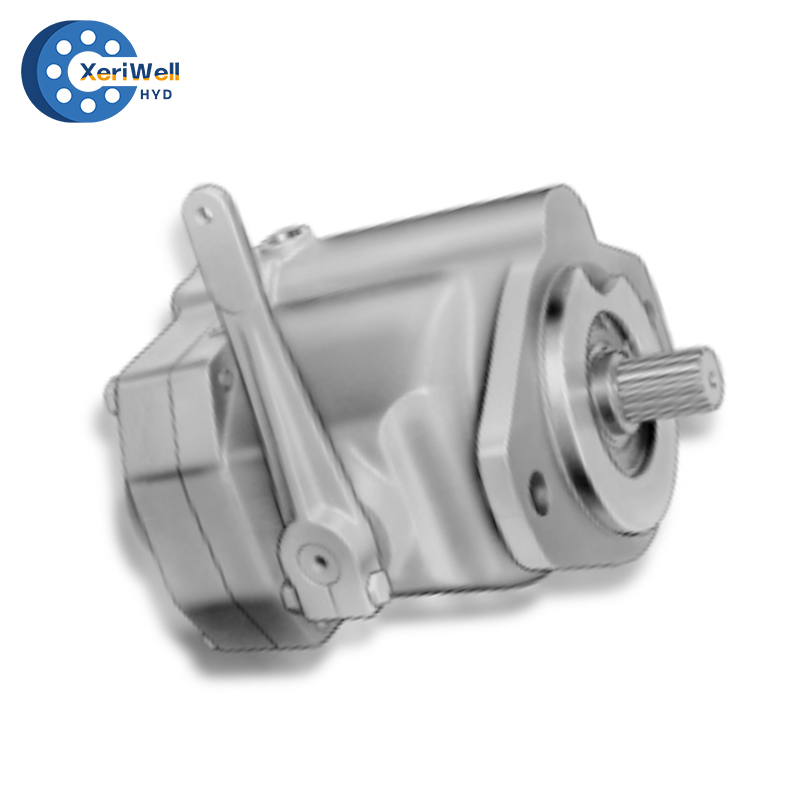

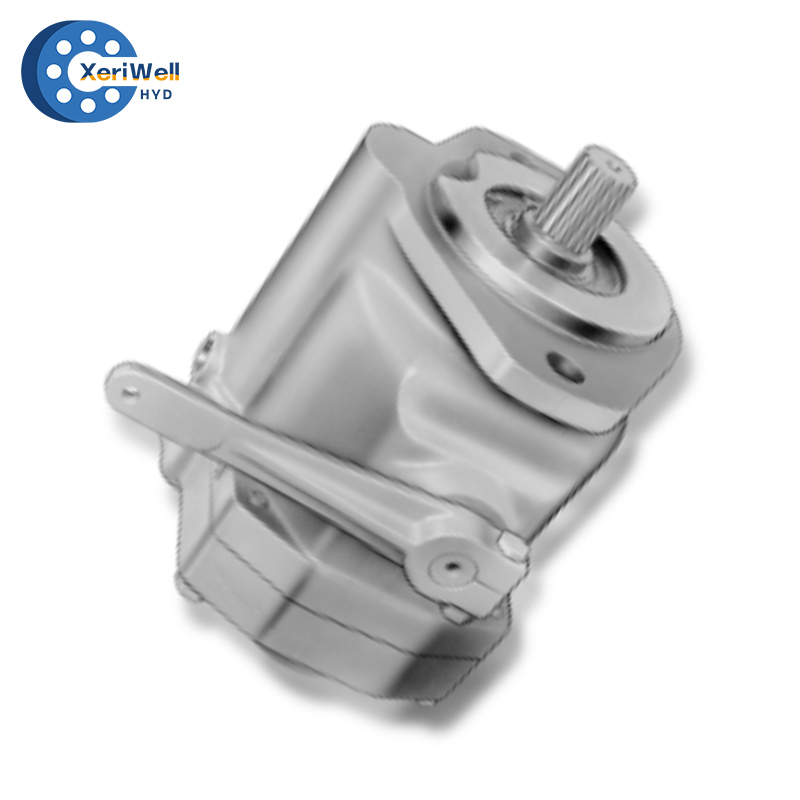

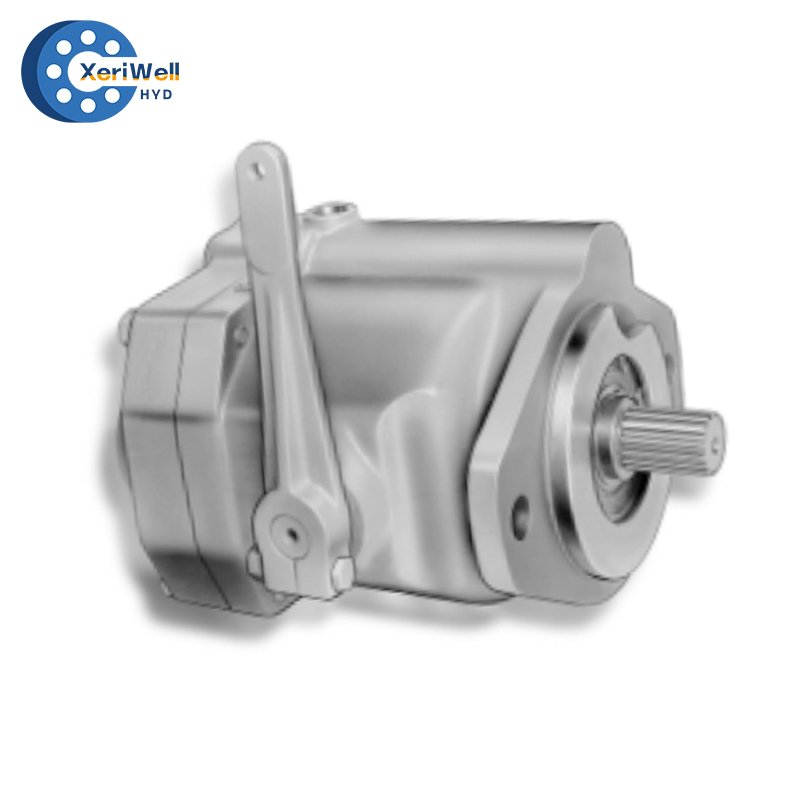

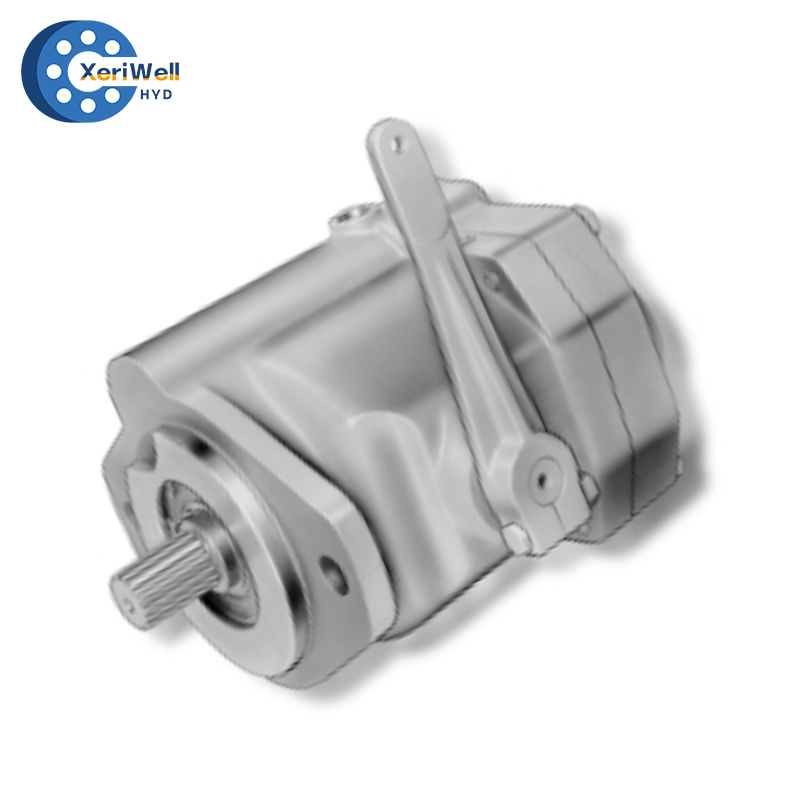

Eaton’s MVB series hydraulic motors are fixed displacement inline piston motors, offering a choice of five torque ratings. They operate at speeds ranging from 100 to 3600 r/min and can handle pressures up to 210 bar (3000 psi).
Key Features:
1）Fixed Displacement Design: Ensures consistent performance across various applications.
2）Wide Speed Range: Operates efficiently between 100 to 3600 r/min, accommodating diverse operational needs.
3）High-Pressure Capacity: Handles pressures up to 210 bar (3000 psi), suitable for demanding tasks.
4）Multiple Torque Ratings: Offers five torque options, providing flexibility in system design.
5）Durable Construction: Built to withstand rigorous operating conditions, ensuring longevity.
The MVB series is ideal for applications requiring reliable and consistent hydraulic power, such as industrial machinery and mobile equipment.
Type: MVB5, MVB10
| MODEL | MFW/MVW 250 | MFW/MVW 360 | MFW/MVW 500 | MFW/MVW | ||
| Design | Swashplate type | Swashplate type | Swashplate type | Swashplate type | ||
| Type of mounting | Flange- or foot-mounted. Combination units foot mounted only. | |||||
| Pipe connection SAE Flange | B A | psi psi | 11/2”= 6000 | 11/2”= 6000 | 2”= 6000 | 2”= 6000 |
| Direction of rotation | Bi-directional | Bi-directional | Bi-directional | Bi-directional | ||
| Speed range | nmin1)nmax2) | min1)min1) | 80 1800 | 80 1800 | 80 1800 | 80 1500 |
| Installation position | Optional,see mounting information. | |||||
| Ambient temperature range | min max | °C °C | -20 50 | -20 50 | -20 50 | -20 50 |
| Weight | M | kg | 212 | 220 | 340 | 395 |
| Mass of inertia | J | kg m2) | 0.146 | 0.152 | 0.5 | 0.55 |
| HYDRAULIC CHARACTERISTICS | ||||||
| Nominal pressure (100% duty cycle) | pN | bar | 350 | 350 | 350 | 350 |
| Output pressure | pAmin/pBmin pBmax/pAmax | bar bar | 2 Pressure can be applied to the motor outlet but the sum of pAmaxand pBmaxmust not exceed the maximum value of 420 bar. | 2 | 2 | 2 |
| Maximum pressure to DIN 24312 | pmax | bar | 420 | 420 | 420 | 420 |
| Hydraulic fluid | Hydraulic oil to DIN 51524 part 2. Refer to section Application Data-Fluid Recommendations. | |||||
| Hydraulic fluid temperature range | min max | °C °C | -25 (on startup) 90 | -25 (on startup) 90 | -25 (on startup) 90 | -25 (on startup) 90 |
| Viscosity range for continuous operation | min max | cSt cSt | 10 75 | 10 75 | 10 75 | 10 75 |
| Maximum permissible start viscosity | max | cSt | 1000 | 1000 | 1000 | 1000 |
| Filtering | ISO 4406 | 18/15/13 | 18/15/13 | 18/15/13 | 18/15/13 | |
| Maximum geometric absorption ratea) | at 1500 min-1at 1800 min-1 | VgmaxVgmax | cm3cm3 | 250 250 | 360 360 | 500 500 |
| Minimum geometric absorption rate | Vgmin | cm3 | When no minimum adjustment stop is specified,minimum geometric absorption rate is set at 35% of Vgmax. | |||
| Maximum geometric motor flow | n= 1500 min-1n= 1800 min-1 | 99 119 | 142 171 | 198 238 | 297 - | |
| Case pressure | pvmax | bar | maximum 0.5 bar over pAmin/pBmin,pVax= 4 bar abs.,pVax= 6 bar abs. with special shaft seal. | |||
| DRIVE | ||||||
| Maximum driving torque - (pAmaxor pBmaxη= 100%) | M1Single | Nm | 1670 | 2405 | 3340 | 5000 |
| Max. power consumption - n= 1800 min-1(pAmaxor pBmaxη= 100%) | P1 Single | kW | 307 | 454 | 630 | 787 |
| COMBINATION UNITS | ||||||
| Maximum driving torque combination unit splined shaft only | M1 | Nm | 2x 1670 | 2x 2405 | 5000 | 5000 |
| 1) Minimum speed for continuous operation 2) Higher speed available on request 3) Tolerance + 1% | ||||||
