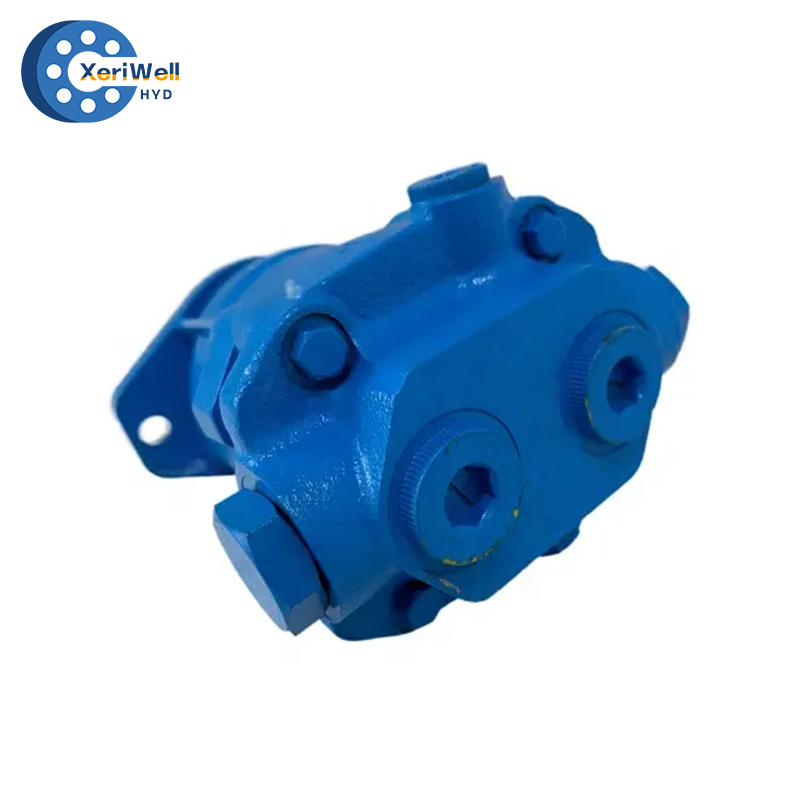

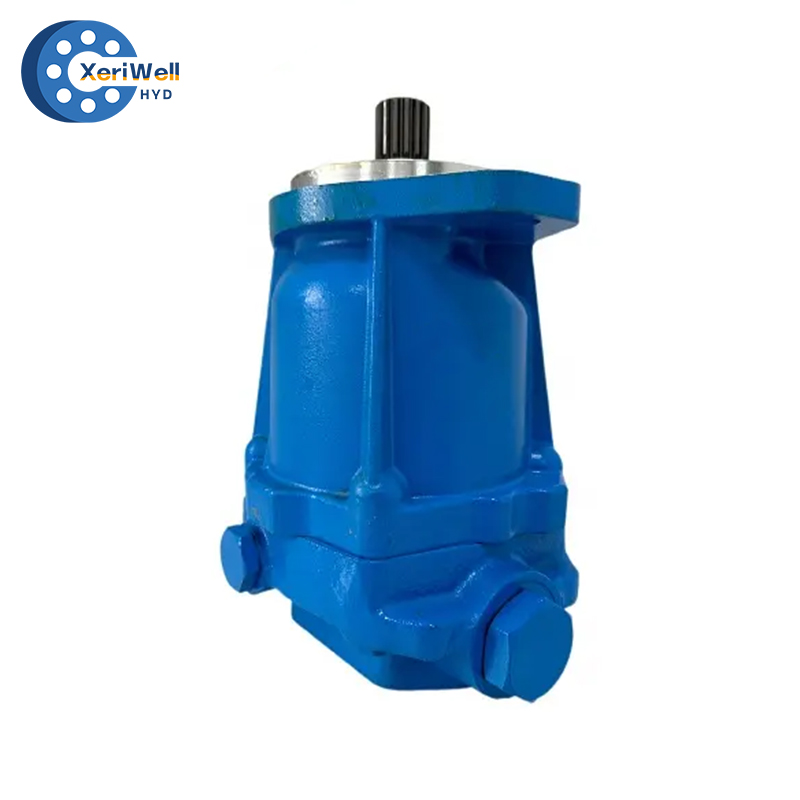

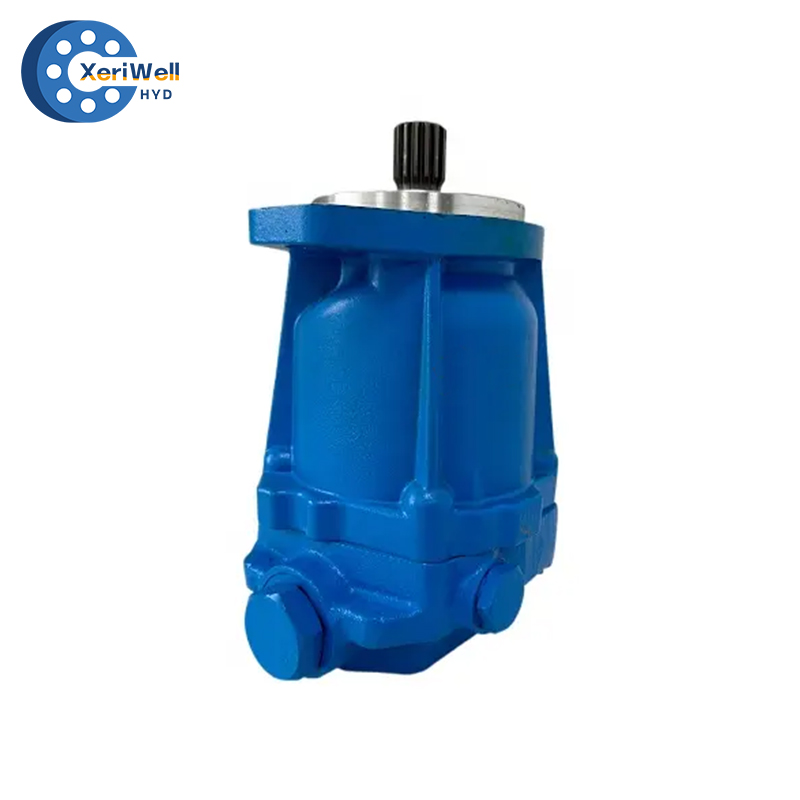

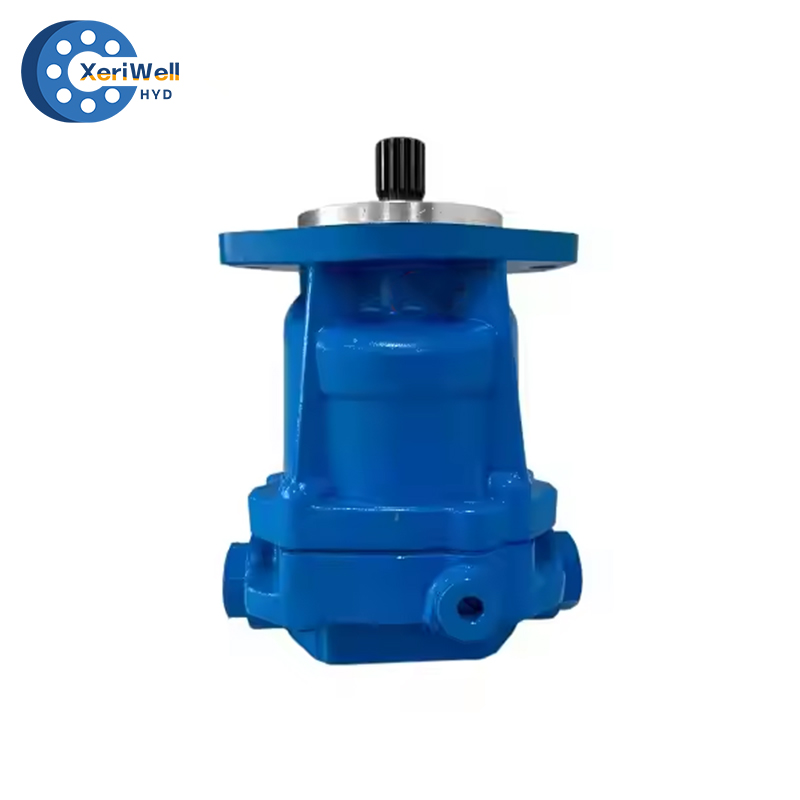

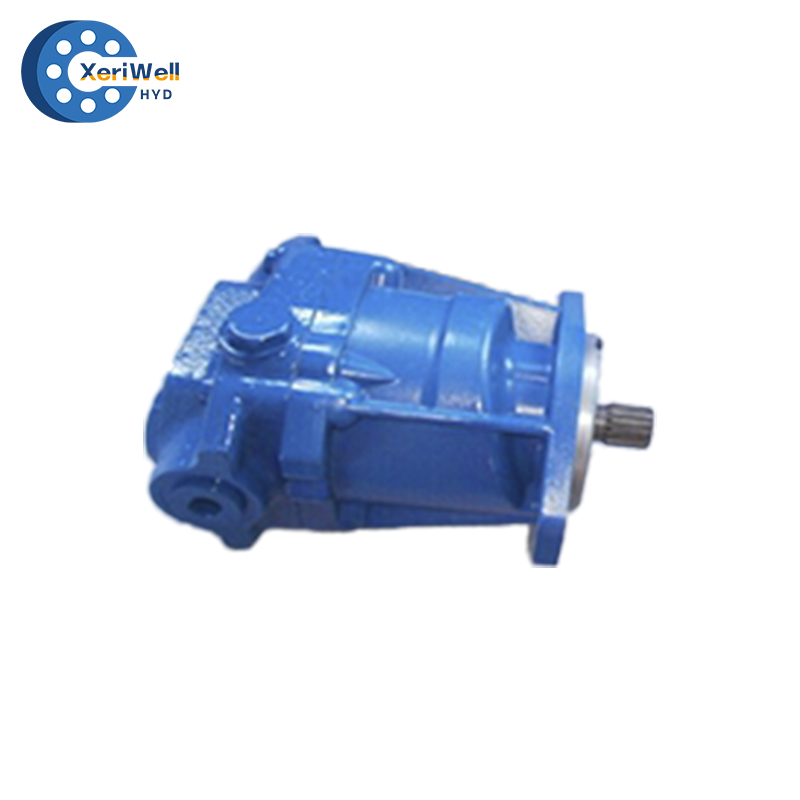

Eaton MFE 15 19 Hydraulic Motor

Pictures are for display only, please contact us to choose the right product for you.

Quantity:
Type:	MFE15 MFE19
Spare Parts:	Cylinder Block Swash Plate Drive Shaft Valve Plate Thrust Plate Pin Retainer Pintle Cover Seal Piston Shoe Retainer Plate Bearing Ball Guide Spacer Press Pin Others
Availability:





Inquire Add to Basket

Model:
MFE
Brand:
Xeriwell or Others

Eaton MFE 15 19 Hydraulic Motor and spare parts

Eaton MFE 15 19 Hydraulic Motor technical data:

mfe190-04up-06a0-2+n8020

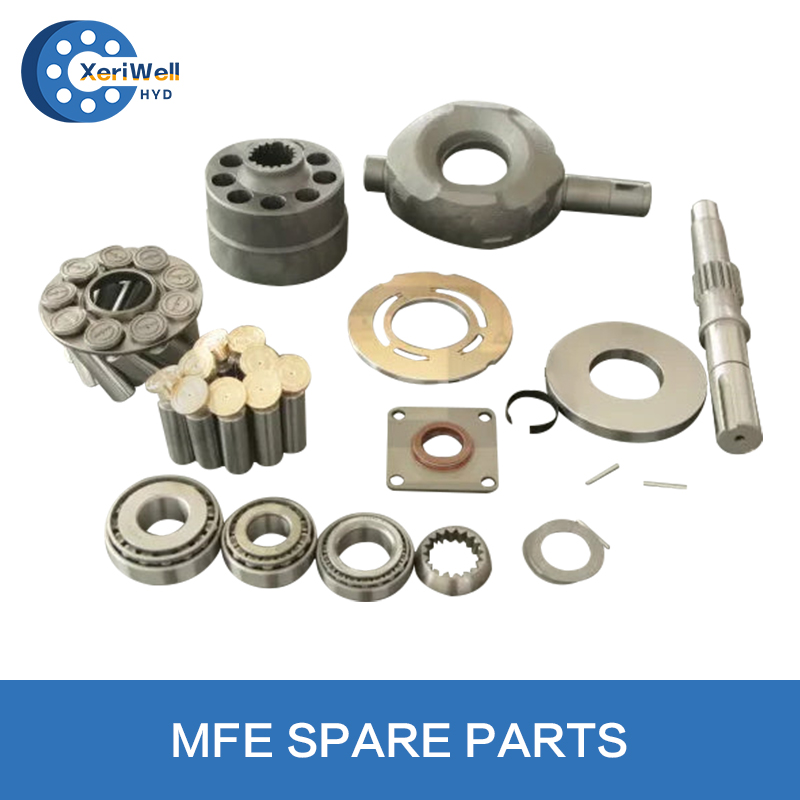

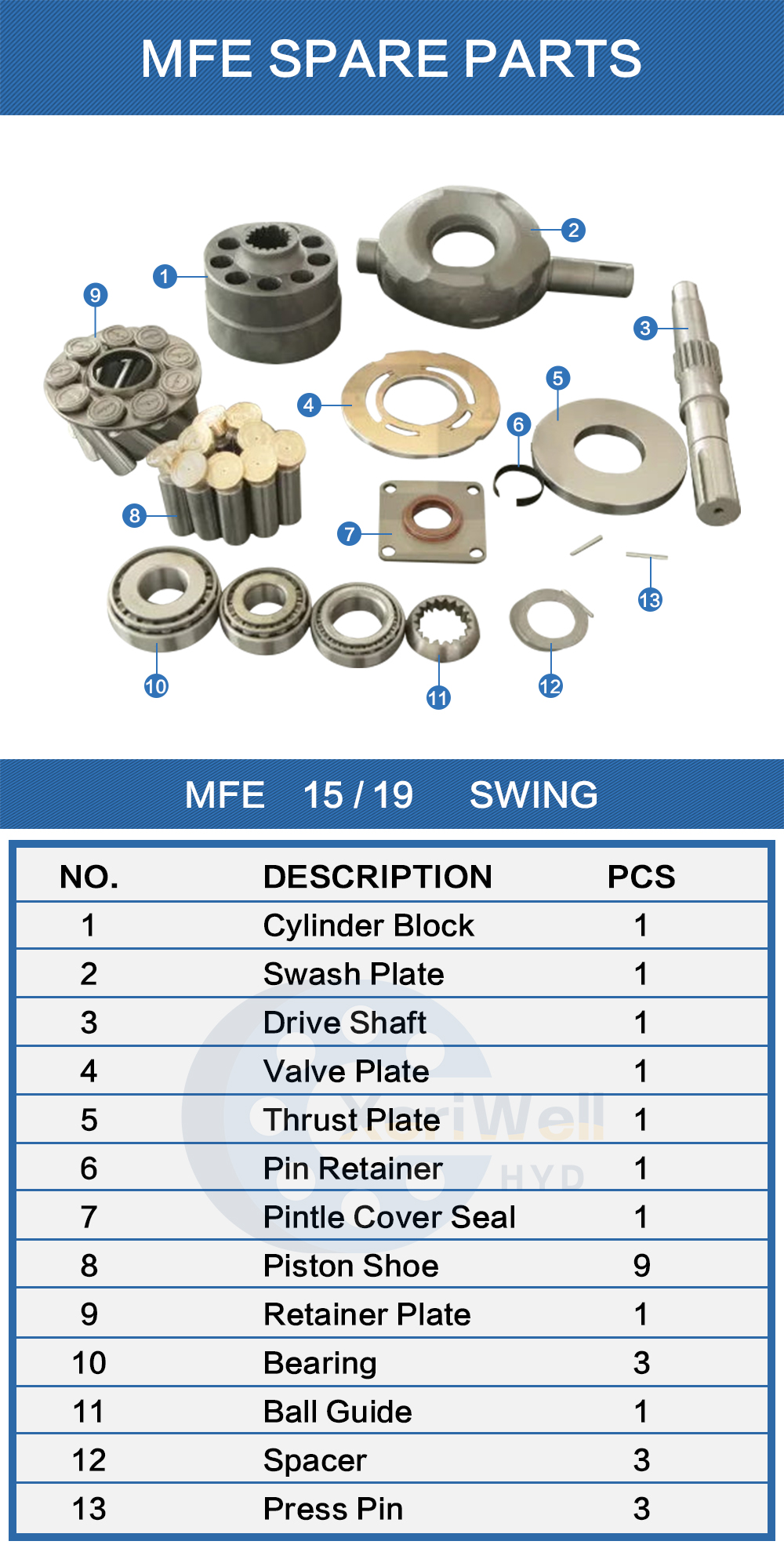

Eaton MFE 15 19 Hydraulic Motor spare parts list:

详情图

Ratings
Theoretical Maximum Displacement	Maximum Rated Input Speed	Maximum Rated Output Speed	Maximum Intermittent Pressure	Maximum Continuous Pressure	Rated Power
MFE15 33 cm3/rev (2 in3/rev) MFE19 41 cm3/rev (2.5 in3/rev)	3600 r/min	3600 r/min	350 bar (5000 psi)	210 bar (3000 psi)	16,8 kW per 1000 r/min (22.5 hp per 1000 r/min)
