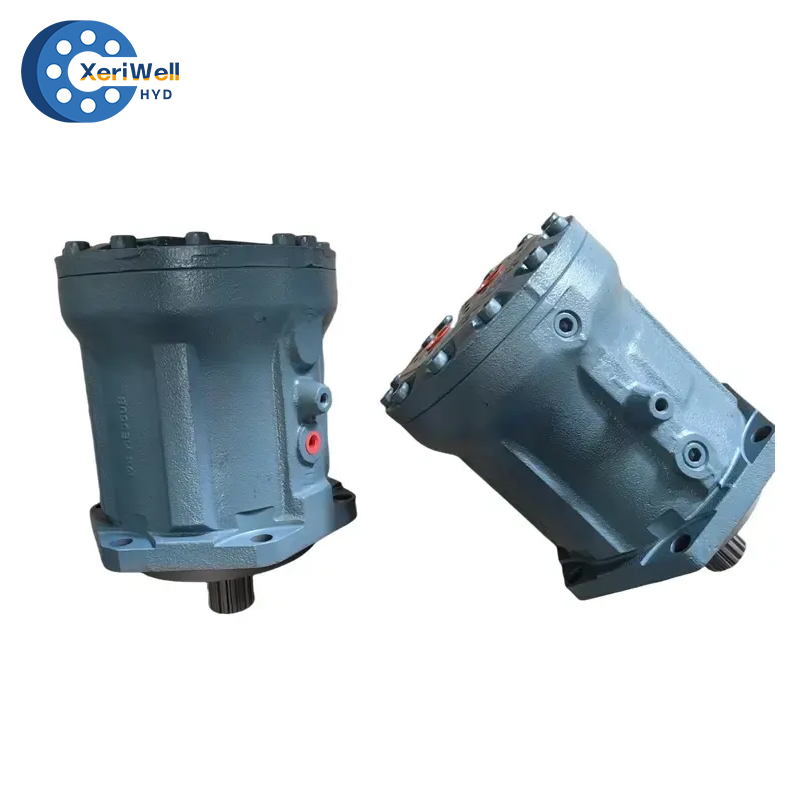

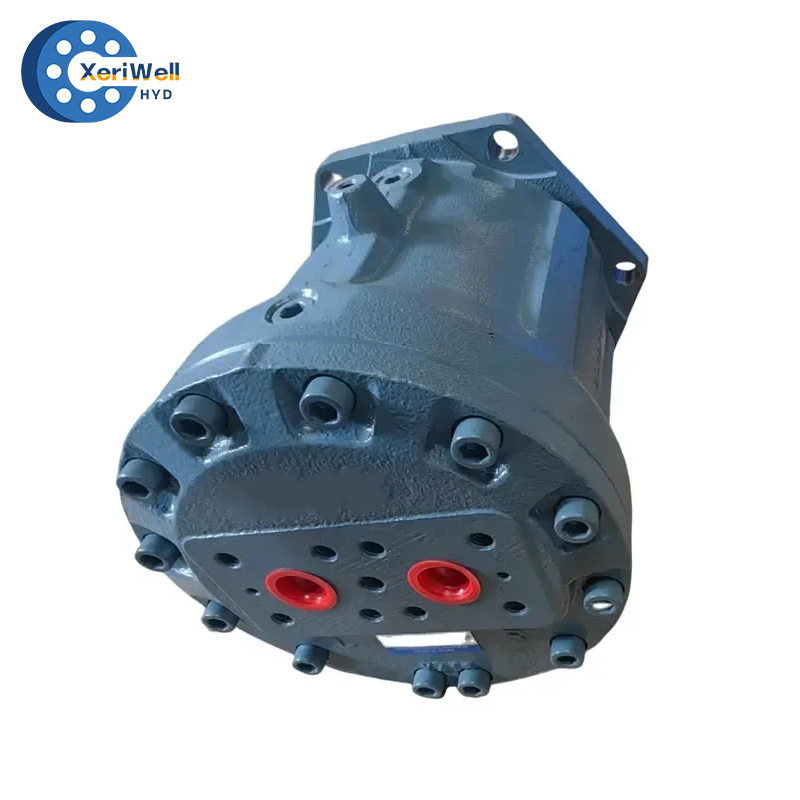

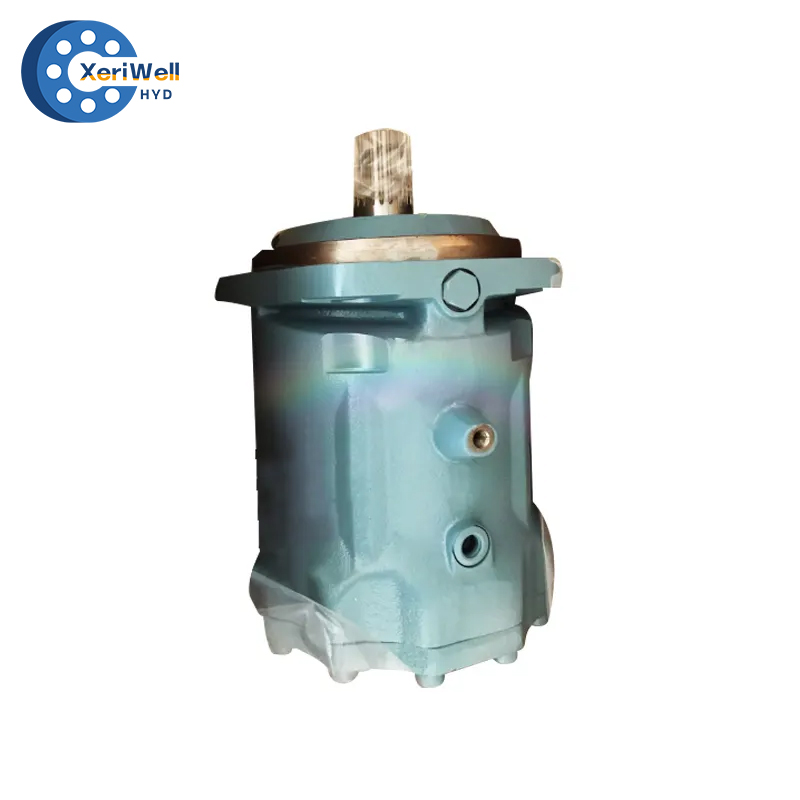

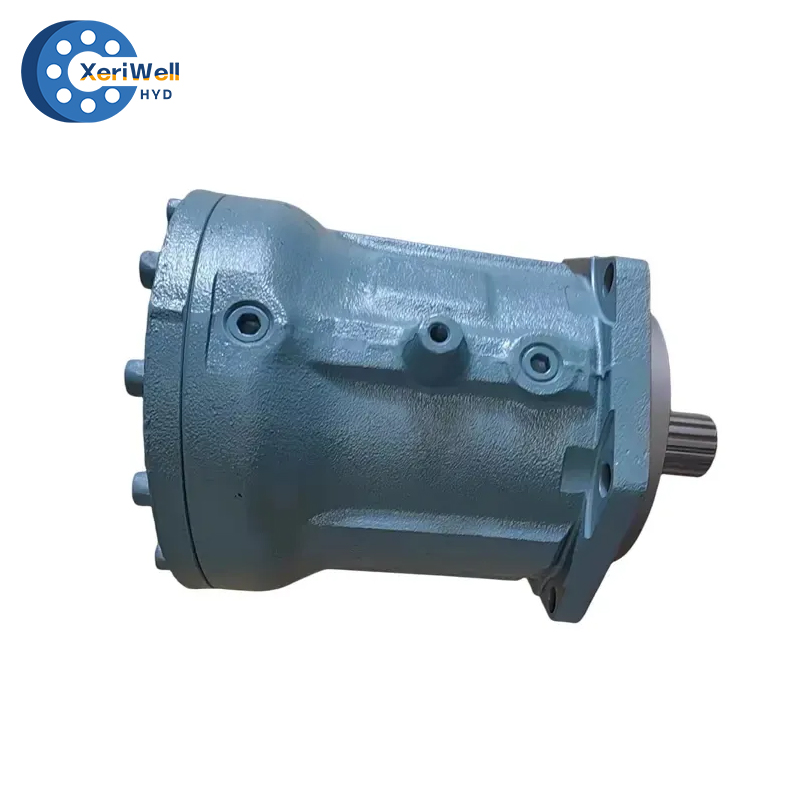

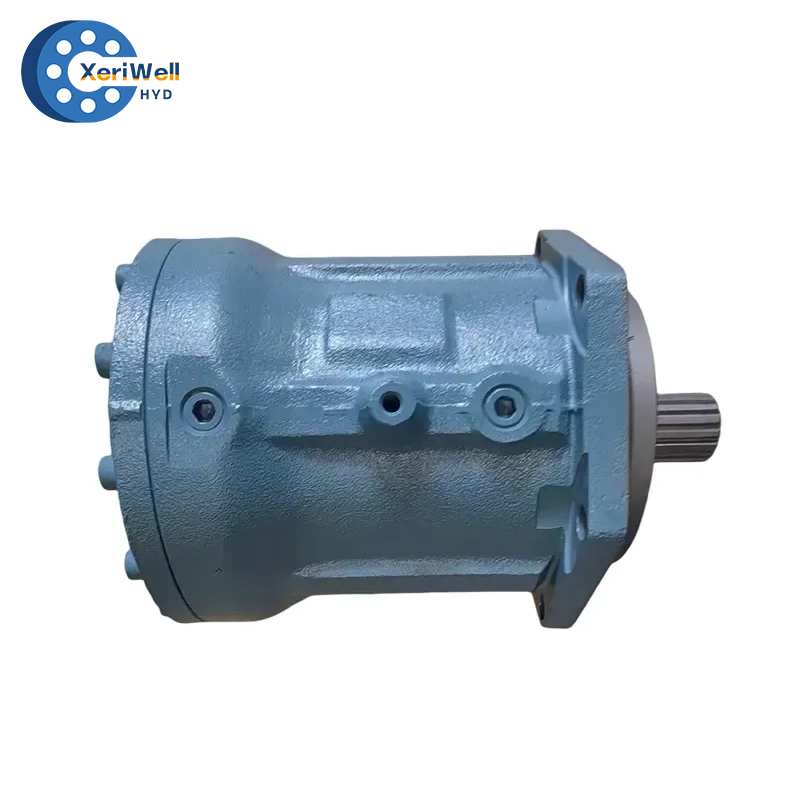

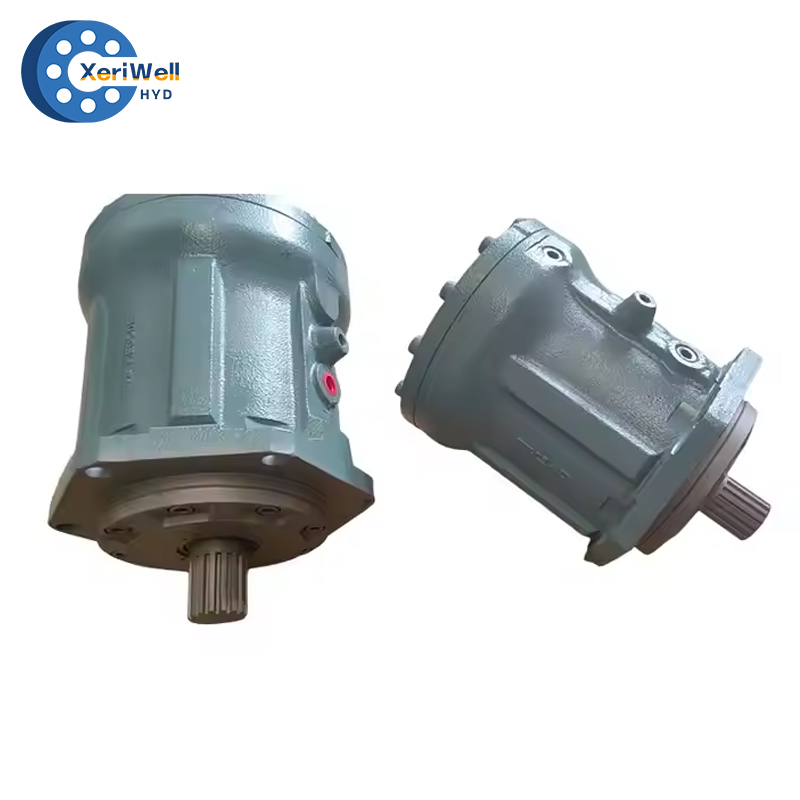

Eaton's ME Series hydraulic motors are engineered for high-torque, low-speed applications, making them ideal for machinery such as directional drilling equipment, top head drives, and marine winches. These motors feature a double swash plate design with multiple opposed pistons, ensuring optimal power output and smooth operation.
Key Advantages:
1）Smooth Operation at Low Speeds: The multiple pistons and double swash plate design enable smooth rotation at speeds as low as 1 rpm.
2）High Starting Torque: These motors provide high starting torque, ensuring reliable performance even under heavy load conditions.
3）High Overall Efficiency: Designed for optimal power output, the ME Series motors deliver high overall efficiency, contributing to energy savings and improved system performance.
4）Robust Construction: Built with durability in mind, these motors are suitable for demanding industrial environments.
5）Unaffected by Thermal Shock: The flat, pressure-compensating valve plate design allows the motors to start effectively even in cold temperatures, ensuring reliable operation across a range of environmental conditions.

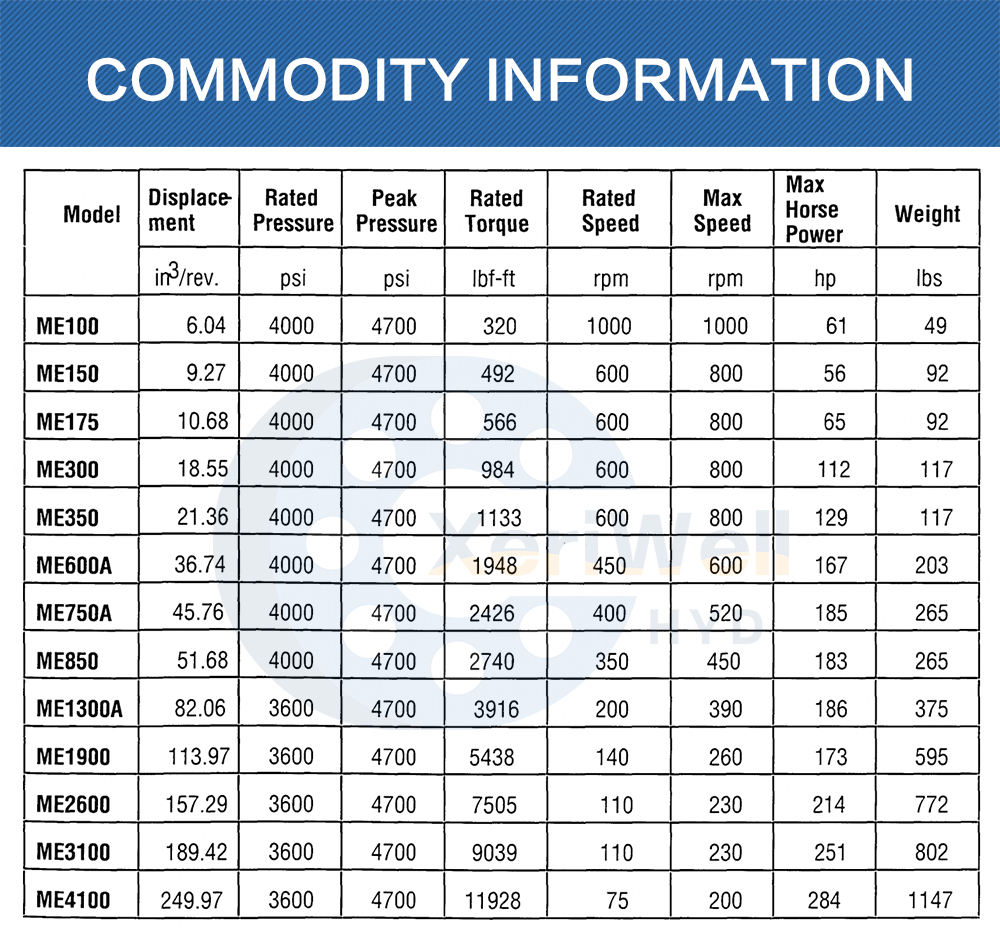

With a displacement range from 99 to 4,097 cc/rev and continuous operating pressures up to 27.5 MPa (280 kgf/cm²), Eaton's ME Series hydraulic motors are versatile and adaptable to various high-torque, low-speed applications.
Type: ME100, ME150, ME175, ME300, ME350, ME600A, ME750A, ME850, ME1300A, ME1900, ME2600, ME3100, ME4100
