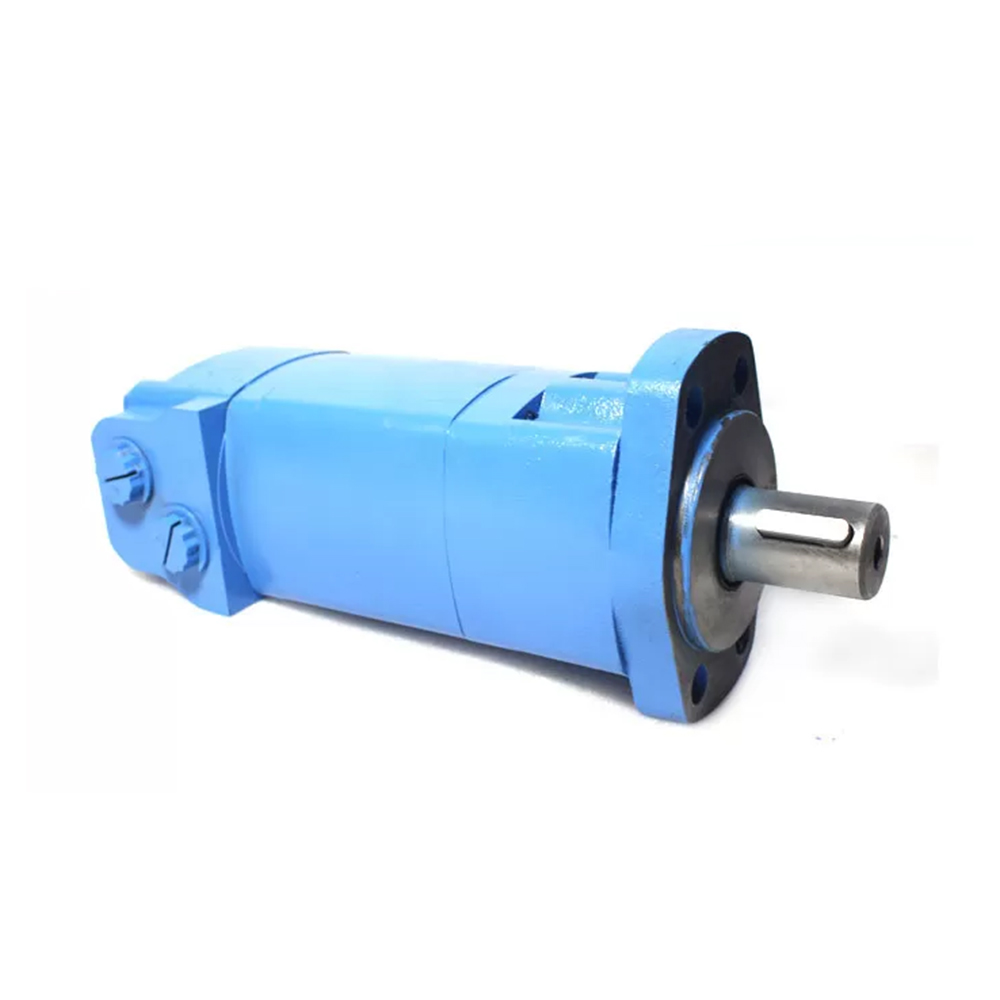

Eaton Gerotor Hydraulic Motor Industrial Disc Valve Motor 29.8 Cu In/Rev, 4 Bolt Magneto Mounting Flange,31.75mm Shaft

You are here: Home » Products » Hydraulic Motor » Ungrouped » Eaton Gerotor Hydraulic Motor Industrial Disc Valve Motor 29.8 Cu In/Rev, 4 Bolt Magneto Mounting Flange,31.75mm Shaft

Eaton Gerotor Hydraulic Motor Industrial Disc Valve Motor 29.8 Cu In/Rev, 4 Bolt Magneto Mounting Flange,31.75mm Shaft

Eaton Gerotor Hydraulic Motor Industrial Disc Valve Motor 29.8 Cu In/Rev, 4 Bolt Magneto Mounting Flange,31.75mm Shaft

Pictures are for display only, please contact us to choose the right product for you.

Quantity:
Availability:





Inquire Add to Basket

Model:
BMK2 MOTOR
Brand:
Xeriwell or Others

Product Description

Features:	Match /M+S/Eaton/Char_lynn	Application:	Harvesting Equipment
Displacement:	500cc	Max.speed(rpm):	Cont.153rpm/int.230rpm
Max.torque(N.m):	Cont.845N.m/int.930N.m	Max.pressure Drop:	Cont.12Mpa/int.14Mpa
Oil Temperature:	Normal-35℃-80℃	Viscosity:	42-74mm2/s
Highlight:	eaton gerotor hydraulic motor , 31.75mm Shaft gerotor hydraulic motor , 500cc gerotor hydraulic motor

2000 Series Geroler Motor, 29.8 cu in/rev,

4 Bolt Magneto Mounting Flange,31.75mm Shaft

7/8-14 St.Thd. O-Ring

Brand	Xeriwell
Displacement	29.8 Cir
Product Type	Simple product
Features	Blue Paint
Mount	4 Bolt Magneto
Ports	7/8-14 St.Thd. O-Ring
Supplier Part Number	104-3917-006
Product Weight	27.00 lbs

Main specification

TYPE		BMK2 125CC	BMK2 160CC	BMK2 200CC	BMK2 250CC	BMK2 315CC	BMK2 400CC	BMK2 475CC
Displacement(ml/r)		129.8	156.8	193.4	242.5	304.3	390.8	485
Max.Pressure.Drop(Mpa)	cont.	21	20.5	20.5	20.5	21	15.5	12
	int.	31	26	26	26	24	17	14
	peak.	31	31	31	31	31	20.5	17
Max.Torque(N.m)	cont.	385	455	540	660	765	775	845
Max.Torque(N.m)	int.	560	570	665	820	885	925	930
Speed.Range(r/min)	cont.	576	477	385	308	246	191	153
Speed.Range(r/min)	int.	720	713	577	462	365	287	230
Max.Flow(cont.)(L/min)	cont.	75	75	75	75	75	75	75
Max.Flow(cont.)(L/min)	int.	95	115	115	115	115	115	115
Weight(kg)		10	10.2	10.5	11	11.5	12	12.4

Benefits

• Lowest pressure drop motor in the industry

• Widest range of options

• The most experienced manufacturer of LSHT motors

Applications

• Swing motor

• Brush Cutters & mowers

• Harvesting equipment

• Directional boring

• Turf equipment

• Skid Steer loaders

• Fairway mowers

• Harvesters

• Mowing

• Snow removal

• Sprayers

• Trencher

• Wood products

• Grinders and mixers

• Forestry equipment

• Irrigation reels

When the job is tough—perhaps the harvest is long, or the brush to be cleared is thicker than usual

—nobody has time for a faulty, unreliable motor.

Xeriwell answers the call with medium pressure disc valve motors that provide higher flows

and pressures than spool valve motors. Whether the system requires standard mount,

wheel mount ,Xeriwell medium pressure motors deliver unrivaled performance for a variety of applications.
