| Quantity: | |
|---|---|
BMK2
Xeriwell or Others

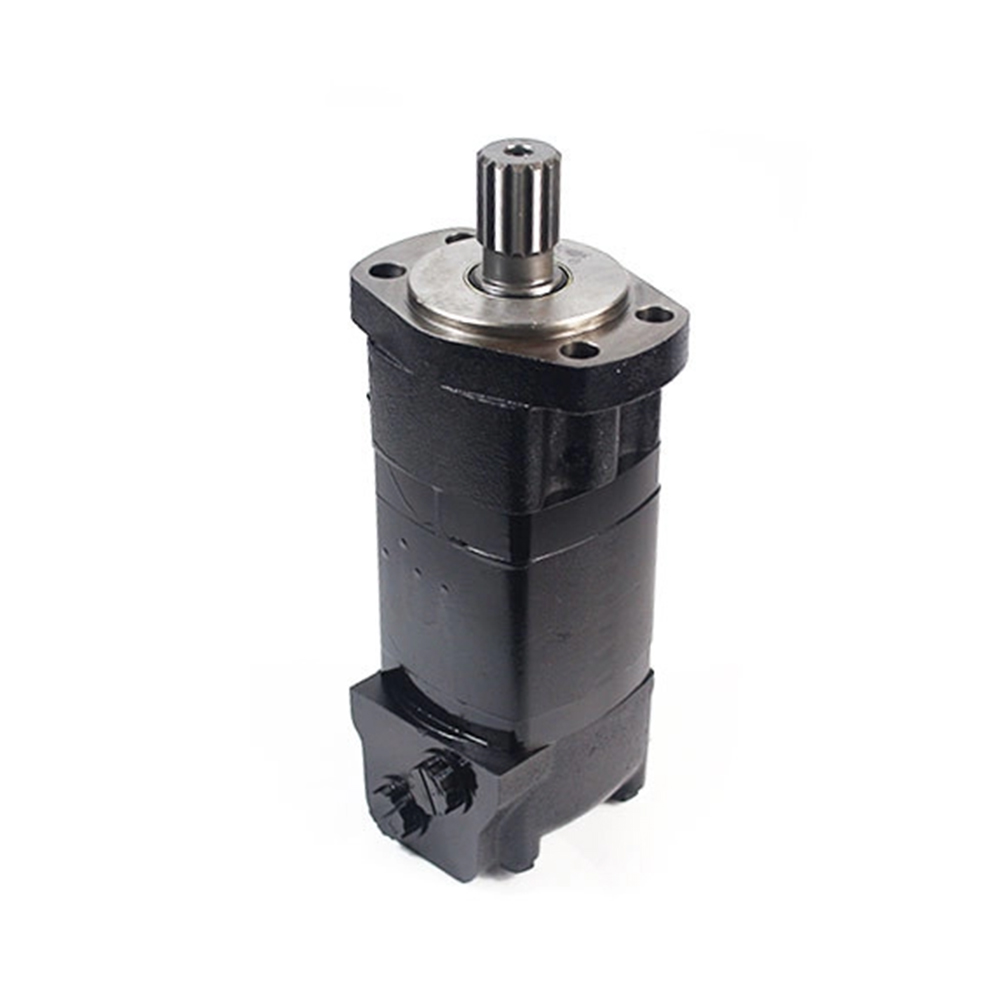

| Product: | Earthmoving Attachment Drive Motor | Type: | 104-,105-,106- |
|---|---|---|---|
| Flange: | Oval Flange | Shaft: | Key Shaft |
| Displacement: | 200cc/315cc/400cc/500cc | Max Speed: | Cont.185/int.225rpm |
| Highlight: | manual low speed high torque hydraulic motor,charlynn low speed high torque hydraulic motor,manual lsht motor | ||
Product details
order type:BMK2
Flange:4 bolts oval flange
shaft:key shaft:spline shaft:31.75mm
ports:7/8-16unf
fit:earthmoving attachements
quality:aftermarket OEM quality
Main Specifications:
| Type | BMK2 80 | BMK2 100 | BMK2 125 | BMK2 160 | BMK2 200 | BMK2 250 | BMK2 315 | BMK2 375 | |
| Geometric displacement (cm3 /rev.) | 80.6 | 100.8 | 125 | 157.2 | 200 | 252 | 314.5 | 370 | |
| Max. speed (rpm) | cont. | 800 | 748 | 600 | 470 | 375 | 300 | 240 | 200 |
| int. | 988 | 900 | 720 | 560 | 450 | 360 | 280 | 240 | |
| Max. torque (N·m) | cont. | 190 | 240 | 310 | 316 | 400 | 450 | 560 | 536 |
| int. | 240 | 300 | 370 | 430 | 466 | 540 | 658 | 645 | |
| peak | 260 | 320 | 400 | 472 | 650 | 690 | 740 | 751 | |
| Max. output (kW) | cont. | 15.9 | 18.8 | 19.5 | 15.6 | 15.7 | 14.1 | 14.1 | 11.8 |
| int. | 20.1 | 23.5 | 23.2 | 21.2 | 18.3 | 17 | 18.9 | 17 | |
| Max. pressure drop (MPa) | cont. | 17.5 | 17.5 | 17.5 | 15 | 14 | 12.5 | 12 | 10 |
| int. | 21 | 21 | 21 | 21 | 16 | 16 | 14 | 12 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 18.5 | 14 | |
| Max. flow (L/min) | cont. | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 80 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |
| Max. inlet pressure (MPa) | cont. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| int. | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 9.8 | 10 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 12.6 | |
Hydraulic motor for any machine, is a very core component, for the sense of use of some products also has a very direct impact. we in the purchase of hydraulic motor, we must ensure that the quality of qualified.
When it comes to quality and popularity, most people might think of the Eaton Hydraulic Company, where eaton is based in the United States, with more than 20 factories. After the successful acquisition of Wigs in 1999, their product brands included eaton, vickers, char-lynn, aeroquip and hydro-line, so eaton's products include power sources, control elements, actuators, connectors, connectors, pollution control and a full set of hydraulic systems. Their company's products are widely recognized in the current hydraulic market, in the product development, technical strength, product quality and other aspects are doing very good. In the eaton orbital motors, the Xcel series of motors are mainly promoted at this stage, and the Eaton Xcel Gerotor / Geroler hydraulic motor provides three-zone protection at the dual-zone price, with lower energy consumption and lower working temperature. They promise that such a design can suppress pressure peaks in both directions, help extend axial seal life and improve overall reliability. It is very popular to see or experience eaton fluid power in many areas.
But Eaton's products are really expensive, so it's not a good choice for people who even want quality and need a better price. Xeriwell Technology is worth the choice, and they don't be as famous as Eaton, but Xeriwell orbital motors is superb in terms of quality and innovation. They advertise themselves as innovative companies, but in fact, their products refuse to be homogenized with other motors in the market. They will irregularly update their products according to the use needs of research, turning some traditional hydraulic motors into products that more fit the actual needs. In addition to the hydraulic motor, in the development and production of valves is also unique. Long service life and price concessions are a common feature of their products.
XeriWell is a dedicated provider of hydraulic products, specializing in hydraulic motors, pumps, components, and complete hydraulic systems. Positioned as a trusted supplier to the global market, we focus on delivering innovative and reliable hydraulic solutions that meet the highest standards. With a commitment to serving clients worldwide, XeriWell provides tailored solutions that address the unique hydraulic needs of any region, supporting industries with high-quality, dependable performance.
At XeriWell, we bring extensive expertise to the hydraulic industry, grounded in a deep understanding of industry standards and certifications that ensure top-quality products and services. Our team of specialized hydraulic engineers is well-versed in international standards, rigorously following certifications and guidelines to meet diverse market requirements. With an average of over 10 years of experience, our professionals have the knowledge to handle complex projects and offer fully customizable solutions.
XeriWell offers a comprehensive range of hydraulic products, including hydraulic motors, pumps, components, complete hydraulic systems, and various other hydraulic parts to meet diverse industry needs. In addition to our extensive product line, we provide tailored hydraulic system solutions, designed to meet each client's unique specifications. Our customization services save clients valuable time by eliminating the need to source multiple suppliers, delivering fully integrated and efficient solutions for their hydraulic applications.
XeriWell's core competitive advantage lies in our technical expertise. Unlike standard suppliers, we are a technology-driven company focused not only on sourcing high-quality hydraulic products but also on offering strategic guidance and expert recommendations to our clients. This technical strength, combined with our comprehensive product range and customization capabilities, allows us to deliver hydraulic solutions that truly add value and meet the specific needs of a global clientele.
At XeriWell, our vision is to be a leading global provider of innovative and reliable hydraulic solutions that drive industry progress and customer success. We are committed to excellence, integrity, and customer-centric service, valuing strong partnerships and continuous improvement. Our goal is to empower our clients by delivering high-quality, tailored solutions that meet evolving industry demands, fostering a future where hydraulic technology is seamlessly integrated, efficient, and sustainable for all.
At XeriWell, we offer a comprehensive range of hydraulic components, including hydraulic motors, pumps, accessories, valves and more, with options for both original and high-quality domestic alternatives. Backed by a robust supply chain, we are able to meet the vast majority of our clients'procurement needs, from standard models to non-standard and even discontinued products. Additionally, we provide fully customized services and solutions tailored to specific requirements, ensuring clients receive precisely the products and configurations needed for optimal performance. Our commitment to flexibility and reliability makes XeriWell a trusted partner for all hydraulic sourcing and customization needs.
