Eaton Charlynn 114-1080-006
Xeriwell or Others
| Type: | Orbital Motor, Hydraulic Motor | Brand: | Xeriwell |
|---|---|---|---|
| Model No.: | 114-1080-006 | Displacement: | 315ml/r |
| Flange: | Square Flange | Shaft: | Short Shaft 16-DP12/24 |
| Port Size: | 1 1/16-12UN O-ring | Drain Line: | 9/16-18UNF |
| Highlight: | 315cc Orbital Hydraulic Motor,Eaton Charlynn 114-1080-006 Replacement Motor,Square Flange Orbital Hydraulic Motor | ||

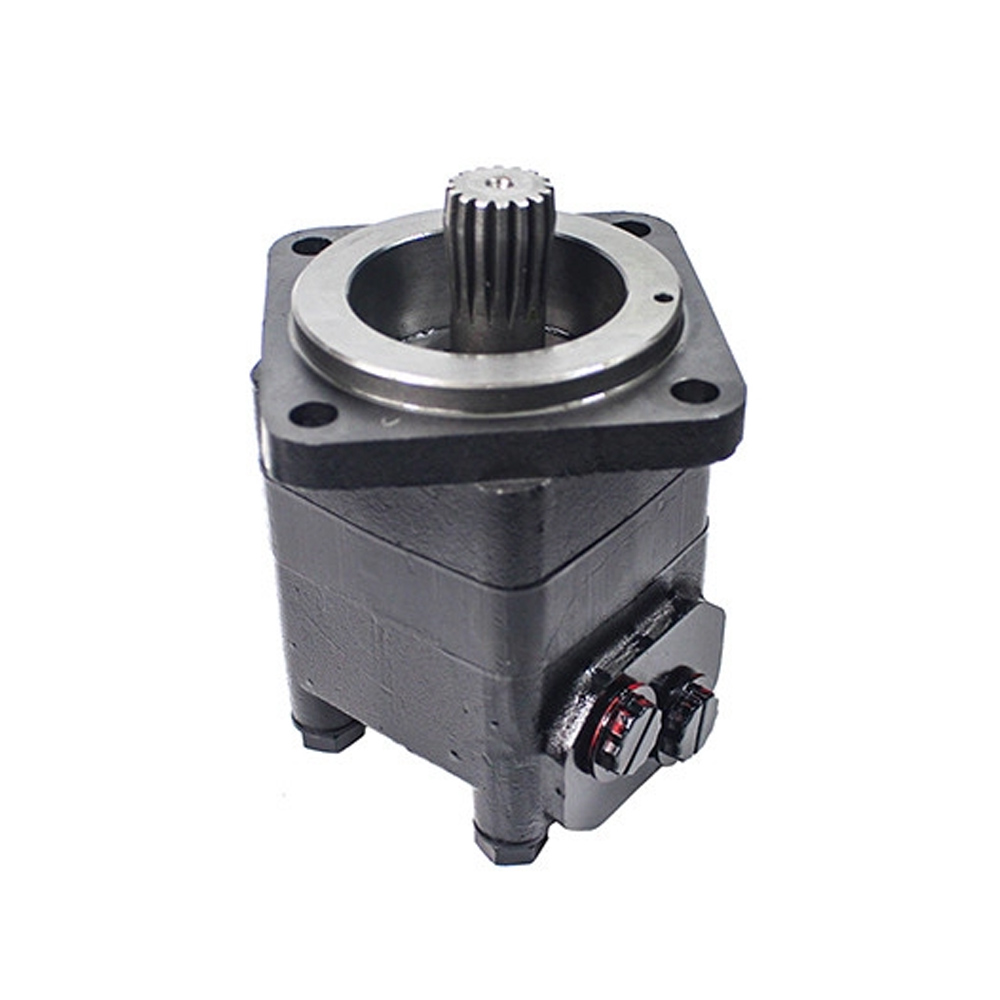

Eaton Charlynn 114-1080-006 replacement, 315cc with square flange, short shaft 16-DP12/24
Quick review:
BMTS-500-E-S = Eaton Char lynn 114-1080-006
Output volume (cc/rev): 315
Shaft Ø (mm): short shaft 16-DP12/24
max r.p.m.: 460
Torque max. (Nm): 1346.3
Pressure difference (bar): 280
Volume flow max. (l/min): 225
Shaft seal version: Standard
Engine version: standard
Connection: 1 1/16-12UN O-ring
Leakage oil connection: 9/16-18UNF
Main Specifications:
| Type | BMT 160 | BMT 200 | BMT 230 | BMT 250 | BMT 315 | BMT 400 | BMT 500 | BMT 630 | BMT 800 | |
| Geometric displacement (cm3 /rev.) | 161.1 | 201.4 | 232.5 | 251.8 | 326.3 | 410.9 | 523.6 | 629.1 | 801.8 | |
| Max. speed (rpm) | cont. | 625 | 625 | 536 | 500 | 380 | 305 | 240 | 196 | 154 |
| int. | 780 | 750 | 643 | 600 | 460 | 365 | 285 | 233 | 185 | |
| Max. torque (N·m) | cont. | 470 | 590 | 670 | 730 | 950 | 1080 | 1220 | 1318 | 1464 |
| int. | 560 | 710 | 821 | 880 | 1140 | 1260 | 1370 | 1498 | 1520 | |
| peak | 669 | 838 | 958 | 1036 | 1346.3 | 1450.3 | 1643.8 | 1618.8 | 1665 | |
| Max. output (kW) | cont. | 27.7 | 34.9 | 34.7 | 34.5 | 34.9 | 31.2 | 28.8 | 25.3 | 22.2 |
| int. | 32 | 40 | 40 | 40 | 40 | 35 | 35 | 27.5 | 26.8 | |
| Max. pressure drop (MPa) | cont. | 20 | 20 | 20 | 20 | 20 | 18 | 16 | 14 | 12.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 21 | 18 | 16 | 13 | |
| peak | 28 | 28 | 28 | 28 | 28 | 24 | 21 | 19 | 16 | |
| Max. flow (L/min) | cont. | 100 | 125 | 125 | 125 | 125 | 125 | 125 | 125 | 125 |
| int. | 125 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | |
| Max. inlet pressure (MPa) | cont. | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 |
| int. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| peak | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 19.5 | 20 | 20.4 | 20.5 | 21 | 22 | 23 | 24 | 25 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

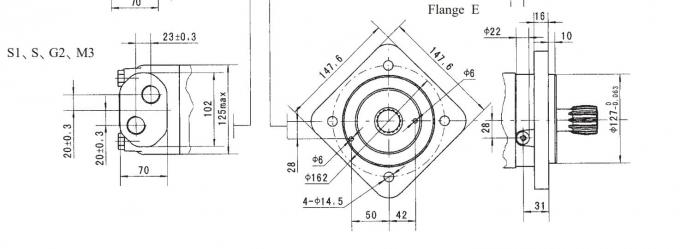

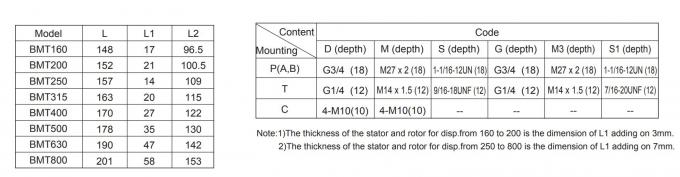

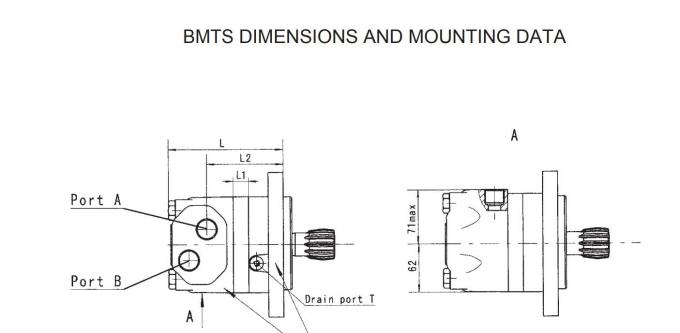

| Model | L | L1 | L2 |
| BMT160 | 148 | 17 | 96.5 |
| BMT200 | 152 | 21 | 100.5 |
| BMT250 | 157 | 14 | 109 |
| BMT315 | 163 | 20 | 115 |
| BMT400 | 170 | 27 | 122 |
| BMT500 | 178 | 35 | 130 |
| BMT630 | 190 | 47 | 142 |
| BMT800 | 201 | 58 | 153 |
| Mounting Content | Code | |||||
| D (depth) | M (depth) | S (depth) | G (depth) | M3 (depth) | S1 (depth) | |
| P(A,B) | G3/4 （18） | M27 x 2 (18) | 1-1/16-12UN (18) | G3/4 （18） | M27 x 2 (18) | 1-1/16-12UN (18) |
| T | G1/4 （12） | M14 x 1.5 (12) | 9/16-18UNF (12) | G1/4 （12） | M14 x 1.5 (12) | 7/16-20UNF (12) |
| C | 4-M10(10) | 4-M10(10) | -- | -- | -- | -- |
| Note:1)The thickness of the stator and rotor for disp.from 160 to 200 is the dimension of L1 adding on 3mm. 2)The thickness of the stator and rotor for disp.from 250 to 800 is the dimension of L1 adding on 7mm. | ||||||
