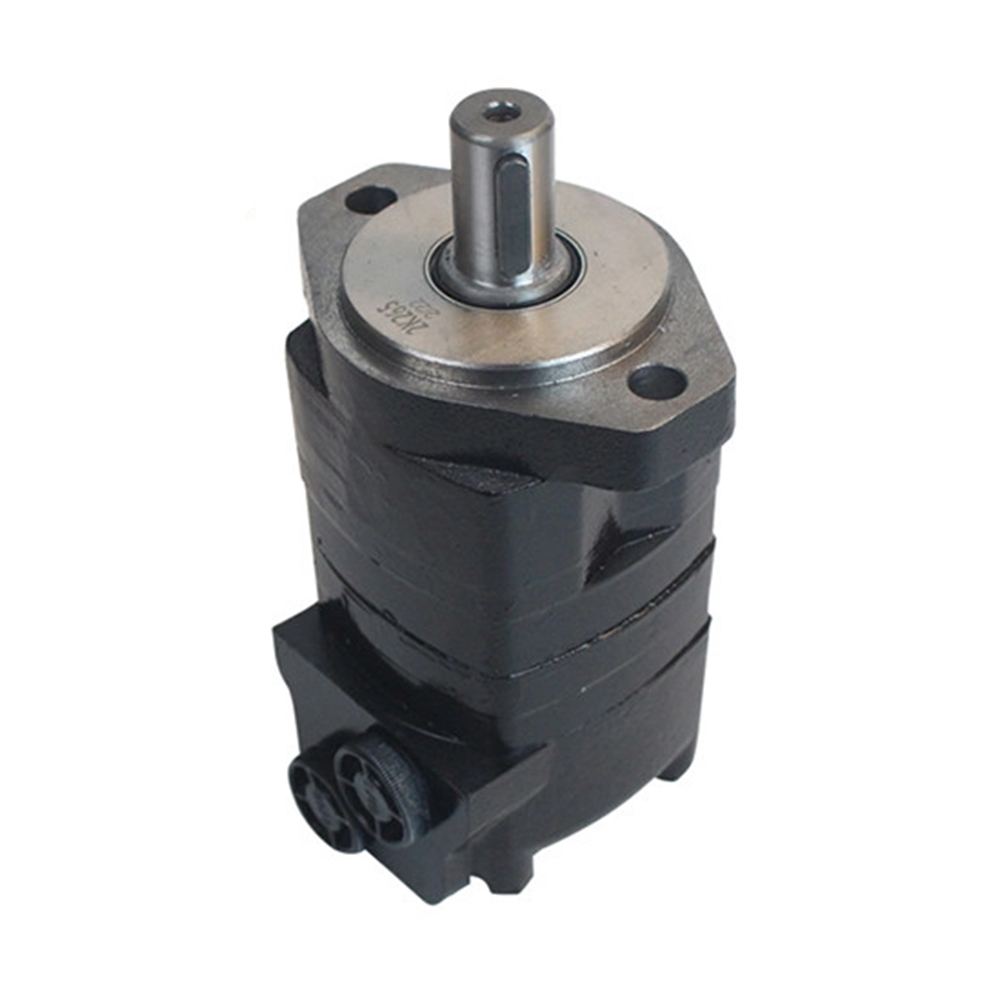

Eaton Char-lynn Gerotor Hydraulic Motor 2000 series replacement BMK2-65

Pictures are for display only, please contact us to choose the right product for you.

Product:

Hydraulic Motor

Displacement:

65 Ml/r

Shaft:

Key Shaft

Rotation:

Highlight:

Eaton Char-lynn Gerotor Hydraulic Motor

Eaton Char-lynn Gerotor Hydraulic Motor 2000 series replacement BMK2-65

Quick review:

Model number: BMK2-65-E2-A-D-B
Displacement: 65 ml/r
Shaft, Key shaft
Rotation, CW
Features, replace Eaton Char-lynn 2000 series

Speed, torque, flow, pressure, weight informations:

Main Specifications:
Type		BMK2	BMK2	BMK2	BMK2	BMK2	BMK2	BMK2	BMK2	BMK2	BMK2
		65	80	100	125	160	200	250	315	400	475
		65	80	100	125	160	200	250	315	400	475
Geometric displacement (cm3 /rev.)		65	80	100.9	129.8	156.8	193.4	242.5	304.3	390.8	485
Geometric displacement (cm3 /rev.)		65	80	100.9	129.8	156.8	193.4	242.5	304.3	390.8	485
Max. speed (rpm)	cont.	835	800	742	576	477	385	308	246	191	153
Max. speed (rpm)	int.	990	980	924	720	713	577	462	365	287	230
Max. torque (N·m)	cont.	185	235	295	385	455	540	660	765	775	845
Max. torque (N·m)	int.	245	345	445	560	570	665	820	885	925	930
Max. pressure drop (MPa)	cont.	20.5	21	21	21	20.5	20.5	20.5	21	15.5	12
	int.	27.5	31	31	31	26	26	26	24	17	14
	peak	31	31	31	31	31	31	31	31	20.5	17
Max. flow (L/min)	cont.	55	65	75	75	75	75	75	75	75	75
Max. flow (L/min)	int.	65	80	95	95	115	115	115	115	115	115
Weight (kg)		9.2	9.4	9.7	10	10.2	10.5	11	11.5	12	12.4
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

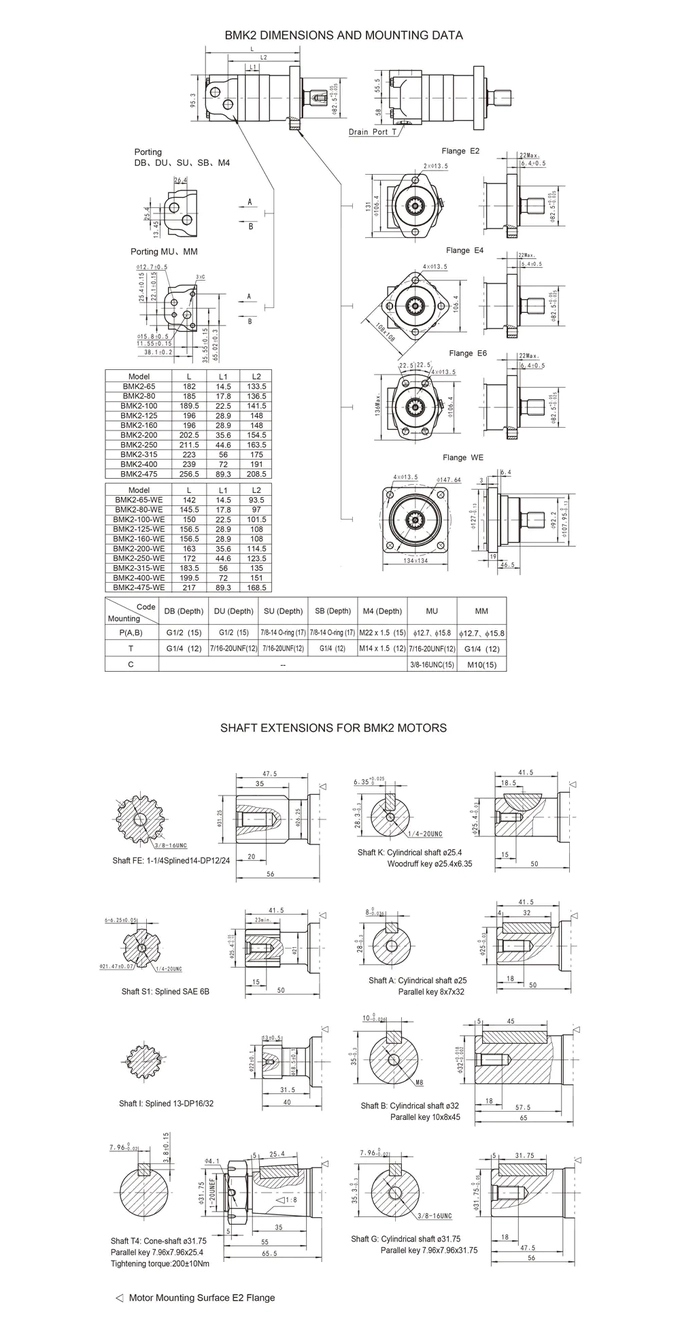

Measurement:

More Eaton Char-lynn replacement motor we have:
