Eaton Char Lynn Slow Speed High Torque Motor 112- , 113- , 114- 4 Hole Square Flange

Pictures are for display only, please contact us to choose the right product for you.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
  • BMT-500-4MDB

  • Xeriwell or Others

Product: Hydraulic Motor Replace: Eaton Char Lynn 6000 Series
Alternative: Sauer OMT Series Performance: 99%
Apply To: Construction Equip Like Drilling Machine Displacement: 500 Ml/r (500 Cc, 500 Cm3)
Flange: 4 Hole Square Shaft: Straight Shaft With Parrale Key
Max Flow: 150 L/min Max Speed: 285 Rpm
Weight: 29 Kgs Measurement: 50x21x21cm
Highlight:

slow speed high torque motor

,

omt hydraulic motor


Eaton Char Lynn Low speed high torque hydraulic motor 112-, 113-, 114-.


BMT indroduction:

This motor is a Low Speed High Torque type motor, also called gerolor hydraulic motor, or orbit hydraulic motor, also dis valve hydraulic motor.


Characteristics:

This motor produced by Xeriwell Technology from China, it's a alternative low speed high torque hydraulic motor to Eaton Char lynn 6000 series (6k series), also alternative with OMT series, also alternative with M+S MT series, and alternative with many other manufacturers from USA and European.


What benefit can i get?

As it's performance is 98% near the below manufacturers, however it's price is more than 50% lower than the below manufacturers, it has been widely used in the Construction, Heavy Equipment, Farm & Agri, Mining, Metallurgical, Chemical, Transportation industries. If you sell $1,000,000 a year, you raise profit by 50%, $500,000.

  1. Xeriwell BMT-500-4MDB = Eaton Char lynn 6000 series (6k series), from USA

  2. Xeriwell BMT-500-4MDB = OMT series, from Danmark

  3. Xeriwell BMT-500-4MDB = M+S MT series, from Bulgaria

  4. we have strong ability to match OEM part no. and provide you.


Specifications/ Technical Data:

This Low Speed High Torque hydraulic motor BMT is a big motor compare with other series like BMM(OMM,MM), BMP(OMP, MP), BMR(OMR, MR), BMH(OMH, MH), it's displacement start from 160 ml/r to 800 ml/r, speed from 154 rpm to 780 ml/r, torque from 470 N.m to 1665 N.m, max output from 22.2 kw to 40 kw, max flow from 100 L/min to 150 L/min.Below is the detail specifications of this BMT low speed high torque hydraulic motors.


Main Specifications:
Type BMT 160 BMT 200 BMT 230 BMT 250 BMT 315 BMT 400 BMT 500 BMT 630 BMT 800
Geometric displacement
(cm3 /rev.)
161.1 201.4 232.5 251.8 326.3 410.9 523.6 629.1 801.8
Max. speed (rpm) cont. 625 625 536 500 380 305 240 196 154
int. 780 750 643 600 460 365 285 233 185
Max. torque (N·m) cont. 470 590 670 730 950 1080 1220 1318 1464
int. 560 710 821 880 1140 1260 1370 1498 1520
peak 669 838 958 1036 1346.3 1450.3 1643.8 1618.8 1665
Max. output (kW) cont. 27.7 34.9 34.7 34.5 34.9 31.2 28.8 25.3 22.2
int. 32 40 40 40 40 35 35 27.5 26.8
Max. pressure drop
(MPa)
cont. 20 20 20 20 20 18 16 14 12.5
int. 24 24 24 24 24 21 18 16 13
peak 28 28 28 28 28 24 21 19 16
Max. flow (L/min) cont. 100 125 125 125 125 125 125 125 125
int. 125 150 150 150 150 150 150 150 150
Max. inlet pressure
(MPa)
cont. 21 21 21 21 21 21 21 21 21
int. 25 25 25 25 25 25 25 25 25
peak 30 30 30 30 30 30 30 30 30
Weight (kg) 19.5 20 20.4 20.5 21 22 23 24 25

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.


How to work with Xeriwell Technology?

Inorder to make you better understand how to work with us, here i give you the steps:

  1. discuss your demand with us first

  2. we help you to confirm the products

  3. match with our models

  4. discuss your demand quantity with us, this will help us to provide you our best offer

  5. we make a deal on the offer

  6. sign a contract

  7. you pay deposit

  8. we produce

  9. you pay balance payment after order ready for shipping

  10. dispatch order

  11. Payment terms: 30% deposit, 70% balance should be paid before shipping

  12. Shipping: by sea, by air, by train

  13. Terms: FOB, CFR, CIF

  14. Loading port: Tianjin, Qingdao, Shanghai, Ningbo, China


What is you warranty period?

For your further better understand what after-sale service we are offering, here i give you the details:

  1. each item supplied by 'Xeriwell' will be tested on it's testing plant at leaset twice

  2. each item supplied by 'Xeriwell' will with a quality certificate

  3. charge-free products, parts and services will be provided if any failures or defects of the contractual product in normal operation condition within the warranty period.

  4. all of our product practice protect the quality 1 year.

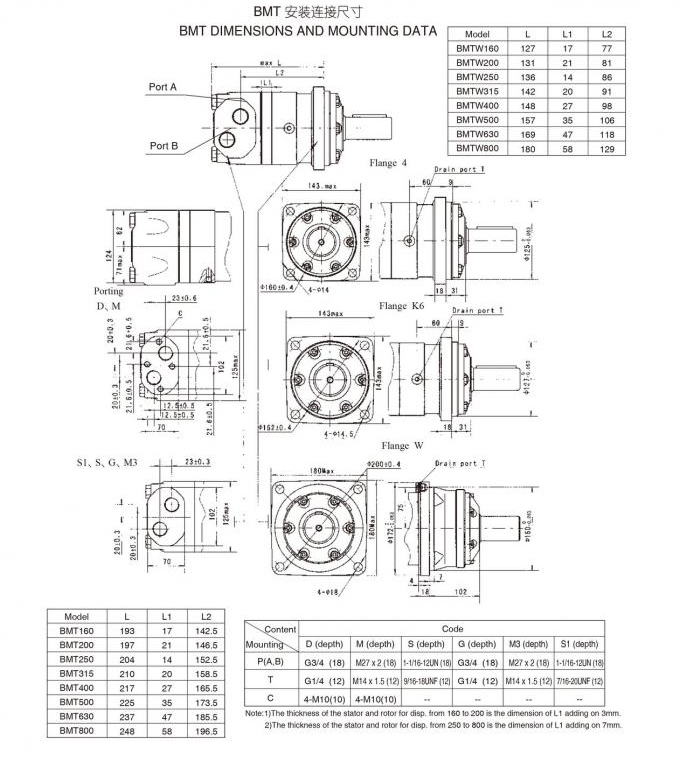

-726
