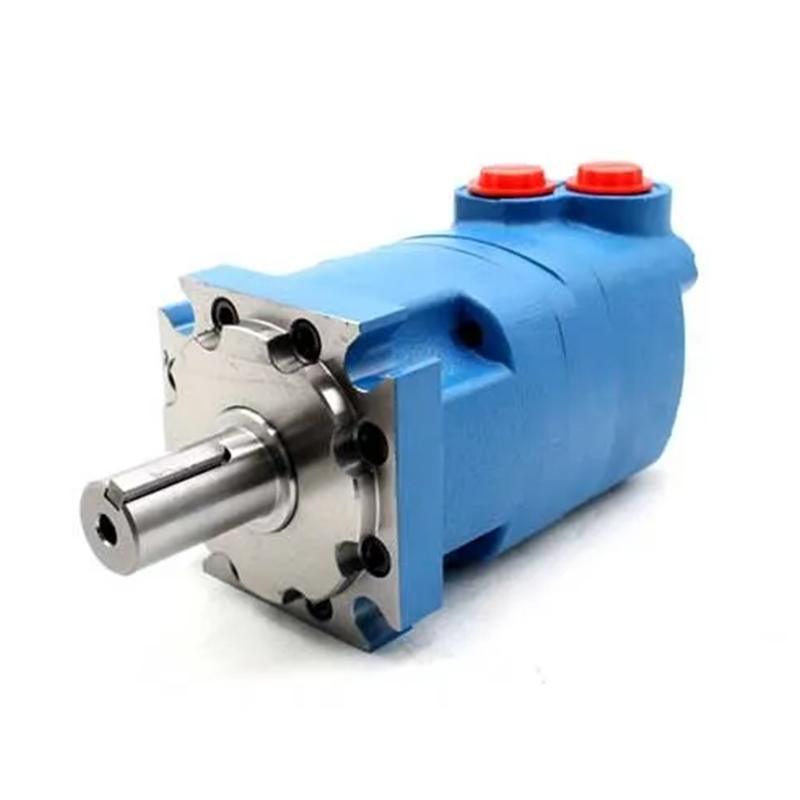

Eaton Char-Lynn 4000 Series 109-1100 Replacement Hydraulic Motor for Mowing, Trenching & Woodworking

Replace 109-1100 EATON Char-lynn Hydraulic Motor 4000 series, for Mowing, trencher and wood application

This is a replacement for Eaton 109-1100

109-1100 EATON CHAR-LYNN HYDRAULIC MOTOR 4000 SERIES EQUIVALENT, 6.7 IN3 DISPLACEMENT, 4 BOLT SAE B MOUNT, 1-1/4" KEYED SHAFT, #12 SAE ORING STAGGERED PORTS. EATON CHAR-LYNN (CHARLYNN) #109-1100, 109-1100-003, 109-1100-004 OR LATEST REVISION.

Currently available.

Features:

• series: 4,000 Series - Standard Motor - 109-1100

• replacement

• max geometric displacement: 6.70 Cu. In./ Rev

• maximum operating temperature: 82c or 180f

• replacement geroler

• mounting flange type: 4-bolt Flange - Sae B - With 4 In. Pilot Dia.

• replacement housing, bearing side (front)

• output shaft size: 1-1/4 In. Straight With Straight Key

• replacement mounting flange

• drain connection size: .4375-20 Unf-2b O-ring Port Size

• replacement output shaft and bearing kit

• port orientation: Staggered Ports

Product description

• Ten displacements, a variety of mounting flanges and output shafts

• Reliable, proven design

• High efficiency

• Environmental protection options

• Flexibility in designing this motor into a system

• Options that fit well into tough applications

• Applications: Mowing, snow removal, sprayer, trencher and wood products
