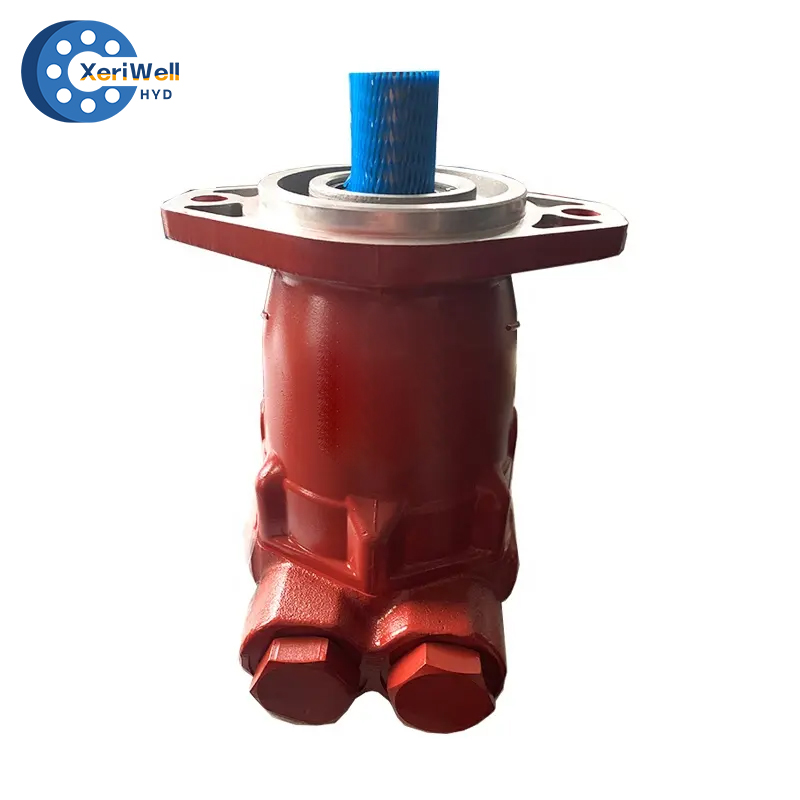

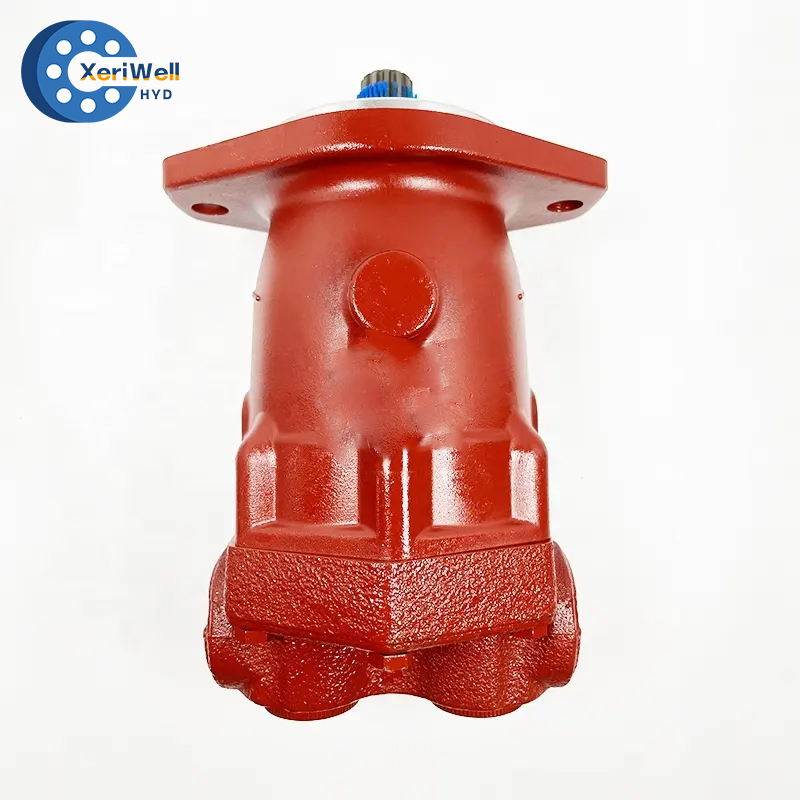

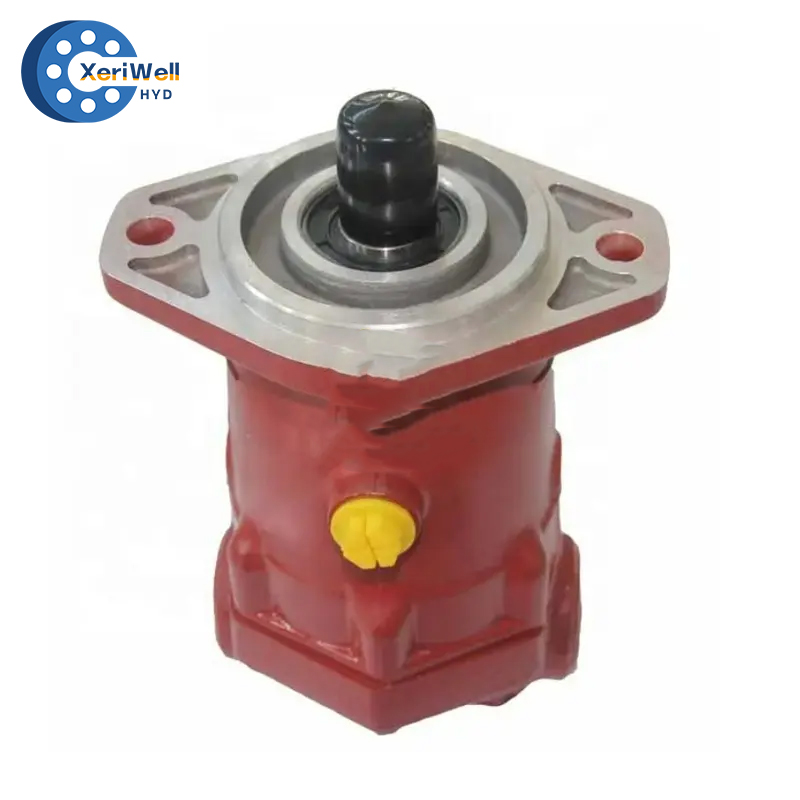

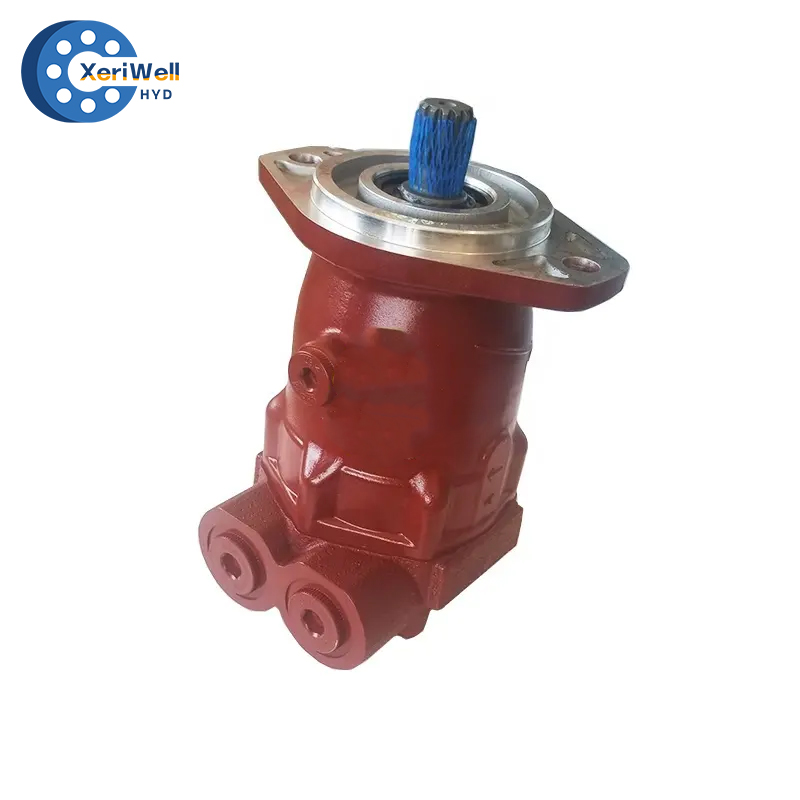

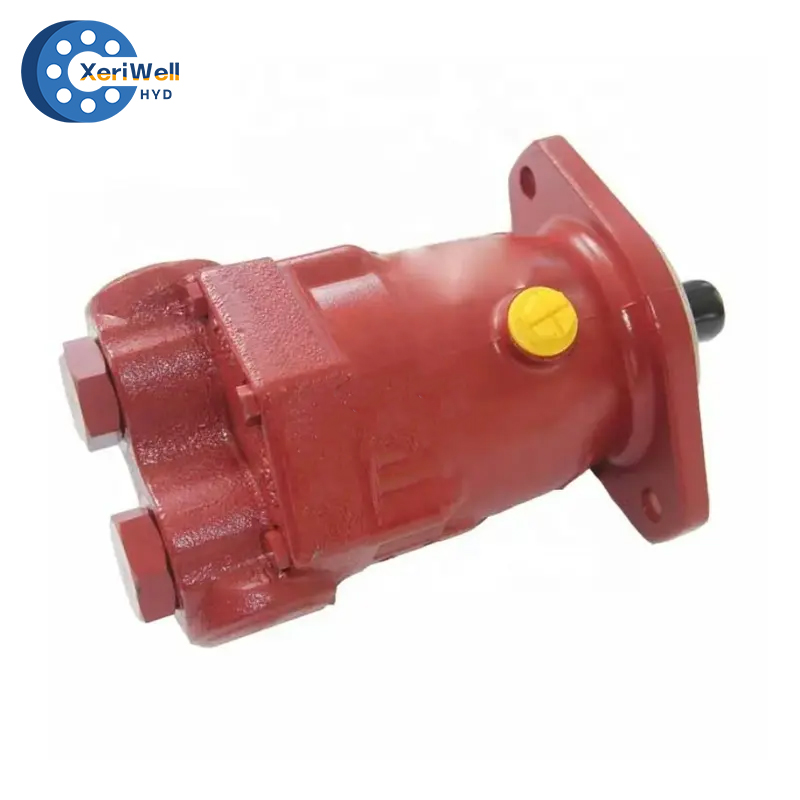

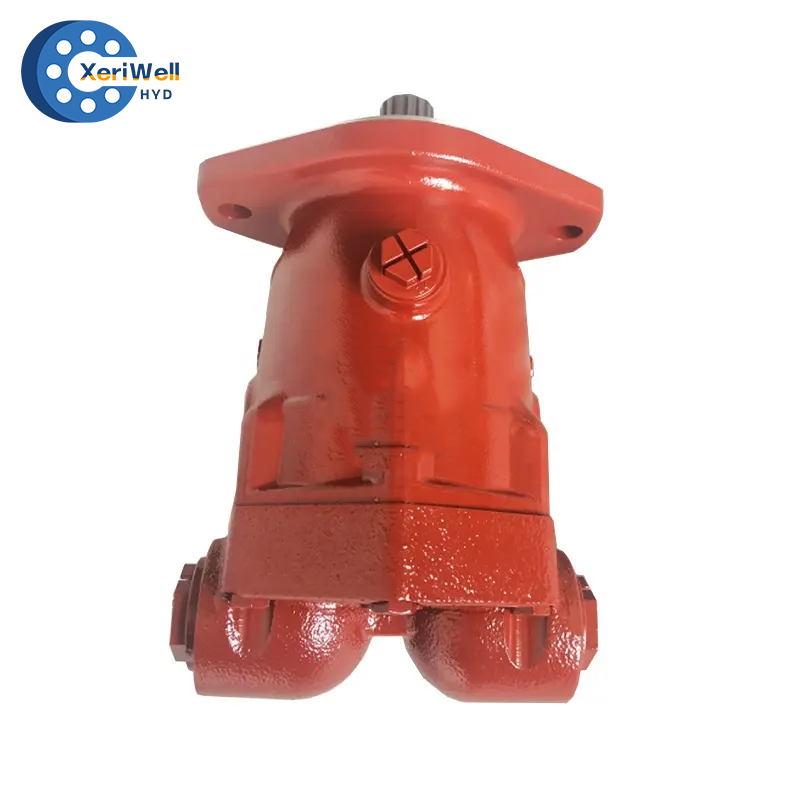

Eaton 74328 Hydraulic Motor

Pictures are for display only, please contact us to choose the right product for you.

Quantity:
Type:	74328-DAA 74328-DAB 74328-DAM 74328-DAN 74328-DAP 74328-DAR 74328-DAZ 74328-DBA
Spare Parts:	On sale
Availability:





Inquire Add to Basket

Model:
74328
Brand:
xeriwell or others

Product Description

Eaton 74328 Hydraulic Motor Product Introduction

Eaton 74328 -DAA/DAB/DAM/DAN/DAP/DAR/DAZ/DBA Hydraulic Motor technical data:

eaton xcel motor

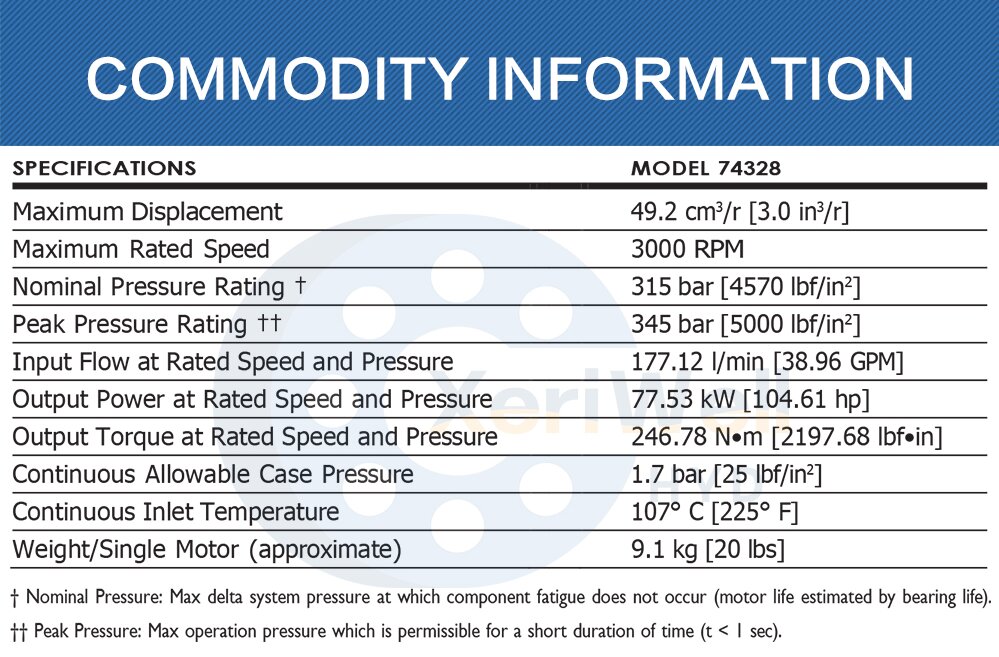

SPECIFICATIONS	MODEL 74328
Maximum Displacement	49.2 cm3/r [3.0 in3/r]
Maximum Rated Speed	3000 RPM
Nominal Pressure Rating †	315 bar [4570 lbf/in2]
Peak Pressure Rating ††	345 bar [5000 lbf/in2]
Input Flow at Rated Speed and Pressure	177.12 l/min [38.96 GPM]
Output Power at Rated Speed and Pressure	77.53 kW [104.61 hp]
Output Torque at Rated Speed and Pressure	246.78 N•m [2197.68 lbf•in]
Continuous Allowable Case Pressure	1.7 bar [25 lbf/in2]
Continuous Inlet Temperature	107° C [225° F]
Weight/Single Motor (approximate)	9.1 kg [20 lbs]
† Nominal Pressure:Max delta system pressure at which component fatigue does not occur (motor life estimated by bearing life). †† Peak Pressure:Max operation pressure which is permissible for a short duration of time (t < 1 sec).
