74118 74119
xeriwell or others

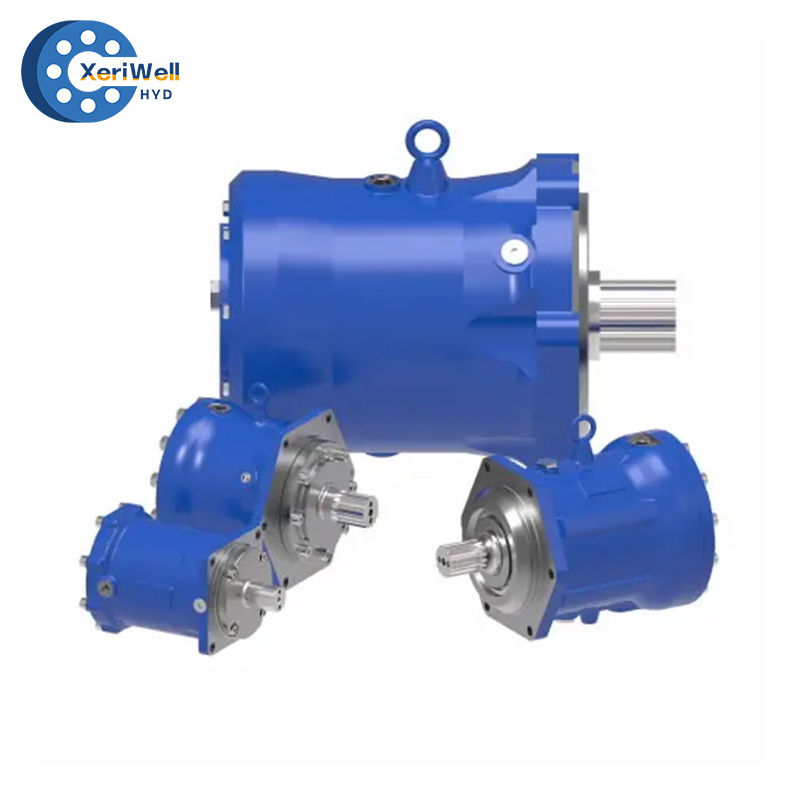

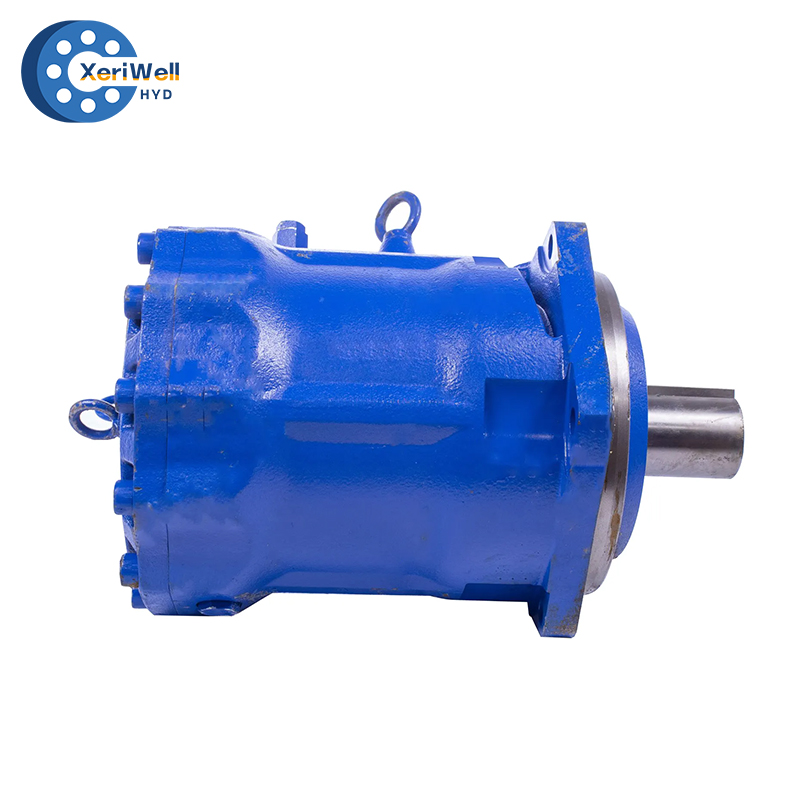

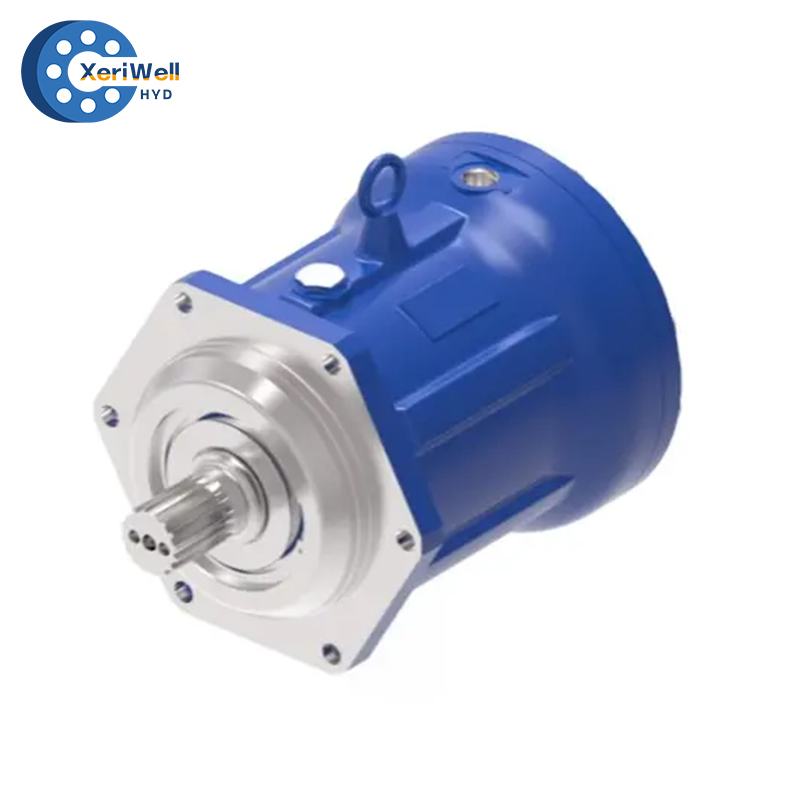

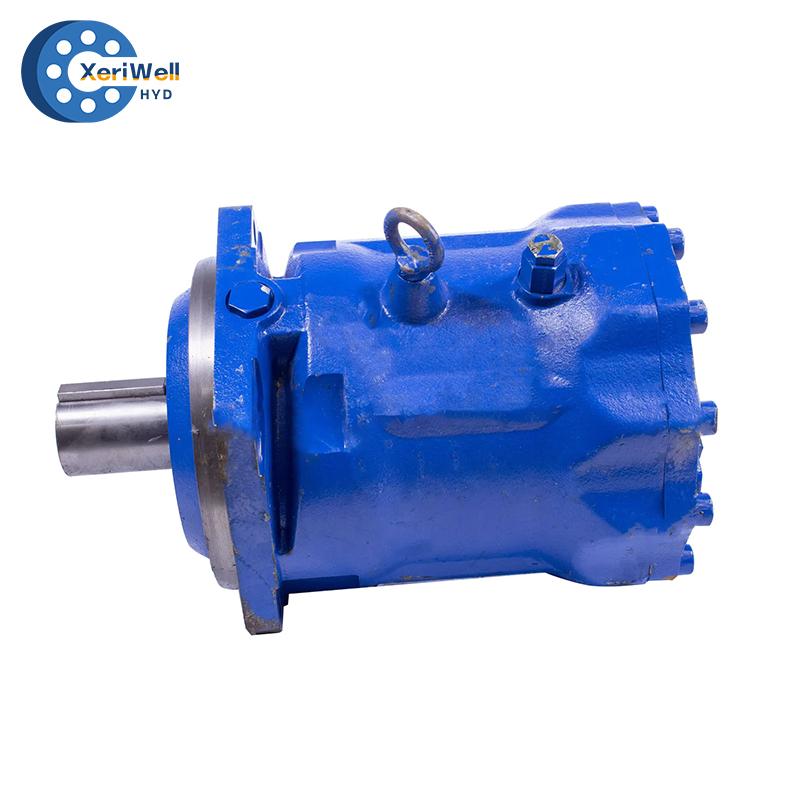

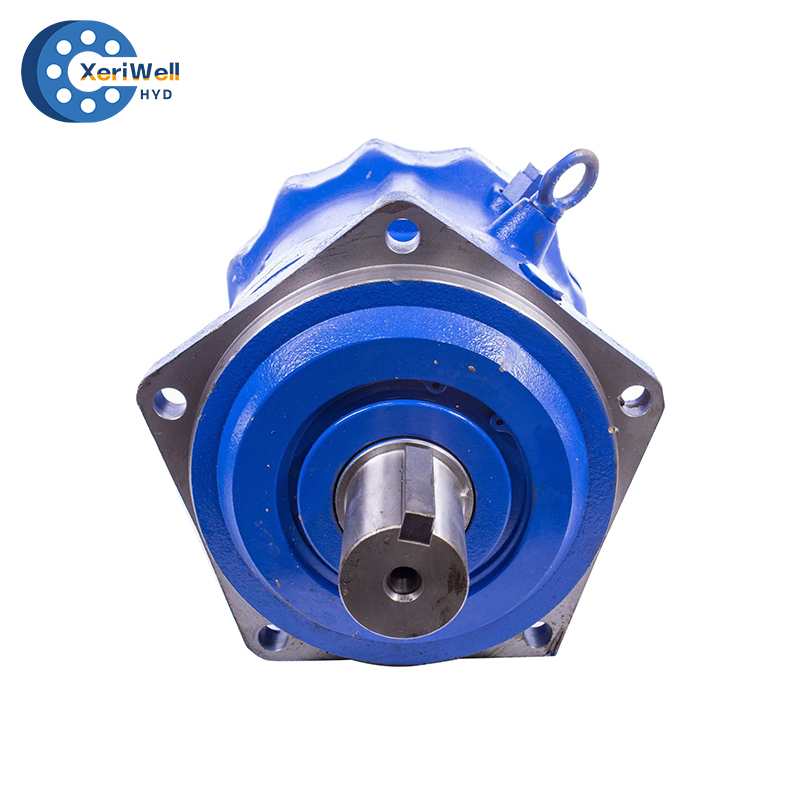

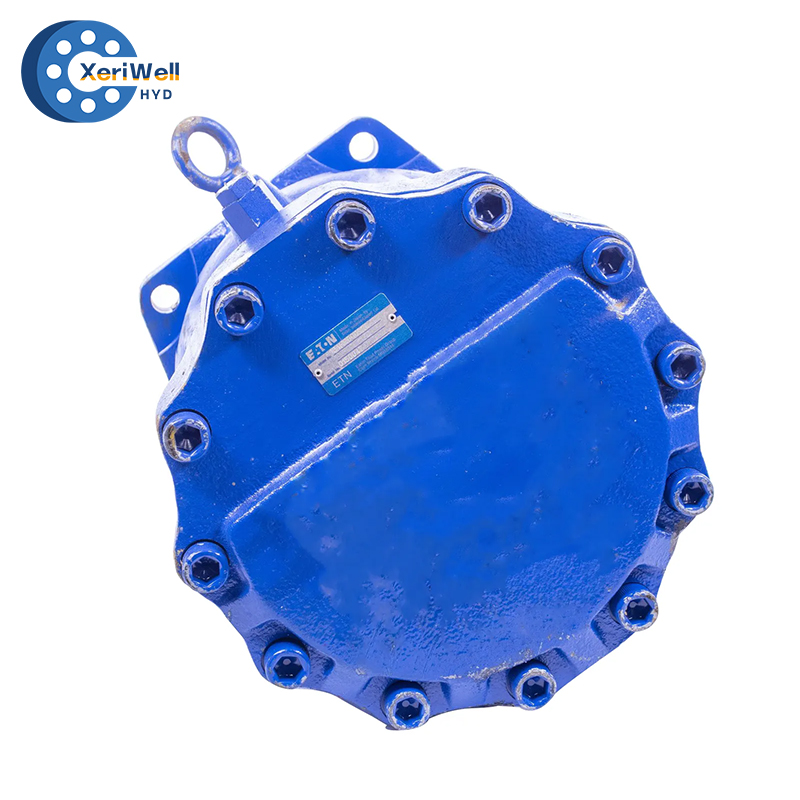

Eaton 74118 -DAJ/DAS/DBJ/DAP/DBA/DHB 74119 Hydraulic Motor technical data:

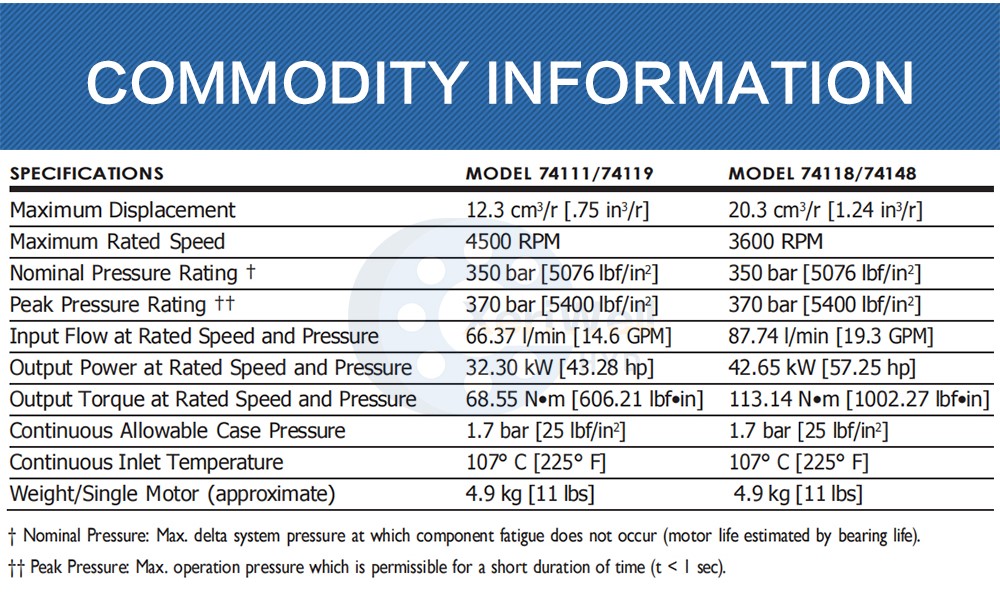

| SPECIFICATIONS | MODEL 74111/74119 | MODEL 74118/74148 |
| Maximum Displacement | 12.3 cm3/r [.75 in3/r] | 20.3 cm3/r [1.24 in3/r] |
| Maximum Rated Speed | 4500 RPM | 3600 RPM |
| Nominal Pressure Rating † | 350 bar [5076 lbf/in2] | 350 bar [5076 lbf/in2] |
| Peak Pressure Rating †† | 370 bar [5400 lbf/in2] | 370 bar [5400 lbf/in2] |
| Input Flow at Rated Speed and Pressure | 66.37 l/min [14.6 GPM] | 87.74 l/min [19.3 GPM] |
| Output Power at Rated Speed and Pressure | 32.30 kW [43.28 hp] | 42.65 kW [57.25 hp] |
| Output Torque at Rated Speed and Pressure | 68.55 N•m [606.21 lbf•in] | 113.14 N•m [1002.27 lbf•in] |
| Continuous Allowable Case Pressure | 1.7 bar [25 lbf/in2] | 1.7 bar [25 lbf/in2] |
| Continuous Inlet Temperature | 107° C [225° F] | 107° C [225° F] |
| Weight/Single Motor (approximate) | 4.9 kg [11 lbs] | 4.9 kg [11 lbs] |
| † Nominal Pressure:Max. delta system pressure at which component fatigue does not occur (motor life estimated by bearing life). †† Peak Pressure:Max. operation pressure which is permissible for a short duration of time (t < 1 sec). | ||
