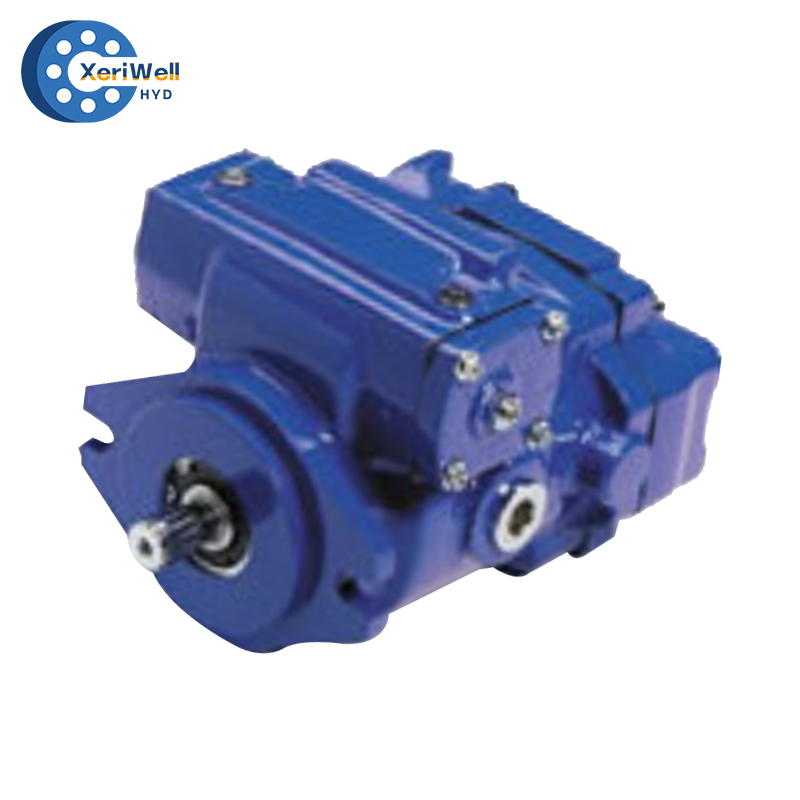

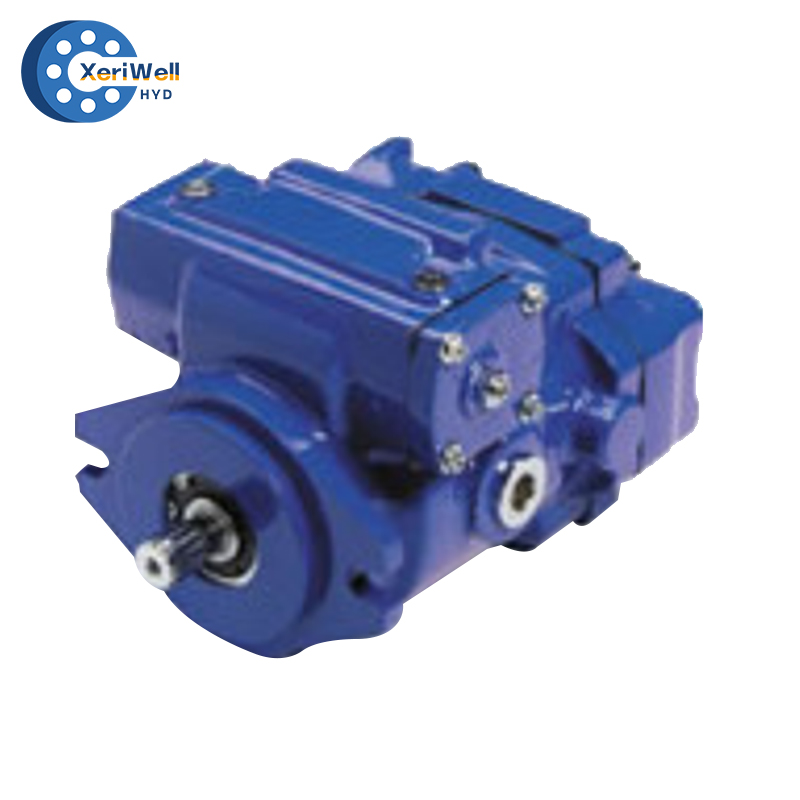

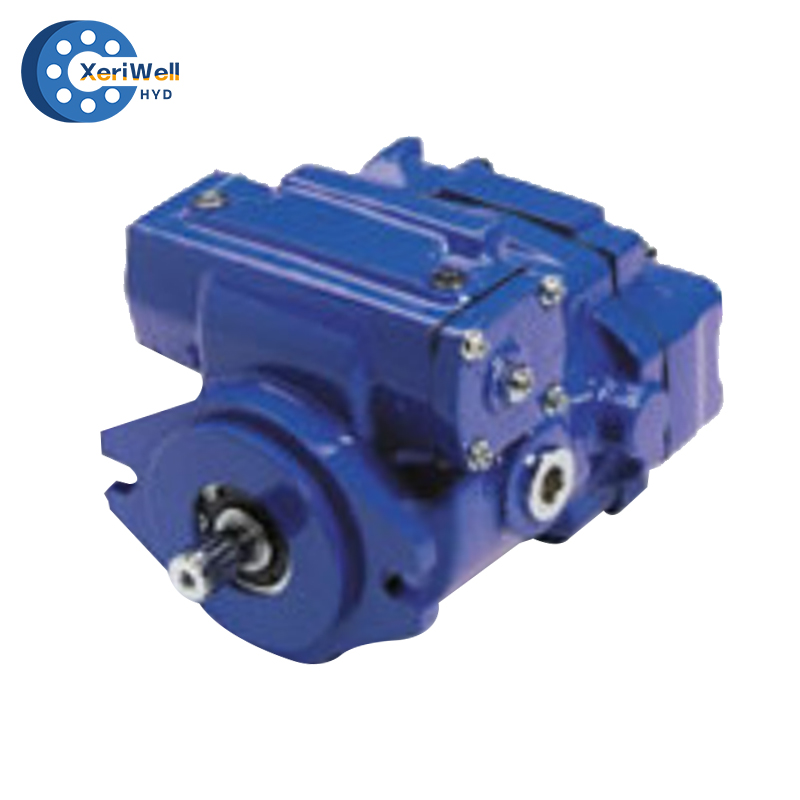

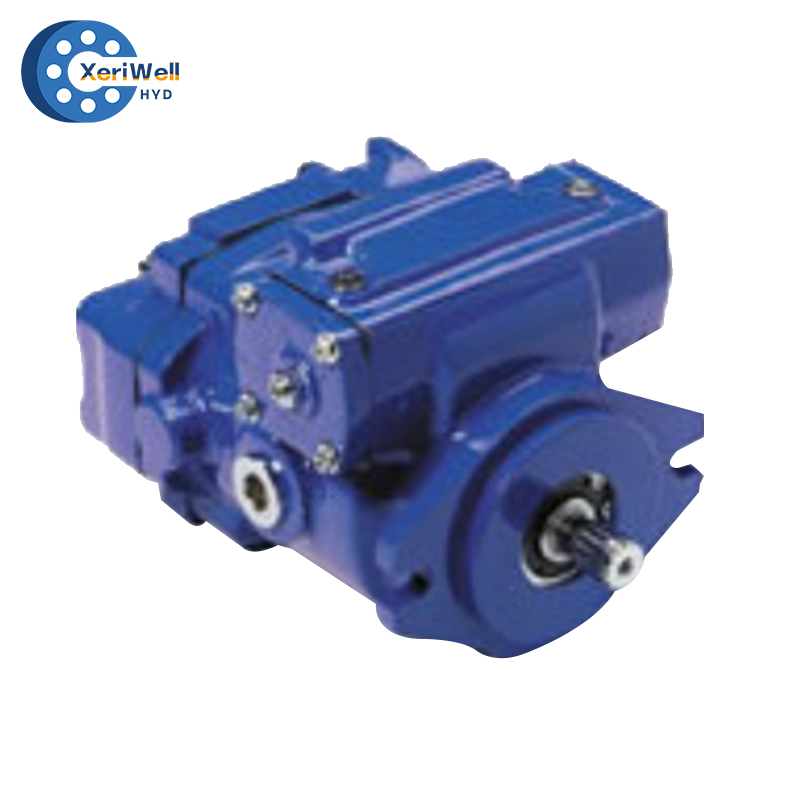

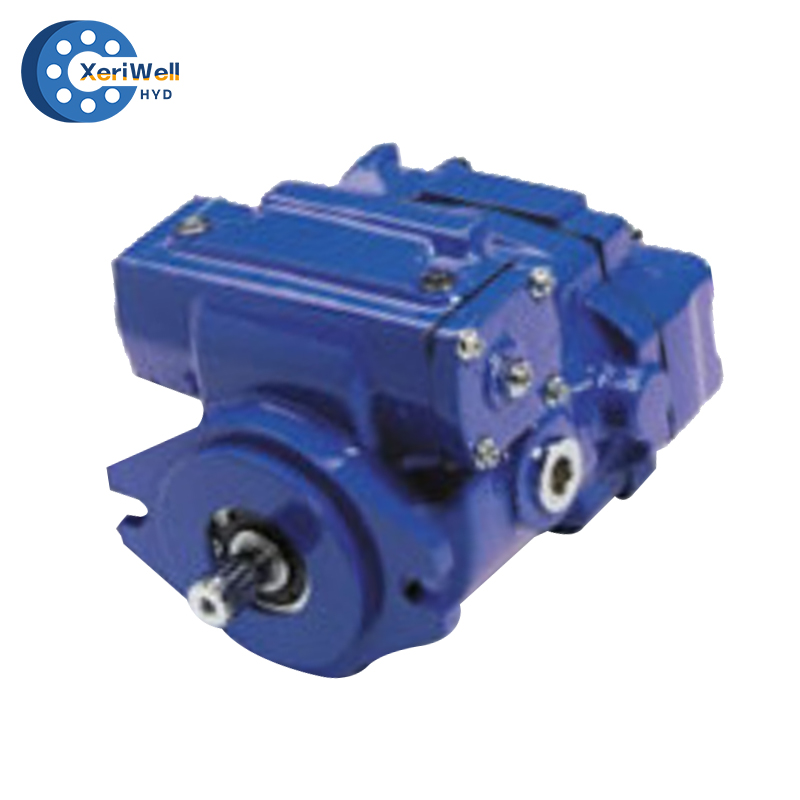

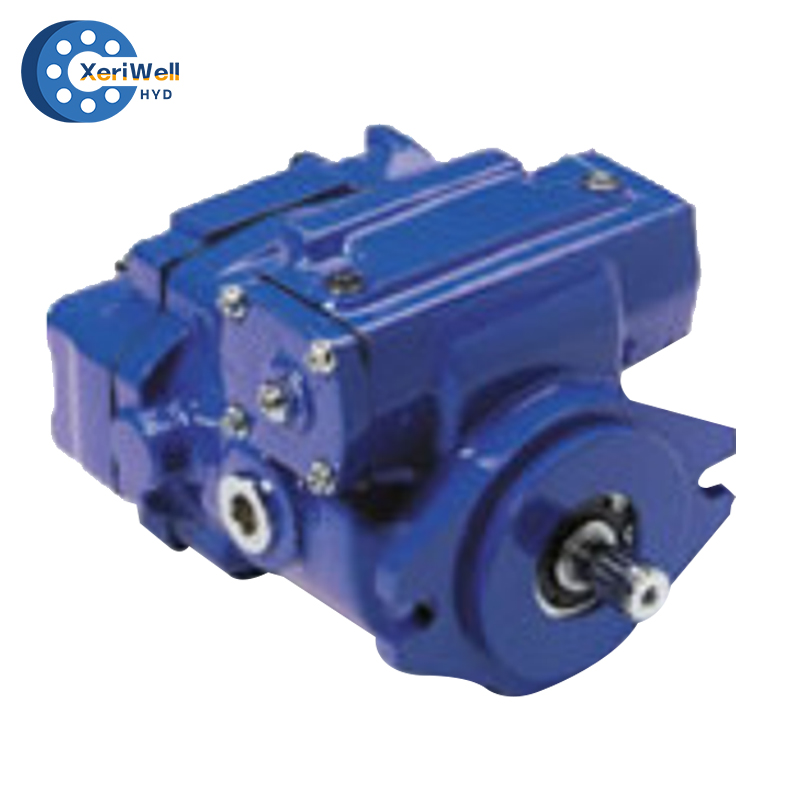

Eaton 72450 Hydraulic Motor

Pictures are for display only, please contact us to choose the right product for you.

Quantity:
Type:	72450-DAA 72450-DAB 72450-DAC 72450-DAE 72450-DAF 72450-DAG 72450-DBD 72450-DBM 72450-DBR 72450-DBY 72450-DCW 72450-DDA 72450-DAK 72450-DAP 72450-DAR 72450-DAT 72450-DAW 72450-DAY 72450-DBH 72450-DBU 72450-DCE 72450-DCL 72450-DEF 72450-DEM 72450-DEP 72450-DEU 72450-DFD 72450-DGW 72450-DHF 72450-RAF
Availability:





Inquire Add to Basket

Model:
72450
Brand:
xeriwell or others

Product Description

Eaton 72450 Hydraulic Motor Product Introduction

Eaton 72450 -DAA/DAB/DAC/DAE/DAF/DAG/DBD/DBM/DBR/DBY/DCW/DDA/DAK/DAP/DAR/DAT

/DAW/DAY/DBH/DBU/DCE/DCL/DEF/DEM/DEP/DEU/DFD/DGW/DHF/RAF Hydraulic

Motor technical data：

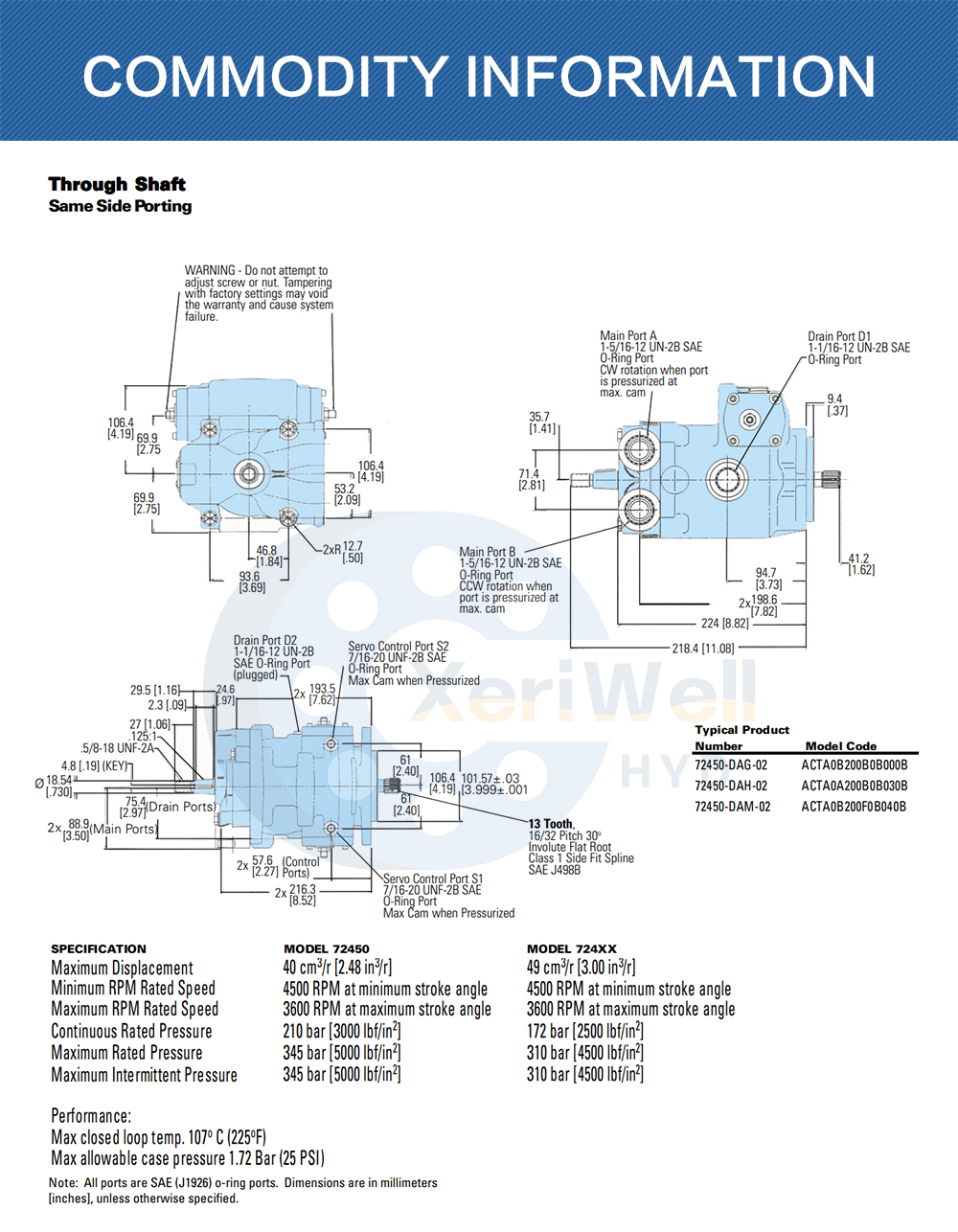

详情图

SPECIFICATION	MODEL 72450	MODEL 724XX
Maximum Displacement	40cm3/r[2.48 in3/r]	49 cm3/r[3.00 in3/r]
Minimum RPM Rated Speed	4500 RPM at minimum stroke angle	4500 RPM at minimum stroke angle
Maximum RPM Rated Speed	3600 RPM at maximum stroke angle	3600 RPM at maximum stroke angle
Continuous Rated Pressure	210 bar[3000 /bf/in2]	172 bar[2500 Ibf/in2]
Maximum Rated Pressure	345 bar[5000 Ibf/in22]	310 bar[4500 Ibf/in2]
Maximum Intermittent Pressure	345 bar[5000 Ibf/in2]	310 bar[4500 Ibf/in2]

Performance:

Max closed loop temp.107°C(225°F)

Max allowable case pressure 1.72 Bar(25 PSI)

Note: All ports are SAE(J1926)o-ring ports. Dimensions are in millimeters

[inches],unless otherwise specified.
