4000 series
Xeriwell or Others

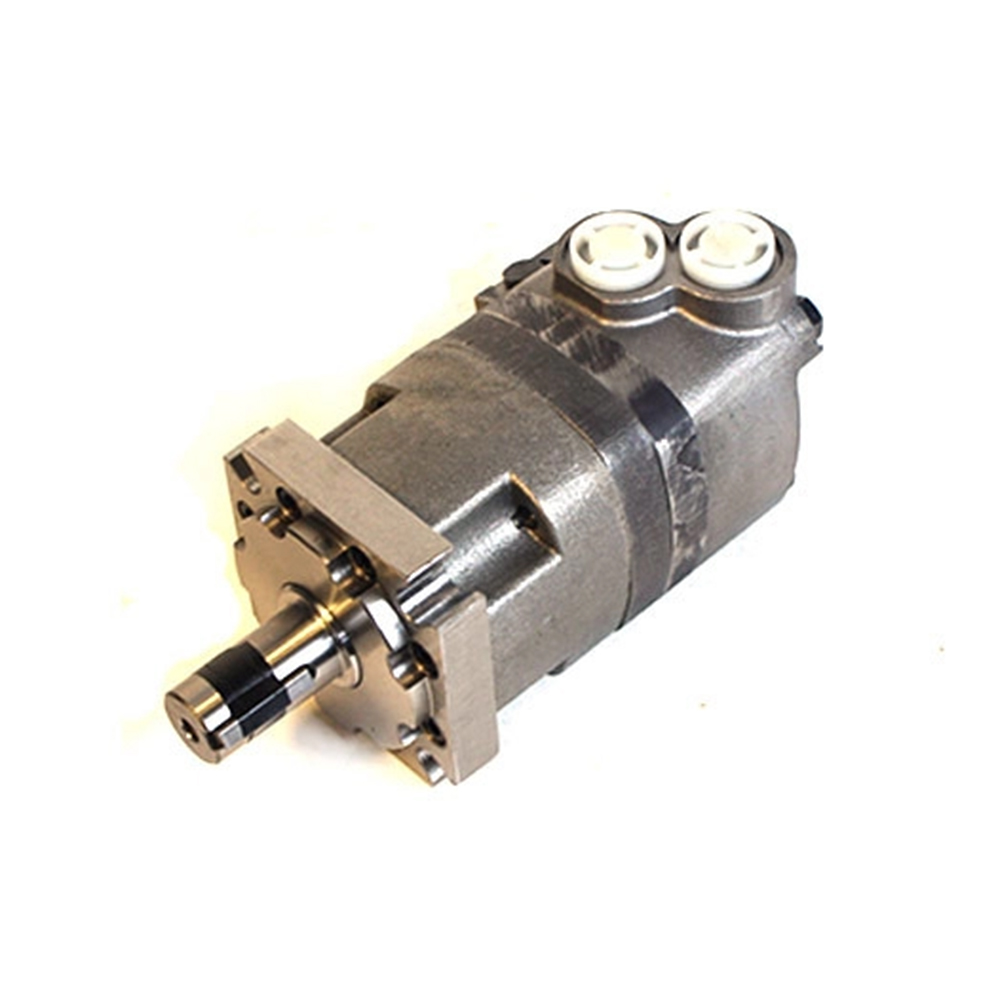

| Item: | Hydraulic Drive Motor | Model: | 4000 Series |
|---|---|---|---|
| Direction Of Rotation: | Reversible | Fastening: | 4 Bolts Standard Type |
| Maximum Pressure: | 3500 Bar | Charlynn Code: | 109-1685-006 |
| Highlight: | 3500bar Hydraulic Drive Motor,Eaton 4000 Series Motor 3500bar,Hydraulic Drive Motor 109-1685-006 | ||
Disc Motor
Geroler
Disc Valve
3/4 Split Flange Port
315cc Displacement
Product details:
| MOUNTING TYPE CODE | SAE B |
| PORT CODE | G3/4 |
| PORT TYPE | Split Flange |
| DISPLACEMENT (IN3/REV) | 315CC |
| SHAFT SIZE & TYPE | 1.25 in key shaft |
| RPM [MAX] | 300 rpm |
| MOUNT TYPE | 4 Bolt |
| OUTPUT TORQUE AT RATED PSI (INCH/POUNDS) | 4290 in lb |
| SHAFT TYPE | Splined |
| MOTOR TYPE | Disc Valve |
| MOUNTING HOLES | 0.58 in |
| FLANGE ORIENTATION | Standard |
| DRAIN | SAE-4 w/Check Valve |
| DUTY | Standard-Duty |
| MOTOR ELEMENT | Geroler |
| SERIES | 4000 Series |
| ROTATION | Standard Rotation |
| FLOW RATE | 25 gal/min |
| PORT SIZE | 3/4- unf |
| PILOT DIAMETER | 4 in |
| PORT LOCATION | Side Port |
| BOLT CIRCLE DIA. | 5 in |
| MOUNTING HOLE SIZE | 0.58 in |
| OUTPUT SHAFT CODE | 3 |
| SEAL MATERIAL | Buna-N |
| INLET PRESSURE [MAX] | 4500 psi |
| CORROSION RESISTANT | No |
| PAINT/PACKAGING | Individual Box |
| MAXIMUM SPEED @ CONTINUOUS FLOW | 582 rpm @ 25 gal/min |
| SPECIAL FEATURES | None |
| PAINT CODE | black |
| WEIGHT | 57.0 LB |
this type of hydraulic motors, has low speed high torque performance, widely used on skid steer broom,
broom bucket, tractor attachement,snow sweepers. for brand Bobcat, johndeer, Digga,Avent,Padagas,Cleveland
JCB,Virnig.....
Drive principle: There are still many differences between hydraulic motors and hydraulic pumps of the same example. Because the premise of the hydraulic motor and the hydraulic pump is different, and the functional requirements for them are also divergent, the first hydraulic motor should be able to reverse or reverse, so its internal layout is required to be symmetrical. The speed scale of the hydraulic motor must be sufficient and large, and there are inevitable requirements for its minimum constant speed. Yes, it all takes rotating bearings or hydrostatic sliding bearings, and secondly, the hydraulic motor is not necessary to have self-priming ability because of the premise of entering pressure oil, but the initial tightness of the need is required to supply the required starting torque. It is precisely because of these differences that the hydraulic motor and the hydraulic pump have a similar specific force in layout, but they are not as reversible as they work.
Hydraulic drive motor in life is also widely used, used in agriculture, fishery, light industry, lifting transportation, construction machinery and other machinery slewing mechanism, Xeriwell can produce a variety of models of hydraulic drive motor, and the quality is very good, won the praise of customers.
