| Quantity: | |
|---|---|
4000 series
Xeriwell or Others
| Item: | Motor Geroler | Model: | 4000 Series |
|---|---|---|---|
| Direction Of Rotation: | Reversible | Fastening: | Square Flange |
| Maximum System Temperature: | 30-73degree | Minimum Oil Viscosity: | 70 SUS |
| Highlight: | Reversible Geroler Motor,Livestock Farming Machinery Geroler Motor,109-1189-006 Geroler Motor | ||

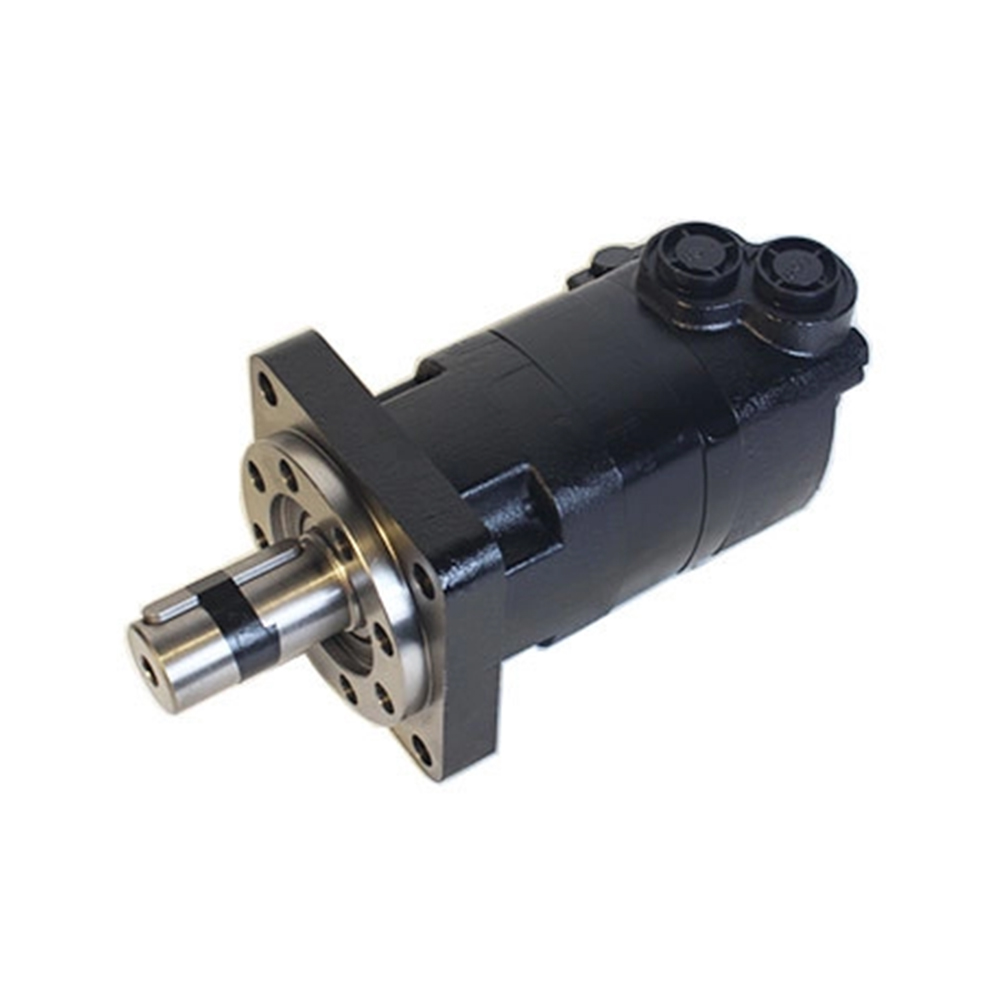

Eaton 4000 Series Geroler Motor109-1189-006 For livestock farming machinery
Geroler Engine
These motors are actuators widely used in industrial production lines in multiple areas and also in hydraulic applications and industrial machinery.
this motor is used on livestock farming machinery,feed extraction and the biogas industry, due to the high pressure
4000 series Motor Geroler
| Displ. cm3/r | 110 | 130 | 160 | 205 | 245 | 280 | 310 | 395 | 495 | 625 |
| Max Speed rpm | 697 | 722 | 582 | 459 | 383 | 336 | 303 | 239 | 191 | 151 |
| Flow l/min | 75/95 | 95/115 | 95/115 | 95/115 | 95/130 | 95/130 | 95/130 | 95/150 | 95/150 | 95/150 |
| Torque Nm | 320/470 | 375/560 | 485/705 | 600/800 | 705/845 | 753/957 | 850/1065 | 930/1185 | 945/1170 | 970/1180 |
supply types
109-1100
109-1101
109-1102
109-1103
109-1104
109-1105
109-1106
109-1184
109-1185
109-1227
109-1224
109-1225
109-1189
109-1190
