| Quantity: | |
|---|---|
110-1158-006
Xeriwell or Others
| Material: | Alloy | Flow: | 95 - 130 LPM |
|---|---|---|---|
| Maximum Speed: | 290 - 395 Rpm | Type: | Gerotor |
| Shaft Type: | Taper | Displacement: | 305cc |
| Product Name: | Gerotor Hydraulic Motor | Mounting Type: | Wheel |
| Highlight: | 110-1158-006 eaton hydraulic motor,4000 series eaton hydraulic motor,110-1158-006 eaton char lynn hydraulic motor | ||

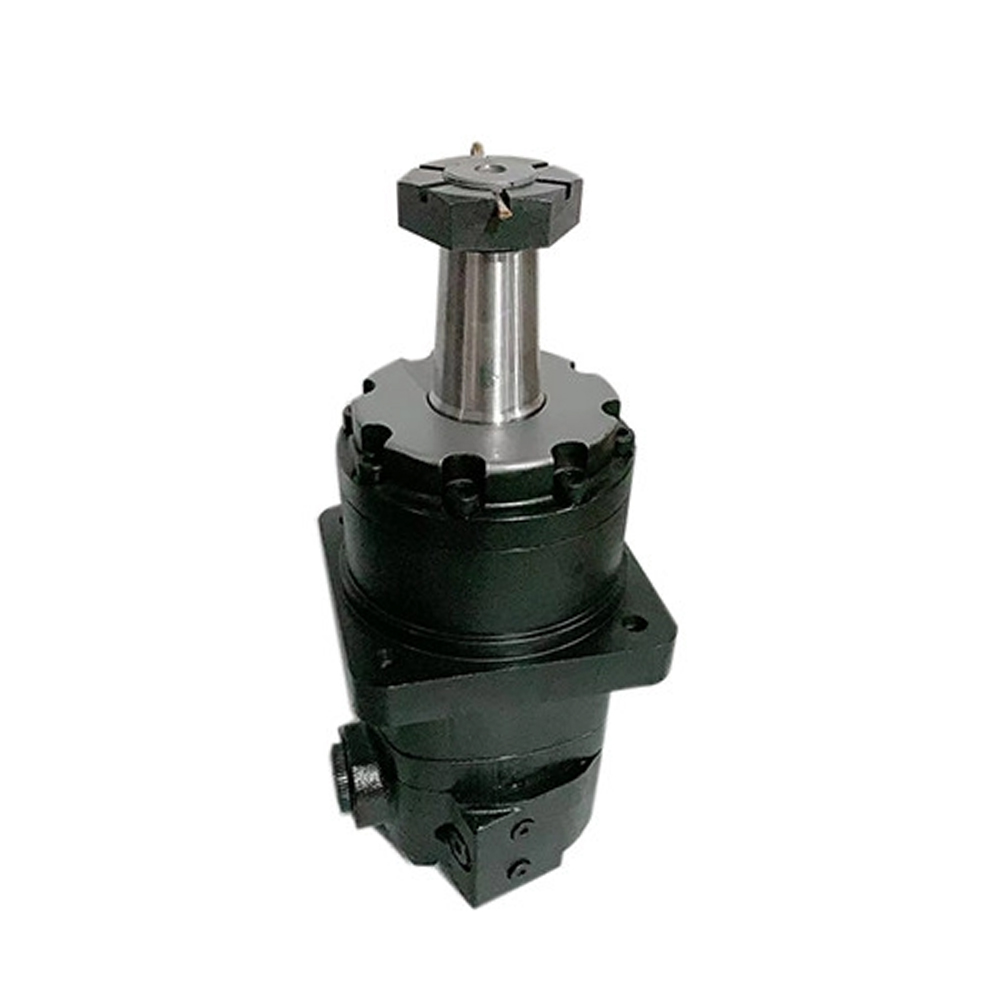

110-1158-006, he Gerotor Hydraulic Motor is an industrial grade motor designed for maximum efficiency and performance. It is a 4000 series Eaton motor replacement, featuring Char-Lynn hydraulic technology, offering a maximum speed of 290-395 RPM and a weight of 15kg. It is designed to be mounted on a wheel, and has a hydraulic control type. This motor provides superior performance compared to other motors, and is extremely reliable.
Product Name: Eaton Gerotor Hydraulic Motor Replacement
Weight: 15 Kg
Maximum Pressure: 260 Bar
Mounting Type: Wheel
Control Type: Hydraulic
Application: Industrial
Hydraulic Wheel Drive Motor
| Parameter | Value |
|---|---|
| Flow | 95 - 130 LPM |
| Maximum Torque | 856 - 1085 Nm |
| Maximum Speed | 290 - 395 Rpm |
| Maximum Pressure | 260 Bar |
| Mounting Type | Wheel |
| Application | Industrial |
| Type | Gerotor |
| Material | Alloy |
| Product Name | Gerotor Hydraulic Motor |
| Control Type | Hydraulic |
| Brand | Xeriwell |
| Type | Hydraulic Motor |
| Drive | Hydraulic Wheel Drive Motor |

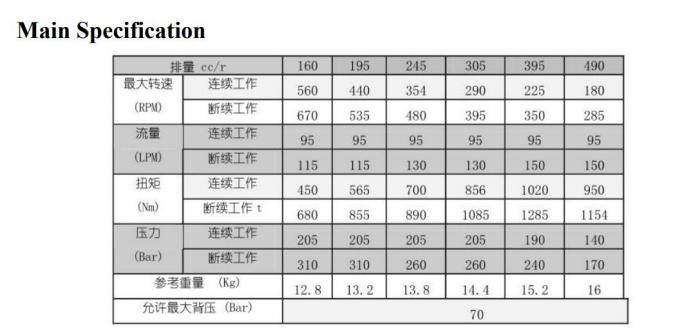

| Main Specification | |||||||
| 排量 cc/r | 160 | 195 | 245 | 305 | 395 | 490 | |
| 最大转速 | 连续工作 | 560 | 440 | 354 | 290 | 225 | 180 |
| (RPM) | 断续工作 | 670 | 535 | 480 | 395 | 350 | 285 |
| 流量 | 连续工作 | 95 | 95 | 95 | 95 | 95 | 95 |
| (LPM) | 断续工作 | 115 | 115 | 130 | 130 | 150 | 150 |
| 扭矩 | 连续工作 | 450 | 565 | 700 | 856 | 1020 | 950 |
| (Nm) | 断续工作 t | 680 | 855 | 890 | 1085 | 1285 | 1154 |
| 压力 | 连续工作 | 205 | 205 | 205 | 205 | 190 | 140 |
| (Bar) | 断续工作 | 310 | 310 | 260 | 260 | 240 | 170 |
| 参考重量 （Kg） | 12.8 | 13.2 | 13.8 | 14.4 | 15.2 | 16 | |
| 允许最大背压（Bar） | 70 | ||||||
| Material: | Alloy | Flow: | 95 - 130 LPM |
|---|---|---|---|
| Maximum Speed: | 290 - 395 Rpm | Type: | Gerotor |
| Shaft Type: | Taper | Displacement: | 305cc |
| Product Name: | Gerotor Hydraulic Motor | Mounting Type: | Wheel |
| Highlight: | 110-1158-006 eaton hydraulic motor,4000 series eaton hydraulic motor,110-1158-006 eaton char lynn hydraulic motor | ||
110-1158-006, he Gerotor Hydraulic Motor is an industrial grade motor designed for maximum efficiency and performance. It is a 4000 series Eaton motor replacement, featuring Char-Lynn hydraulic technology, offering a maximum speed of 290-395 RPM and a weight of 15kg. It is designed to be mounted on a wheel, and has a hydraulic control type. This motor provides superior performance compared to other motors, and is extremely reliable.
Product Name: Eaton Gerotor Hydraulic Motor Replacement
Weight: 15 Kg
Maximum Pressure: 260 Bar
Mounting Type: Wheel
Control Type: Hydraulic
Application: Industrial
Hydraulic Wheel Drive Motor
| Parameter | Value |
|---|---|
| Flow | 95 - 130 LPM |
| Maximum Torque | 856 - 1085 Nm |
| Maximum Speed | 290 - 395 Rpm |
| Maximum Pressure | 260 Bar |
| Mounting Type | Wheel |
| Application | Industrial |
| Type | Gerotor |
| Material | Alloy |
| Product Name | Gerotor Hydraulic Motor |
| Control Type | Hydraulic |
| Brand | Xeriwell |
| Type | Hydraulic Motor |
| Drive | Hydraulic Wheel Drive Motor |
| Main Specification | |||||||
| 排量 cc/r | 160 | 195 | 245 | 305 | 395 | 490 | |
| 最大转速 | 连续工作 | 560 | 440 | 354 | 290 | 225 | 180 |
| (RPM) | 断续工作 | 670 | 535 | 480 | 395 | 350 | 285 |
| 流量 | 连续工作 | 95 | 95 | 95 | 95 | 95 | 95 |
| (LPM) | 断续工作 | 115 | 115 | 130 | 130 | 150 | 150 |
| 扭矩 | 连续工作 | 450 | 565 | 700 | 856 | 1020 | 950 |
| (Nm) | 断续工作 t | 680 | 855 | 890 | 1085 | 1285 | 1154 |
| 压力 | 连续工作 | 205 | 205 | 205 | 205 | 190 | 140 |
| (Bar) | 断续工作 | 310 | 310 | 260 | 260 | 240 | 170 |
| 参考重量 （Kg） | 12.8 | 13.2 | 13.8 | 14.4 | 15.2 | 16 | |
| 允许最大背压（Bar） | 70 | ||||||
