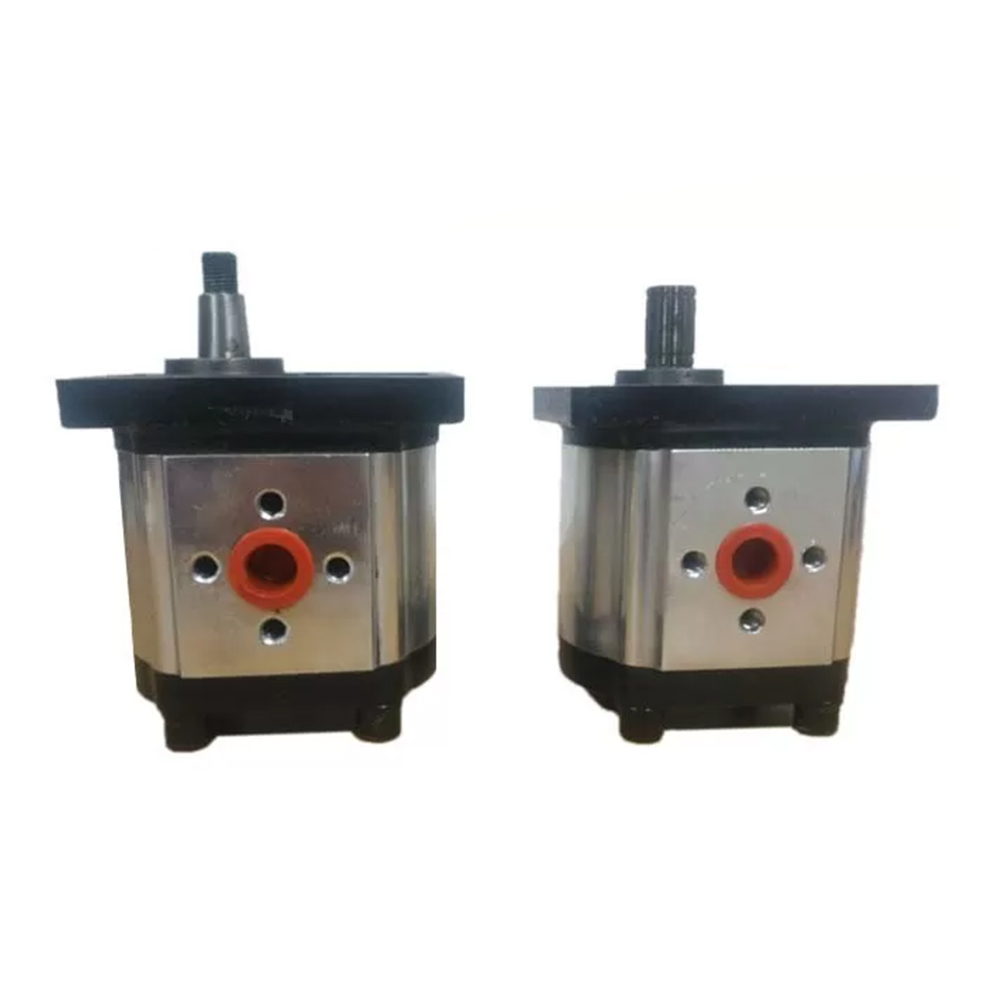

Hydraulic Gear Pump
Xeriwell or Others
| Product Name: | Small Hydraulic Pump | Pressure Level: | 16 MPa |
|---|---|---|---|
| Displacement (ml/r): | 04,06,08,10,12,14,16,20,25 | Applications: | Hydraulic System ,Agricultural , Engineering Trucks |
| Direction Of Rotation: | Left , Right | Gear Modulus: | 3 |
| Highlight: | high pressure gear pump,small gear pump | ||
Hydraulic Gear Pump CBT-E3 Hydraulic System, Agricultural , Engineering Trucks

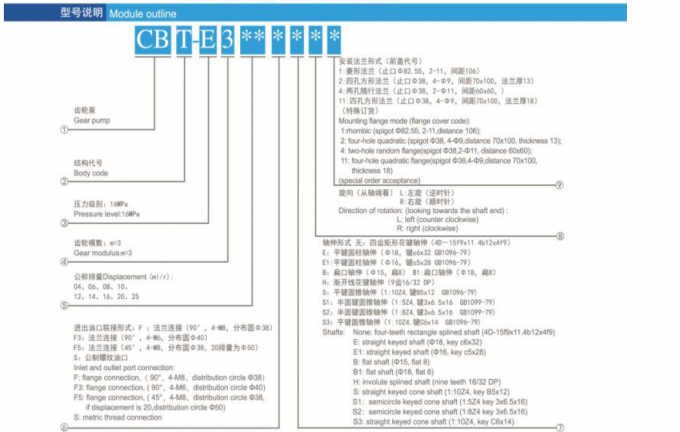

Hydraulic Gear Pump CBT-E3 series can be provided with various kinds of mounting flange, shaft ends, and connection styles of inlet and outlet . This series pump can be made as CBT-E3******--side-in and rear-out, rear-in and side-out. CBT-E3 pumps can also be combined as a relief pump CBT-E3***YL***with safety valve, or as a constant flow pump CBT-E3***HL***with constant flow valve.
Characteristic Features:
Simple and compact structure
small volume
light in mass
Good technology
Strong self-absorption
Insensitive to oil contamination
Large speed range
Impact resistance load
Easy maintenance
Reliable work.

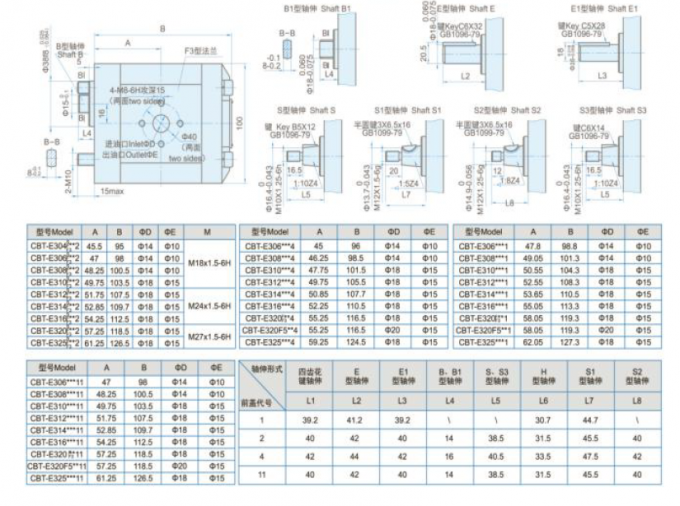

Type and displacement:
| Type | CBT-F5 | CBG | G5 | GPC4 | GM5 | CBT-F2 | CBT-E3 |
| displacement | 20-63 | 06-25 | 05-30 | 20-80 | 05-25 | 1.3-4.2 | 04-25 |
Applications :
Hydraulic Gear Pump is widely applied in Road rollers • Work platforms • Mowing machines • Miniloaders • Sweepers • Winches • Machine tools.
| Product Name: | Small Hydraulic Pump | Pressure Level: | 16 MPa |
|---|---|---|---|
| Displacement (ml/r): | 04,06,08,10,12,14,16,20,25 | Applications: | Hydraulic System ,Agricultural , Engineering Trucks |
| Direction Of Rotation: | Left , Right | Gear Modulus: | 3 |
| Highlight: | high pressure gear pump,small gear pump | ||
Hydraulic Gear Pump CBT-E3 Hydraulic System, Agricultural , Engineering Trucks
Hydraulic Gear Pump CBT-E3 series can be provided with various kinds of mounting flange, shaft ends, and connection styles of inlet and outlet . This series pump can be made as CBT-E3******--side-in and rear-out, rear-in and side-out. CBT-E3 pumps can also be combined as a relief pump CBT-E3***YL***with safety valve, or as a constant flow pump CBT-E3***HL***with constant flow valve.
Characteristic Features:
Simple and compact structure
small volume
light in mass
Good technology
Strong self-absorption
Insensitive to oil contamination
Large speed range
Impact resistance load
Easy maintenance
Reliable work.
Type and displacement:
| Type | CBT-F5 | CBG | G5 | GPC4 | GM5 | CBT-F2 | CBT-E3 |
| displacement | 20-63 | 06-25 | 05-30 | 20-80 | 05-25 | 1.3-4.2 | 04-25 |
Applications :
Hydraulic Gear Pump is widely applied in Road rollers • Work platforms • Mowing machines • Miniloaders • Sweepers • Winches • Machine tools.
