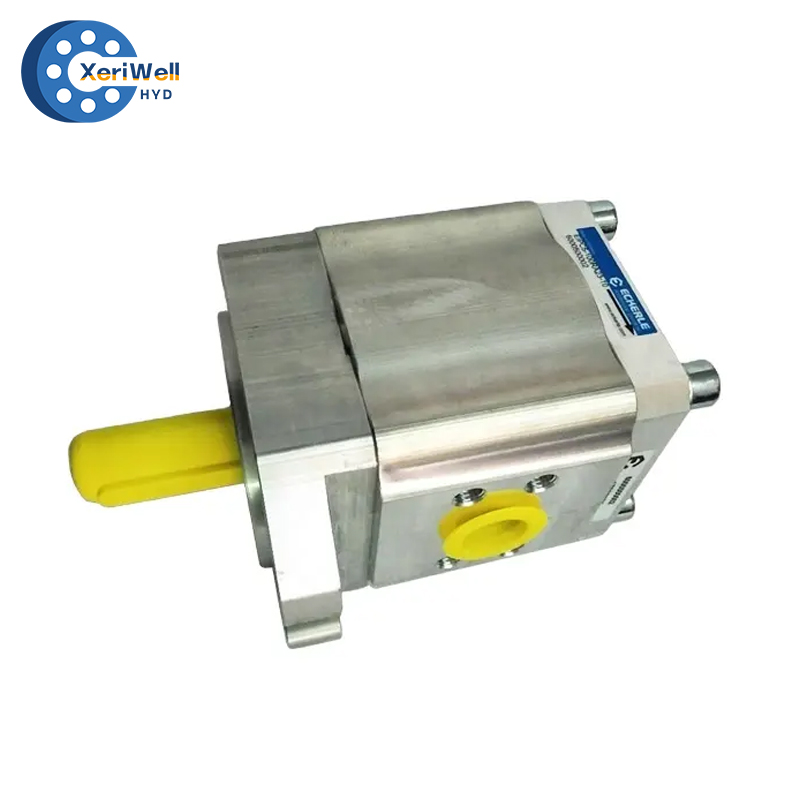

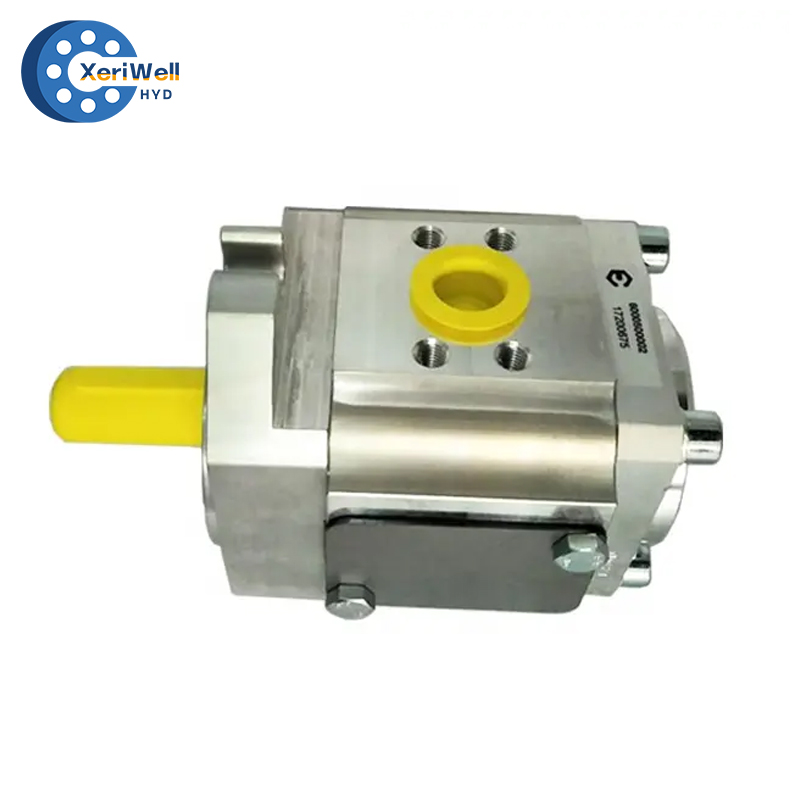

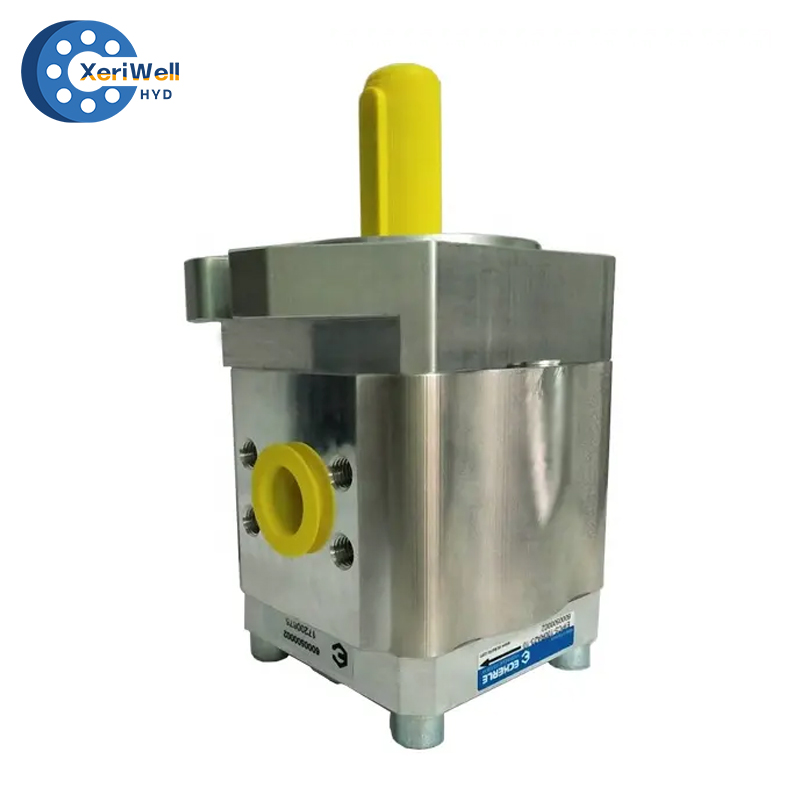

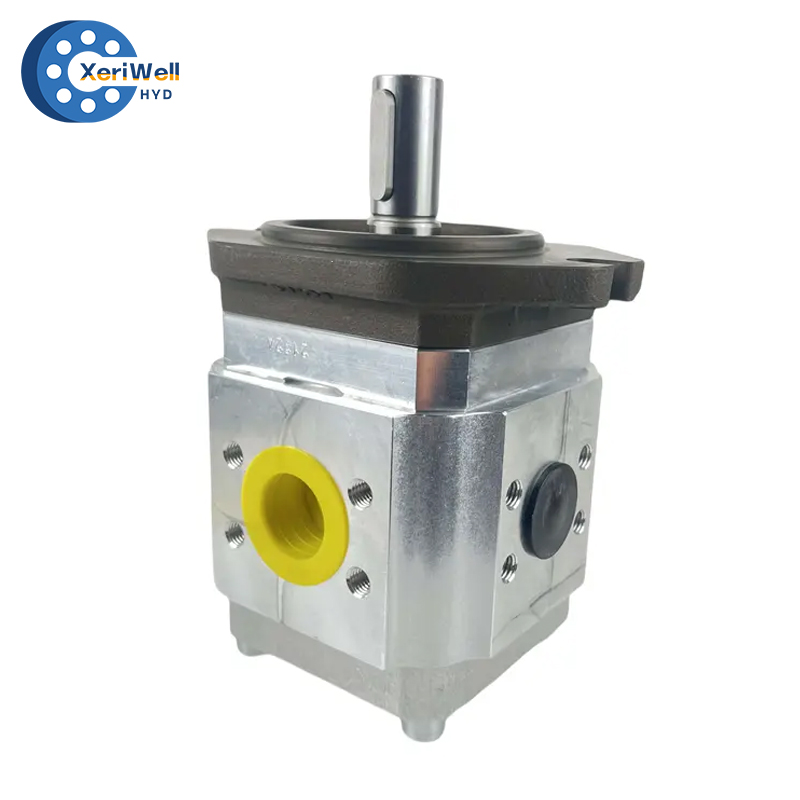

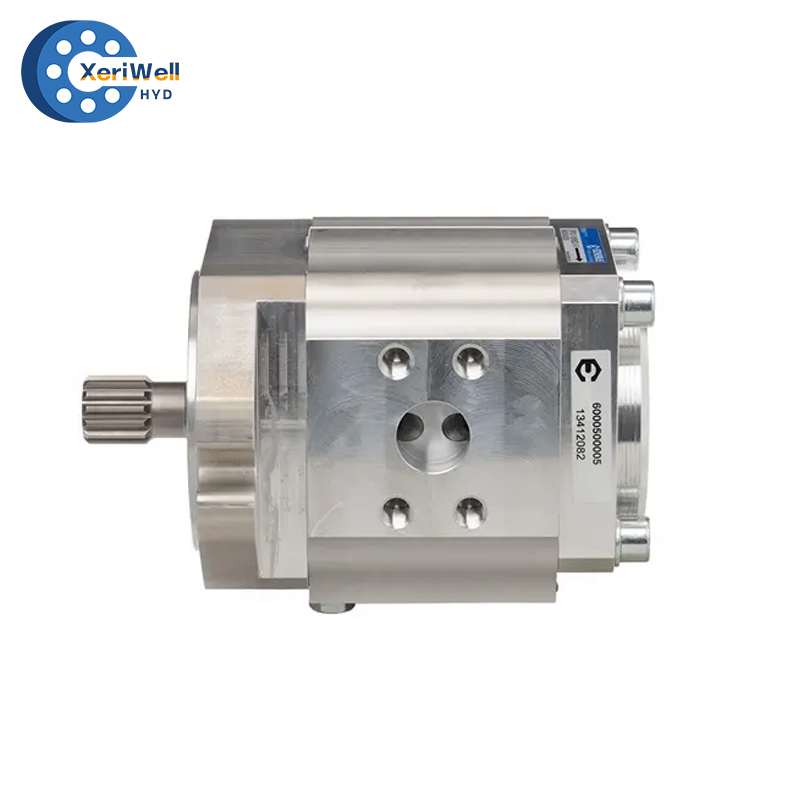

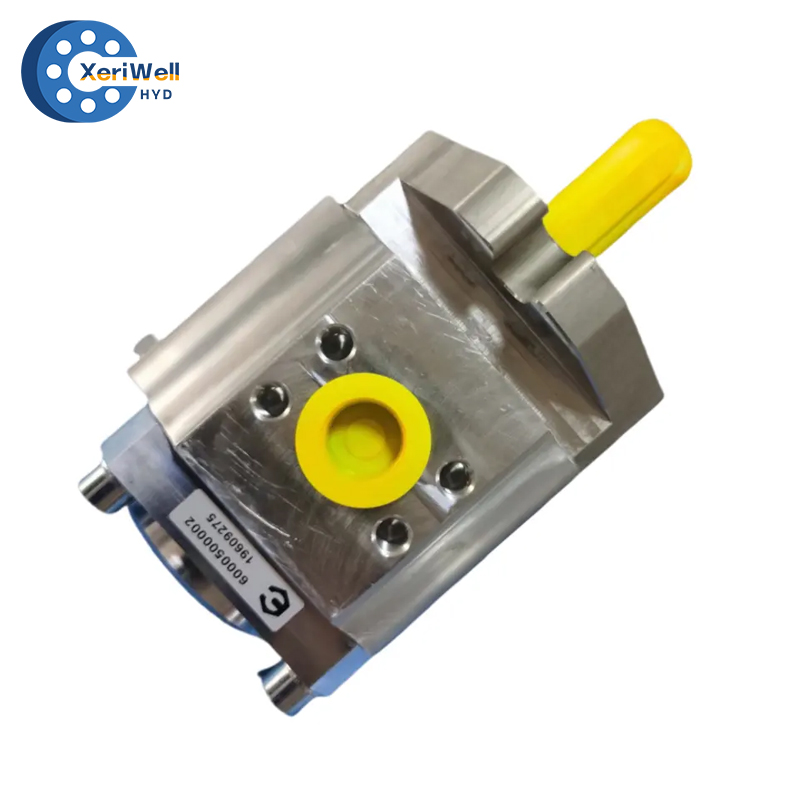

ECKERLE EIPC Hydraulic Gear Pump

Name: ECKERLE EIPC Hydraulic Gear Pump
Brand: Xeriwell or Others
SKU: 545899427
Rating: 5.0 (14 reviews)

Pictures are for display only, please contact us to choose the right product for you.

详情图

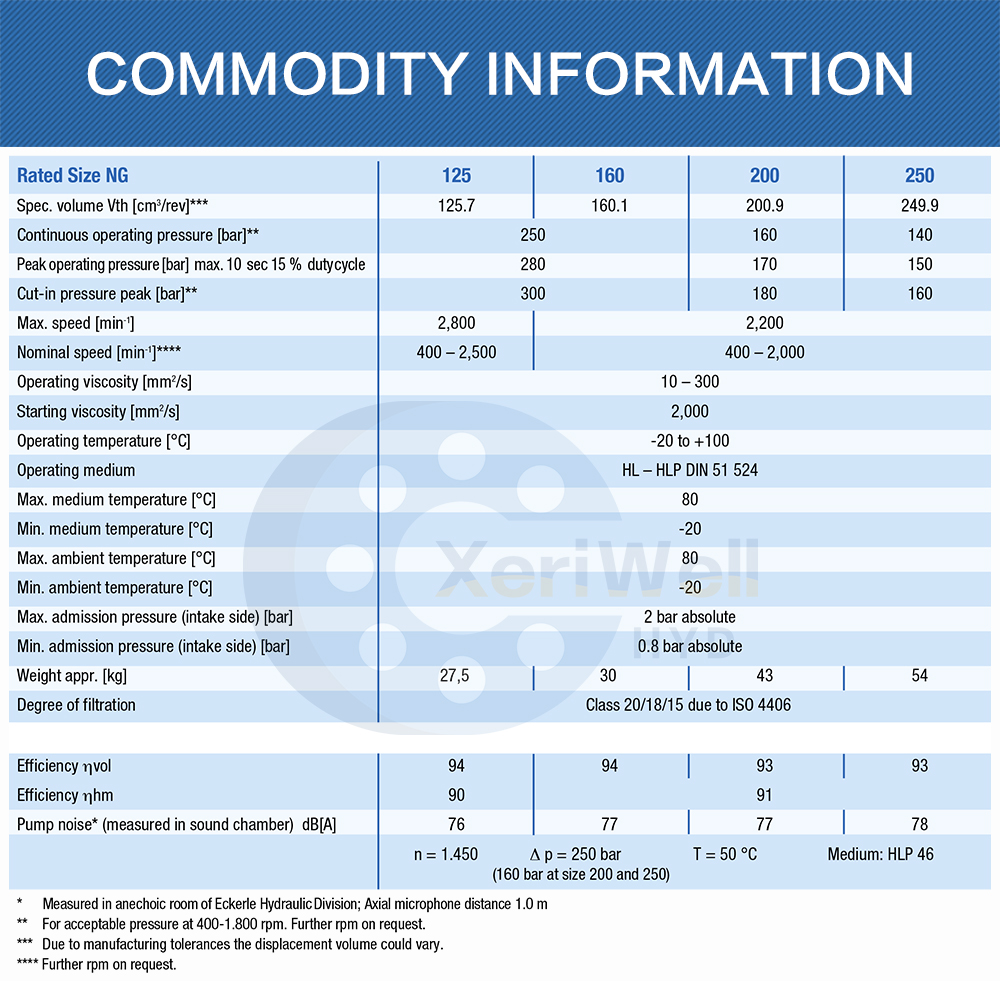

Rated Size NG	125	160	200	250
Spec. volume Vth [cm3/rev]***	125.7	160.1	200.9	249.9
Continuous operating pressure [bar]**	250		160	140
Peak operating pressure [bar] max. 10 sec 15 % dutycycle	280		170	150
Cut-in pressure peak [bar]**	300		180	160
Max. speed [min-1]	2800	2200
Nominal speed [min-1]****	400 – 2,500	400 – 2,000
Operating viscosity [mm2/s]	10 – 300
Starting viscosity [mm2/s]	2000
Operating temperature [°C]	-20 to +100
Operating medium	HL – HLP DIN 51 524
Max. medium temperature [°C]	80
Min. medium temperature [°C]	-20
Max. ambient temperature [°C]	80
Min. ambient temperature [°C]	-20
Max. admission pressure (intake side) [bar]	2 bar absolute
Min. admission pressure (intake side) [bar]	0.8 bar absolute
Weight appr. [kg]	27,5	30	43	54
Degree of filtration	Class 20/18/15 due to ISO 4406

Efficiency ηvol	94	94	93	93
Efficiency ηhm	90		91
Pump noise* (measured in sound chamber) dB[A]	76	77	77	78
	n = 1.450 Δ p = 250 bar T = 50 °C Medium:HLP 46 (160 bar at size 200 and 250)

* Measured in anechoic room of Eckerle Hydraulic Division;Axial microphone distance 1.0 m For acceptable pressure at 400-1.800 rpm. Further rpm on request. * Due to manufacturing tolerances the displacement volume could vary. **** Further rpm on request.

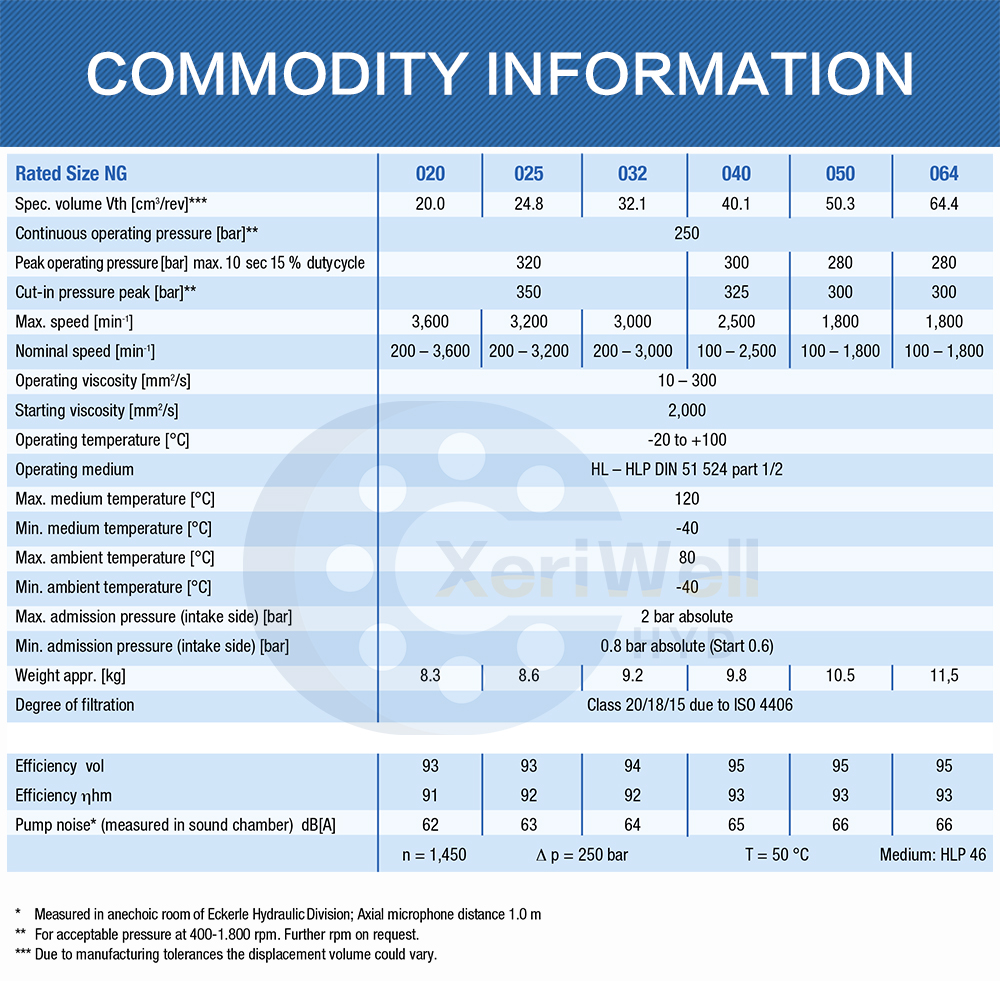

Rated Size NG	20	25	32	40	50	64
Spec. volume Vth [cm3/rev]***	20	24.8	32.1	40.1	50.3	64.4
Continuous operating pressure [bar]**	250
Peak operating pressure [bar] max. 10 sec 15 % dutycycle	320			300	280	280
Cut-in pressure peak [bar]**	350			325	300	300
Max. speed [min-1]	3600	3200	3000	2500	1800	1800
Nominal speed [min-1]	200 – 3,600	200 – 3,200	200 – 3,000	100 – 2,500	100 – 1,800	100 – 1,800
Operating viscosity [mm2/s]	10 – 300
Starting viscosity [mm2/s]	2000
Operating temperature [°C]	-20 to +100
Operating medium	HL – HLP DIN 51 524 part 1/2
Max. medium temperature [°C]	120
Min. medium temperature [°C]	-40
Max. ambient temperature [°C]	80
Min. ambient temperature [°C]	-40
Max. admission pressure (intake side) [bar]	2 bar absolute
Min. admission pressure (intake side) [bar]	0.8 bar absolute (Start 0.6)
Weight appr. [kg]	8.3	8.6	9.2	9.8	10.5	11.5
Degree of filtration	Class 20/18/15 due to ISO 4406

Efficiency vol	93	93	94	95	95	95
Efficiency ηhm	91	92	92	93	93	93
Pump noise* (measured in sound chamber) dB[A]	62	63	64	65	66	66
Pump noise* (measured in sound chamber) dB[A]	n = 1,450 Δ p = 250 bar T = 50 °C Medium:HLP 46
* Measured in anechoic room of Eckerle Hydraulic Division;Axial microphone distance 1.0 m For acceptable pressure at 400-1.800 rpm. Further rpm on request. * Due to manufacturing tolerances the displacement volume could vary.

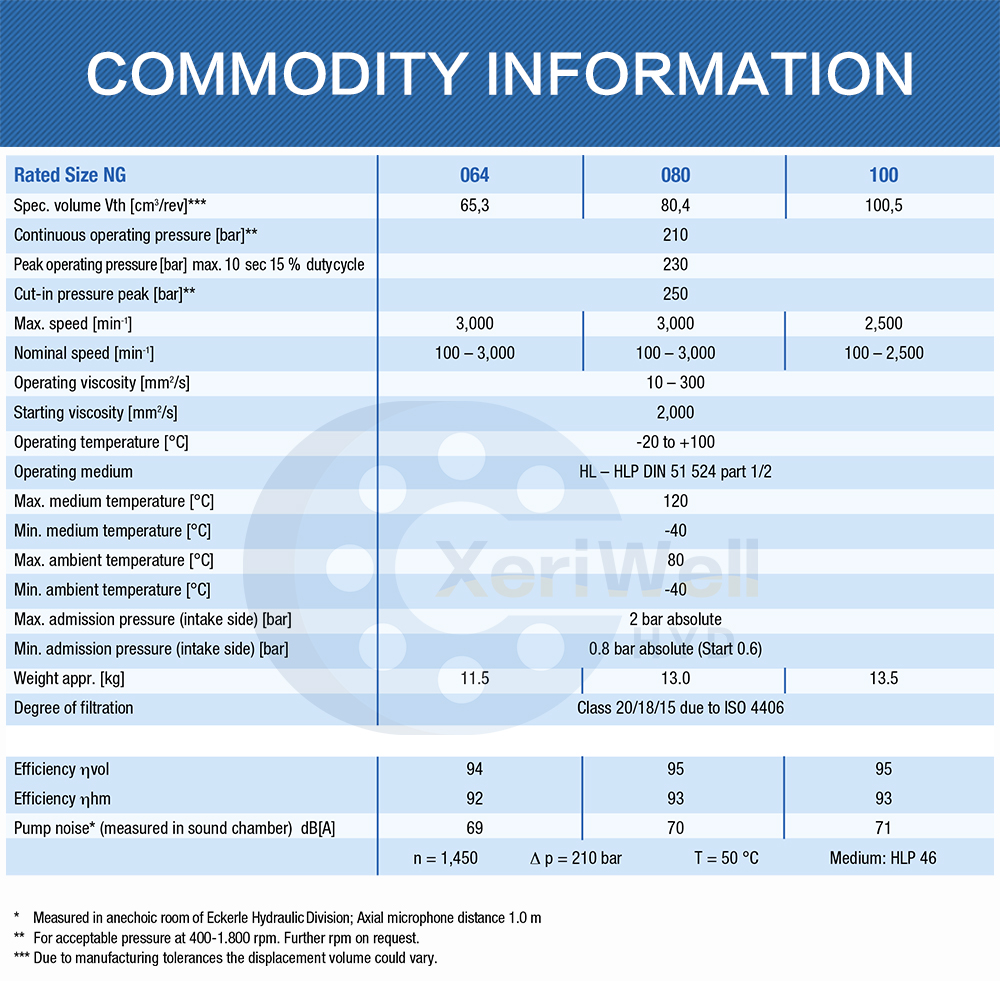

Rated Size NG	64	80	100
Spec. volume Vth [cm3/rev]***	65,3	80,4	100,5
Continuous operating pressure [bar]**	210
Peak operating pressure [bar] max. 10 sec 15 % dutycycle	230
Cut-in pressure peak [bar]**	250
Max. speed [min-1]	3000	3000	2500
Nominal speed [min-1]	100 – 3,000	100 – 3,000	100 – 2,500
Operating viscosity [mm2/s]	10 – 300
Starting viscosity [mm2/s]	2000
Operating temperature [°C]	-20 to +100
Operating medium	HL – HLP DIN 51 524 part 1/2
Max. medium temperature [°C]	120
Min. medium temperature [°C]	-40
Max. ambient temperature [°C]	80
Min. ambient temperature [°C]	-40
Max. admission pressure (intake side) [bar]	2 bar absolute
Min. admission pressure (intake side) [bar]	0.8 bar absolute (Start 0.6)
Weight appr. [kg]	11.5	13	13.5
Degree of filtration	Class 20/18/15 due to ISO 4406

Efficiency ηvol	94	95	95
Efficiency ηhm	92	93	93
Pump noise* (measured in sound chamber) dB[A]	69	70	71
Pump noise* (measured in sound chamber) dB[A]	n = 1,450 Δ p = 210 bar T = 50 °C Medium:HLP 46
* Measured in anechoic room of Eckerle Hydraulic Division;Axial microphone distance 1.0 m For acceptable pressure at 400-1.800 rpm. Further rpm on request. * Due to manufacturing tolerances the displacement volume could vary.
