| Type: | |
|---|---|
| spare parts : | |
| Quantity: | |
EIPC
Xeriwell or Others

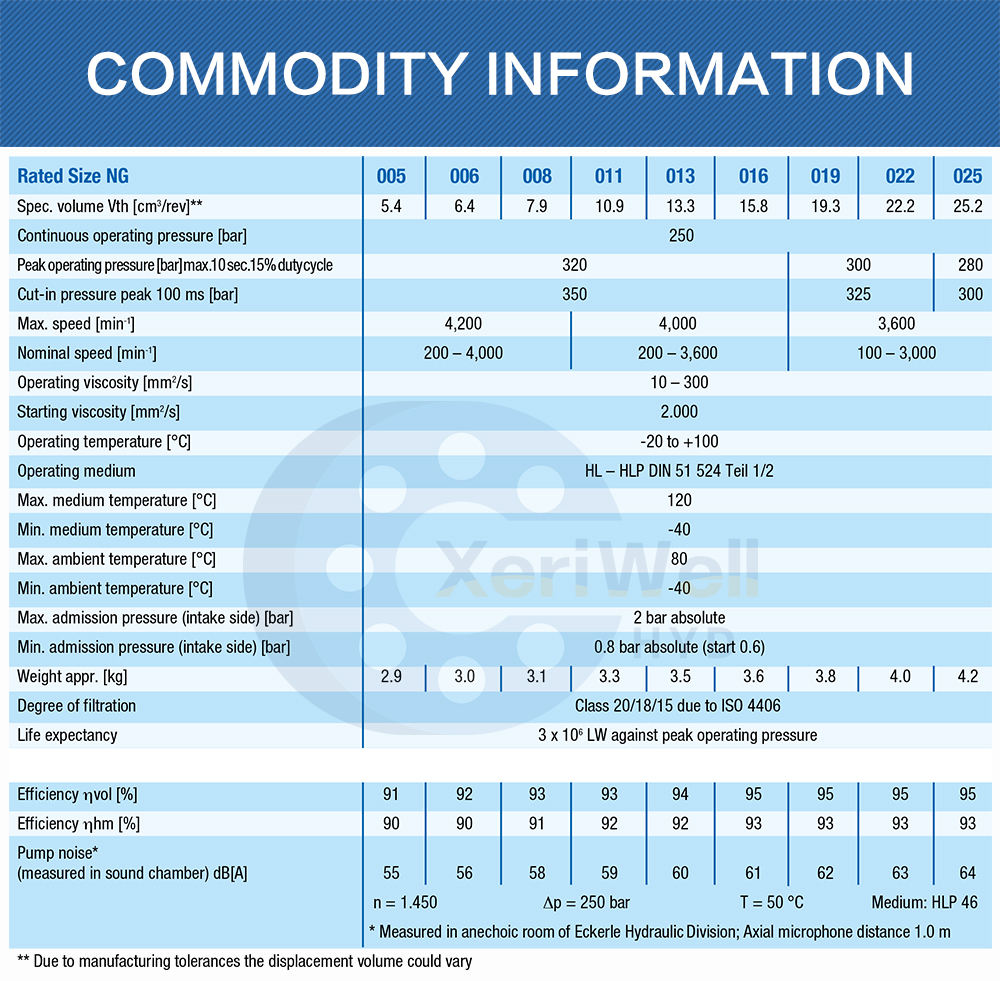

| Rated Size NG | 5 | 6 | 8 | 11 | 13 | 16 | 19 | 22 | 25 |
| Spec. volume Vth [cm3/rev]** | 5.4 | 6.4 | 7.9 | 10.9 | 13.3 | 15.8 | 19.3 | 22.2 | 25.2 |
| Continuous operating pressure [bar] | 250 | ||||||||
| Peak operating pressure [bar]max.10sec.15%dutycycle | 320 | 300 | 280 | ||||||
| Cut-in pressure peak 100 ms [bar] | 350 | 325 | 300 | ||||||
| Max. speed [min-1] | 4200 | 4000 | 3600 | ||||||
| Nominal speed [min-1] | 200 − 4,000 | 200 − 3,600 | 100 − 3,000 | ||||||
| Operating viscosity [mm2/s] | 10 − 300 | ||||||||
| Starting viscosity [mm2/s] | 2 | ||||||||
| Operating temperature [°C] | -20 to +100 | ||||||||
| Operating medium | HL − HLP DIN 51 524 Teil 1/2 | ||||||||
| Max. medium temperature [°C] | 120 | ||||||||
| Min. medium temperature [°C] | -40 | ||||||||
| Max. ambient temperature [°C] | 80 | ||||||||
| Min. ambient temperature [°C] | -40 | ||||||||
| Max. admission pressure (intake side) [bar] | 2 bar absolute | ||||||||
| Min. admission pressure (intake side) [bar] | 0.8 bar absolute (start 0.6) | ||||||||
| Weight appr. [kg] | 2.9 | 3 | 3.1 | 3.3 | 3.5 | 3.6 | 3.8 | 4 | 4.2 |
| Degree of filtration | Class 20/18/15 due to ISO 4406 | ||||||||
| Life expectancy | 3 x 106LW against peak operating pressure | ||||||||
| Efficiency ηvol [%] | 91 | 92 | 93 | 93 | 94 | 95 | 95 | 95 | 95 |
| Efficiency ηhm [%] | 90 | 90 | 91 | 92 | 92 | 93 | 93 | 93 | 93 |
| Pump noise* (measured in sound chamber) dB[A] | 55 | 56 | 58 | 59 | 60 | 61 | 62 | 63 | 64 |
| n = 1.450 Δp = 250 bar T = 50 °C Medium:HLP 46 * Measured in anechoic room of Eckerle Hydraulic Division;Axial microphone distance 1.0 m | |||||||||
| ** Due to manufacturing tolerances the displacement volume could vary | |||||||||
