PVH
Xeriwell or Others

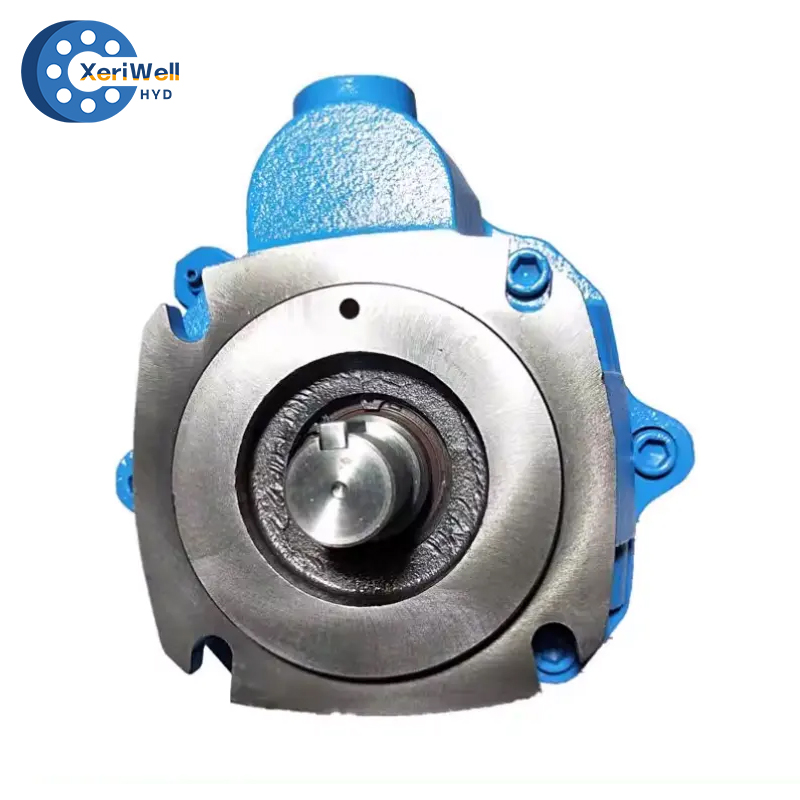

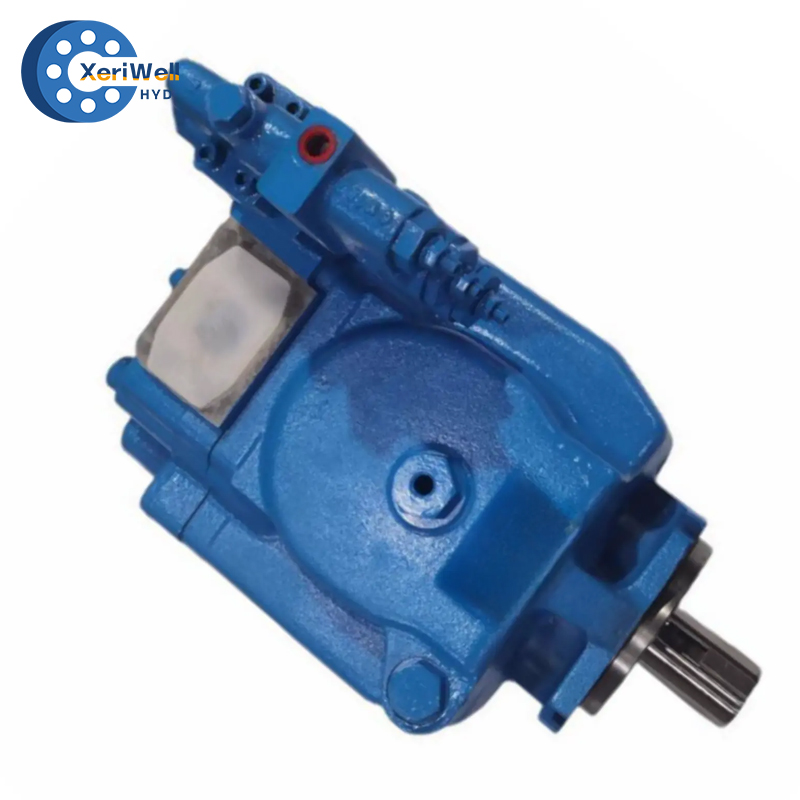

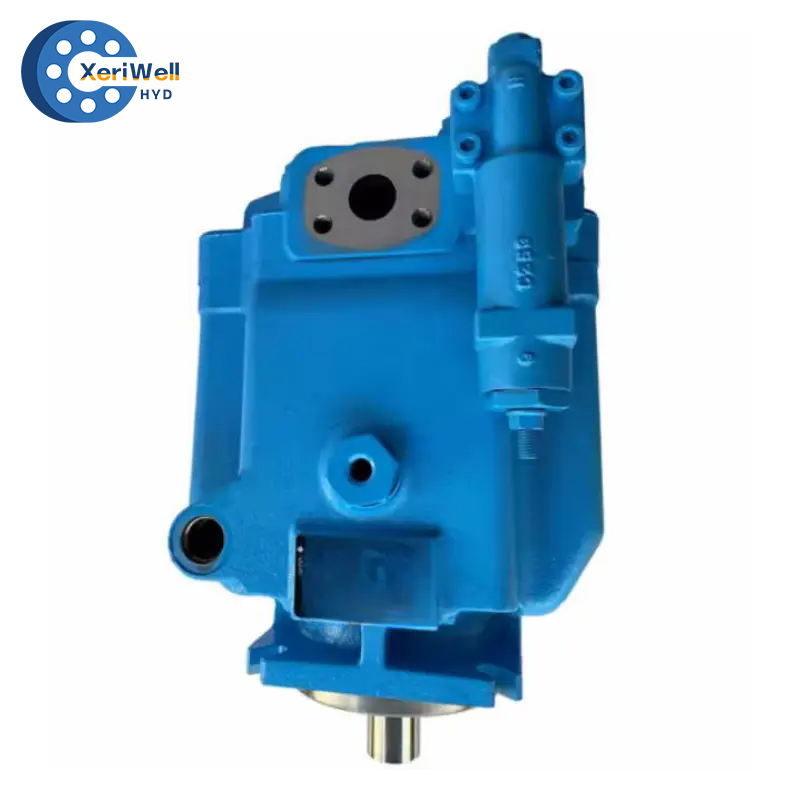

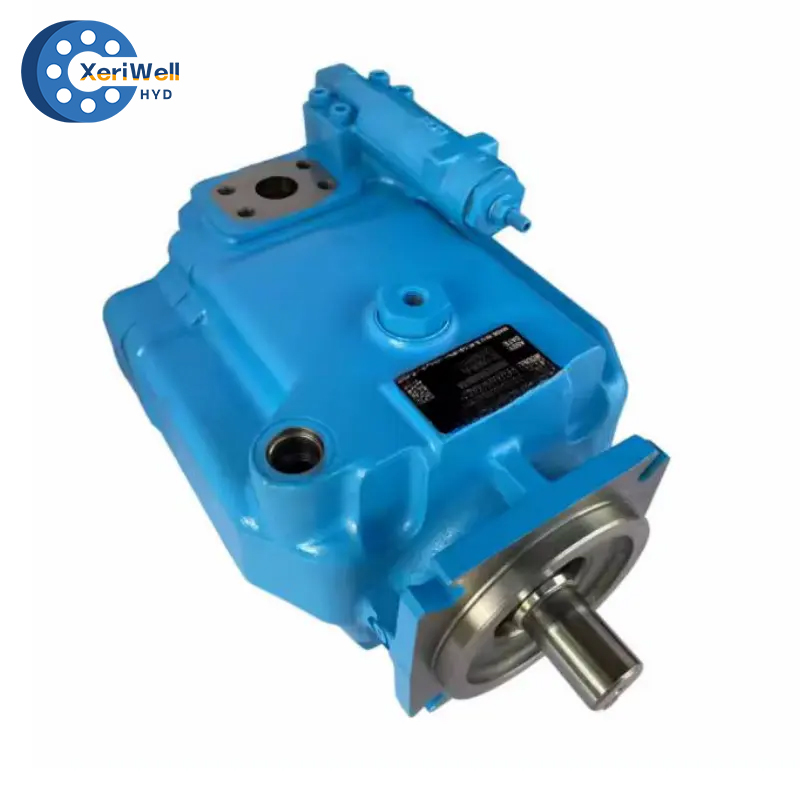

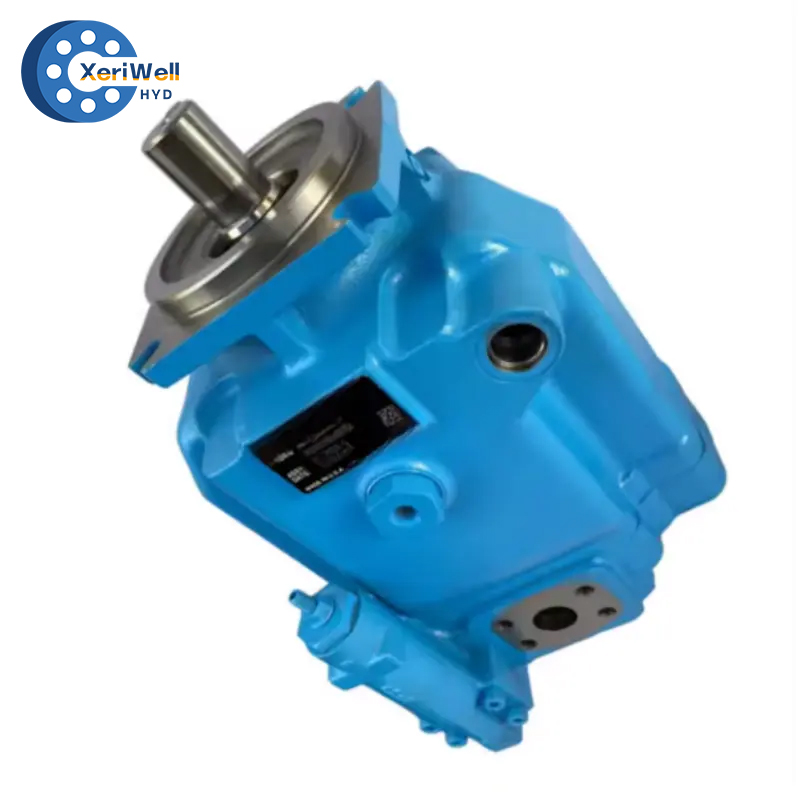

The Eaton Vickers PVH series hydraulic pumps are a versatile and high-performance family of variable displacement inline piston pumps, engineered to meet the stringent demands of both mobile and industrial applications. These pumps are designed to handle high flow and high-pressure requirements, making them an ideal choice for power-dense machinery in construction, earthmoving, machine tools, plastics, and more.
Features:
1）Exceptional Performance: The PVH pumps provide continuous operating pressure of up to 250 bar (3625 psi) and can handle intermittent pressures of 280 bar (4060 psi). This ensures reliable operation even in demanding conditions.
2）Compact and Lightweight Design: The pumps are designed to reduce overall system weight, allowing for easier installation and servicing while maintaining high power density.
3）Advanced Control Options: Equipped with multiple control features such as pressure compensation, load sensing, and torque limiting, the PVH series provides precise and energy-efficient hydraulic system management.
4）High Efficiency: With volumetric efficiencies exceeding 95%, these pumps ensure that maximum input energy is directed towards productive work, minimizing heat generation and energy loss.
5）Quiet Operation: Specially designed models are available to minimize noise levels, making them suitable for noise-sensitive environments in industrial settings.
The Eaton Vickers PVH series is trusted for its robust construction, long lifespan, and ability to perform under intense workloads, making it a preferred choice for industries that demand high reliability and productivity.
Type: PVH45, PVH57, PVH63, PVH74, PVH81, PVH98, PVH106, PVH131, PVH141

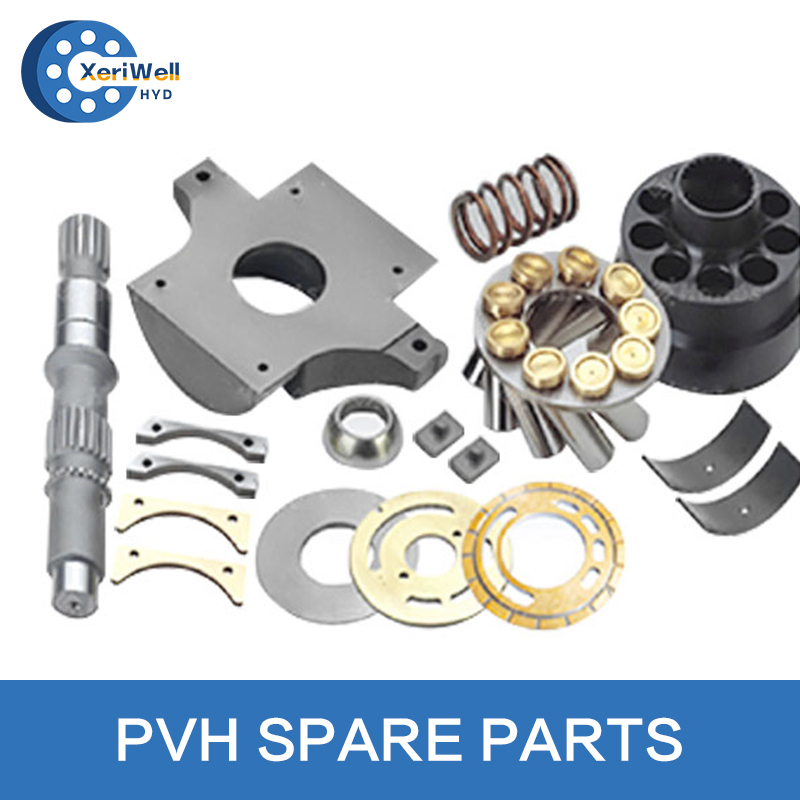

EATON PVH 45/57/63/74/81/98/106/112/131/141 Hydraulic Pump spare parts list:

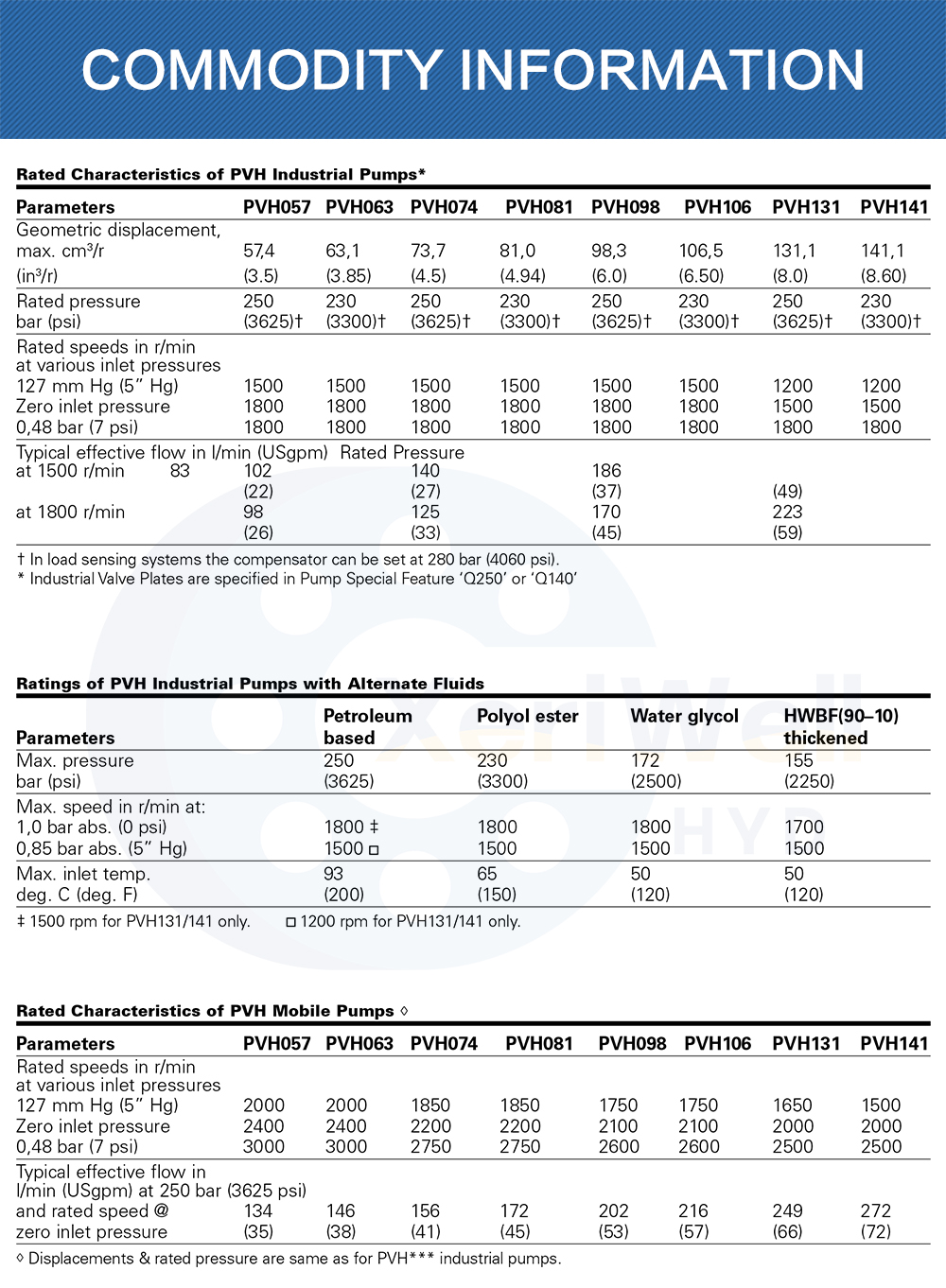

| Rated Characteristics of PVH Industrial Pumps* | ||||||||
| Parameters | PVH057 | PVH063 | PVH074 | PVH081 | PVH098 | PVH106 | PVH131 | PVH141 |
| Geometric displacement, max. cm3/r (in3/r) | 57,4 | 63,1 | 73,7 | 81,0 | 98,3 | 106,5 | 131,1 | 141,1 |
| -3.5 | -3.85 | -4.5 | -4.94 | -6 | -6.5 | -8 | -8.6 | |
| Rated pressure bar (psi) | 250 (3625)† | 230 (3300)† | 250 (3625)† | 230 (3300)† | 250 (3625)† | 230 (3300)† | 250 (3625)† | 230 (3300)† |
| Rated speeds in r/min at various inlet pressures 127 mm Hg (5” Hg) Zero inlet pressure 0,48 bar (7 psi) | ||||||||
| 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1200 | 1200 | |
| 1800 | 1800 | 1800 | 1800 | 1800 | 1800 | 1500 | 1500 | |
| 1800 | 1800 | 1800 | 1800 | 1800 | 1800 | 1800 | 1800 | |
| Typical effective flow in l/min (USgpm) Rated Pressure | ||||||||
| at 1500 r/min | 83 | 102 | 140 | 186 | ||||
| -22 | -27 | -37 | -49 | |||||
| at 1800 r/min | 98 | 125 | 170 | 223 | ||||
| -26 | -33 | -45 | -59 | |||||
| † In load sensing systems the compensator can be set at 280 bar (4060 psi). * Industrial Valve Plates are specified in Pump Special Feature ‘Q250’ or ‘Q140’ | ||||||||
| Ratings of PVH Industrial Pumps with Alternate Fluids | ||||
| Parameters | Petroleum based | Polyol ester | Water glycol | HWBF(90–10) thickened |
| Max. pressure bar (psi) | 250 (3625) | 230 (3300) | 172 (2500) | 155 (2250) |
| Max. speed in r/min at: 1,0 bar abs. (0 psi) 0,85 bar abs. (5” Hg) | ||||
| 1800 ‡ | 1800 | 1800 | 1700 | |
| 1500 □ | 1500 | 1500 | 1500 | |
| Max. inlet temp. deg. C (deg. F) | 93 (200) | 65 (150) | 50 (120) | 50 (120) |
| ‡ 1500 rpm for PVH131/141 only. | □ 1200 rpm for PVH131/141 only. | |||
| Rated Characteristics of PVH Mobile Pumps ◊ | ||||||||
| Parameters | PVH057 | PVH063 | PVH074 | PVH081 | PVH098 | PVH106 | PVH131 | PVH141 |
| Rated speeds in r/min at various inlet pressures 127 mm Hg (5” Hg) Zero inlet pressure 0,48 bar (7 psi) | ||||||||
| 2000 | 2000 | 1850 | 1850 | 1750 | 1750 | 1650 | 1500 | |
| 2400 | 2400 | 2200 | 2200 | 2100 | 2100 | 2000 | 2000 | |
| 3000 | 3000 | 2750 | 2750 | 2600 | 2600 | 2500 | 2500 | |
| Typical effective flow in l/min (USgpm) at 250 bar (3625 psi) and rated speed @ zero inlet pressure | ||||||||
| 134 | 146 | 156 | 172 | 202 | 216 | 249 | 272 | |
| -35 | -38 | -41 | -45 | -53 | -57 | -66 | -72 | |
| ◦ Displacements &rated pressure are same as for PVH*** industrial pumps. | ||||||||
