Xeriwell or Others
The Eaton Vickers 54 series hydraulic pumps, including models such as 5423, 5421, and 5431, are renowned for their durability, reliability, and efficiency. Designed for heavy-duty industrial and mobile applications, these pumps deliver exceptional performance across a wide range of operating conditions.
Features:
1)High-Pressure Capability: The 54 series pumps are engineered to handle high-pressure systems with ease, ensuring consistent and powerful performance in demanding environments.
2)Robust Design: Featuring durable components and advanced manufacturing techniques, these pumps offer long service life and reliable operation, even in harsh conditions.
3)Customizable Configurations: The 54 series is available with various control options and displacement settings, enabling precise adaptation to specific system requirements.
4)Versatile Applications: These pumps are suitable for diverse industries, including construction, mining, and material handling, supporting a variety of hydraulic systems effectively.
5)Optimized Performance: With efficient operation and reduced energy consumption, the 54 series pumps help minimize operational costs while maximizing productivity.
The Eaton Vickers 54 series hydraulic pumps are an excellent choice for applications requiring robust, reliable, and high-performance hydraulic solutions. They exemplify Eaton's commitment to innovation and quality in hydraulic systems.

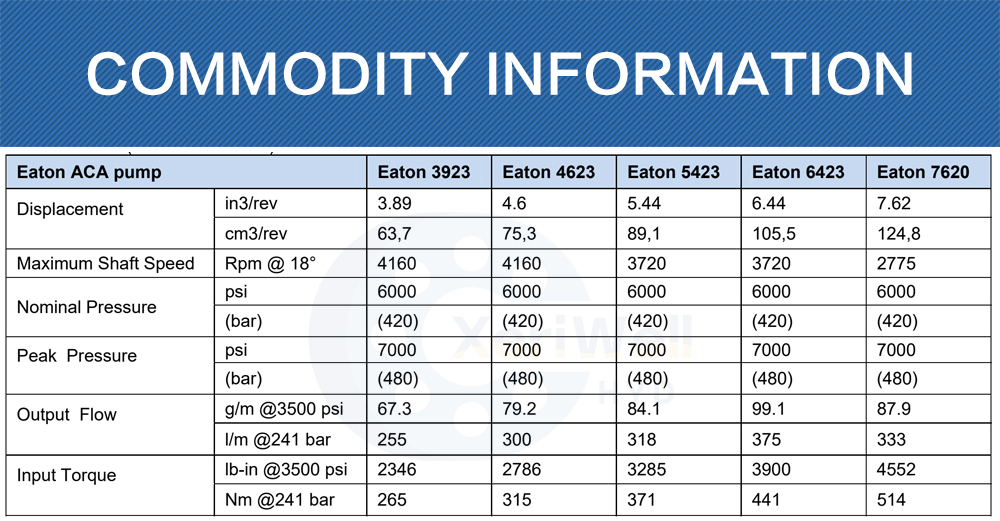

| Eaton ACA pump | Eaton 3923 | Eaton 4623 | Eaton 5423 | Eaton 6423 | Eaton 7620 | |
| Displacement | in3/rev | 3.89 | 4.6 | 5.44 | 6.44 | 7.62 |
| cm3/rev | 63,7 | 75,3 | 89,1 | 105,5 | 124,8 | |
| Maximum Shaft Speed | Rpm @ 18° | 4160 | 4160 | 3720 | 3720 | 2775 |
| Nominal Pressure | psi | 6000 | 6000 | 6000 | 6000 | 6000 |
| (bar) | -420 | -420 | -420 | -420 | -420 | |
| Peak Pressure | psi | 7000 | 7000 | 7000 | 7000 | 7000 |
| (bar) | -480 | -480 | -480 | -480 | -480 | |
| Output Flow | g/m @3500 psi | 67.3 | 79.2 | 84.1 | 99.1 | 87.9 |
| l/m @241 bar | 255 | 300 | 318 | 375 | 333 | |
| Input Torque | lb-in @3500 psi | 2346 | 2786 | 3285 | 3900 | 4552 |
| Nm @241 bar | 265 | 315 | 371 | 441 | 514 | |
