BMSY-250-WFDB
Xeriwell or Others
| Product: | Orbit Hydraulic Motor | Model No.: | BMSY-250-WFDB |
|---|---|---|---|
| Alternative No.: | OMS-250 | Displacement: | 250 CC |
| Max Speed: | 300 Rpm Cont. | Max Torque: | 450 N*m Cont. |
| Max Flow: | 75 L/min | Shaft: | 31.75 Mm |
| Highlight: | slow speed high torque motor,omt hydraulic motor | ||

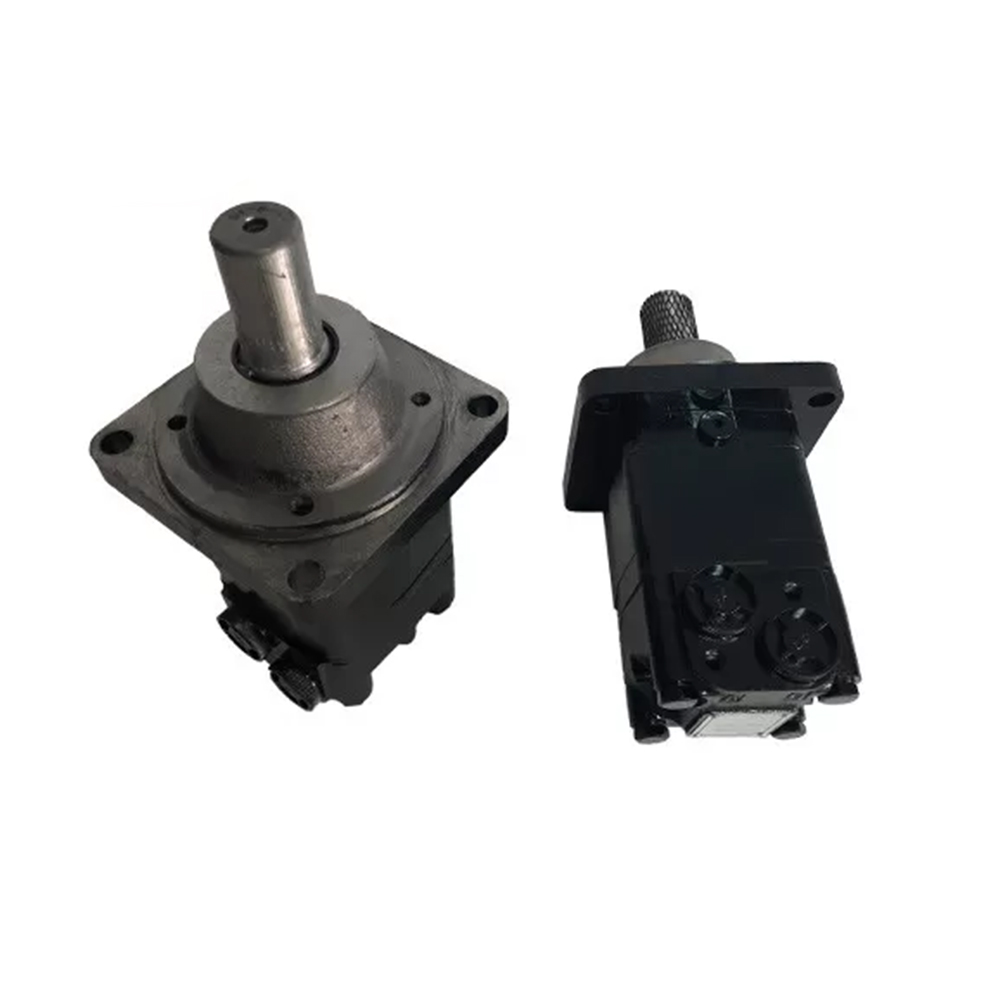

Orbit Hydraulic Motor Manufacturer China OMS 250 CC Wheel Mount
We're manufactuer of Orbit Hydraulic Motor from China. We do high-end hydraulic orbital motors with below advantages:
more than 20 series motors from big to small, variouse options to meet different choices of customers
satisfying the different needs of aftermarket, equipment manufacturers, OEM and brand dealers on Price and Market
popular among hydraulic repairer, machine manufacturer, hydraulic dealers and importers
popular among , Eaton Char-lynn, M+S distributors
annual output of 150,000-200,000 units, fast delivery time
scale production helps us reduce the average manufacturing cost
give benefits to customers, help customers save costs, help customers earn more profit
BMS indroduction:
This motor is a wheel mounted motor, widely used on Off-road Mobile Vehicles as Brake System Brake Motor.
It have wide application in Agri, Farm, Construction and Industrial machineries.
It's an alternative hydraulic motor to Eaton Char lynn 2000 series, also alternative with OMS series, also alternative with M+S MS series, and alternative with many other manufacturers from USA and European.
This hydraulic winch motor is a BMSY type, widely used on Farmland irrigation winch, Towing and mooring winches, Cable Laying winch, Oceanographic research winch, Nautical equipment and winches for fishing boats, Winch as an anchor, Capestani, Special systems for subsea pipelay, Winch Wood from deforestation, Wood processing and cutting machines, Agricultural and forestry machinery, Construction machinery and platform, Ground care and Mowing machinery, etc.
Specifications/ Technical Data:
| Main Specifications: |
| Type | BMS BMSE 80 | BMS BMSE 100 | BMS BMSE 125 | BMS BMSE 160 | BMS BMSE 200 | BMS BMSE 250 | BMS BMSE 315 | BMS BMSE 375 | |
| Geometric displacement (cm3 /rev.) | 80.6 | 100.8 | 125 | 157.2 | 200 | 252 | 314.5 | 370 | |
| Max. speed (rpm) | cont. | 800 | 748 | 600 | 470 | 375 | 300 | 240 | 200 |
| int. | 988 | 900 | 720 | 560 | 450 | 360 | 280 | 240 | |
| Max. torque (N·m) | cont. | 190 | 240 | 310 | 316 | 400 | 450 | 560 | 536 |
| int. | 240 | 300 | 370 | 430 | 466 | 540 | 658 | 645 | |
| peak | 260 | 320 | 400 | 472 | 650 | 690 | 740 | 751 | |
| Max. output (kW) | cont. | 15.9 | 18.8 | 19.5 | 15.6 | 15.7 | 14.1 | 14.1 | 11.8 |
| int. | 20.1 | 23.5 | 23.2 | 21.2 | 18.3 | 17 | 18.9 | 17 | |
| Max. pressure drop (MPa) | cont. | 17.5 | 17.5 | 17.5 | 15 | 14 | 12.5 | 12 | 10 |
| int. | 21 | 21 | 21 | 21 | 16 | 16 | 14 | 12 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 18.5 | 14 | |
| Max. flow (L/min) | cont. | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 80 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |
| Max. inlet pressure (MPa) | cont. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| int. | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 9.8 | 10 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 12.6 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
How to work with Xeriwell Technology?
Inorder to make you better understand how to work with us, here i give you the steps:
discuss your demand with us first
we help you to confirm the products
match with our models
discuss your demand quantity with us, this will help us to provide you our best offer
we make a deal on the offer
sign a contract
you pay deposit
we produce
you pay balance payment after order ready for shipping
dispatch order
Payment terms: 30% deposit, 70% balance should be paid before shipping
Shipping: by sea, by air, by train
Terms: FOB, CFR, CIF
Loading port: Tianjin, Qingdao, Shanghai, Ningbo, China

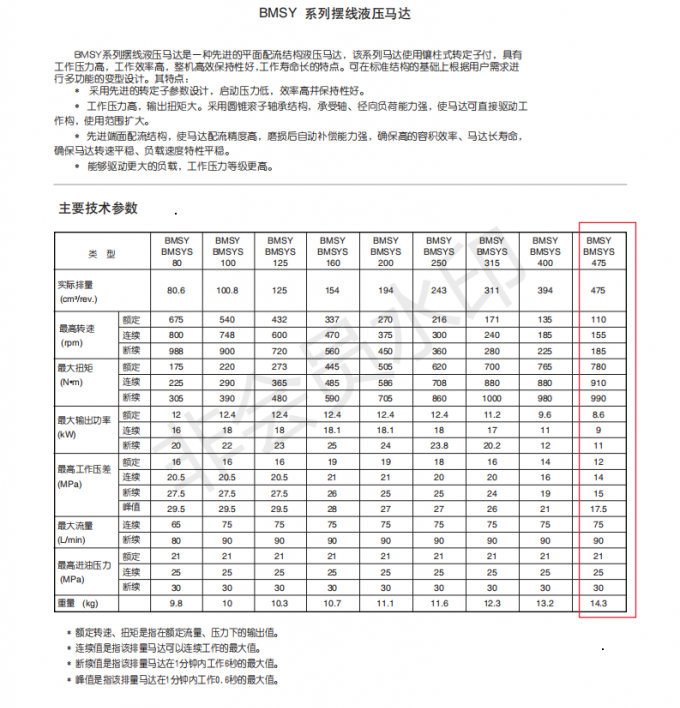

| 类 型 | BMSY BMSYS 80 | BMSY BMSYS 100 | BMSY BMSYS 125 | BMSY BMSYS 160 | BMSY BMSYS 200 | BMSY BMSYS 250 | BMSY BMSYS 315 | BMSY BMSYS 400 | BMSY BMSYS 475 | |
| 实际排量(cm3/rev.) | 80.6 | 100.8 | 125 | 154 | 194 | 243 | 311 | 394 | 475 | |
| 最高转速 (rpm) | 额定 | 675 | 540 | 432 | 337 | 270 | 216 | 171 | 135 | 110 |
| 连续 | 800 | 748 | 600 | 470 | 375 | 300 | 240 | 185 | 155 | |
| 新标 | 988 | 900 | 720 | 560 | 450 | 360 | 280 | 225 | 185 | |
| 最大扭矩 (N·m) | 额定 | 175 | 220 | 273 | 445 | 505 | 620 | 700 | 765 | 780 |
| 连续 | 225 | 290 | 365 | 485 | 586 | 708 | 880 | 880 | 910 | |
| 新标 | 305 | 390 | 480 | 590 | 705 | 860 | 1000 | 980 | 990 | |
| 最大输出功率 (kW) | 额定 | 12 | 12.4 | 12.4 | 12.4 | 12.4 | 12.4 | 11.2 | 9.6 | 8.6 |
| 连续 | 16 | 18 | 18 | 18.1 | 18.1 | 18 | 17 | 11 | 9 | |
| 新标 | 20 | 22 | 23 | 25 | 24 | 23.8 | 20.2 | 12 | 11 | |
| 最高工作压力 (MPa) | 额定 | 16 | 16 | 16 | 19 | 19 | 18 | 16 | 14 | 12 |
| 连续 | 20.5 | 20.5 | 20.5 | 21 | 21 | 20 | 20 | 16 | 14 | |
| 新标 | 27.5 | 27.5 | 27.5 | 26 | 25 | 25 | 24 | 19 | 15 | |
| 峰值 | 29.5 | 29.5 | 29.5 | 28 | 27 | 27 | 26 | 21 | 17.5 | |
| 最大流量 (L/min) | 连续 | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| 新标 | 80 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |
| 最高进油压力 (MPa) | 额定 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 |
| 连续 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| 新标 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| 重量(kg) | 9.8 | 10 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 13.2 | 14.3 | |
| 额定转速、扭矩是指在额定流量、压力下的输出值。 连续是指按排量马达以连续工作时的最大值。 新标是指按排量马达以1分钟内工作5分钟的最大值。 峰值是指按排量马达在1分钟内工作0.6秒的最大值。 | ||||||||||

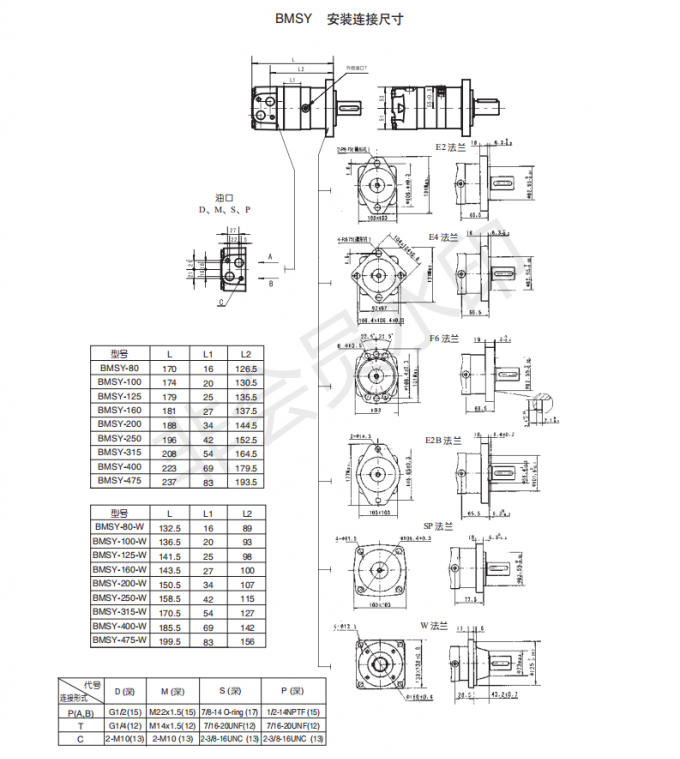

| 型号 | L | L1 | L2 |
| BMSY-80 | 170 | 16 | 126.5 |
| BMSY-100 | 174 | 20 | 130.5 |
| BMSY-125 | 179 | 25 | 135.5 |
| BMSY-160 | 181 | 27 | 137.5 |
| BMSY-200 | 188 | 34 | 144.5 |
| BMSY-250 | 196 | 42 | 152.5 |
| BMSY-315 | 208 | 54 | 164.5 |
| BMSY-400 | 223 | 69 | 179.5 |
| BMSY-475 | 237 | 83 | 193.5 |
| 型号 | L | L1 | L2 |
| BMSY-80-W | 132.5 | 16 | 89 |
| BMSY-100-W | 136.5 | 20 | 93 |
| BMSY-125-W | 141.5 | 25 | 98 |
| BMSY-160-W | 143.5 | 27 | 100 |
| BMSY-200-W | 150.5 | 34 | 107 |
| BMSY-250-W | 158.5 | 42 | 115 |
| BMSY-315-W | 170.5 | 54 | 127 |
| BMSY-400-W | 185.5 | 69 | 142 |
| BMSY-475-W | 199.5 | 83 | 156 |
| 连接形式 代号 | D (深) | M (深) | S (深) | P (深) |
| P(A,B) | G1/2(15) | M22x1.5(15) | 7/8-14 O-ring (17) | 1/2-14NPTF (15) |
| T | G1/4(12) | M14x1.5(12) | 7/16-20UNF(12) | 7/16-20UNF(12) |
| C | 2-M10(13) | 2-M10 (13) | 2-3/8-16UNC (13) | 2-3/8-16UNC (13) |
