| Quantity: | |
|---|---|
BMTG 500
Xeriwell or Others
| Features: | Interchange Parker TF | Type: | Hydraulic Lifting Motor |
|---|---|---|---|
| Manufacturer: | Xeriwell | Model No.: | BMTG |
| Size: | 400ml/r, 500ml/r, 630ml/r, 750ml/r | Suit For: | Concrete Pump Of Putzmeister, Schwing, Mercedes-Benz, ... |
| Highlight: | heavy duty hydraulic motor,large hydraulic motor | ||

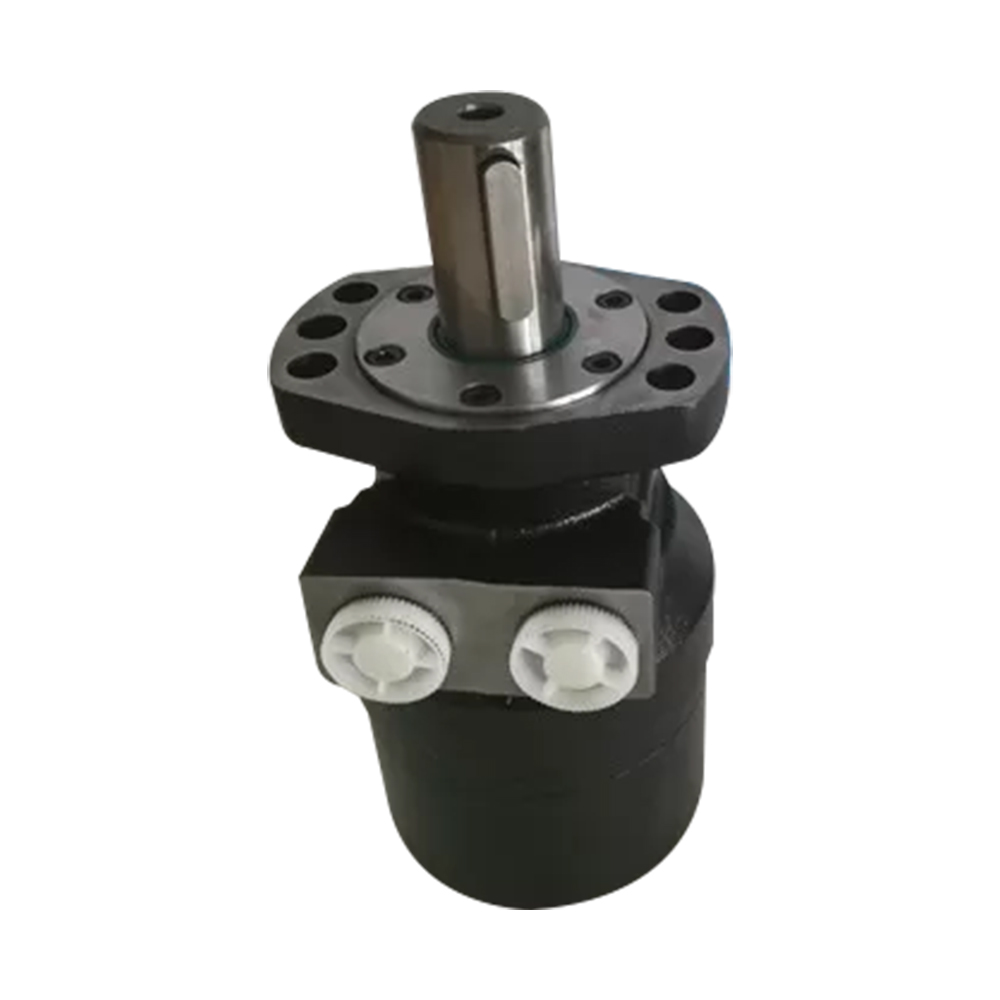

Hydraulic Drive Motor BMTG For Fire and Rescue Vehicle, Marine Cane
BMTG Series is a durable hydraulic motor with superior side load capacity, high pressure shaft seal and smooth low speed operation. Ideal for medium duty applications such as vehicle propulsion, augers, chain drives, winches and boom rotate. Intermittent pressures go to 4000 psi. Max dynamic side load capability is 3600 lb. at the key. This rugged Low Speed High Torque (LSHT) orbital motor features robust construction with continuous oil flow across splines for longer life, superior side load capacity, and smooth extra low speed operation. A high pressure shaft seal is standard. Its innovative design eliminates the need for a drain. Dependability is based on high quality design and manufacturing.
Market we serve:
• Turf Equipment
• Aerial
• Agriculture Machinery
• Construction Equipment
• Factory Automation
• Material Handling Equipment
• Oil & Gas
• Forestry Equipment
• Mining
Features/Benefits:
• Robust construction for longer life
• Continuous oil flow across internal splines for longer life
• Superior side load capacity
• Smooth, extra low speed operation
• High pressure shaft seal is standard
• Innovative design eliminates the need for a drain
• Dependability based on high quality design and manufacturing
• Designed and manufactured in Greeneville, TN USA
Applications:
• Trenchers
• Skid Steer Attachments
• Zero Turn Mowers
• Golf Course Maintenance Equipment
• Sweepers
• Wood Chippers
• Conveyers
• Combine Harvesters
• Winches
• Augers
• Portable Irrigation Systems
• Post Hole Augers
• Potato, Tomato, Nut, Leafy Vegetable, Sugar, Cotton, Coffee and Grape Specialty Harvesters
• Combine Header Drives
• Sprayers
• Scissor Lifts
• Snow Removal
• Salt and Sand Spreaders
• Oil and Gas Blender Trucks
• Mini and Walk-Behind Skid Steers
• Tool Carriers
• Pipe Spinners
Please do not hesitate to contact us for further information, inquiries or orders.
Thank you for choosing 'Xeriwell' Hydraulics.
| 主要技术参数 | ||||||||||||
| 类 型 | BMER 125 | BMER 160 | BMER 200 | BMER 230 | BMER 250 | BMER 300 | BMER 350 | BMER 375 | BMER 475 | BMER 540 | BMER 750 | |
| 排量 (cm3/rev.) | 118 | 156 | 196 | 228 | 257 | 296 | 345 | 371 | 462 | 540 | 745 | |
| 最高转速 （rpm) | 连续 | 360 | 375 | 330 | 290 | 290 | 250 | 220 | 200 | 160 | 140 | 100 |
| 断续 | 490 | 470 | 425 | 365 | 350 | 315 | 270 | 240 | 195 | 170 | 120 | |
| 最大扭矩 (N•m) | 连续 | 325 | 450 | 530 | 625 | 700 | 810 | 905 | 990 | 1085 | 980 | 1050 |
| 断续 | 380 | 525 | 600 | 710 | 790 | 930 | 1035 | 1140 | 1180 | 1240 | 1180 | |
| 峰值 | 450 | 590 | 750 | 870 | 980 | 1120 | 1285 | 1360 | 1260 | 1380 | 1370 | |
| 最大功率 （kW） | 连续 | 12 | 15 | 15.5 | 16 | 17.5 | 18 | 17.5 | 16.5 | 14.5 | 11.5 | 8 |
| 断续 | 14 | 17.5 | 18 | 19 | 20 | 21 | 20 | 19 | 16.5 | 15 | 10 | |
| 最高压力 (MPa) | 连续 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 17.5 | 14 | 10.5 |
| 断续 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 19 | 17.5 | 12 | |
| 峰值 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 20.5 | 20.5 | 14 | |
| 最大流量 (L/min) | 连续 | 45 | 60 | 70 | 70 | 75 | 80 | 80 | 75 | 75 | 75 | 75 |
| 断续 | 60 | 75 | 85 | 85 | 90 | 95 | 95 | 90 | 90 | 90 | 90 | |
| *连续值是指该排量马达可以连续工作的最大值。 *断续值是指该排量马达在1分钟内工作6秒的最大值。 *峰值是指排量马达在1分钟内工作0.6秒的最大值。 | ||||||||||||
