| Quantity: | |
|---|---|
060
Xeriwell or Others
| Name: | Orbitrol Steering Valve | Apply: | Tractor, Forklift, Loader, Boat, , Etc |
|---|---|---|---|
| Brand: | Xeriwell | Certification: | CE |
| HS Code: | 87089410 | Place Of Origin: | China |
| Highlight: | power steering valve,power steering control unit | ||

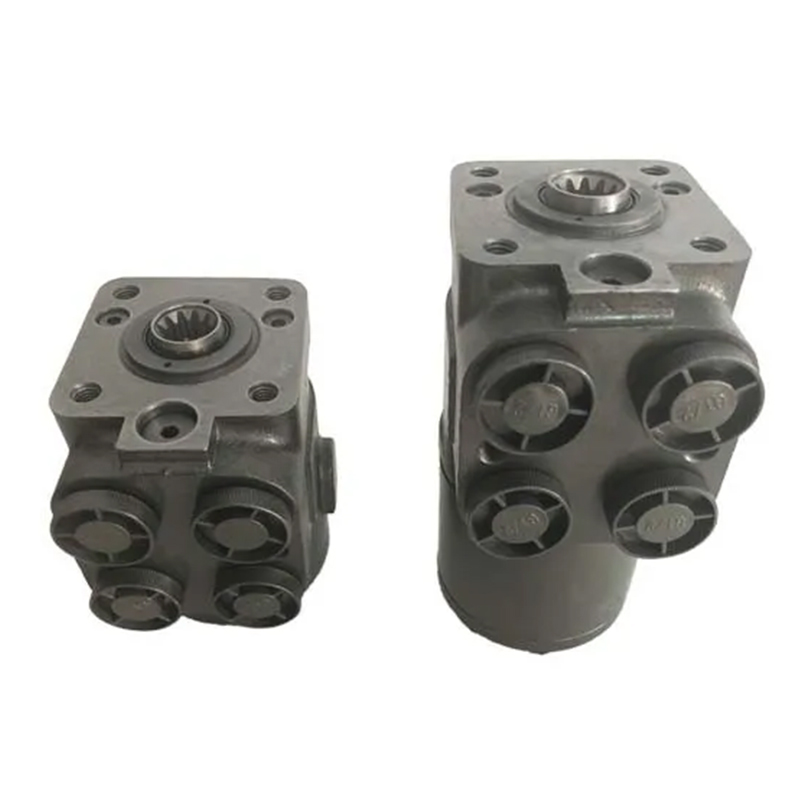

Orbitrol Steering unit Replace Eaton Type/OSPC/OSPB/HKU/HKUS for MTZ Tractor
Features:
060 series hydraulic steering control unit
1. 060 Hydraulic steering unit is widely used in the steering control system.
2. The design is more compact and convenient.
3. Including integrated valve (relief valve and checkproof valve)
4. Can match with the OEM number of all machines.
Applications:
Orbital Steering Valve can widely use for agricultural machines and construction machines, such as tractor, harvester, loader, forklift, etc.
Main Specifications:
Max. System pressure --------16MPa
Max. Back pressure -----------2.1MPa
Input torque--------------------1.7~2.5Nm
Max. System operating temperature--------93º C
Recommended oil filtration--------ISO 19/16
Model Crossing:
| Xeriwell Hydraulic | M+S | Eaton | |
| 101 | OSPB | ||
| 101S | OSPC | ||
| 101S-5T | OSPJ | ||
| 102 | HKU | ||
| 102S | HKUS | ||
| 060 | 45 series |
