| Quantity: | |
|---|---|
CBT, CBF, CBG-F3, GPC4, G5
Xeriwell or Others
| Product Name: | Hydraulic Gear Pump | Theory: | Rotary Hydraulic Pump |
|---|---|---|---|
| Pressure: | High Pressure | Displacement: | 3~30ml/r |
| Max.pressure: | 15-20Mpa | Shaft: | Tang Claw Shaft,Tappered Key |
| Highlight: | industrial hydraulic pump,high pressure gear pump | ||

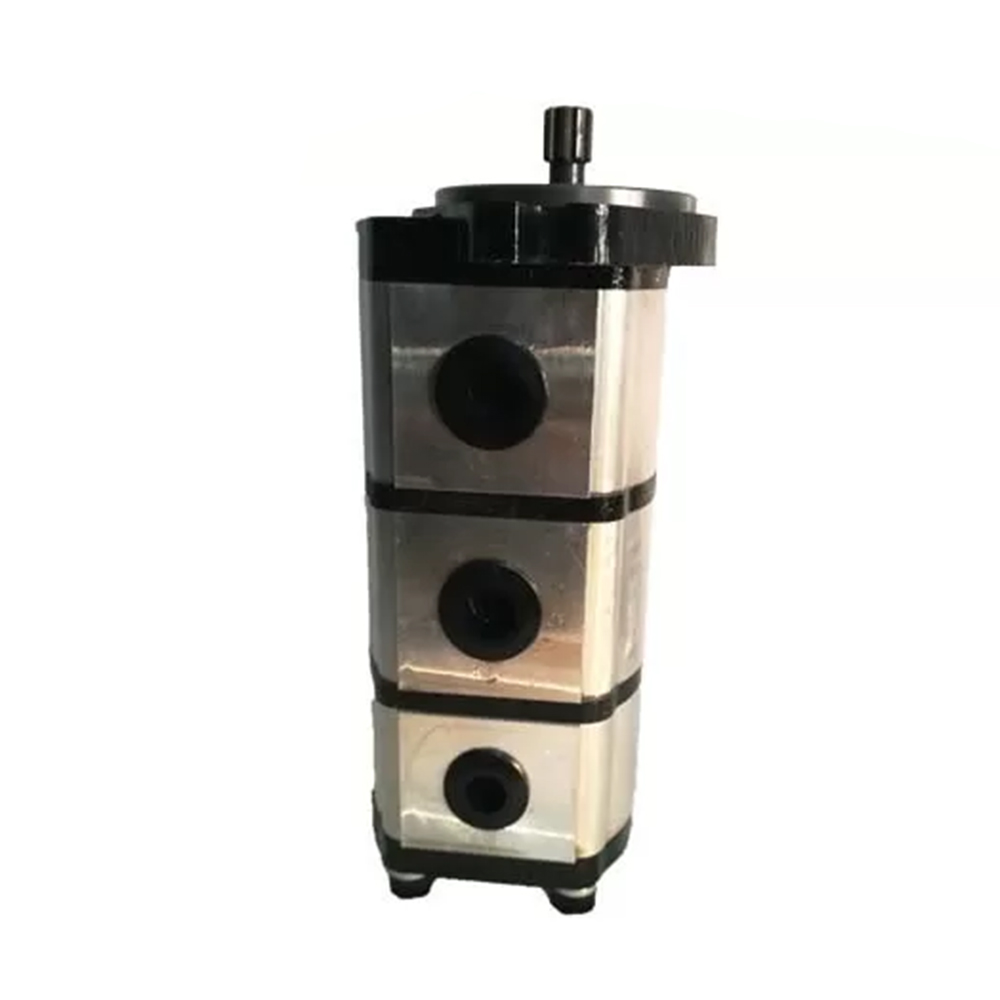

Hydraulic Double / Triple Gear Pumps Used For Construction Equimpents , Concrete Pumps
Introduction:
Xeriwell pumps and motors are high volumetic efficiency and long life achieved by smart design and accurate control of machining tolerances
Features:
Fine finished steel gears,Hi-resistant Extruded alluminum body, Hi-resistant Die cast alluminum cover(BAP2) or cast-iron cover(BHP2), Low-friction die casting alluminum bushes,and DU slide bearing,all these keep low pulsation,low noise and long life.
Full option of shafts,flanges and ports as for European,German and America standards
Nitrile seals as standard and viton seals available for high temperature application,high pressure shaft seals are also available.
Motor and bi-direction pump available
Available as multiple pump either of the same or different group
We test 100% of the pumps and motors after assambling to ensure the high standard performance.
Our team have worked in hydraulics for about 20 years. Our technical people are very skilled in producing gear pump.
We have supplied to many world-famous company all over the world.
Specifications:
Group 1 pumps
Displacements from 0.6 to 13.4 cc/rev
Mounting flanges: SAE “AA” 2 bolt, US 4F-17 4 bolt, European 4 bolt and “through bolt” front
manifold discharge DC power pack design
Side ports standard, rear ports available
Group 2 pumps
Displacements from 4 to 33 cc/rev
Mounting flanges: SAE “A” 2 bolt and 4 bolt European standard
O ring side ports standard, rear ports available
Group 3 pumps
Displacements from 18 to 90 cc/rev
Mounting flanges: SAE “A” and SAE “B” 2 bolt and 4 bolt European standard
O ring side ports standard, rear ports available
| Type | Displacement | Max.pressure | Max.speed | Min.speed | ||
| P1 | P2 | P3 | ||||
| cm3/rev | bar | bar | bar | r/min | r/min | |
| CBT | 3 | 270 | 285 | 300 | 4000 | 800 |
| CBT | 4 | 270 | 285 | 300 | 4000 | 600 |
| CBT | 6 | 270 | 285 | 300 | 4000 | 600 |
| CBT | 8 | 270 | 285 | 300 | 3500 | 500 |
| CBT | 10 | 270 | 285 | 300 | 3000 | 500 |
| CBT | 12 | 270 | 285 | 300 | 3000 | 500 |
| CBT | 14 | 250 | 265 | 280 | 4000 | 500 |
| CBT | 16 | 250 | 265 | 280 | 4000 | 500 |
| CBT | 18 | 250 | 265 | 280 | 3600 | 400 |
| CBT | 20 | 220 | 235 | 250 | 3200 | 400 |
| CBT | 22 | 220 | 235 | 250 | 3000 | 400 |
| CBT | 25 | 200 | 215 | 230 | 3000 | 400 |
| CBT | 28 | 180 | 190 | 200 | 2500 | 400 |
| CBT | 30 | 160 | 170 | 180 | 2500 | 400 |
Sprinkler
Mini excavator
Driven scraper conveyor
Screw
Baler
Hydraulic Winch
Fishing boat
Plastic injection mold machine
Cleaner
Grass cutter
Winches
Conveyors
Slews
Sweeper Drives
Augers Cutters
Mowers
Chippers
Drilling machine
Municipal machinery, agriculture, forestry and construction equipment etc
XeriWell is a dedicated provider of hydraulic products, specializing in hydraulic motors, pumps, components, and complete hydraulic systems. Positioned as a trusted supplier to the global market, we focus on delivering innovative and reliable hydraulic solutions that meet the highest standards. With a commitment to serving clients worldwide, XeriWell provides tailored solutions that address the unique hydraulic needs of any region, supporting industries with high-quality, dependable performance.
At XeriWell, we bring extensive expertise to the hydraulic industry, grounded in a deep understanding of industry standards and certifications that ensure top-quality products and services. Our team of specialized hydraulic engineers is well-versed in international standards, rigorously following certifications and guidelines to meet diverse market requirements. With an average of over 10 years of experience, our professionals have the knowledge to handle complex projects and offer fully customizable solutions.
XeriWell offers a comprehensive range of hydraulic products, including hydraulic motors, pumps, components, complete hydraulic systems, and various other hydraulic parts to meet diverse industry needs. In addition to our extensive product line, we provide tailored hydraulic system solutions, designed to meet each client's unique specifications. Our customization services save clients valuable time by eliminating the need to source multiple suppliers, delivering fully integrated and efficient solutions for their hydraulic applications.
XeriWell's core competitive advantage lies in our technical expertise. Unlike standard suppliers, we are a technology-driven company focused not only on sourcing high-quality hydraulic products but also on offering strategic guidance and expert recommendations to our clients. This technical strength, combined with our comprehensive product range and customization capabilities, allows us to deliver hydraulic solutions that truly add value and meet the specific needs of a global clientele.
At XeriWell, our vision is to be a leading global provider of innovative and reliable hydraulic solutions that drive industry progress and customer success. We are committed to excellence, integrity, and customer-centric service, valuing strong partnerships and continuous improvement. Our goal is to empower our clients by delivering high-quality, tailored solutions that meet evolving industry demands, fostering a future where hydraulic technology is seamlessly integrated, efficient, and sustainable for all.
At XeriWell, we offer a comprehensive range of hydraulic components, including hydraulic motors, pumps, accessories, valves and more, with options for both original and high-quality domestic alternatives. Backed by a robust supply chain, we are able to meet the vast majority of our clients'procurement needs, from standard models to non-standard and even discontinued products. Additionally, we provide fully customized services and solutions tailored to specific requirements, ensuring clients receive precisely the products and configurations needed for optimal performance. Our commitment to flexibility and reliability makes XeriWell a trusted partner for all hydraulic sourcing and customization needs.
