| Quantity: | |
|---|---|
Orbit Motor BMR
Xeriwell or Others
| Features: | Small Size, Compact Structure, High Torque, Clockwise & Counterclockwise, Long Life | Product Name: | Hydraulic Gear Motors |
|---|---|---|---|
| Displacement: | 50cc,80cc,100cc,125cc,160cc......500cc | Applications: | Agricultural Machine, Transportation, Construction Equipment, Metallurgical, Marine, Etc. |
| Replacement: | OMR, Eaton S,T Series , M+S MR Etc | Flange: | 2 Bolt Flange , 4 Bolt Flange |
| Highlight: | cycloid hydraulic motor,hydraulic rotary motor | ||

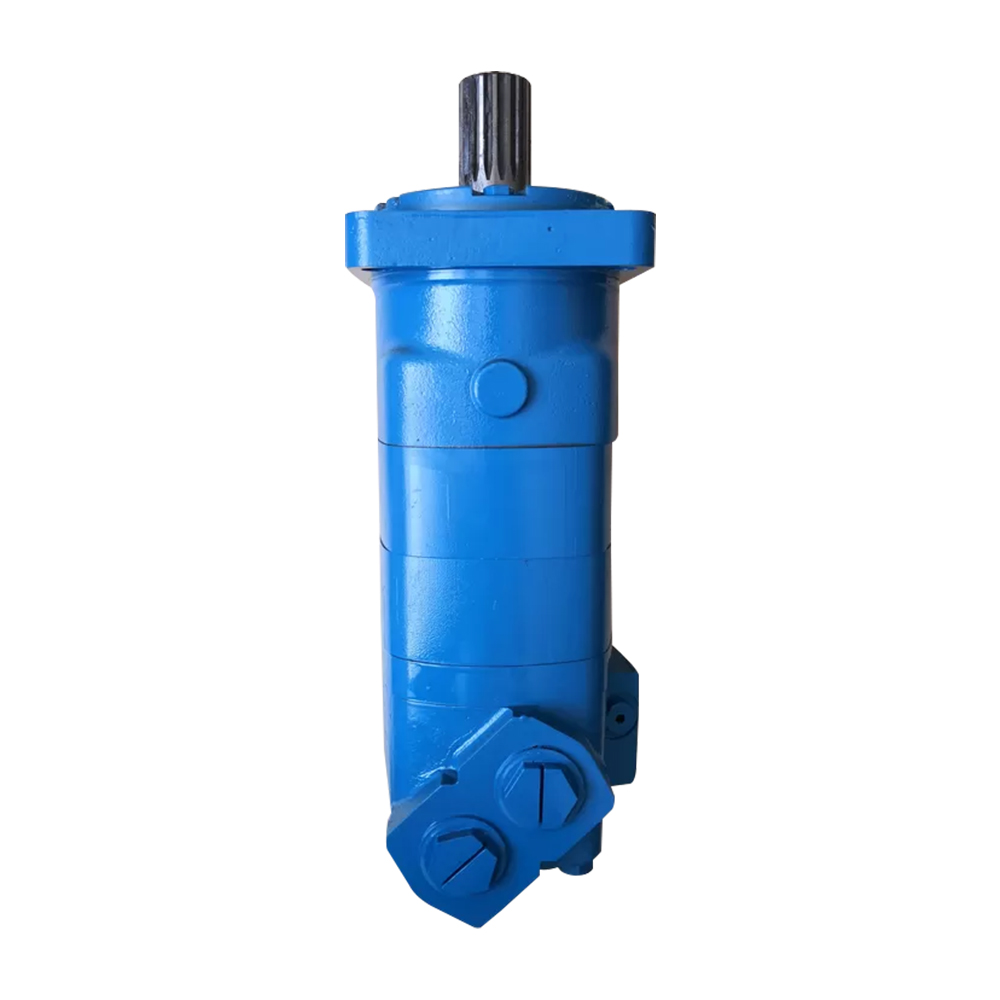

Disc Valve / Low Speed High Torque Motor / Gerotor / Geroler Motor CharLynn 6000
Xeriwell BMT series hydraulic motors can replace Charing 6000 series motors, OMT TMT, M+S MT MTM MLHT
Xeriwell BMT series motor adapt the advanced Gerotor gear set design with disc distribution flow and high pressure. The unit can be supplied the individual variant in operating multifunction in accordance with requirement of applications.
Characteristic Features:
* Advanced manufacturing devices for the Gerotor gear set, which use low pressure of start-up, provide smooth and reliable
operation and high efficiency.
* The output shaft adapts in tapered roller bearings that permit high axial and radial forces. Can offer capacities of high pressure and high torque in the wide of applications.
* Advanced design in disc distribution flow, which can automatically compensate in operating with high volume efficiency and long life, provide smooth and reliable operation.
Main Specifications:
| Type | BMT 160 | BMT 200 | BMT 230 | BMT 250 | BMT 315 | BMT 400 | BMT 500 | BMT 630 | BMT 800 | |
| Geometric displacement (cm3 /rev.) | 161.1 | 201.4 | 232.5 | 251.8 | 326.3 | 410.9 | 523.6 | 629.1 | 801.8 | |
| Max. speed (rpm) | cont. | 625 | 625 | 536 | 500 | 380 | 305 | 240 | 196 | 154 |
| int. | 780 | 750 | 643 | 600 | 460 | 365 | 285 | 233 | 185 | |
| Max. torque (N·m) | cont. | 470 | 590 | 670 | 730 | 950 | 1080 | 1220 | 1318 | 1464 |
| int. | 560 | 710 | 821 | 880 | 1140 | 1260 | 1370 | 1498 | 1520 | |
| peak | 669 | 838 | 958 | 1036 | 1346.3 | 1450.3 | 1643.8 | 1618.8 | 1665 | |
| Max. output (kW) | cont. | 27.7 | 34.9 | 34.7 | 34.5 | 34.9 | 31.2 | 28.8 | 25.3 | 22.2 |
| int. | 32 | 40 | 40 | 40 | 40 | 35 | 35 | 27.5 | 26.8 | |
| Max. pressure drop (MPa) | cont. | 20 | 20 | 20 | 20 | 20 | 18 | 16 | 14 | 12.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 21 | 18 | 16 | 13 | |
| peak | 28 | 28 | 28 | 28 | 28 | 24 | 21 | 19 | 16 | |
| Max. flow (L/min) | cont. | 100 | 125 | 125 | 125 | 125 | 125 | 125 | 125 | 125 |
| int. | 125 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | |
| Max. inlet pressure (MPa) | cont. | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 |
| int. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| peak | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 19.5 | 20 | 20.4 | 20.5 | 21 | 22 | 23 | 24 | 25 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
| MOTOR CROSS REFERENCE TABLE | ||||||||
Xeriwell HYDRAULIC | M+S HYDRAULIC | EATON CHAR LYNN | ROSS TRW | WHITE CROSS | PARKER | SAM BREVINI | BOSCH RECROTH | |
| BMM | MM MLHK | J SERIES | OMM | BGM | MGX | |||
| BMP/BM1 | MP HP | H SERIES | OMP DH | MF MG | WP RS | TC TE TB | BG | MGP GXP |
| BMR/BM2 | MR HR MLHRW,RW | S,T SERIES W SERIES | OMR DS OMEW | MB | WR RE | TF | BR | MGR GMR |
| BMH/BM4 | MH MLHH HW HWF | OMH | ME | RE | TG | |||
| BMS/BM5 | MS MSY MLHS | 2000 SERIES | OMS | ME | RE | TG | HPR | MGS GMS |
| BMT/BM6 | MT MLHT MTM | 6000 SERIES | OMT TMT | MJ | HT | MGT,GMT | ||
| BMV | MV MLHV | 10000 SERIES | OMV | MGV GMV | ||||
