| Quantity: | |
|---|---|
OMS315 EMD
Xeriwell or Others
| Item: | Disc Valve Hydraulic Motor | Material: | Cast Iron |
|---|---|---|---|
| PN: | OMS315 EMD | Manufacturer: | Xeriwell |
| Warranty: | 12 Months | Origin: | China |
| Highlight: | 32mm Hydraulic Motor,G1/2 port threads Hydraulic Motor,speed sensor Hydraulic Motor | ||

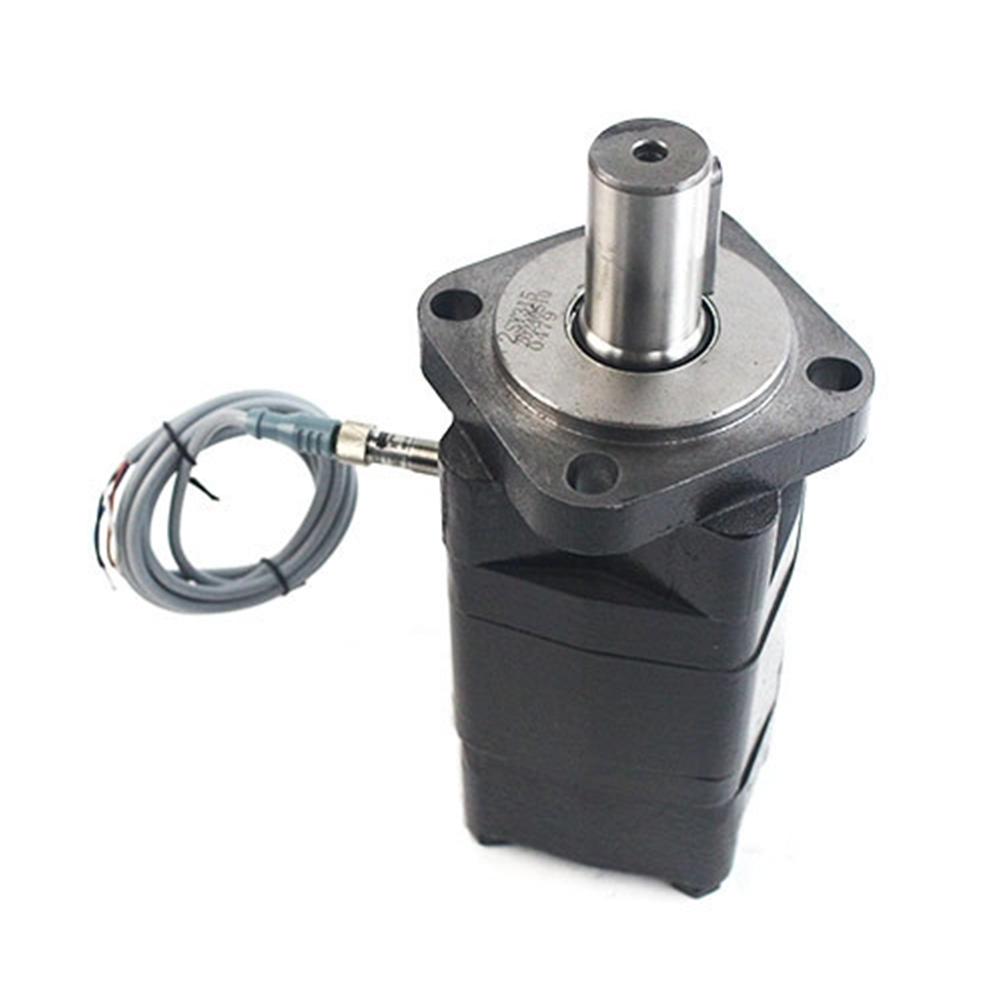

Disc Valve Hydraulic Motor key Shaft 32mm G1/2 port threads with speed sensor OMS315 MS315 BMSY315
Quick detail:
| Output volume (cc/rev): | 315cc |
| Shaft: | 32mm straight key |
| Connection: | 7⁄8 - 14 UNF |
| Drain | 7⁄16 - 20 UNF |
| Plug connection: | 2 mm |
Condition: NEW with original packaging
Material number: 11105168/HANJIU BMSY
Modelcode: None
Motorseries: O-Series
Basic Motor: OMS EMD/BMSY-SD
Displacement: 315CC
Mounting Flange: Standard mounting
Mounting Thread Dimension: None
Shaft Style: Cylindrical
Shaft Size: 32MM
Shaft Key: 5/16 x 5/16 x 1 1/4 inch (SAE J744)
Port Size: Side port
Port Dimension: G1/2
Drain Port Style: Standard
Drain port Dimension: G1/4
Brake Release Port: None
Brake Release Port Dimension: None
Dust Seal: Standard
Shaft Seal: NBR - Standard
Seal-Kit: High pressure seal kits
Front bearing: Tapered roller bearing
Rear bearing: Tapered roller bearing
Gear wheel set: Standard
Check valve: Yes
Packaging: Single pack
| Product NO | Displacement (CCM) | Mounting Flange | Shaft (MM) | Port Size | Drain Port | Shaft end | Mounting holes | Oil Port | Parallel key (MM) |
| BMSY/ OMS | 80/100/125/ 160/200/ 315/400 | 82.5 | 32 | G1/2 OR 7/8 - 14 UNF | G1/4 OR 7/16 - 20 UNF | M8 | 2 | B |
