| Quantity: | |
|---|---|
2000 series
Xeriwell or Others
| Item: | Low Speed High Torque Motors | Model: | 104-1228-006 |
|---|---|---|---|
| Flow Rate: | 315CM3/R | Flange: | STANDARD, 2 BOLT |
| Shaft: | 1 1/4 Inch STRAIGHT | Port: | .875-14 UNF-2B SAE O-RING |
| Highlight: | Disc Hydraulic Motor,Lynn Hydraulic Motor,Eaton Hydraulic Motor | ||

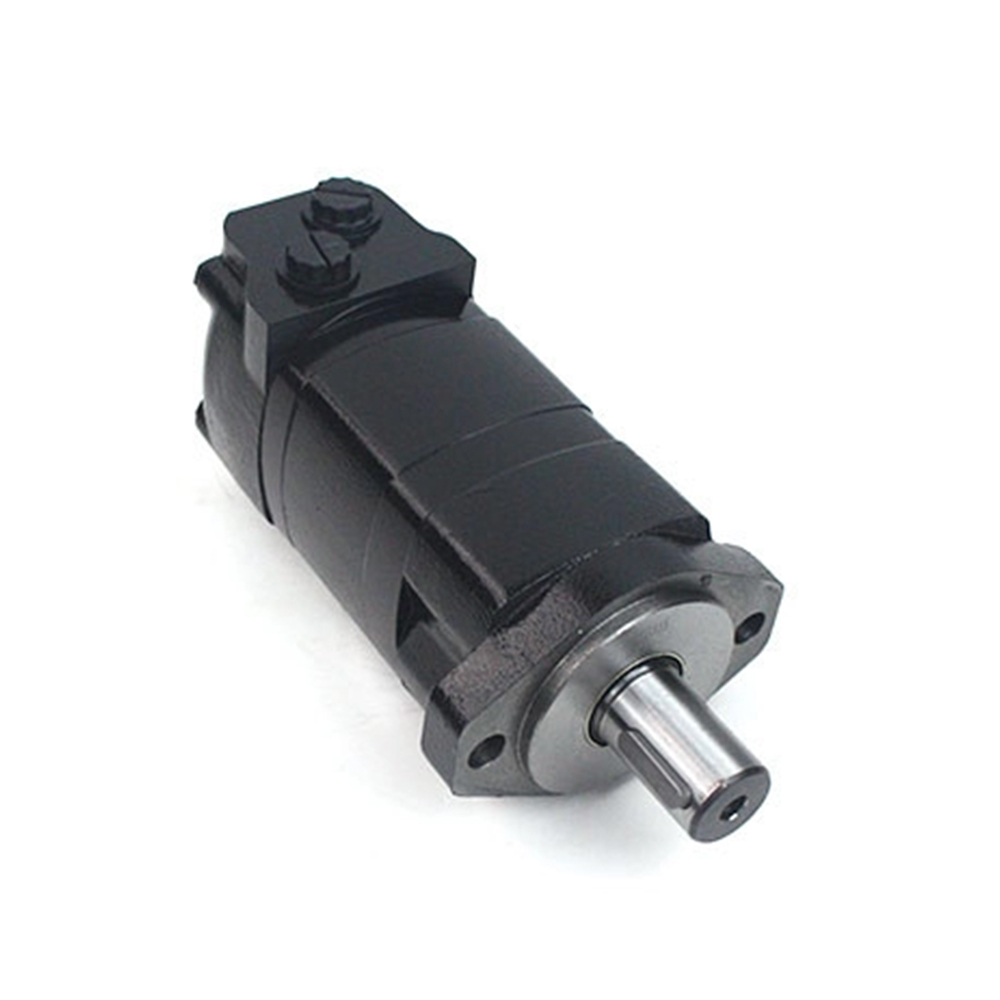

Disc Geroler Eaton Char Lynn Hydraulic Motor 104-1228-006, 191 Rpm, 2250 psi, 20 gpm
This is a Aftermarket Char-Lynn 2000 series motor 104-1228-006
Quick view:
| Feature | code | Description |
| product | M | hydraulic motor |
| series | 02 | 2000 series |
| displacement | 240 | 395cc |
| mounting type | AC | standard type, 2 bolt flange |
| output shaft | 02 | 31.75 mm straight key shaft |
| ports | AA | 0.875-14 UNF-2B SAE O-RING PORTS - STAGGERED PORTS |
Features
The popular Char-Lynn 2000 Series Disc Valve Hydraulic Motors provide torque up to 7500 lb Inch. This proven design is reliable and durable. Eaton has added options that make the motor more flexible to use in a wide variety of applications. The integral cross-over relief valve is the latest innovation in the 2000 series motors.
Three zone design for longer life and true bi-directionality
Bearings that meet the highest standards of the industry
Options to optimize performance in every application
Integrated cross-over relief valve option
Other types
| Eaton Charlynn type |
104-1143-006 |
| 104-1044-006 |
| 104-1068-006 |
| 104-1229-006 |
| 104-1094-006 |
