| Quantity: | |
|---|---|
2000 series
Xeriwell or Others
| Item: | LSHT Motors | Model: | 104-1006-006 |
|---|---|---|---|
| Displacement: | 244.3 CM3/R | Flange: | STANDARD, 2 BOLT |
| Shaft: | 25.40 STRAIGHT | Port: | .875-14 UNF-2B SAE O-RING |
| Highlight: | eaton char lynn hydraulic motor,eaton 2000 series motor,20GPM eaton char lynn hydraulic motor | ||
Eaton Char-Lynn 2000 Series Disc Geroler Motor 104-1006-006, 308 Rpm, 20 gpm
Quick view:
Product Specifications
| Feature | Code | Description |
|---|---|---|
| PRODUCT | M | MOTOR |
| SERIES | 02 | 2000 SERIES |
| DISPLACEMENT | 149 | 244.3 CM3/R [14.91 IN3/R] |
| MOUNTING TYPE | AC | STANDARD, 2 BOLT; 82.6 [3.25] PILOT DIA. 13.59 [.535] DIA. HOLES ON 106.4 [4.19] DIA. BOLT CIRCLE. SAE A |
| OUTPUT SHAFT | 01 | 25.40 [1.000] DIA. STRAIGHT SHAFT WITH .250-20UNC-2B THREAD IN END, 6.35 [.250] WIDE X 25.40 [1.000] DIA. WOODRUFF KEY |
| PORTS | AA | .875-14 UNF-2B SAE O-RING PORTS - STAGGERED PORTS |
| FLOW OPTION | 01 | .4375-20 UNF-2B SAE O-RING PORT |
This is a Aftermarket Char-Lynn 2000 series motor 104-1006-006
Features
The popular Char-Lynn 2000 Series Disc Valve Hydraulic Motors similar motor provide torque up to 7500 lb Inch. This proven design is reliable and durable. We have added options that make the motor more flexible to use in a wide variety of applications. The integral cross-over relief valve is the latest innovation in the 2000 series motors.
*Design for longer life and true bi-directionality
*Bearings that meet the highest standards of the industry
*Options to optimize performance in every application
*Integrated cross-over relief valve option
*Directional Boring any place pressure relief protection is optimal for system or motor performance and life applications

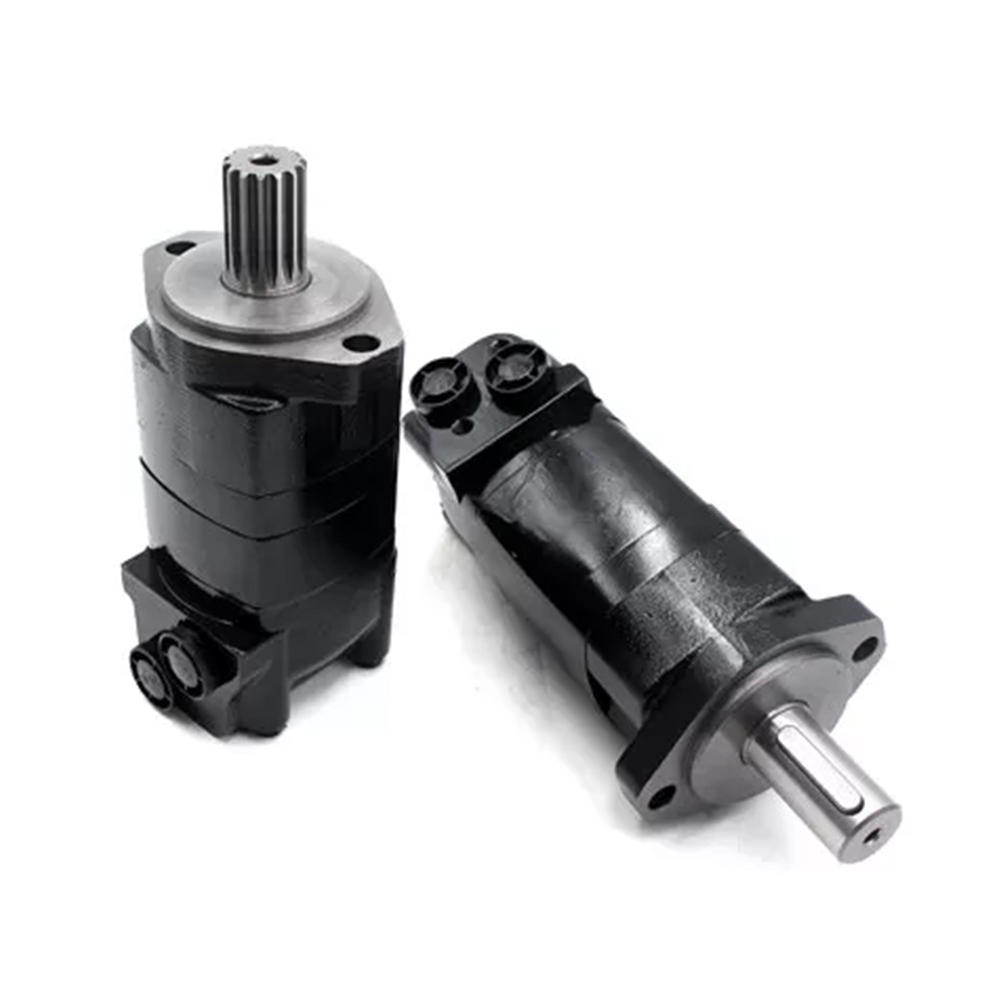

Below is reference photo of aftermarket Char-Lynn 2000 series motor 104-1006-006, and also more aftermarket notors of Eaton
