MMF
Xeriwell or Others

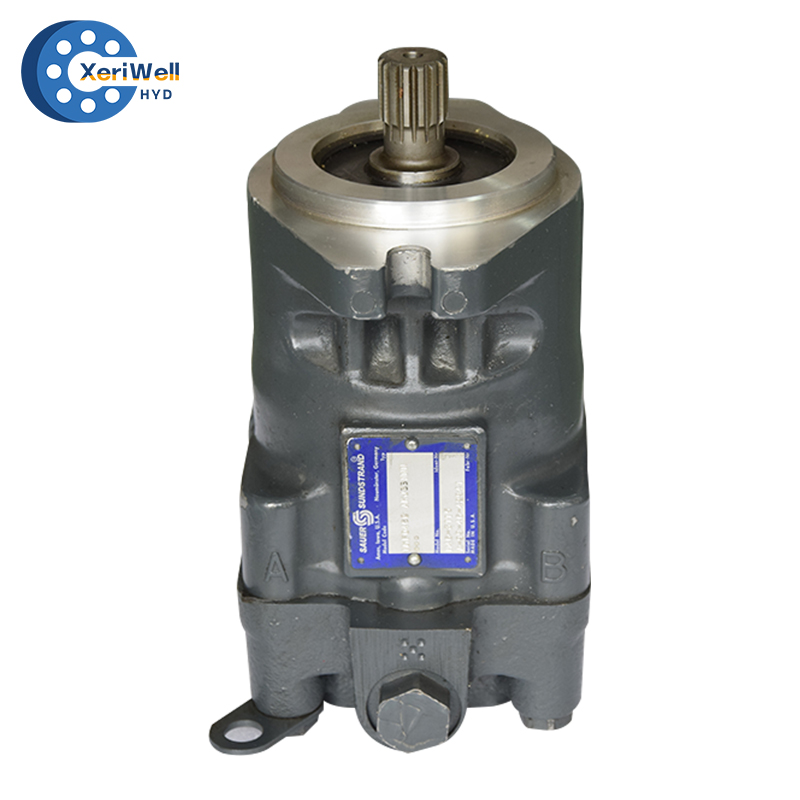

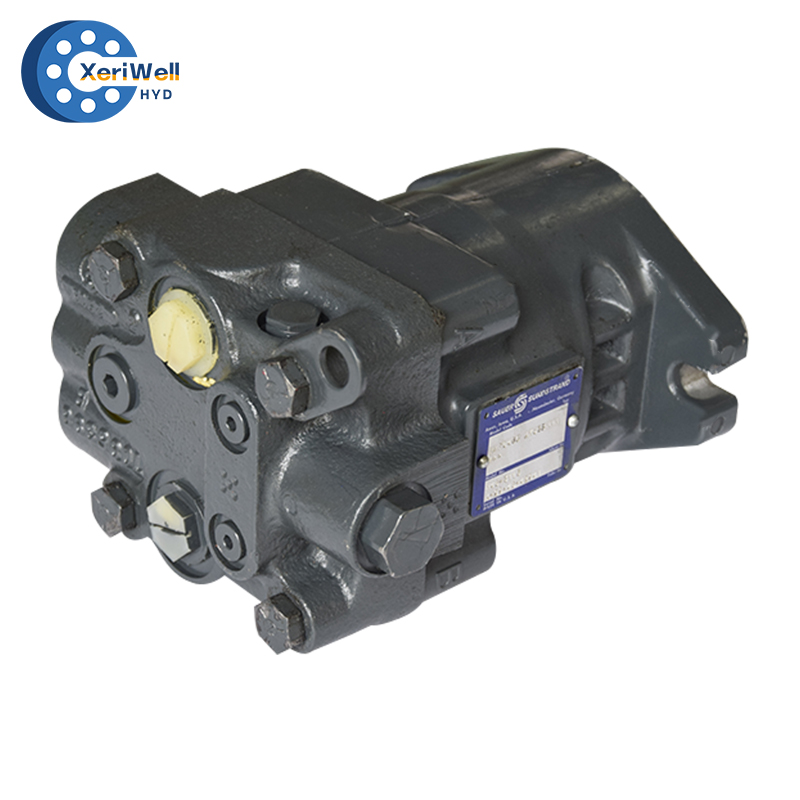

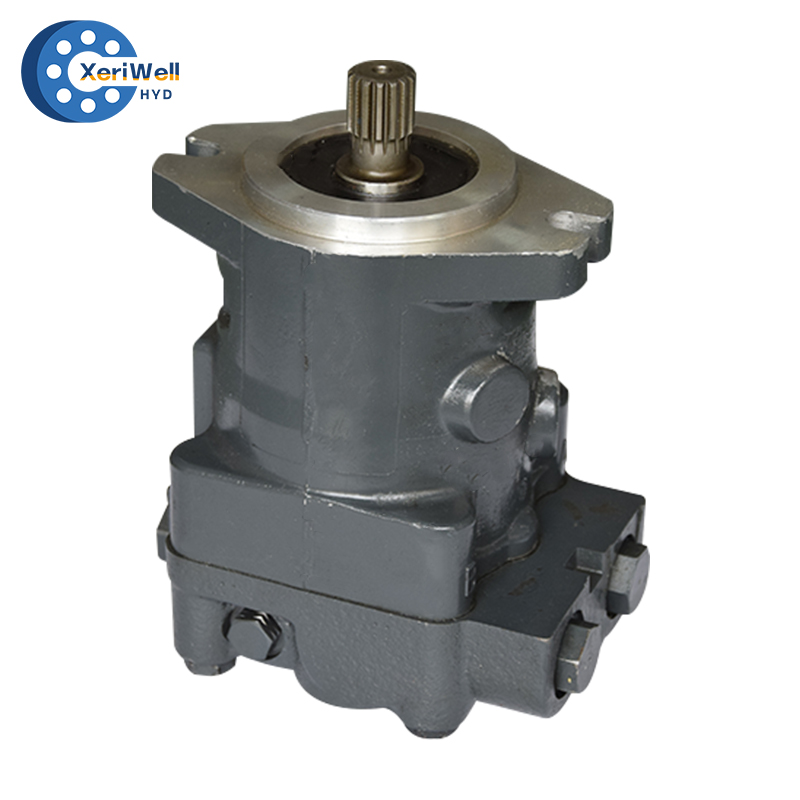

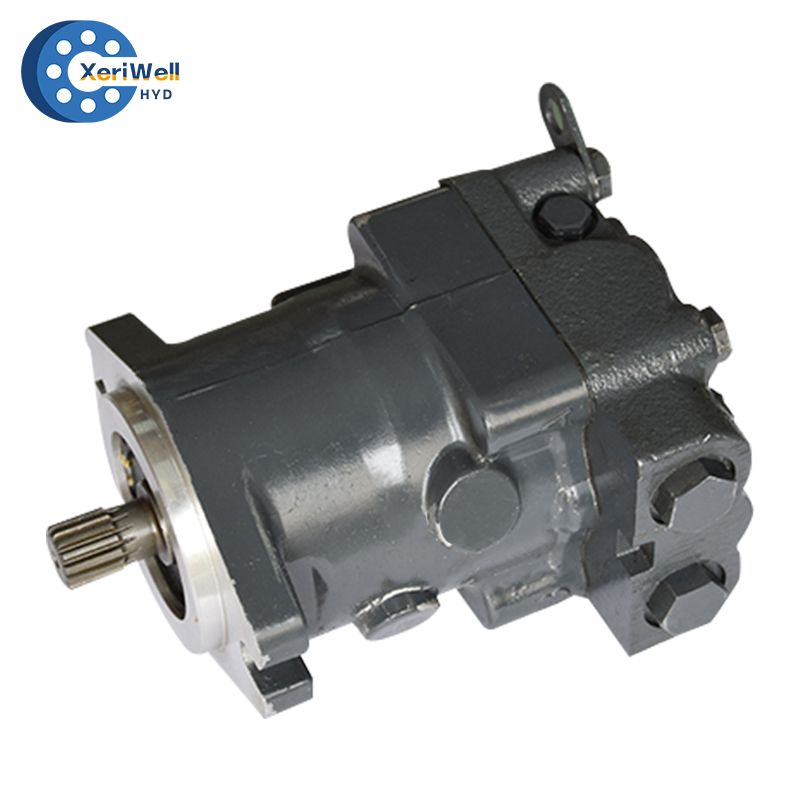

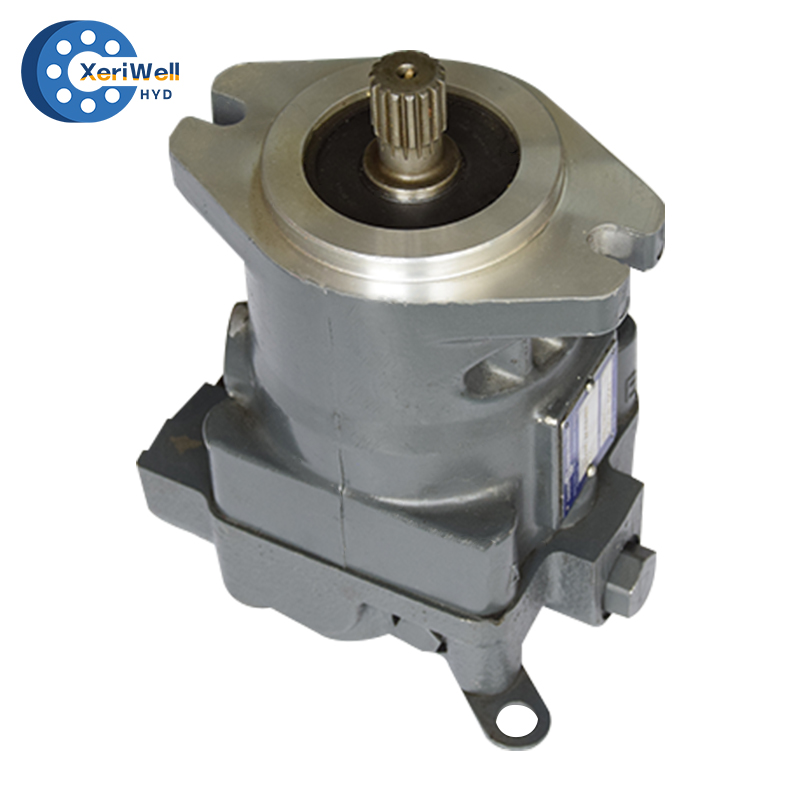

The Danfoss MMF hydraulic motor is part of the company’s fixed-displacement axial piston motor range, offering a balance of high performance and efficiency. Designed for demanding mobile applications, the MMF motors are known for their robust construction and reliable performance under continuous operation.
Key Features:
1) Fixed Displacement Design: Ensures consistent performance by maintaining a stable flow rate, ideal for applications where precise control is needed.
2) Compact Configuration: The MMF motor comes in several sizes, including displacements of 35cc and 44cc per revolution, making it suitable for compact installations.
3) High Durability: Equipped with special hardware, such as high-capacity roller bearings, enhancing operational life even in heavy-duty environments.
4) Radial Port and Loop Flush Options: Helps with heat dissipation and smooth hydraulic flow, improving system efficiency in continuous applications.
5) Customizable Shaft Configurations: The motor supports various output shaft options (e.g., splined or straight key shafts), enhancing compatibility across systems.
This motor is a reliable option for mobile machinery, delivering a high level of efficiency while being built to withstand rugged conditions.
Type: MMF25, MMF35, MMF44
Danfoss MMF Hydraulic Motor catalogue pdf manual diagram

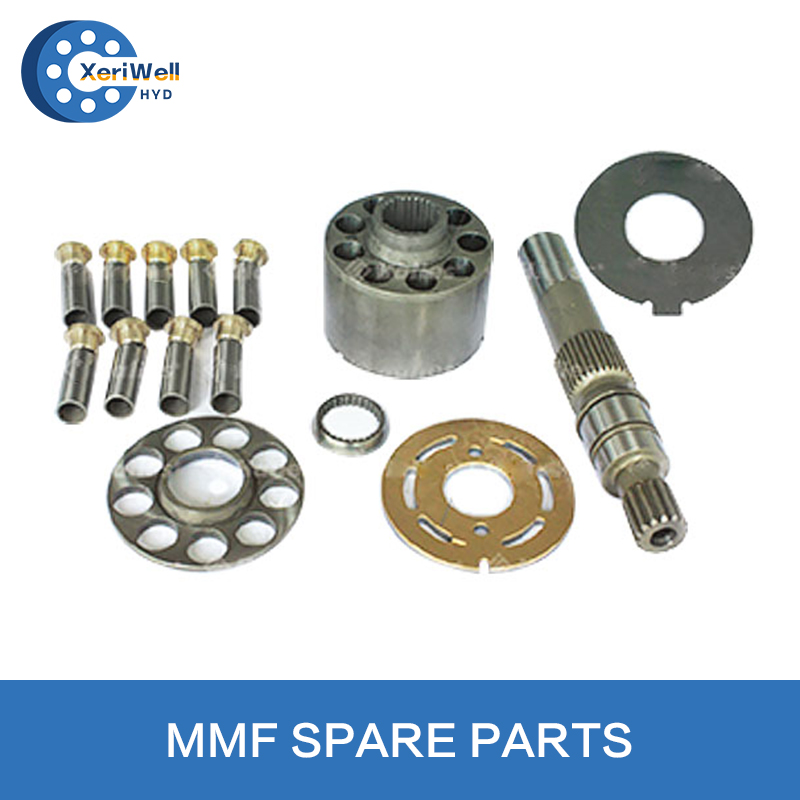

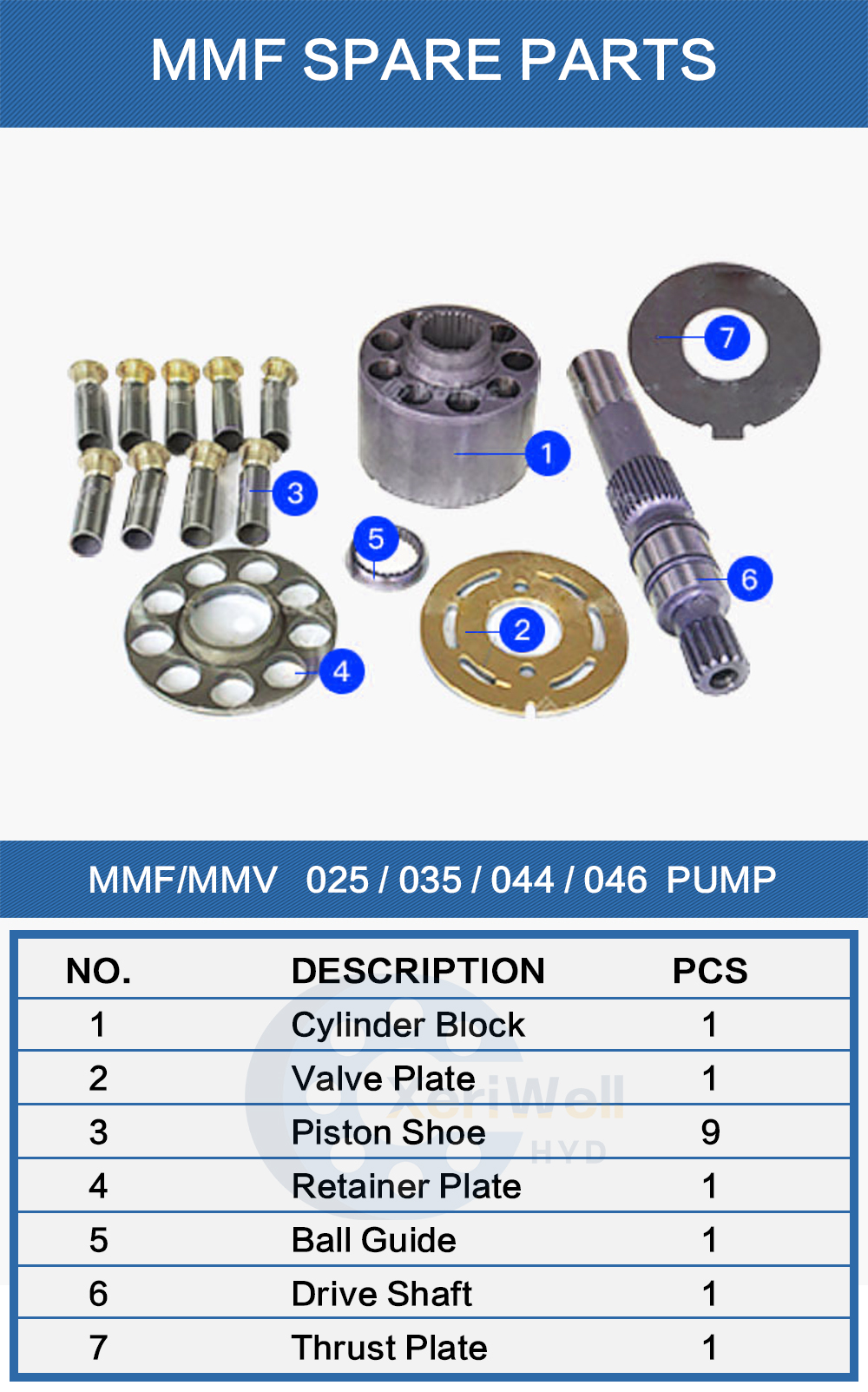

Danfoss MMF 025/035/044/046 Hydraulic Motor spare parts list:

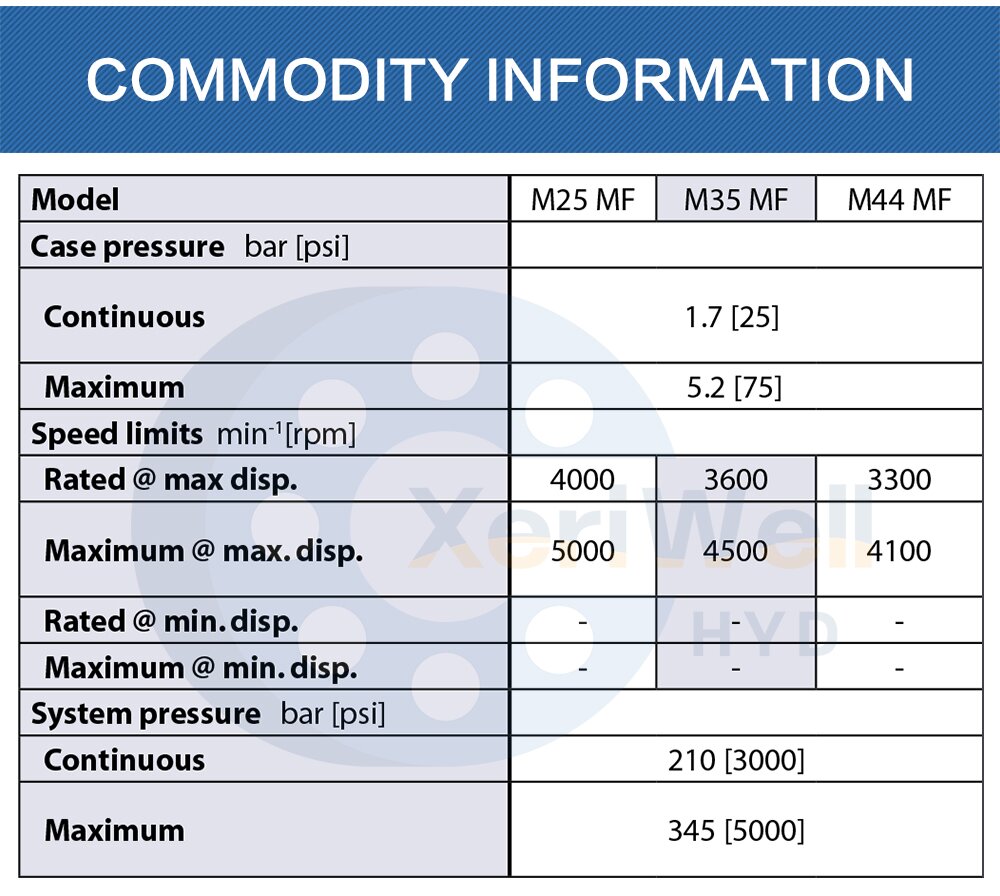

| Model | M25 MF | M35 MF | M44 MF |
| Case pressure bar [psi] | |||
| Continuous | 1.7 [25] | ||
| Maximum | 5.2 [75] | ||
| Speed limits min-1[rpm] | |||
| Rated @ max disp. | 4000 | 3600 | 3300 |
| Maximum @ max. disp. | 5000 | 4500 | 4100 |
| Rated @ min. disp. | – | – | – |
| Maximum @ min. disp. | – | – | – |
| System pressure bar [psi] | |||
| Continuous | 210 [3000] | ||
| Maximum | 345 [5000] | ||
