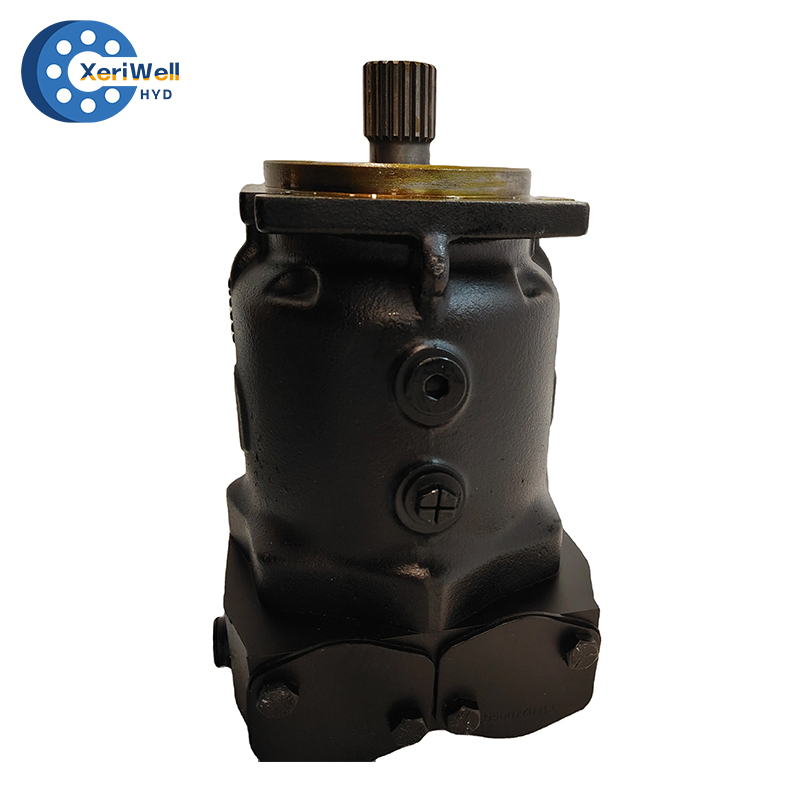

Danfoss MF Hydraulic Motor

Pictures are for display only, please contact us to choose the right product for you.

Quantity:
Type:	MF20 MF21 MF22 MF23 MF24 MF25 MF26 MF27
Spare Parts:	Cylinder Block Ball Guide Piston Shoe Retainer Plate Valve Plate Others
Availability:





Inquire Add to Basket

Model:
MF
Brand:
Xeriwell or Others

Product Description

Danfoss MF Hydraulic Motor Product Introduction

Axial piston fixed displacement MF motors, Belong to Danfoss Series 20, are of swash plate construction with preset displacement, and are intendent for closed circuit operation. The output speed is proportional to the flow rate of the input fluid. The output torque is proportional to the differential between high and low pressure sides of the fluid circuit. The direction of motor (output) shaft rotation depends upon which port the fluid enters the motor.

Series 20, are well-engineered and easy to handle. The full-lenght shaft with a highly efficient tapered roller bearing arrangement offers a high loading capacity for external radial forces. High case pressures can be achieved without leakage even at the lowest temperatures by using suitable shaft seals. The moduar construction of the units simplifies the production of a wide variety of model options while limiting the number of different components involved. Light weight, short version available on request.

Type: MF20,MF21, MF22, MF23, MF24, MF25, MF26, MF27

详情图_03

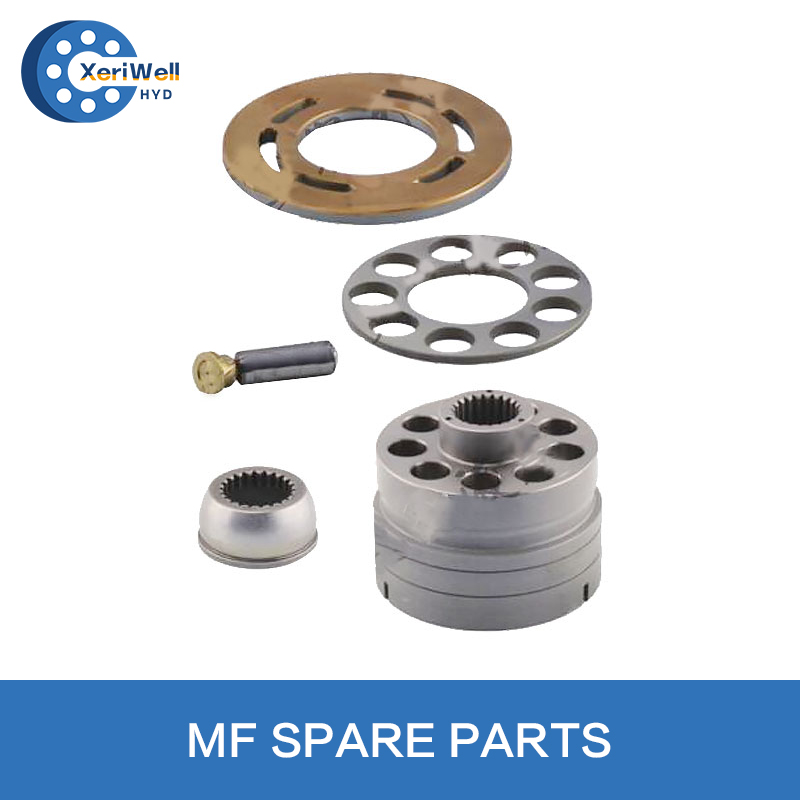

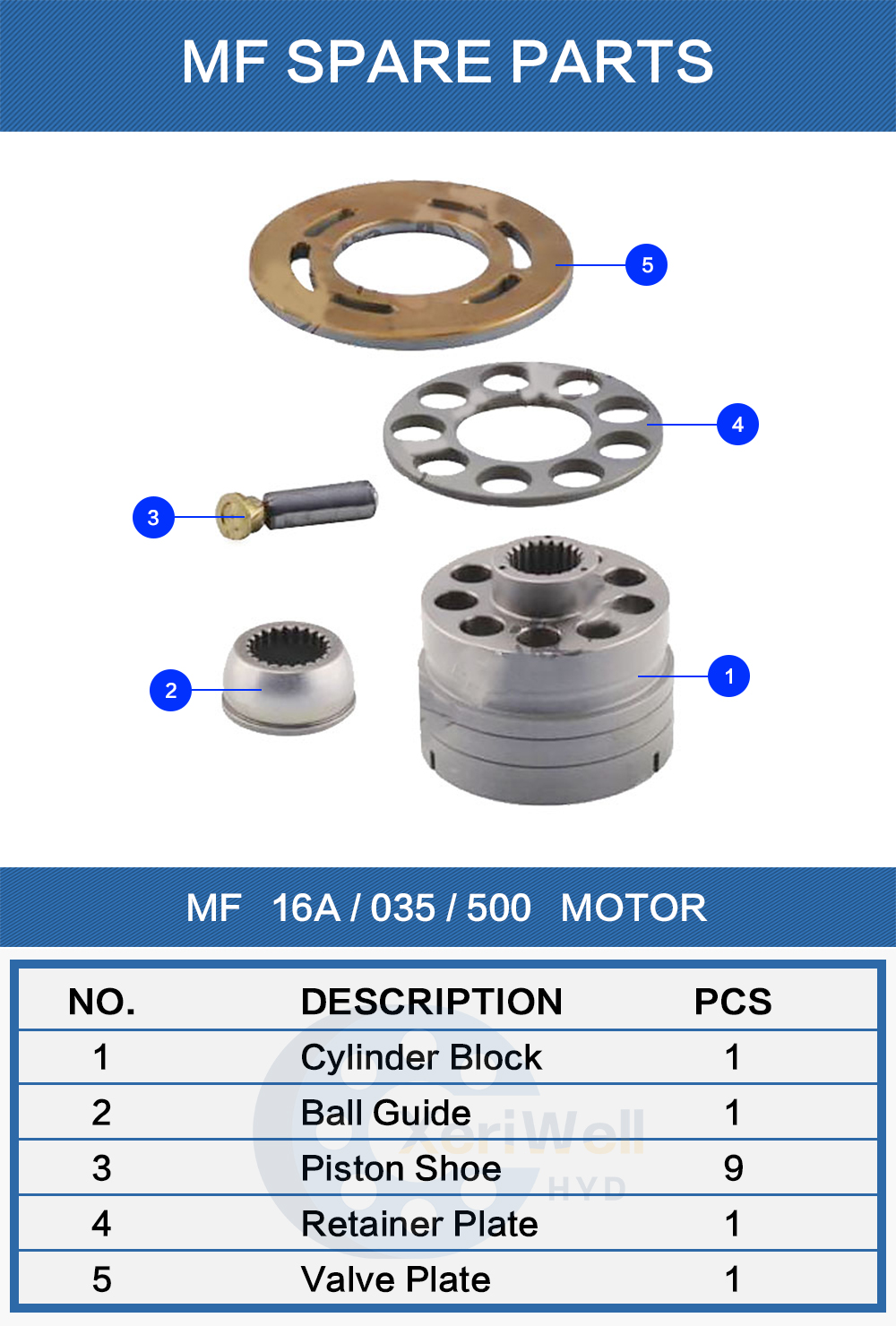

Danfoss MF 20/21/22/23/24/25/26/27 Hydraulic Motor spare parts list

hydraulic motor repair parts

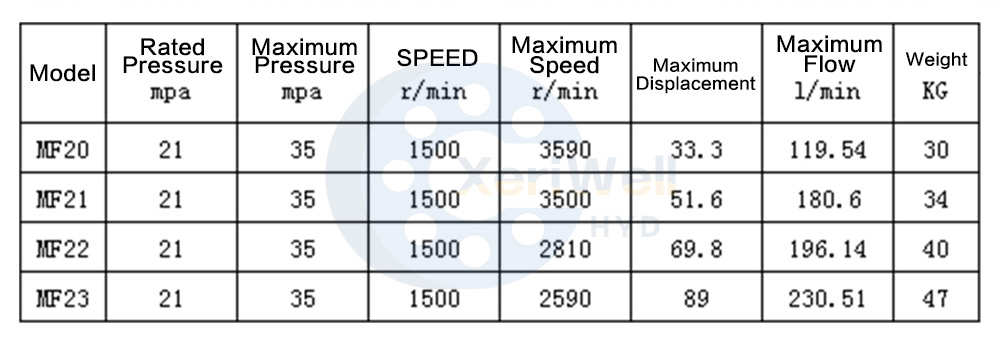

Model	Rated Pressure mpa	Maximum Pressure mpa	SPEED r/min	Maximum Speed r/min	Maximum Displacement	Maximum Flow l/min	Weight KG
MF20	21	35	1500	3590	33.3	119.54	30
MF21	21	35	1500	3500	51.6	180.6	34
MF22	21	35	1500	2810	69.8	196.14	40
MF23	21	35	1500	2590	89	230.51	47
