| spare parts : | |
|---|---|
| Quantity: | |
Xeriwell or Others

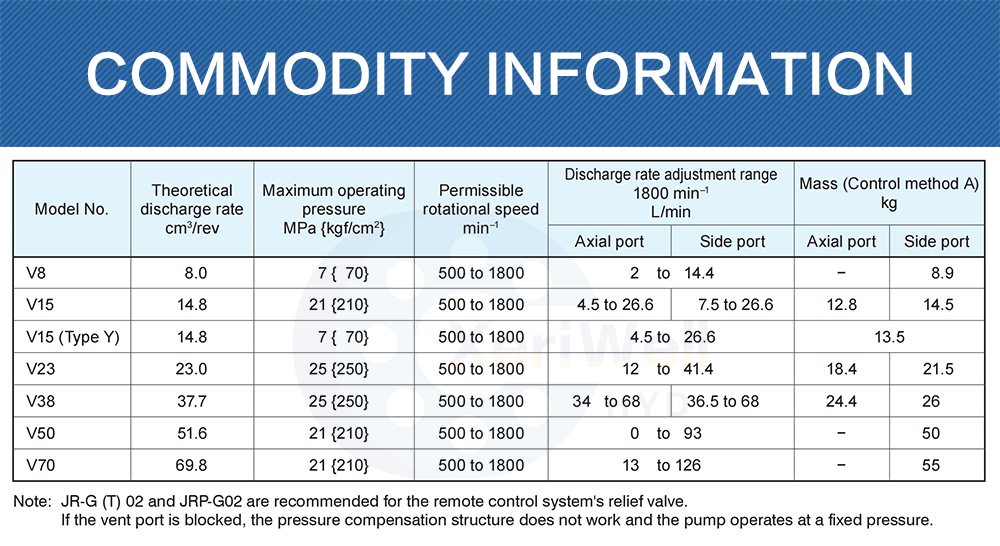

| COMMODITY INFORMATION | |||||||
| Model No. | Theoretical discharge rate cm3/rev | Maximum operating pressure MPa {kgf/cm2} | Permissible rotational speed min-1 | Discharge rate adjustment range 1800 min-1L/min | Mass (Control method A) kg | ||
| Axial port | Side port | Axial port | Side port | ||||
| V8 | 8 | 7{70} | 500 to 1800 | 2 to 14.4 | − | 8.9 | |
| V15 | 14.8 | 21{210} | 500 to 1800 | 4.5 to 26.6 | 7.5 to 26.6 | 12.8 | |
| V15 (Type Y) | 14.8 | 7{70} | 500 to 1800 | 4.5 to 26.6 | 13.5 | ||
| V23 | 23 | 25{250} | 500 to 1800 | 12 to 41.4 | 18.4 | 21.5 | |
| V38 | 37.7 | 25{250} | 500 to 1800 | 34 to 68 | 36.5 to 68 | 24.4 | 26 |
| V50 | 51.6 | 21{210} | 500 to 1800 | 0 to 93 | − | 50 | |
| V70 | 69.8 | 21{210} | 500 to 1800 | 13 to 126 | − | 55 | |
| Note:JR-G (T) 02 and JRP-G02 are recommended for the remote control system's relief valve. If the vent port is blocked,the pressure compensation structure does not work and the pump operates at a fixed pressure. | |||||||
| COMMODITY INFORMATION | |||||||||
| Model | Volume | Delivery at no load l/min | Max setting pressure | Drive speed min-1 | Mass | ||||
| cm3/rev | 1000 | 1200 | 1500 | 1800 | Min | Max | kg | ||
| min-1 | min-1 | min-1 | min-1 | ||||||
| P08-A*-F-R-01 | 8 | 8 | 9.6 | 12 | 14.4 | 255 bar | 300 | 2000 | 9 |
| P16-A*-F-R-01 | 16.5 | 16.5 | 19.8 | 24.7 | 29.7 | 300 | 2000 | 13 | |
| P22-A*-F-R-01 | 22 | 22 | 26.4 | 33 | 39.6 | 300 | 2000 | 24 | |
| P36-A*-F-R-01 | 36 | 36 | 43.2 | 54 | 64.8 | 300 | 2000 | 24 | |
| P46-A*-F-R-01 | 46 | 46 | 55.2 | 69 | 82.8 | 300 | 2000 | 24 | |
| P70-A*-F-R-01 | 70 | 70 | 84 | 105 | 126 | 286 bar | 300 | 1800 | 43 |
| P100-A*-F-R-01 | 100 | 100 | 120 | 150 | 180 | 300 | 1800 | 62 | |
