T6DR
Xeriwell or Others

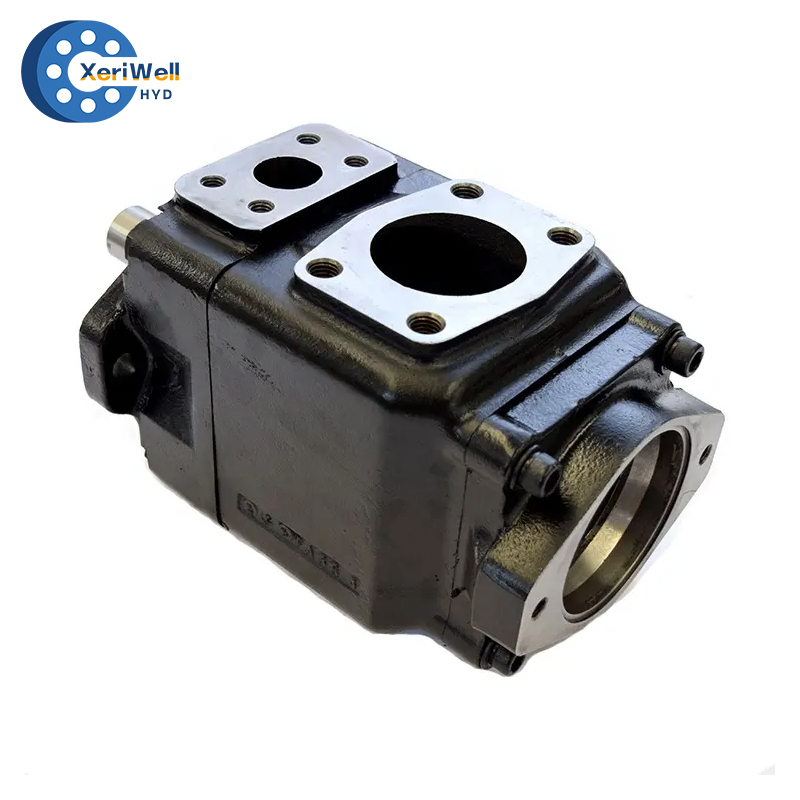

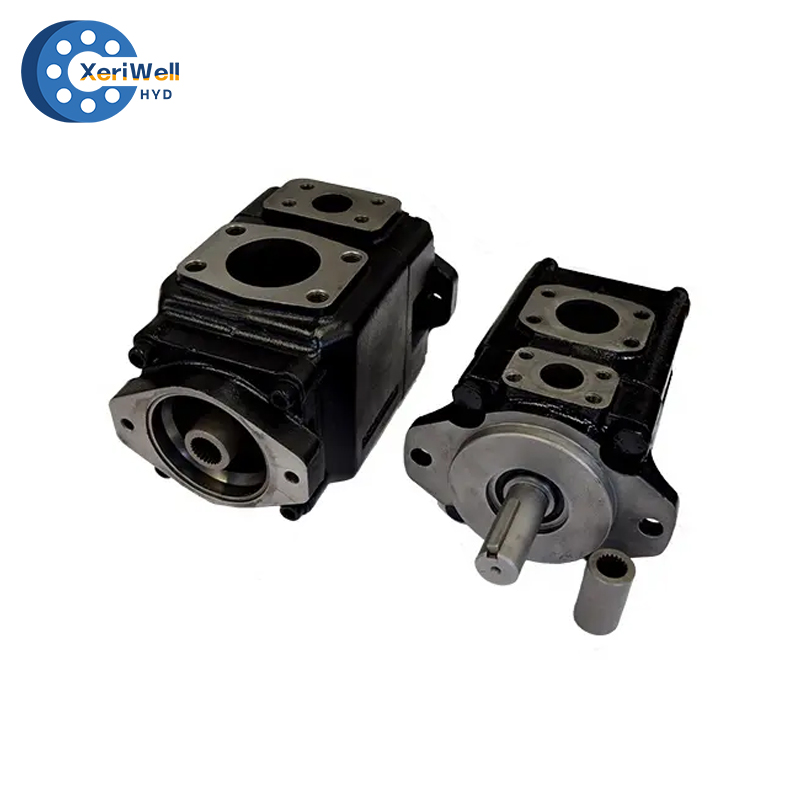

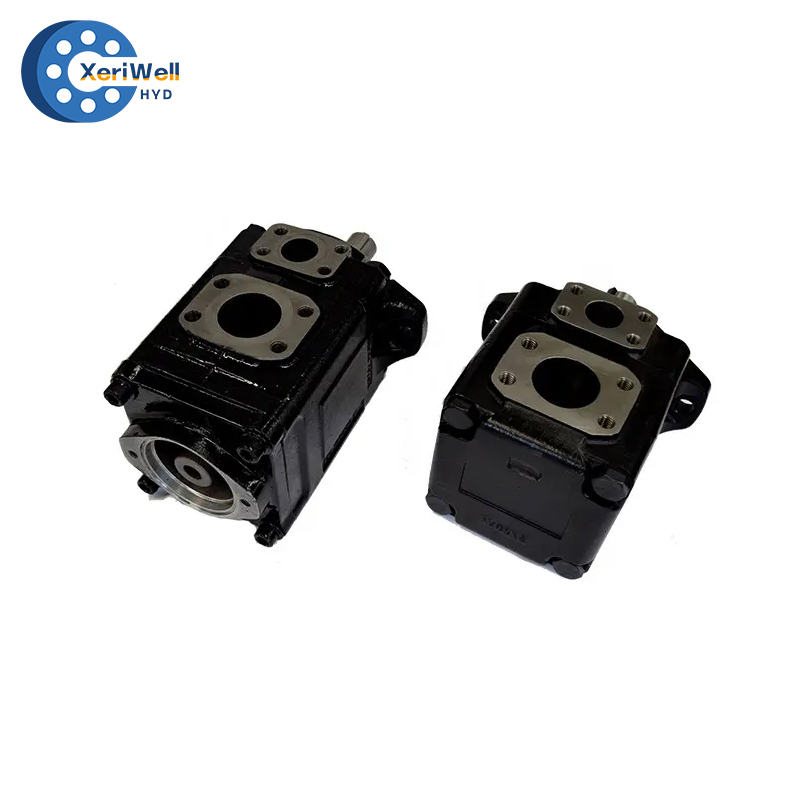

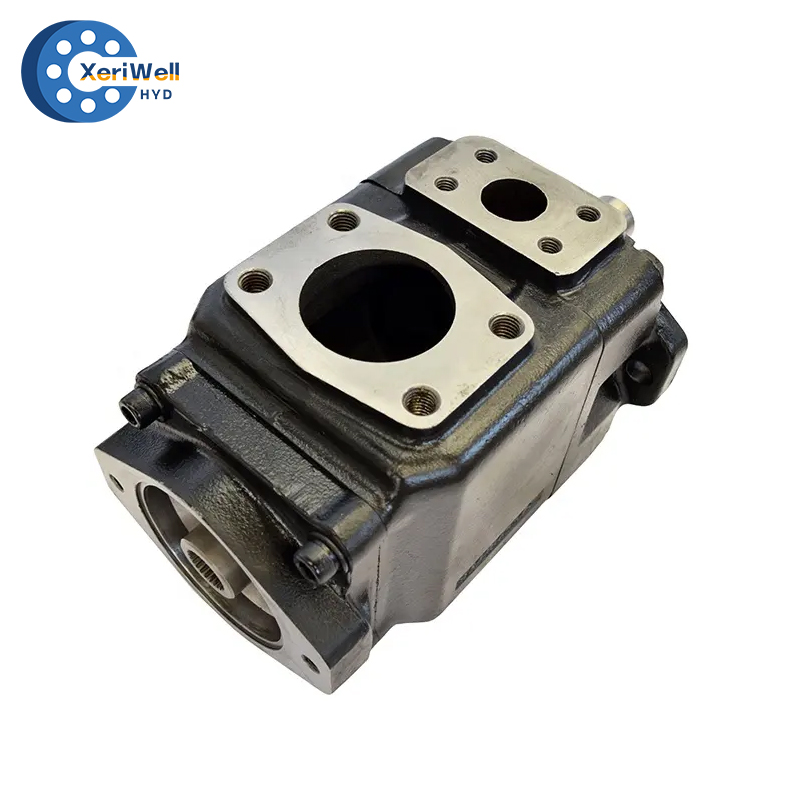

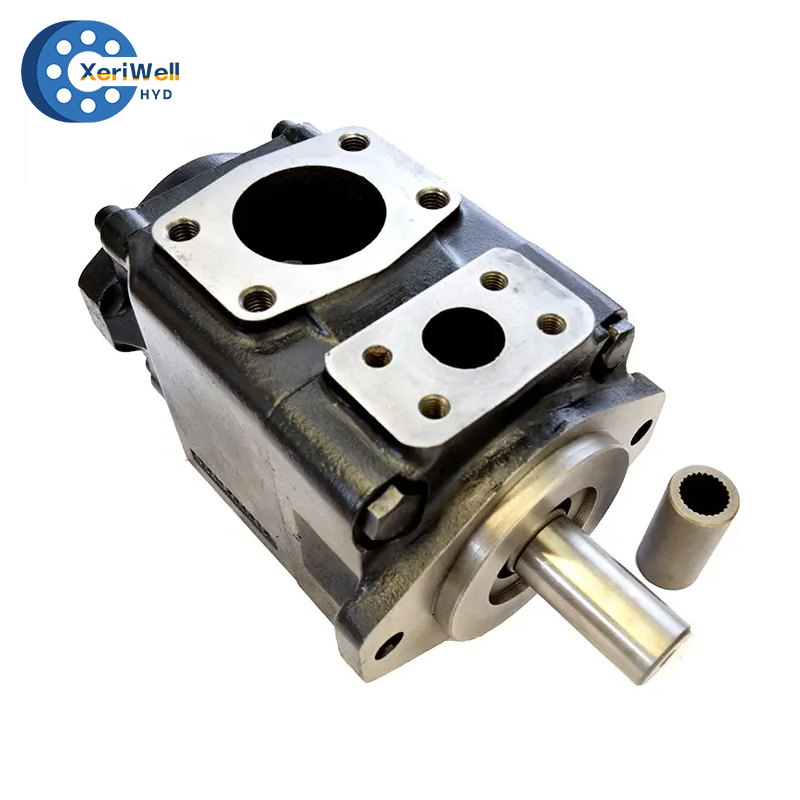

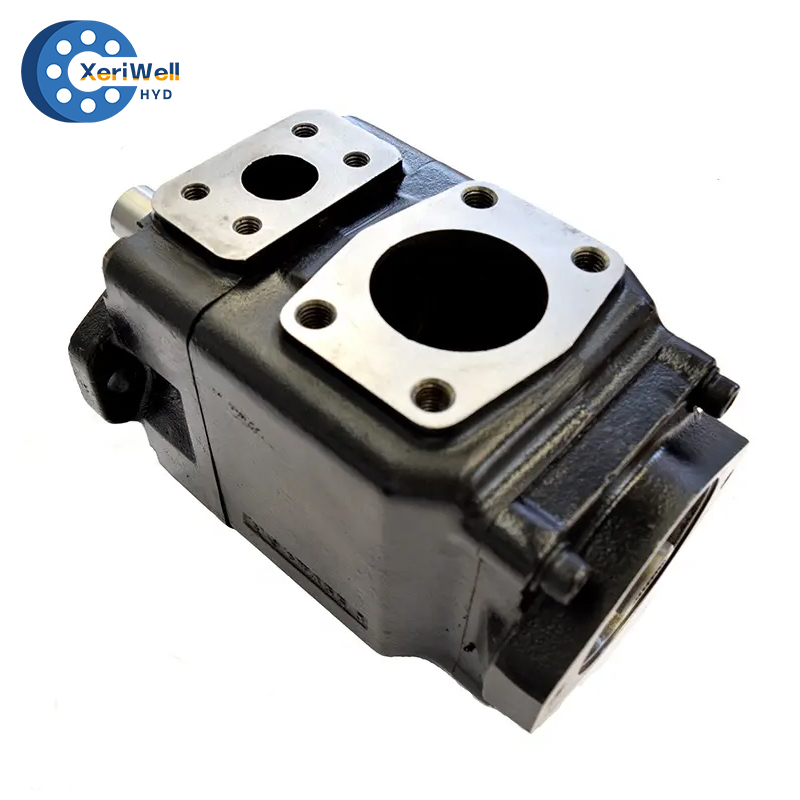

The Denison T6DR Series vane pump is a high-performance fixed-displacement pump specifically designed for industrial applications requiring reliable hydraulic power. Built with advanced vane technology, this pump offers exceptional efficiency, low noise, and robust durability, making it a trusted choice for demanding operations.
Key Features:
1) High Pressure Capability: Supports pressures up to 275 bar, enabling efficient performance in high-demand systems while reducing the size and cost of associated components like actuators and valves.
2) Exceptional Efficiency: Achieves high mechanical efficiency, typically around 94%, reducing heat generation and operational costs.
3) Low Noise and Ripple: Minimizes pressure ripple to decrease piping noise and extend the lifespan of other system components, ensuring smoother and quieter operations.
4) Cartridge Design: Features a replaceable cartridge assembly for simplified maintenance, allowing quick servicing and reduced downtime.
5) Customizable Configurations: Offers a variety of cam displacement, shaft, and porting options to meet specific system requirements.
6) Wide Speed Range: Operates efficiently across a broad speed range, ensuring versatility for different applications.
The Denison T6DR Series vane pump is a durable and efficient solution for modern hydraulic systems, providing reliable power with minimal maintenance requirements.
Type: T6DR-014, T6DR-017, T6DR-020, T6DR-024, T6DR-028, T6DR-031, T6DR-035, T6DR-038, T6DR-042, T6DR-045, T6DR-050

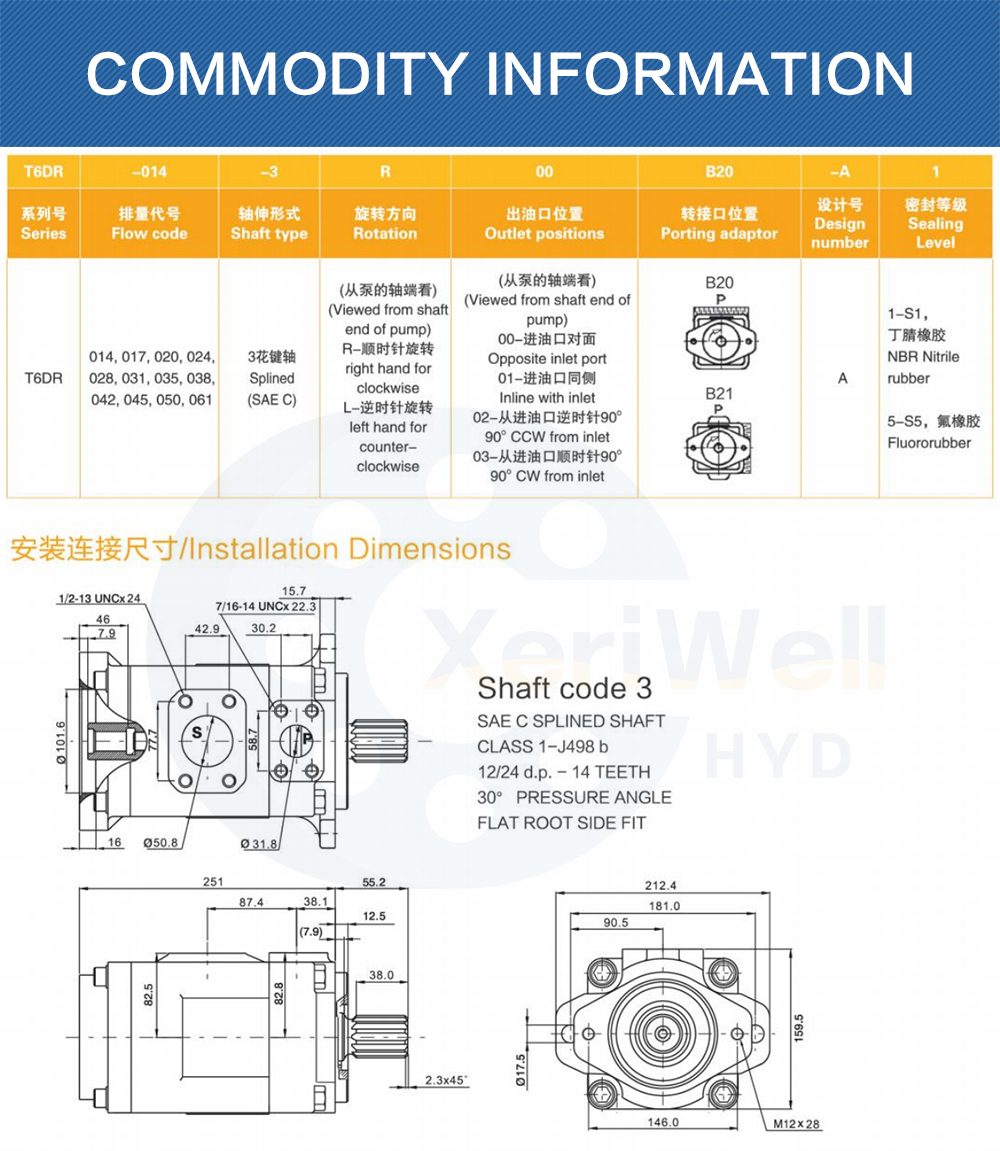

| T6DR | −014 | −3 | R | 0 | B20 | −A | 1 |
| 系列号 Series | 排量代号 Flow code | 轴伸形式 Shaft type | 旋转方向 Rotation | 出油口位置 Outlet positions | 转接口位置 Porting adaptor | 设计号 Design number | 密封等级 Sealing Level |
| T6DR | 014,017,020,024,028,031,035,038,042,045,050,061 | 3花键轴 Splined (SAE C) | (从泵的轴端看) (Viewed from shaft end of pump) R–顺时针旋转right hand for clockwise L–逆时针旋转left hand for counter–clockwise | (从泵的轴端看) (Viewed from shaft end of pump) 00–进油口对面 Opposite inlet port 01–进油口同侧 Inline with inlet 02–从进油口逆时针90° 90° CCW from inlet 03–从进油口顺时针90° 90° CW from inlet | B20 P B21 P | A | 1–S1， 丁腈橡胶 NBR Nitrile rubber 5–S5，氟橡胶 Fluororubber |
