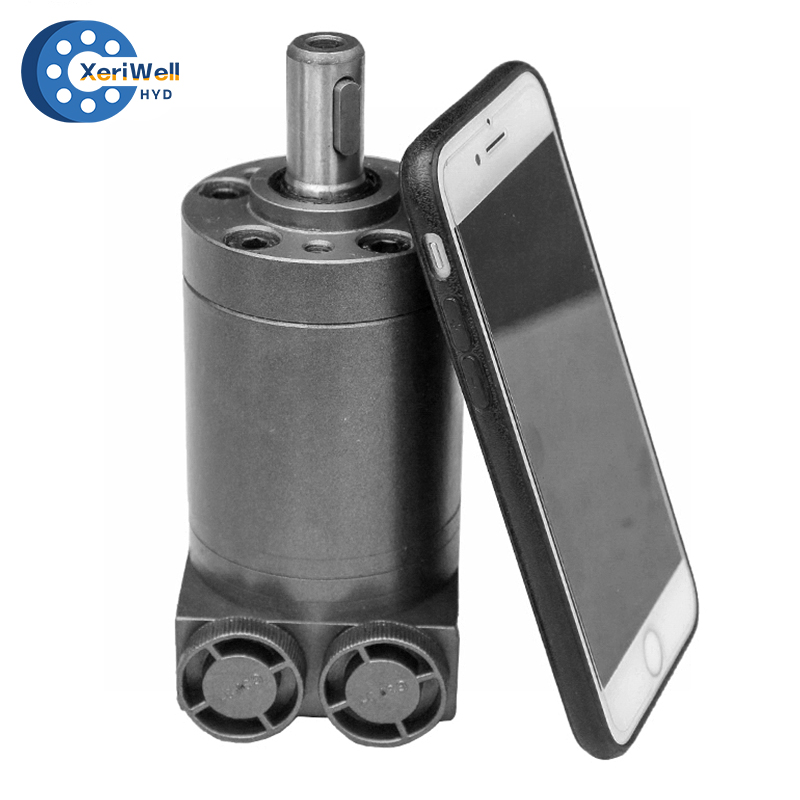

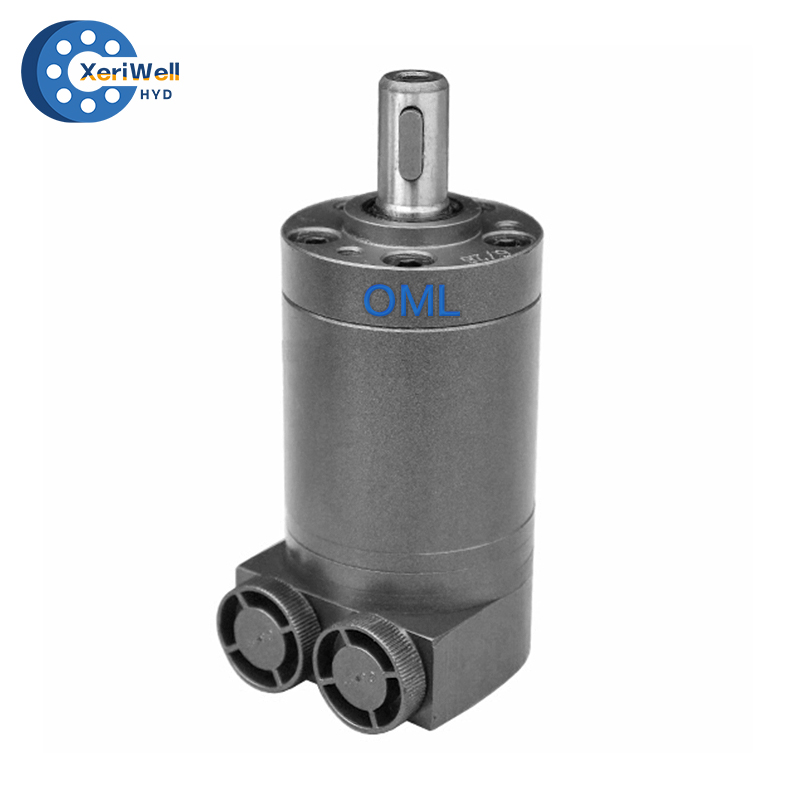

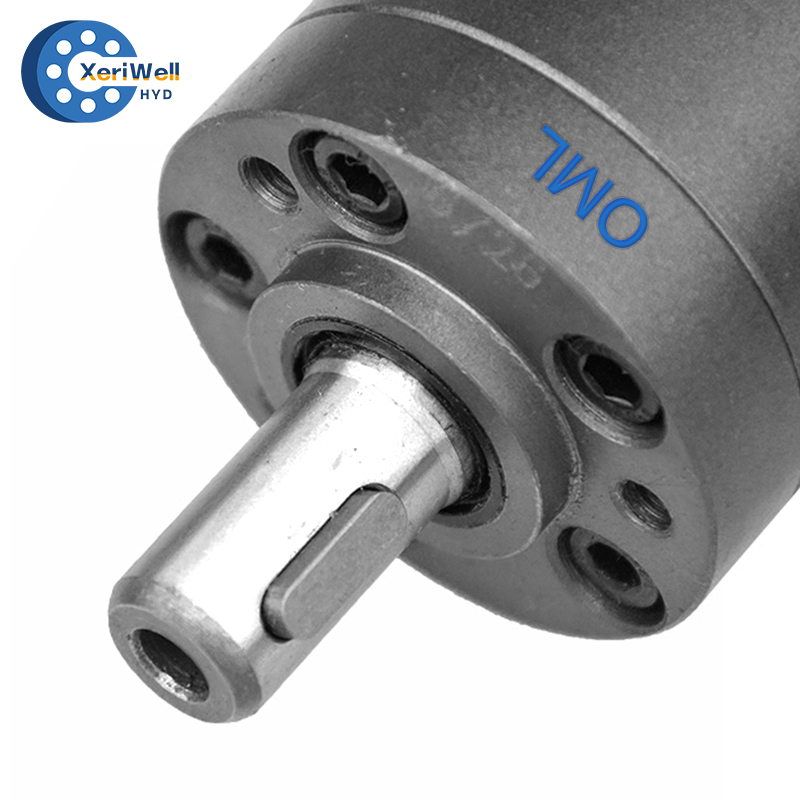

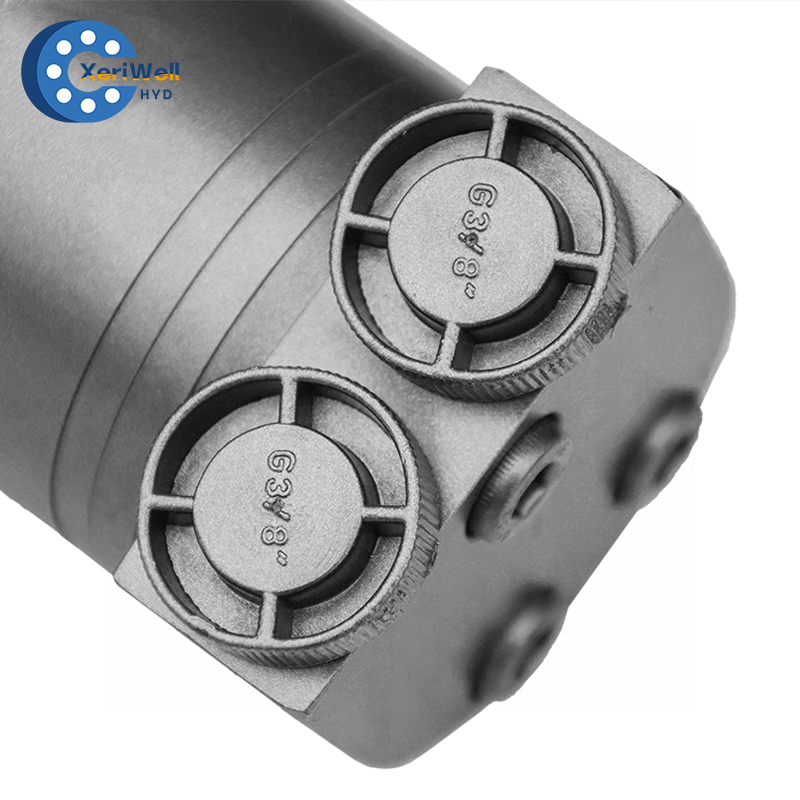

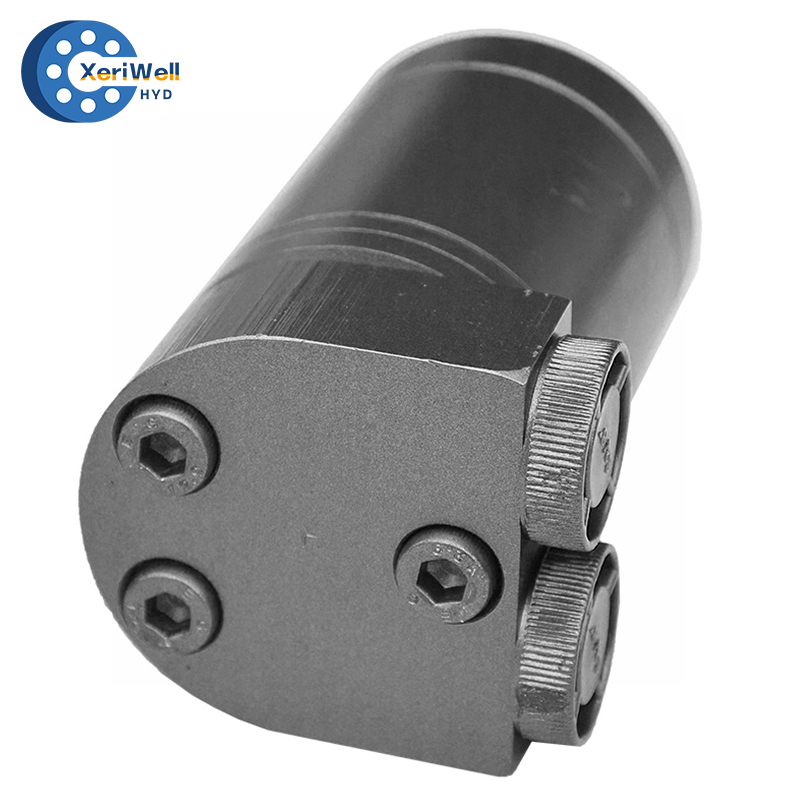

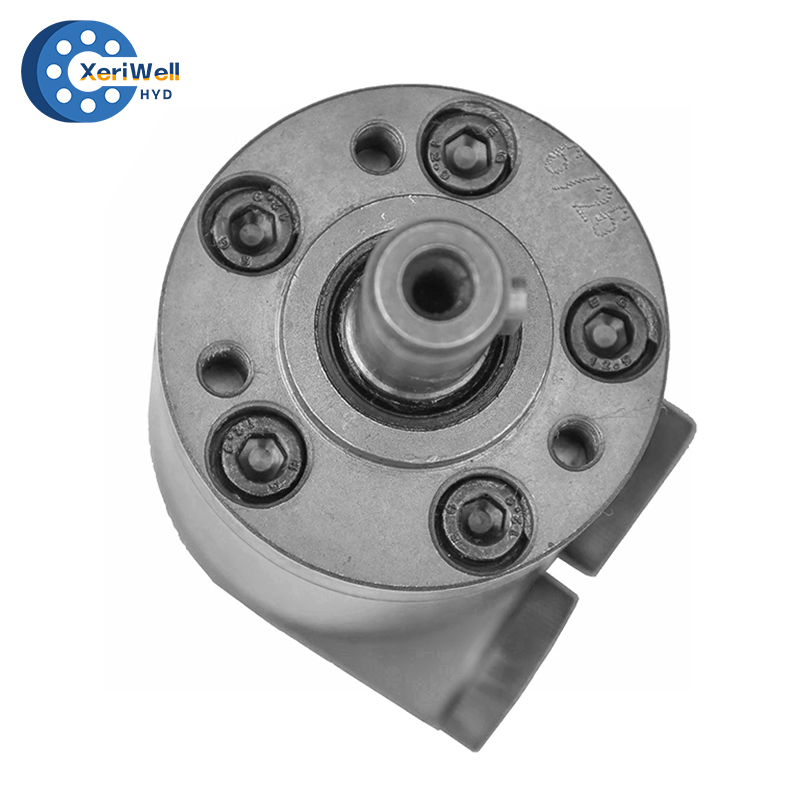

DANFOSS OML Orbital Hydraulic Motor

Name: DANFOSS OML Orbital Hydraulic Motor
Brand: Danfoss
SKU: 516508627
Rating: 5.0 (79 reviews)

Pictures are for display only, please contact us to choose the right product for you.

DANFOSS OML Orbital Hydraulic Motor and spare parts

OML 8/12.5/20/32 Orbital Hydraulic Motor technical data:

sauer danfoss hydraulic pump

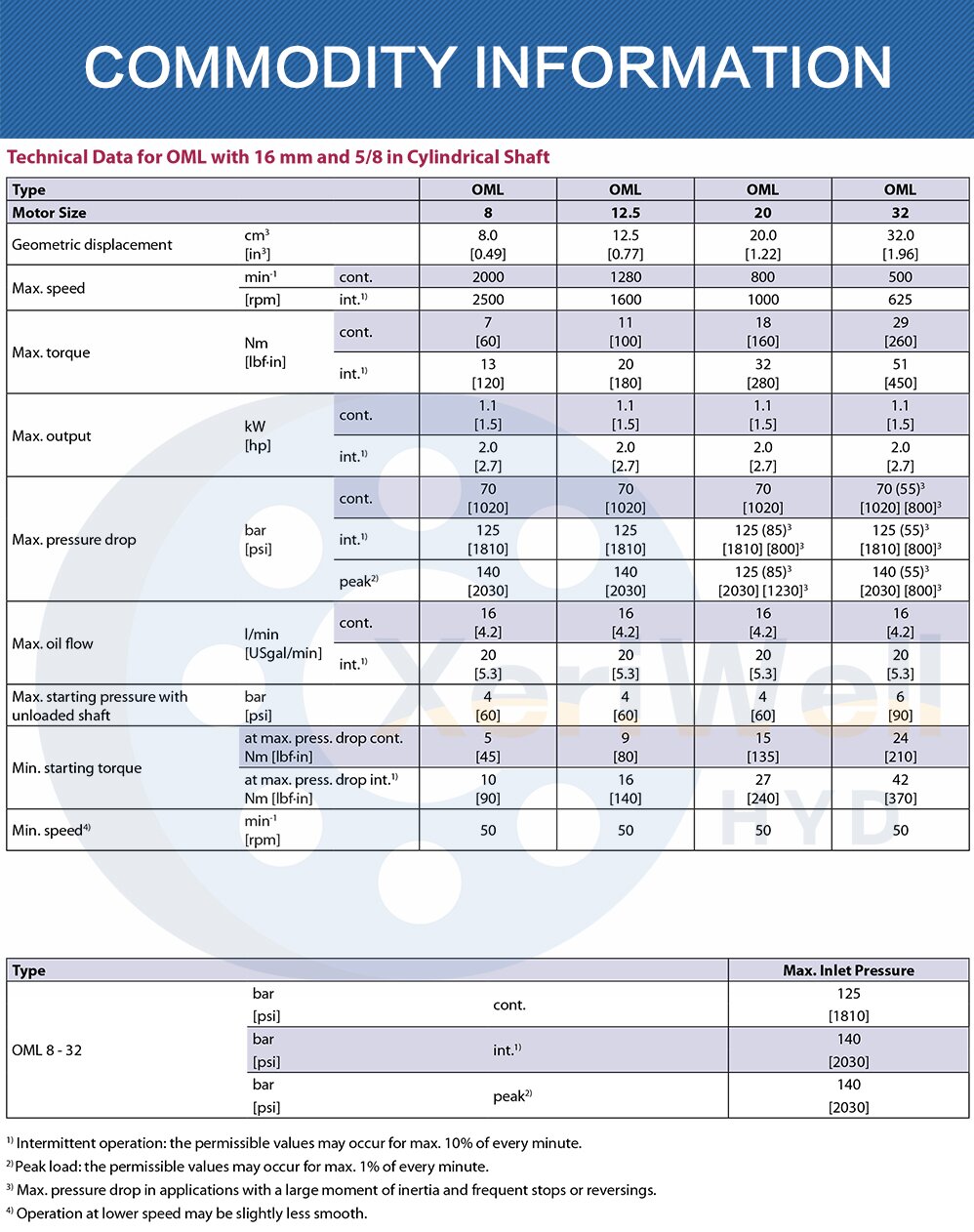

Technical Data for OML with 16 mm and 5/8 in Cylindrical Shaft

Type		OML	OML	OML	OML
Motor Size		8	12.5	20	32
Geometric displacement	cm3[in3]	8.0 [0.49]	12.5 [0.77]	20.0 [1.22]	32.0 [1.96]
Max. speed	min-1	cont.	2000	1280	800
Max. speed	[rpm]	int.1)	2500	1600	1000
Max. torque	Nm [lbf路in]	cont.	7 [60]	11 [100]	18 [160]
Max. torque	Nm [lbf路in]	int.1)	13 [120]	20 [180]	32 [280]
Max. output	kW [hp]	cont.	1.1 [1.5]	1.1 [1.5]	1.1 [1.5]
Max. output	kW [hp]	int.1)	2.0 [2.7]	2.0 [2.7]	2.0 [2.7]
Max. pressure drop	bar [psi]	cont.	70 [1020]	70 [1020]	70 [1020]
		int.1)	125 [1810]	125 [1810]	125 (85)3)[1810] [800]3)
		peak2)	140 [2030]	140 [2030]	125 (85)3)[2030] [1230]3)
Max. oil flow	l/min [USgal/min]	cont.	16 [4.2]	16 [4.2]	16 [4.2]
Max. oil flow	l/min [USgal/min]	int.1)	20 [5.3]	20 [5.3]	20 [5.3]
Max. starting pressure with unloaded shaft	bar [psi]	4 [60]	4 [60]	4 [60]	6 [90]
Min. starting torque	at max. press. drop cont. Nm [lbf路in]	5 [45]	9 [80]	15 [135]	24 [210]
Min. starting torque	at max. press. drop int.1)Nm [lbf路in]	10 [90]	16 [140]	27 [240]	42 [370]
Min. speed4)	min-1[rpm]	50	50	50	50

Type			Max. Inlet Pressure
OML 8 - 32	bar [psi]	cont.	125 [1810]
	bar [psi]	int.1)	140 [2030]
	bar [psi]	peak2)	140 [2030]
1)Intermittent operation:the permissible values may occur for max. 10% of every minute. 2)Peak load:the permissible values may occur for max. 1% of every minute. 3)Max. pressure drop in applications with a large moment of inertia and frequent stops or reversings. 4)Operation at lower speed may be slightly less smooth.
