DA
Xeriwell or Others

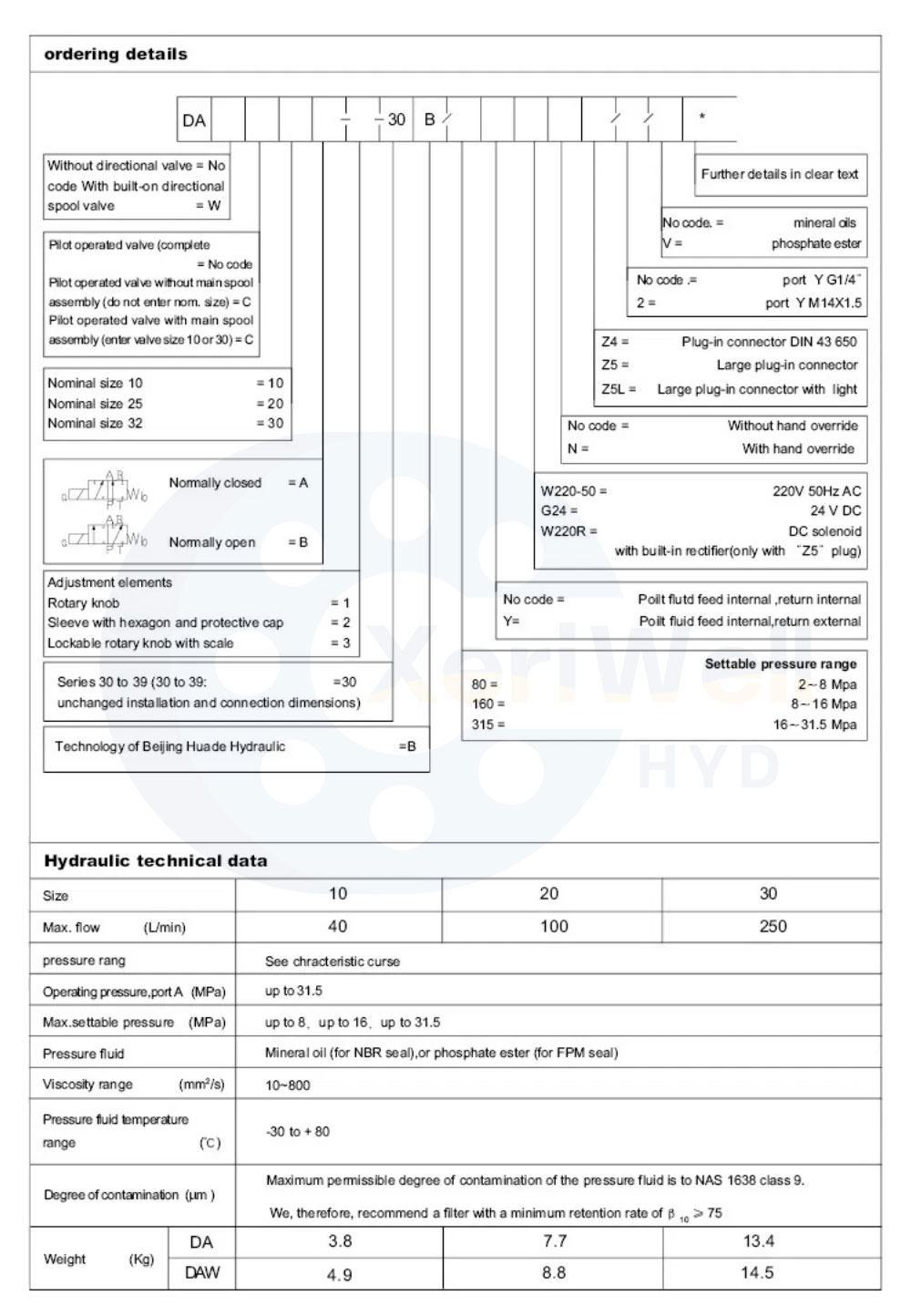

| Hydraulic technical data | ||||
| Size | 10 | 20 | 30 | |
| Max. flow (L/min) | 40 | 100 | 250 | |
| pressure rang | See chracteristic curse | |||
| Operating pressure,port A (MPa) | up to 31.5 | |||
| Max.settable pressure (MPa) | up to 8,up to 16,up to 31.5 | |||
| Pressure fluid | Mineral oil (for NBR seal),or phosphate ester (for FPM seal) | |||
| Viscosity range (mm2/s) | 10~800 | |||
| Pressure fluid temperature range (℃) | -30 to + 80 | |||
| Degree of contamination (μm ) | Maximum permissible degree of contamination of the pressure fluid is to NAS 1638 class 9. We,therefore,recommend a filter with a minimum retention rate of β10≥ 75 | |||
| Weight (Kg) | DA | 3.8 | 7.7 | 13.4 |
| DAW | 4.9 | 8.8 | 14.5 | |
