| Quantity: | |
|---|---|

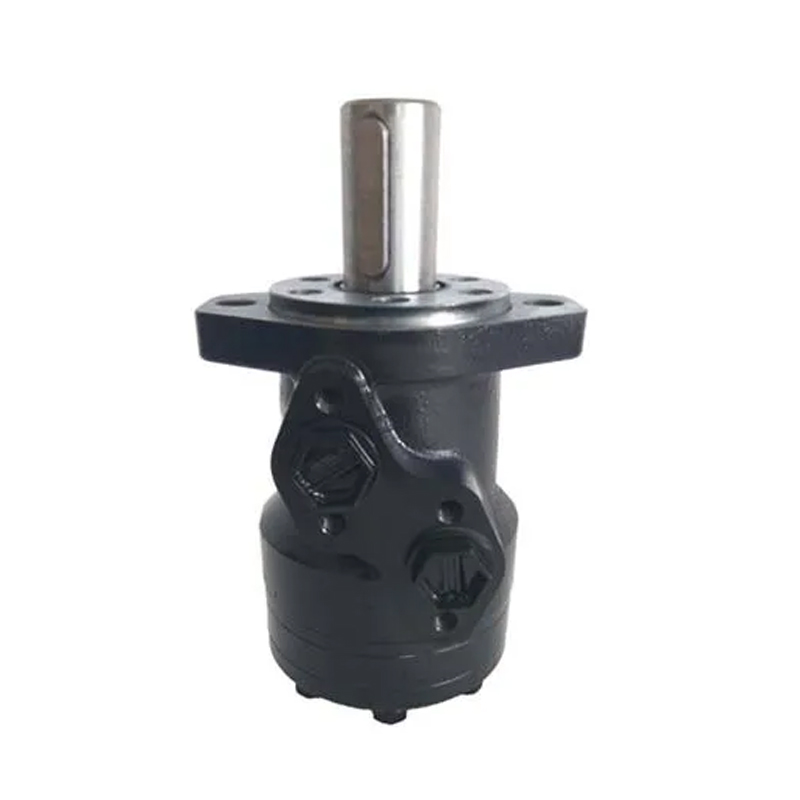

BMR Hydraulic Motors 80
Xeriwell or Others
| Features: | Same As OMR/ Eaton S,t,w/ M+S MR | Product Name: | BMR Hydraulic Motor 80 OMR Motors 80 |
|---|---|---|---|
| Brand Name: | Two Years | Model Number: | BMR |
| Displacement: | 36,50, 80, 100, 125, 160,... | Applications: | Agricultural, Forestry, Marine, Construction, Ground Care, Industrial, ... |
| Highlight: | compact hydraulic motor,omm hydraulic motor | ||
Small Hydraulic Motors BMR 80 Is The Agriculture Machinery And Industrial Machinery Needs Hydraulic Power Components
BMR motor adapt the advanced Gerolor gear set design with shaft distribution flow, which can automatically compensate in operating with high pressure , provide reliable and smooth operation, high efficiency and long life.
Characteristic Features:
* Advanced manufacturing devices for the Gerolor gear set, which use low pressure of start-up, provide smooth, reliable operation and high efficiency.
* Shaft seal can bear high pressure of back and the motor can be used in parallel or in series.
* Special design in the driver-linker and prolong operating life
* Special design for distribution system can meet the requirement of low noise of unit.
* Compact volume and easy installation.
| Type | BMR BMRS 36 | BMR BMRS 50 | BMR BMRS 80 | BMR BMRS 100 | BMR BMRS 125 | BMR BMRS 160 | BMR BMRS 200 | BMR BMRS 250 | BMR BMRS 315 | BMR BMRS 375 | |
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 | |
| Max. speed (rpm) | cont. | 1085 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
| int. | 1220 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 | |
| Max. torque (N·m) | cont. | 72 | 100 | 195 | 240 | 300 | 360 | 360 | 390 | 390 | 365 |
| int. | 83 | 126 | 220 | 280 | 340 | 430 | 440 | 490 | 535 | 495 | |
| peak | 105 | 165 | 270 | 320 | 370 | 460 | 560 | 640 | 650 | 680 | |
| Max. output (kW) | cont. | 8.5 | 9.5 | 12.5 | 13 | 12.5 | 12.5 | 10 | 7 | 6 | 5 |
| int. | 9.8 | 11.2 | 15 | 15 | 14.5 | 14 | 13 | 9.5 | 9 | 8 | |
| Max. pressure drop (MPa) | cont. | 14 | 14 | 17.5 | 17.5 | 17.5 | 16.5 | 13 | 11 | 9 | 7 |
| int. | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 17.5 | 15 | 13 | 10 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 17.5 | 15 | |
| Max. flow (L/min) | cont. | 40 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 45 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8 | 8.5 | 9 | 9.5 | |
Gerotor Hydraulic Motor BMR Hydraulic Motors 80 OMR Motors 80 Suitable for applications such as conveyor drives, winches, agricultural machinery, forest machinery, cranes, sawmill equipment and lifts/elevators.
Xeriwell serves the world's mechanical hydraulics.
Companies serving the world's mechanical hydraulics:
PARKER, Rexroth, STAUFF, HYDAC, Atos, Aeroquip, VICKERS, MOOG, HAWE, Hydraulik, MOOG Industrial, HAWE Hydraulik, Xeriwell etc.
