| Quantity: | |
|---|---|
OMS
Xeriwell or Others
| Item: | Orbital | OEM #: | OMS |
|---|---|---|---|
| Manufacturer: | Xeriwell | Displacement: | 80 - 500 Ml/r |
| Highlight: | corrosion resistant hydraulic winch motor,rescue boat system hydraulic winch motor,rescue boat system winch hydraulic motor | ||

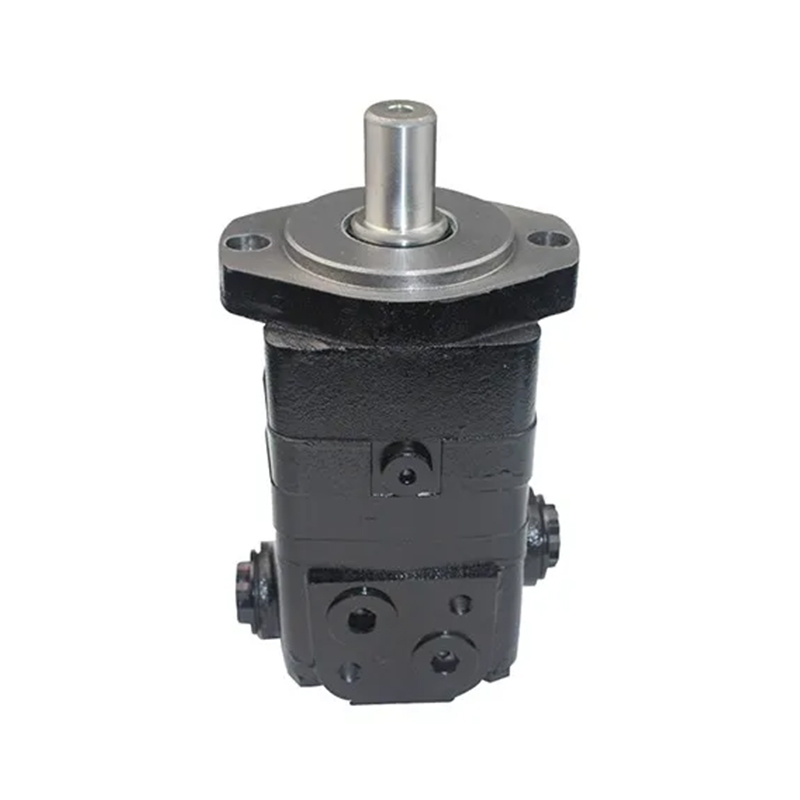

Hydraulic Winch Motor Corrosion resistant treated apply to rescue boat winch hydraulic system
Main Specification
| Type | Geometric displacement (cm3 /rev.) | Max. speed (rpm) | Max. torque (N•m) | Max. output (kW) | Max. pressure (MPa) | Max. flow (L/min) | Max. inlet pressure (MPa) | Weight (kg) | |
BMS BMSY BMSYS 200 | 194 | cont. | 375 | 485 | 18.1 | 21 | 75 | 25 | 11.1 |
| int. | 450 | 590 | 24 | 25 | 90 | 30 | |||
| peak | -- | -- | -- | 27 | -- | -- |
Main Specifications:
| Type | BMS BMSE 80 | BMS BMSE 100 | BMS BMSE 125 | BMS BMSE 160 | BMS BMSE 200 | BMS BMSE 250 | BMS BMSE 315 | BMS BMSE 375 | |
| Geometric displacement (cm3 /rev.) | 80.6 | 100.8 | 125 | 157.2 | 200 | 252 | 314.5 | 370 | |
| Max. speed (rpm) | cont. | 800 | 748 | 600 | 470 | 375 | 300 | 240 | 200 |
| int. | 988 | 900 | 720 | 560 | 450 | 360 | 280 | 240 | |
| Max. torque (N·m) | cont. | 190 | 240 | 310 | 316 | 400 | 450 | 560 | 536 |
| int. | 240 | 300 | 370 | 430 | 466 | 540 | 658 | 645 | |
| peak | 260 | 320 | 400 | 472 | 650 | 690 | 740 | 751 | |
| Max. output (kW) | cont. | 15.9 | 18.8 | 19.5 | 15.6 | 15.7 | 14.1 | 14.1 | 11.8 |
| int. | 20.1 | 23.5 | 23.2 | 21.2 | 18.3 | 17 | 18.9 | 17 | |
| Max. pressure drop (MPa) | cont. | 17.5 | 17.5 | 17.5 | 15 | 14 | 12.5 | 12 | 10 |
| int. | 21 | 21 | 21 | 21 | 16 | 16 | 14 | 12 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 18.5 | 14 | |
| Max. flow (L/min) | cont. | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 80 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |
| Max. inlet pressure (MPa) | cont. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| int. | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 9.8 | 10 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 12.6 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
The Geroler gear set is processed with sophisticated manufacturing technology. It boasts low starting pressure, delivering smooth, stable operation and high working efficiency.
The output shaft is fitted with tapered roller bearings, capable of bearing high axial and radial loads. It achieves excellent high-pressure and high-torque performance for a wide range of applications.
The optimized disc flow distribution design enables automatic wear compensation during operation, ensuring high volumetric efficiency, long service life, as well as steady and reliable running performance.
This new series motor is perfectly suited for machinery and vehicles working under heavy load and large pressure drop conditions.
