| Quantity: | |
|---|---|
BMPH
Xeriwell or Others
| Model No.: | BMPH/charlynn H | Displacement: | 200cc |
|---|---|---|---|
| Speed: | 310/385rpm | Torque: | 360/440Nm |
| Max Power: | 10/12KW | Max Flow: | 60/75l/min |
| Certificate: | CE/ISO Certificate | Shaft: | 1inch Straight Key |
| Highlight: | corn Harvester head motor,200cc Low Speed High Torque Motor,10kw Low Speed High Torque Motor | ||

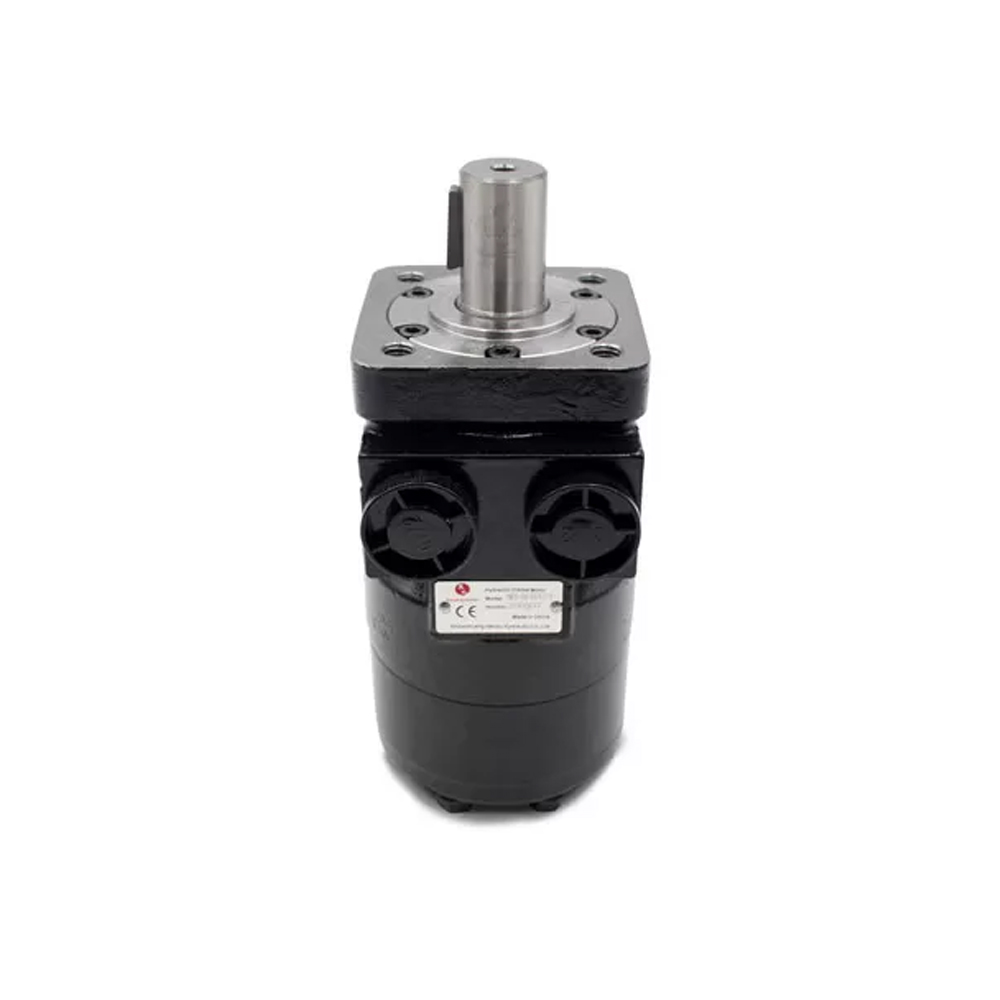

Corn Harvester Head Parts Low Speed High Torque Motor 4 Bolt Eaton Alternative 101-1012-009
Xeriwell brand type BMPH-200 used on John Deere - Corn Head Parts: 493, 494, 606, 608, 612, 616, 618, 693, 694, 893, 894, 1293
Replacement Hydraulic Motor for Roll a Cone down corn system
Type: LSHT Gerotor
Series: BMPH Series
Displacement: 9.7 cu-Inch-rev
Pressure Rating: 1650 psi
Speed: 385 Rpm
Output Torque: 2059 Inch-lb
Flow Rate: 15 gpm
Port Type: Side
Port Size: 7/8-14 O-ring

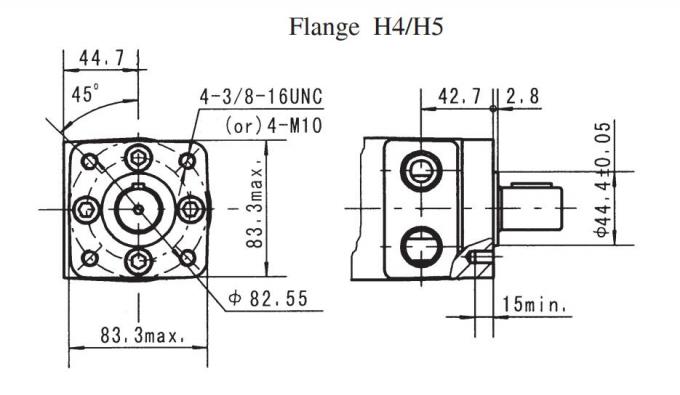

Mounting Type: 4-Bolt, φ44.4x2.8Pilot
Oil Temperature: 180 deg F
Shaft Size: 1 Inch Dia, keyed
| Model No.: | BMPH/charlynn H | Displacement: | 200cc |
|---|---|---|---|
| Speed: | 310/385rpm | Torque: | 360/440Nm |
| Max Power: | 10/12KW | Max Flow: | 60/75l/min |
| Certificate: | CE/ISO Certificate | Shaft: | 1inch Straight Key |
| Highlight: | corn Harvester head motor,200cc Low Speed High Torque Motor,10kw Low Speed High Torque Motor | ||
Corn Harvester Head Parts Low Speed High Torque Motor 4 Bolt Eaton Alternative 101-1012-009
Xeriwell brand type BMPH-200 used on John Deere - Corn Head Parts: 493, 494, 606, 608, 612, 616, 618, 693, 694, 893, 894, 1293
Replacement Hydraulic Motor for Roll a Cone down corn system
Type: LSHT Gerotor
Series: BMPH Series
Displacement: 9.7 cu-Inch-rev
Pressure Rating: 1650 psi
Speed: 385 Rpm
Output Torque: 2059 Inch-lb
Flow Rate: 15 gpm
Port Type: Side
Port Size: 7/8-14 O-ring
Mounting Type: 4-Bolt, φ44.4x2.8Pilot
Oil Temperature: 180 deg F
Shaft Size: 1 Inch Dia, keyed
