| Quantity: | |
|---|---|
BMV MOTOR
Xeriwell or Others
| Material: | Cast Iron /Steel | Application: | Construction Machines, Mine Machines |
|---|---|---|---|
| Displacement: | 400cc | Max.speed(rpm): | Cont.320rpm/int.380rpm |
| Max.torque(N.m): | Cont.1660N.m/int.1940N.m | Max.pressure Drop: | Cont.18mpa/int.21Mpa |
| Oil Temperature: | Normal-35℃-80℃ | Viscosity: | 42-74mm2/s |
| Highlight: | 400cc hydraulic disc motor,Conveyor Feeder hydraulic disc motor,Hydraulic Geroler Disc Motor | ||

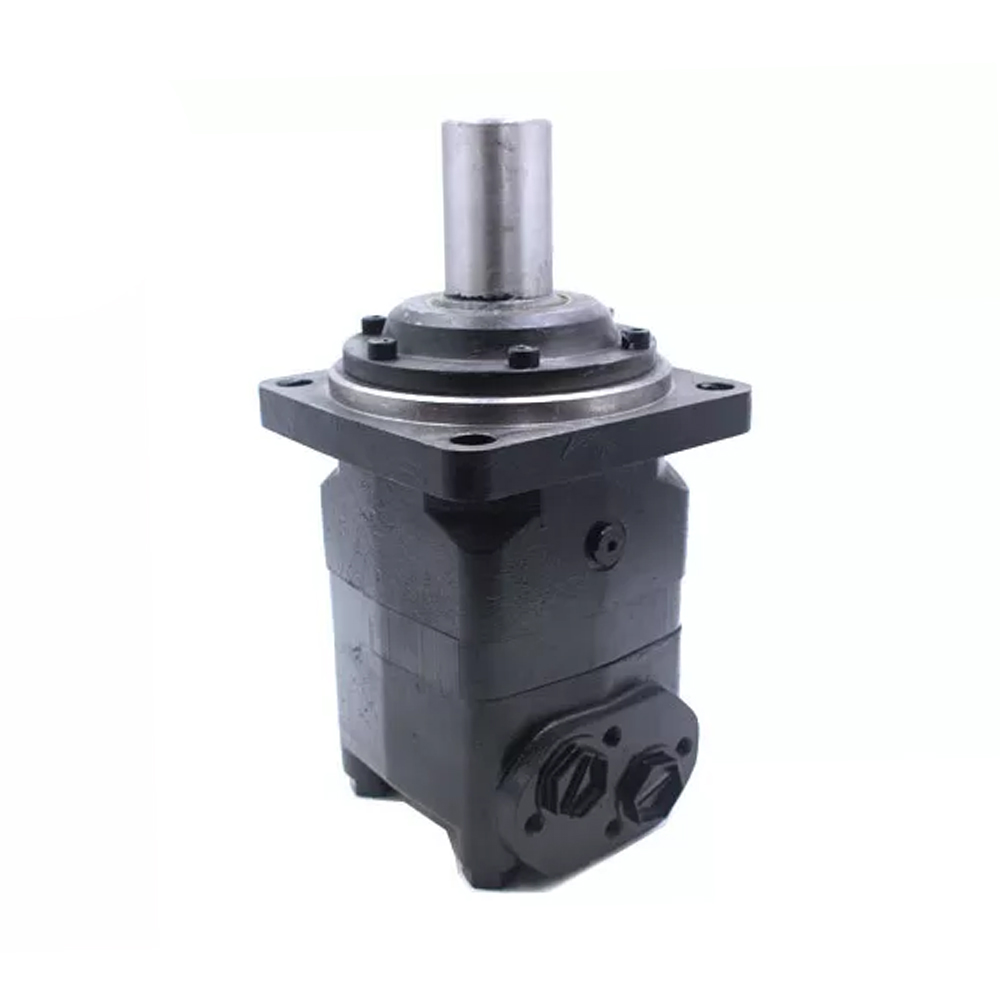

Conveyor Feeder ECOStack Aggregate Equipment head drive hydraulic gerolor disc motor
Xeriwell BMT400 widely used on conveyor/feeder/stack drive head
Before starting, check the motor installation, whether the connection is correct and firm, and the system is correct.
Check whether the oil inlet and outlet directions and motor rotation direction meet the requirements of working conditions.
The pressure of the relief valve of the oil supply line is adjusted to the lowest value, and gradually adjusted to the required pressure after operation. Tighten the inlet and outlet pipes and the drain pipe.
After running the motor under no load for at least 10 minutes, gradually increase the pressure to the working pressure, and observe whether the motor is running normally at any time during the operation.
During operation, the working conditions of the motor and system should be checked frequently. If abnormal temperature rise, leakage, vibration and noise or abnormal pulsation of pressure are found, the machine should be stopped immediately to find out the cause.
Main Specification:
| Type | BMV 315 | BMV 400 | BMV 500 | BMV 630 | BMV 800 | BMV 1000 | |
| Geometric displacement (cm3 /rev.) | 333 | 419 | 518 | 666 | 801 | 990 | |
| Max. speed (rpm) | cont. | 510 | 500 | 400 | 320 | 250 | 200 |
| int. | 630 | 600 | 480 | 380 | 300 | 240 | |
| Max. torque (N·m) | cont. | 920 | 1180 | 1460 | 1660 | 1880 | 2015 |
| int. | 1110 | 1410 | 1760 | 1940 | 2110 | 2280 | |
| peak | 1290 | 1640 | 2050 | 2210 | 2470 | 2400 | |
| Max. output (kW) | cont. | 38 | 47 | 47 | 40 | 33 | 28.6 |
| int. | 46 | 56 | 56 | 56 | 44 | 40 | |
| Max. pressure drop (MPa) | cont. | 20 | 20 | 20 | 18 | 16 | 14 |
| int. | 24 | 24 | 24 | 21 | 18 | 16 | |
| peak | 28 | 28 | 28 | 24 | 21 | 18 | |
| Max. flow (L/min) | cont. | 160 | 200 | 200 | 200 | 200 | 200 |
| int. | 200 | 240 | 240 | 240 | 240 | 240 | |
| Weight (kg) | 31.8 | 32.6 | 33.5 | 34.9 | 36.5 | 38.6 | |
CHARACTERISTIC FEATURES:
Constant operating torque over a wide speed range
Smooth running over the entire speed range
High starting torque
High efficiency
High return pressure without the use of drain line (High pressure shaft seal)
Long life under extreme operating conditions
High radial and axial bearing capacity
Robust and compact design
Suitable for a wide varie
APPLICATIONS:
Mobile equipment
Snow Removal, mowing
Spayer, trencher
Wood products
Material Handling Equipment
Oil & Gas
Forestry Equipment
Mining
Xeriwell is specializes in designing and producing any type of motor and steering gear required by our customers, from large to small, from low to high displacement. And can replace , Eaton, M + S series models. Products are widely used in engineering machinery, mining machinery, metallurgical machinery, petroleum machinery, agricultural machinery, injection molding machinery, fishery machinery, military engineering and other fields.
My factory takes honesty first and quality first as its motto. From the employees' posts to the raw materials, to the factory, from parts processing and assembly advice to product leaving, there is a relatively complete product quality system. And passed CE certification. Our factory is committed to establishing an internationally renowned brand and looks forward to long-term cooperation with more demanders of hydraulic products.
we are willing to be your new supplier, because our products have lower price and good performance,will saving you more extra cost,the best after sale service will less complaint from your consumers,also stable delivery will make you have enough stock.
